mf6filekeystringmodule Module Reference

Period block keystring-based input loader. More...

Data Types
type	keystringloadtype
	Keystring period block loader. More...

Functions/Subroutines
subroutine	ainit (this, mf6_input, component_name, component_input_name, input_name, iperblock, parser, iout)
subroutine	df (this)
subroutine	ts_advance (this)

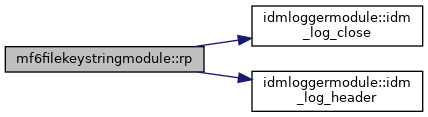

subroutine	rp (this, parser)
subroutine	reset (this)
subroutine	destroy (this)
integer(i4b) function	resolve_nfeatures (this)
	Resolve the permanent array's feature count: ctxmaxbound divided by the keystring member count, reversing the nodes*nmembers/DIMENSIONS-based scaling LoadContext applies. More...

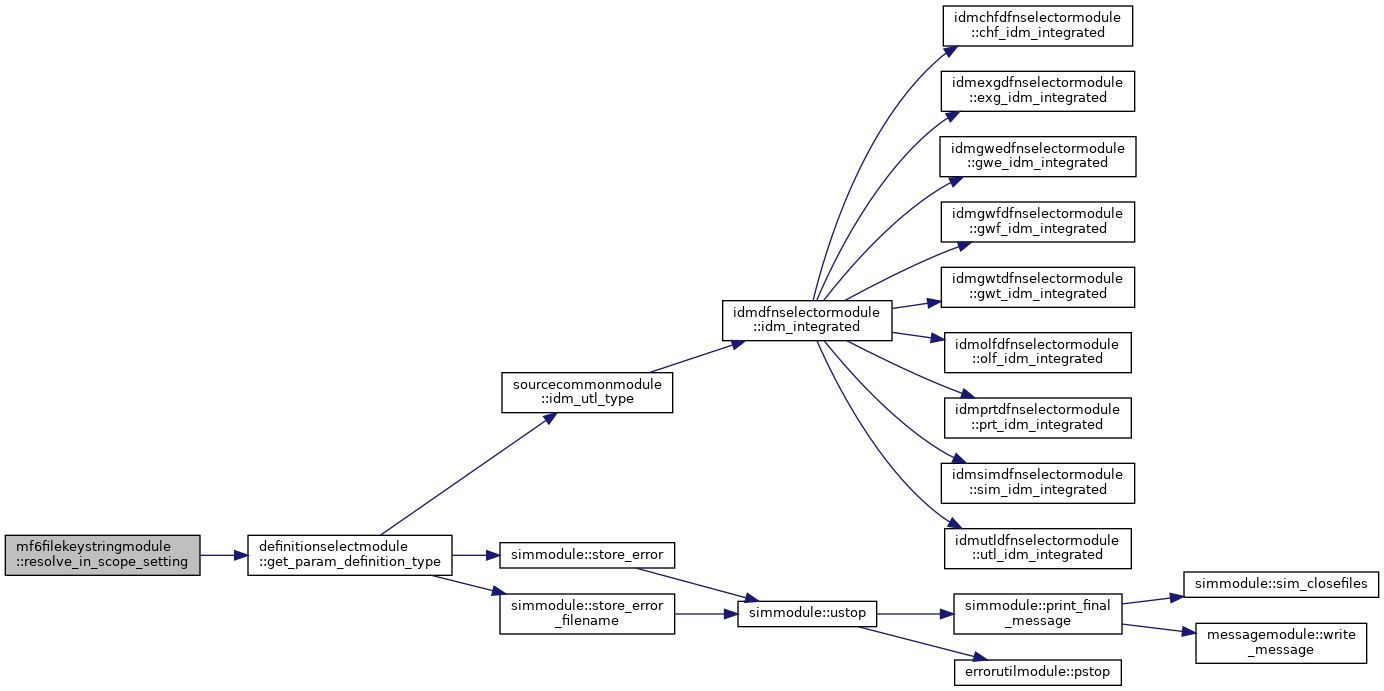

type(inputparamdefinitiontype) function, pointer	resolve_in_scope_setting (this, icol)
	Return idt for param_names(icol) if it's an in-scope PERIOD setting (STRING type with TIME_SERIES TRUE), else a disassociated pointer. More...
subroutine	allocate_permanent_array (this, idt, nfeatures, init_value)
	Allocate idt's permanent array with init_value, unless already allocated. More...
subroutine	apply_setting_value (this, idt, period_val, i, address, featarr)
	Resolve token (row i of period_val) as a literal or TS name directly against featarr(address). More...
subroutine	allocate_period_settings (this)
	Allocate permanent, feature-indexed storage for every in-scope PERIOD setting, keyed by the field's public tag (e.g. CONCENTRATION). More...
subroutine	apply_period_settings (this)
	Apply PERIOD settings (SPC) to their permanent, feature-indexed arrays. More...
subroutine	allocate_period_node_settings (this)
	Allocate permanent, node-indexed storage for every PERIOD setting in scope, for CELLID-addressed packages (TVK/TVS) More...
subroutine	apply_period_node_settings (this)
	Apply PERIOD settings to their permanent, node-indexed arrays, for CELLID-addressed packages (TVK/TVS) More...

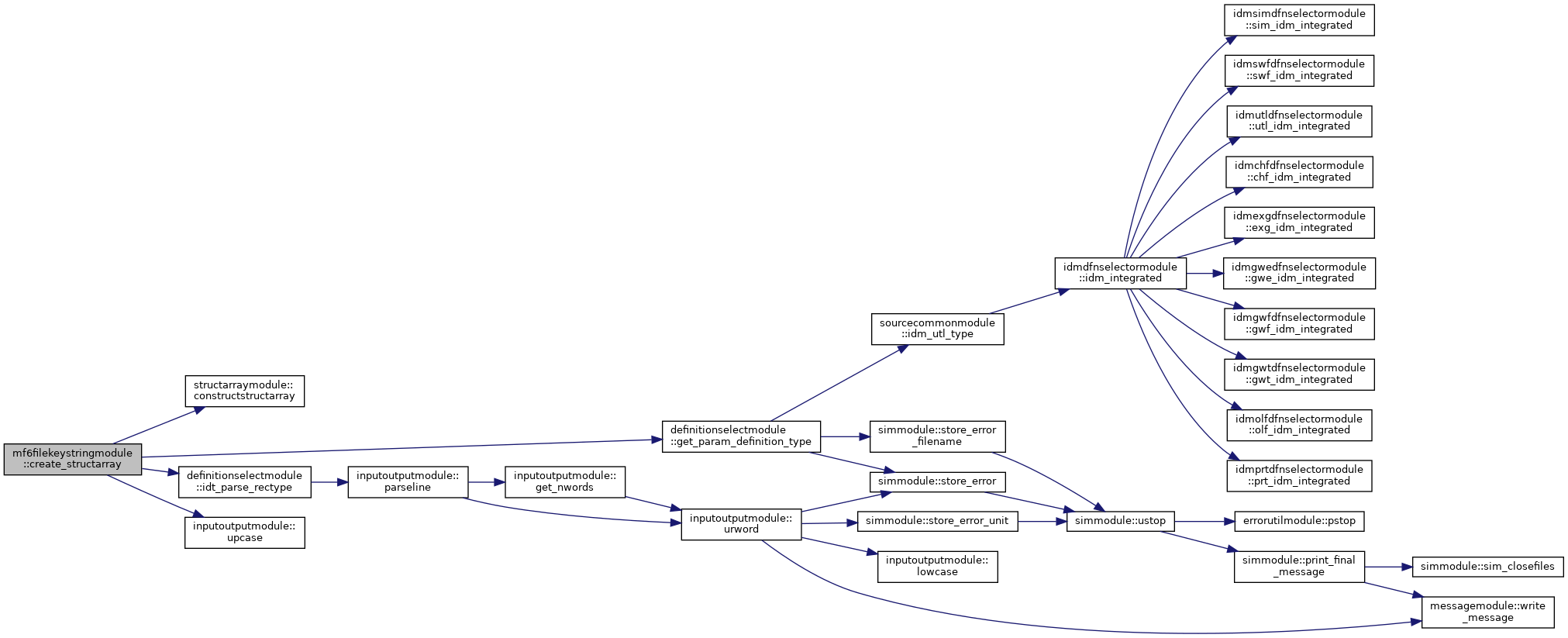

subroutine	create_structarray (this)

Detailed Description

Each keystring member maps to a typed column in a StructArrayType. A dispatch keyword on each input row selects the target column.

Simple dispatch: keyword matches a DOUBLE/STRING/INTEGER column; one value token is read into that column.

Compound dispatch: keyword matches a KEYWORD-type column (e.g. FLOWING_WELL). The keyword token is stored directly; subsequent non-KEYWORD sub-member columns are read in order.

Function/Subroutine Documentation

ainit()

subroutine mf6filekeystringmodule::ainit ( class(keystringloadtype), intent(inout)  this, type(modflowinputtype), intent(in)  mf6_input, character(len=*), intent(in)  component_name, character(len=*), intent(in)  component_input_name, character(len=*), intent(in)  input_name, integer(i4b), intent(in)  iperblock, type(blockparsertype), intent(inout), pointer  parser, integer(i4b), intent(in)  iout  )

private

Definition at line 68 of file Mf6FileKeystring.f90.

    use inputoutputmodule, only: getunit
    use memorymanagermodule, only: get_isize, mem_setptr
    use characterstringmodule, only: characterstringtype
    use loadmf6filemodule, only: loadmf6filetype
    use arrayhandlersmodule, only: expandarray
    class(KeystringLoadType), intent(inout) :: this
    type(ModflowInputType), intent(in) :: mf6_input
    character(len=*), intent(in) :: component_name
    character(len=*), intent(in) :: component_input_name
    character(len=*), intent(in) :: input_name
    integer(I4B), intent(in) :: iperblock
    type(BlockParserType), pointer, intent(inout) :: parser
    integer(I4B), intent(in) :: iout
    type(CharacterStringType), dimension(:), pointer, contiguous :: ts_fnames
    character(len=LINELENGTH) :: fname
    character(len=LENVARNAME), allocatable :: named_bound(:)
    character(len=LINELENGTH), dimension(:), allocatable :: member_names
    integer(I4B) :: n, nmembers, isize

    call this%DynamicPkgLoadType%init(mf6_input, component_name, &
                                      component_input_name, input_name, &
                                      iperblock, iout)
    this%ts_active = .false.
    this%nleading = 0

    allocate (this%tsmanager)
    call tsmanager_cr(this%tsmanager, iout)

    ! load static input (TS6_FILENAME tag sets static_loader%ts_active)
    call this%static_loader%load(parser, mf6_input, this%nc_vars, &
                                 this%input_name, iout)

    ! add declared TS files to tsmanager
    if (this%static_loader%ts_active) then
      this%ts_active = .true.
      call get_isize('TS6_FILENAME', mf6_input%mempath, isize)
      if (isize > 0) then
        call mem_setptr(ts_fnames, 'TS6_FILENAME', mf6_input%mempath)
        do n = 1, size(ts_fnames)
          fname = ts_fnames(n)
          call this%tsmanager%add_tsfile(fname, getunit())
        end do
      end if
    end if

    ! collect DIMENSIONS block parameter names for LoadContext;
    ! absent for TVK/TVS — LoadContext falls back to nodes * nmembers
    do n = 1, size(mf6_input%param_dfns)
      if (mf6_input%param_dfns(n)%blockname == 'DIMENSIONS') then
        call expandarray(named_bound)
        named_bound(size(named_bound)) = trim(mf6_input%param_dfns(n)%mf6varname)
      end if
    end do

    ! init load context
    if (allocated(named_bound)) then
      call this%ctx%init(mf6_input, named_bound=named_bound)
    else
      call this%ctx%init(mf6_input)
    end if

    call this%ctx%tags(this%param_names, this%nparam, this%input_name)
    this%nleading = this%ctx%nleading

    ! append keystring member column names
    call this%ctx%keystring_member_names(member_names, nmembers)
    do n = 1, nmembers
      this%nparam = this%nparam + 1
      call expandarray(this%param_names)
      this%param_names(this%nparam) = trim(member_names(n))
    end do

    ! finalize context setup (allocates NBOUND, NODEULIST, etc.)
    call this%ctx%allocate_arrays()

    ! pre-allocate structarray; reused across all periods
    call this%create_structarray()

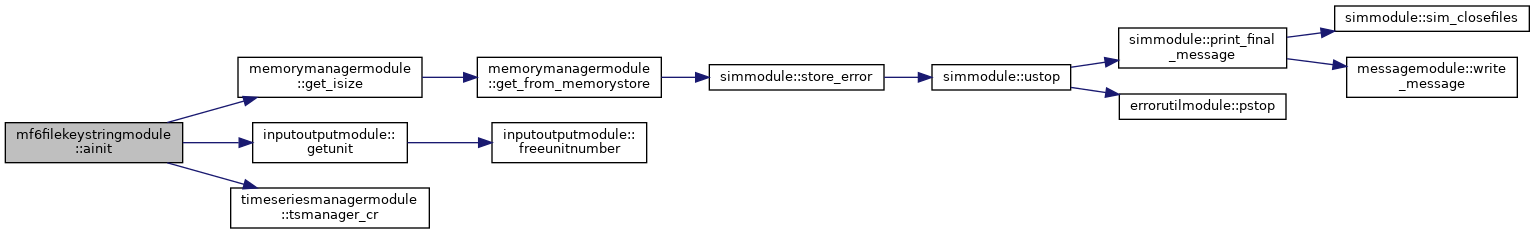

Here is the call graph for this function:

allocate_period_node_settings()

subroutine mf6filekeystringmodule::allocate_period_node_settings

(

class(keystringloadtype), intent(inout)

this

)

Sized by ctxnodes (product(MSHAPE), the unreduced node count). DNODATA marks "never set" so the package knows which nodes to copy into its own target array (e.g. NPF's K11) at the reduced node number.

Definition at line 420 of file Mf6FileKeystring.f90.

    class(KeystringLoadType), intent(inout) :: this
    type(InputParamDefinitionType), pointer :: idt
    integer(I4B) :: icol, nfeatures

    if (.not. associated(this%ctx%nodes)) return
    nfeatures = this%ctx%nodes
    if (nfeatures < 1) return

    do icol = this%nleading + 1, this%nparam
      idt => this%resolve_in_scope_setting(icol)
      if (.not. associated(idt)) cycle
      call this%allocate_permanent_array(idt, nfeatures, dnodata)
    end do

allocate_period_settings()

subroutine mf6filekeystringmodule::allocate_period_settings ( class(keystringloadtype), intent(inout)  this )

private

Definition at line 333 of file Mf6FileKeystring.f90.

    class(KeystringLoadType), intent(inout) :: this
    type(InputParamDefinitionType), pointer :: idt
    integer(I4B) :: icol, nfeatures

    nfeatures = this%resolve_nfeatures()
    if (nfeatures < 1) return

    do icol = this%nleading + 1, this%nparam
      idt => this%resolve_in_scope_setting(icol)
      if (.not. associated(idt)) cycle
      call this%allocate_permanent_array(idt, nfeatures, dzero)
    end do

allocate_permanent_array()

subroutine mf6filekeystringmodule::allocate_permanent_array	(	class(keystringloadtype), intent(inout)	this,
		type(inputparamdefinitiontype), intent(in)	idt,
		integer(i4b), intent(in)	nfeatures,
		real(dp), intent(in)	init_value
	)

Definition at line 291 of file Mf6FileKeystring.f90.

    use memorymanagermodule, only: mem_allocate
    class(KeystringLoadType), intent(inout) :: this
    type(InputParamDefinitionType), intent(in) :: idt
    integer(I4B), intent(in) :: nfeatures
    real(DP), intent(in) :: init_value
    real(DP), dimension(:), pointer, contiguous :: featarr => null()
    integer(I4B) :: isize

    call get_isize(trim(idt%tagname), this%mf6_input%mempath, isize)
    if (isize > 0) return ! already allocated (shouldn't happen; df() runs once)
    call mem_allocate(featarr, nfeatures, trim(idt%tagname), &
                      this%mf6_input%mempath)
    featarr = init_value

apply_period_node_settings()

subroutine mf6filekeystringmodule::apply_period_node_settings ( class(keystringloadtype), intent(inout)  this )

private

Mirrors apply_period_settings, but addresses by the unreduced node number (nodeu) computed from CELLID via MSHAPE. The reduced-node lookup stays package-side, where the real dis object is available.

Definition at line 443 of file Mf6FileKeystring.f90.

    use geomutilmodule, only: get_node
    class(KeystringLoadType), intent(inout) :: this
    integer(I4B), pointer :: nbound => null()
    integer(I4B), dimension(:, :), pointer, contiguous :: cellid => null()
    type(CharacterStringType), dimension(:), pointer, contiguous :: &
      period_setting => null()
    type(CharacterStringType), dimension(:), pointer, contiguous :: &
      period_val => null()
    type(InputParamDefinitionType), pointer :: idt
    real(DP), dimension(:), pointer, contiguous :: featarr => null()
    integer(I4B) :: i, icol, nodeu, isize, nfeatures, ndim
    character(len=LINELENGTH) :: setting

    call get_isize('NBOUND', this%mf6_input%mempath, isize)
    if (isize < 1) return
    call mem_setptr(nbound, 'NBOUND', this%mf6_input%mempath)
    if (nbound <= 0) return

    if (.not. associated(this%ctx%nodes)) return
    nfeatures = this%ctx%nodes
    if (nfeatures < 1) return
    if (.not. associated(this%ctx%mshape)) return
    ndim = size(this%ctx%mshape)

    call mem_setptr(cellid, 'CELLID', this%mf6_input%mempath)
    call mem_setptr(period_setting, 'SETTING', this%mf6_input%mempath)

    do icol = this%nleading + 1, this%nparam
      idt => this%resolve_in_scope_setting(icol)
      if (.not. associated(idt)) cycle
      call mem_setptr(featarr, trim(idt%tagname), this%mf6_input%mempath)
      call mem_setptr(period_val, trim(idt%mf6varname), this%mf6_input%mempath)

      do i = 1, nbound
        setting = period_setting(i)
        if (trim(setting) /= trim(idt%mf6varname)) cycle
        if (ndim == 1) then
          nodeu = cellid(1, i)
        else if (ndim == 2) then
          nodeu = get_node(cellid(1, i), 1, cellid(2, i), &
                           this%ctx%mshape(1), 1, this%ctx%mshape(2))
        else
          nodeu = get_node(cellid(1, i), cellid(2, i), cellid(3, i), &
                           this%ctx%mshape(1), this%ctx%mshape(2), &
                           this%ctx%mshape(3))
        end if
        if (nodeu < 1 .or. nodeu > nfeatures) cycle
        call this%apply_setting_value(idt, period_val, i, nodeu, featarr)
      end do
    end do

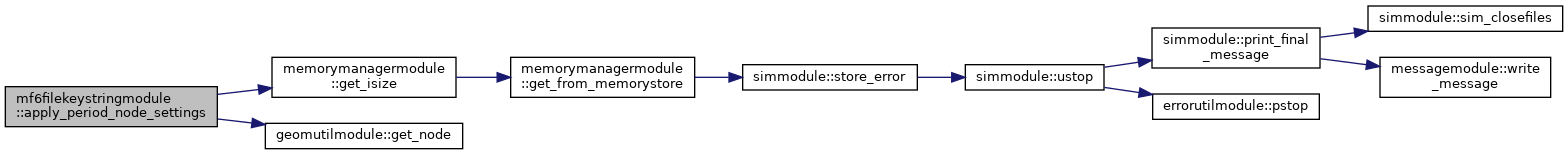

Here is the call graph for this function:

apply_period_settings()

subroutine mf6filekeystringmodule::apply_period_settings ( class(keystringloadtype), intent(inout)  this )

private

Resolves each token (literal or TS name) directly against the permanent, BNDNO-addressed array, so a later period that doesn't repeat the setting leaves the prior value untouched.

Definition at line 355 of file Mf6FileKeystring.f90.

    use definitionselectmodule, only: get_param_definition_type
    use simmodule, only: store_error
    use simvariablesmodule, only: errmsg
    class(KeystringLoadType), intent(inout) :: this
    integer(I4B), pointer :: nbound => null()
    integer(I4B), dimension(:), pointer, contiguous :: period_bndno => null()
    type(CharacterStringType), dimension(:), pointer, contiguous :: &
      period_setting => null()
    type(CharacterStringType), dimension(:), pointer, contiguous :: &
      period_val => null()
    type(InputParamDefinitionType), pointer :: idt
    real(DP), dimension(:), pointer, contiguous :: featarr => null()
    integer(I4B) :: i, icol, bndno, isize, nfeatures
    character(len=LINELENGTH) :: setting

    call get_isize('NBOUND', this%mf6_input%mempath, isize)
    if (isize < 1) return
    call mem_setptr(nbound, 'NBOUND', this%mf6_input%mempath)
    if (nbound <= 0) return

    nfeatures = this%resolve_nfeatures()
    if (nfeatures < 1) return

    ! the sole leading column is the permanent, stably-numbered feature
    ! address (BNDNO) -- resolved via its own idt, since the
    ! memory-manager key (mf6varname) isn't always the doc-facing tag
    idt => get_param_definition_type(this%mf6_input%param_dfns, &
                                     this%mf6_input%component_type, &
                                     this%mf6_input%subcomponent_type, &
                                     'PERIOD', this%param_names(1), &
                                     this%input_name)
    call mem_setptr(period_bndno, trim(idt%mf6varname), this%mf6_input%mempath)
    call mem_setptr(period_setting, 'SETTING', this%mf6_input%mempath)

    do icol = this%nleading + 1, this%nparam
      idt => this%resolve_in_scope_setting(icol)
      if (.not. associated(idt)) cycle
      call mem_setptr(featarr, trim(idt%tagname), this%mf6_input%mempath)
      call mem_setptr(period_val, trim(idt%mf6varname), this%mf6_input%mempath)

      do i = 1, nbound
        setting = period_setting(i)
        if (trim(setting) /= trim(idt%mf6varname)) cycle
        bndno = period_bndno(i)
        if (bndno < 1 .or. bndno > nfeatures) then
          write (errmsg, '(2(a,1x),i0,a)') &
            'BNDNO must be greater than 0 and', &
            'less than or equal to ', nfeatures, '.'
          call store_error(errmsg)
          cycle
        end if
        call this%apply_setting_value(idt, period_val, i, bndno, featarr)
      end do
    end do

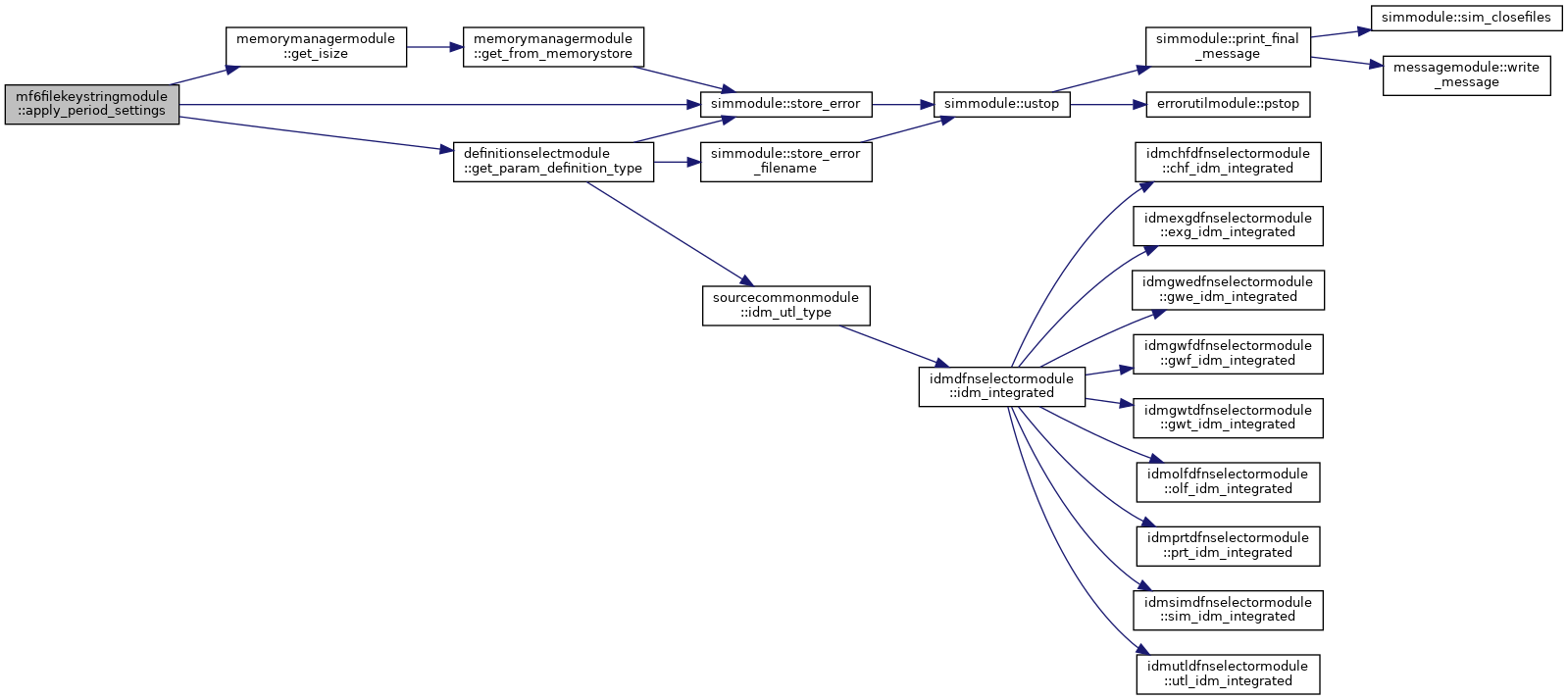

Here is the call graph for this function:

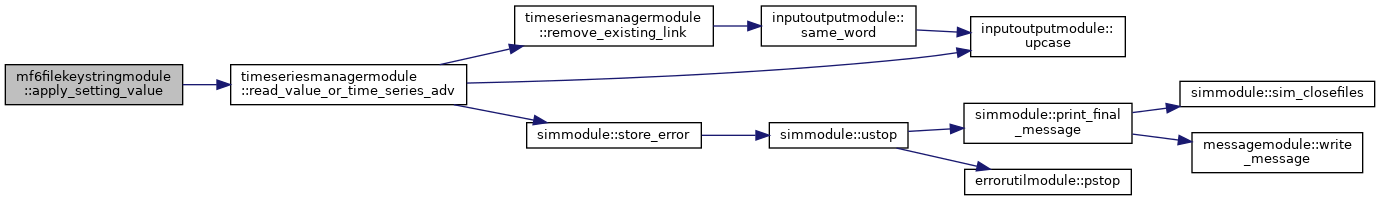

apply_setting_value()

subroutine mf6filekeystringmodule::apply_setting_value	(	class(keystringloadtype), intent(inout)	this,
		type(inputparamdefinitiontype), intent(in)	idt,
		type(characterstringtype), dimension(:), intent(in), pointer, contiguous	period_val,
		integer(i4b), intent(in)	i,
		integer(i4b), intent(in)	address,
		real(dp), dimension(:), intent(inout), pointer, contiguous	featarr
	)

Definition at line 310 of file Mf6FileKeystring.f90.

    class(KeystringLoadType), intent(inout) :: this
    type(InputParamDefinitionType), intent(in) :: idt
    type(CharacterStringType), dimension(:), pointer, contiguous, &
      intent(in) :: period_val
    integer(I4B), intent(in) :: i
    integer(I4B), intent(in) :: address
    real(DP), dimension(:), pointer, contiguous, intent(inout) :: featarr
    real(DP), pointer :: bndElem
    character(len=LINELENGTH) :: token

    token = period_val(i)
    if (len_trim(token) == 0) return
    bndelem => featarr(address)
    call read_value_or_time_series_adv(token, address, 0, bndelem, &
                                       this%mf6_input%subcomponent_name, &
                                       'BND', this%tsmanager, &
                                       this%ctx%iprpak, trim(idt%tagname))

Here is the call graph for this function:

create_structarray()

subroutine mf6filekeystringmodule::create_structarray

(

class(keystringloadtype), intent(inout)

this

)

Definition at line 496 of file Mf6FileKeystring.f90.

    use definitionselectmodule, only: get_param_definition_type, &
                                      idt_parse_rectype
    use inputoutputmodule, only: upcase
    class(KeystringLoadType), intent(inout) :: this
    type(InputParamDefinitionType), pointer :: idt, pidt
    character(len=LINELENGTH), allocatable :: rec_cols(:)
    character(len=LINELENGTH) :: kwname, first_col
    integer(I4B) :: iparam, sa_icol, padj, nrow_prealloc, jparam, nrec_col, nsub
    logical(LGP) :: has_setting

    has_setting = this%ctx%has_setting_dispatch
    padj = 0
    if (has_setting) padj = 1

    ! use pre-allocated managed memory (maxbound = features * nmembers);
    ! fall back to deferred shape (-1) if maxbound is unavailable
    if (associated(this%ctx%maxbound) .and. this%ctx%maxbound > 0) then
      nrow_prealloc = this%ctx%maxbound
    else
      nrow_prealloc = -1
    end if

    this%structarray => &
      constructstructarray(this%mf6_input, this%nparam + padj, &
                           nrow_prealloc, 0, this%mf6_input%mempath, &
                           this%mf6_input%component_mempath)

    ! create leading (pre-keystring) columns unchanged
    do iparam = 1, this%nleading
      idt => get_param_definition_type(this%mf6_input%param_dfns, &
                                       this%mf6_input%component_type, &
                                       this%mf6_input%subcomponent_type, &
                                       'PERIOD', &
                                       this%param_names(iparam), this%input_name)
      call this%structarray%mem_create_vector(iparam, idt)
    end do

    ! create SETTING column (ctx owns setting_idt); records which keystring
    ! member was dispatched to on each row, for sticky-setting persistence
    if (has_setting) then
      call this%structarray%mem_create_vector(this%nleading + 1, &
                                              this%ctx%setting_idt)
    end if

    ! create keystring member columns, shifted past SETTING when present
    do iparam = this%nleading + 1, this%nparam
      sa_icol = iparam + padj
      idt => get_param_definition_type(this%mf6_input%param_dfns, &
                                       this%mf6_input%component_type, &
                                       this%mf6_input%subcomponent_type, &
                                       'PERIOD', &
                                       this%param_names(iparam), this%input_name)
      call this%structarray%mem_create_vector(sa_icol, idt)

      ! For KEYWORD member columns, store the compound sub-member count
      ! from the RECORD definition so read_from_parser_keystring reads
      ! exactly the right number of sub-values.
      if (trim(idt%datatype) == 'KEYWORD') then
        kwname = trim(idt%tagname)
        call upcase(kwname)
        nsub = 0
        do jparam = 1, size(this%mf6_input%param_dfns)
          pidt => this%mf6_input%param_dfns(jparam)
          if (pidt%blockname /= 'PERIOD') cycle
          if (pidt%datatype(1:6) /= 'RECORD') cycle
          call idt_parse_rectype(pidt, rec_cols, nrec_col)
          if (nrec_col >= 1) then
            first_col = trim(rec_cols(1))
            call upcase(first_col)
            if (trim(first_col) == trim(kwname)) then
              nsub = nrec_col - 1
              if (allocated(rec_cols)) deallocate (rec_cols)
              exit
            end if
          end if
          if (allocated(rec_cols)) deallocate (rec_cols)
        end do
        this%structarray%struct_vectors(sa_icol)%nsubmembers = nsub
      end if
    end do

Here is the call graph for this function:

destroy()

subroutine mf6filekeystringmodule::destroy

(

class(keystringloadtype), intent(inout)

this

)

Definition at line 236 of file Mf6FileKeystring.f90.

    class(KeystringLoadType), intent(inout) :: this

    call this%static_loader%cleanup()

    call this%tsmanager%da()
    deallocate (this%tsmanager)
    nullify (this%tsmanager)

    if (associated(this%structarray)) then
      call destructstructarray(this%structarray)
    end if

    call this%ctx%destroy()
    call this%DynamicPkgLoadType%destroy()

Here is the call graph for this function:

df()

subroutine mf6filekeystringmodule::df

(

class(keystringloadtype), intent(inout)

this

)

Definition at line 149 of file Mf6FileKeystring.f90.

    use structarraymodule, only: structarraytype
    class(KeystringLoadType), intent(inout) :: this
    type(StructArrayType), pointer :: sa
    integer(I4B) :: n
    ! init tsmanager (TDIS now available)
    call this%tsmanager%tsmanager_df()
    ! link static TS strlocs; preserve for re-registration after reset()
    do n = 1, this%static_loader%ts_sa_count()
      sa => this%static_loader%get_ts_sa(n)
      if (associated(sa)) then
        call sa%ts_update(this%tsmanager, &
                          this%mf6_input%subcomponent_name, &
                          this%ctx%iprpak, this%input_name, &
                          clear_strlocs=.false.)
      end if
    end do
    ! DIMENSIONS-scoped packages (e.g. SPC): allocate permanent,
    ! feature-indexed storage for every PERIOD setting in scope, so a
    ! value survives across periods that don't reissue it
    if (this%ctx%is_dimensions_scoped) call this%allocate_period_settings()
    ! CELLID-addressed packages (TVK/TVS): same persistence goal, but
    ! node-indexed and package-resolved -- see allocate_period_node_settings
    if (this%ctx%is_cellid_scoped) call this%allocate_period_node_settings()

reset()

subroutine mf6filekeystringmodule::reset

(

class(keystringloadtype), intent(inout)

this

)

Definition at line 208 of file Mf6FileKeystring.f90.

    use structarraymodule, only: structarraytype
    class(KeystringLoadType), intent(inout) :: this
    type(StructArrayType), pointer :: sa
    integer(I4B) :: n
    ! PERIOD settings persist across periods unless reissued, so TS links
    ! for packages with sticky, permanently-addressed settings are never
    ! reset (SETTING column dispatch keeps them current instead)
    if (.not. this%ctx%has_setting_dispatch) then
      ! clear TS links
      call this%tsmanager%reset(this%mf6_input%subcomponent_name)
    end if
    ! re-register static TS links (strlocs preserved in df); unrelated to
    ! PERIOD-block sticky-setting persistence, so this runs regardless of
    ! has_setting_dispatch
    if (this%ts_active) then
      do n = 1, this%static_loader%ts_sa_count()
        sa => this%static_loader%get_ts_sa(n)
        if (associated(sa)) then
          call sa%ts_update(this%tsmanager, &
                            this%mf6_input%subcomponent_name, &
                            this%ctx%iprpak, this%input_name, &
                            clear_strlocs=.false.)
        end if
      end do
    end if

resolve_in_scope_setting()

type(inputparamdefinitiontype) function, pointer mf6filekeystringmodule::resolve_in_scope_setting ( class(keystringloadtype), intent(inout)  this, integer(i4b), intent(in)  icol  )

private

Definition at line 274 of file Mf6FileKeystring.f90.

    use definitionselectmodule, only: get_param_definition_type
    class(KeystringLoadType), intent(inout) :: this
    integer(I4B), intent(in) :: icol
    type(InputParamDefinitionType), pointer :: idt

    idt => get_param_definition_type(this%mf6_input%param_dfns, &
                                     this%mf6_input%component_type, &
                                     this%mf6_input%subcomponent_type, &
                                     'PERIOD', this%param_names(icol), &
                                     this%input_name)
    if (idt%datatype /= 'STRING' .or. .not. idt%timeseries) idt => null()

Here is the call graph for this function:

resolve_nfeatures()

integer(i4b) function mf6filekeystringmodule::resolve_nfeatures ( class(keystringloadtype), intent(inout)  this )

private

Definition at line 257 of file Mf6FileKeystring.f90.

    class(KeystringLoadType), intent(inout) :: this
    integer(I4B) :: nfeatures
    character(len=LINELENGTH), allocatable :: member_names(:)
    integer(I4B) :: nmembers

    nfeatures = 0
    call this%ctx%keystring_member_names(member_names, nmembers)
    if (nmembers > 0 .and. associated(this%ctx%maxbound)) then
      if (this%ctx%maxbound > 0) nfeatures = this%ctx%maxbound / nmembers
    end if

rp()

subroutine mf6filekeystringmodule::rp ( class(keystringloadtype), intent(inout)  this, type(blockparsertype), intent(inout), pointer  parser  )

private

Definition at line 180 of file Mf6FileKeystring.f90.

    use idmloggermodule, only: idm_log_header, idm_log_close
    class(KeystringLoadType), intent(inout) :: this
    type(BlockParserType), pointer, intent(inout) :: parser

    call this%reset()

    call idm_log_header(this%mf6_input%component_name, &
                        this%mf6_input%subcomponent_name, this%iout)

    this%ctx%nbound = &
      this%structarray%read_from_parser_keystring(parser, this%ts_active, &
                                                  this%nleading, this%iout, &
                                                  this%input_name)

    if (this%ctx%is_dimensions_scoped) call this%apply_period_settings()
    if (this%ctx%is_cellid_scoped) call this%apply_period_node_settings()

    if (this%ts_active) then
      call this%structarray%ts_update(this%tsmanager, &
                                      this%mf6_input%subcomponent_name, &
                                      this%ctx%iprpak, this%input_name)
    end if

    call idm_log_close(this%mf6_input%component_name, &
                       this%mf6_input%subcomponent_name, this%iout)

Here is the call graph for this function:

ts_advance()

subroutine mf6filekeystringmodule::ts_advance

(

class(keystringloadtype), intent(inout)

this

)

Definition at line 175 of file Mf6FileKeystring.f90.

    class(KeystringLoadType), intent(inout) :: this
    call this%tsmanager%ad()
