MODFLOW 6  version 6.9.0.dev0
USGS Modular Hydrologic Model
Private Member Functions | Private Attributes | List of all members
mf6filekeystringmodule::keystringloadtype Type Reference

Keystring period block loader. More...

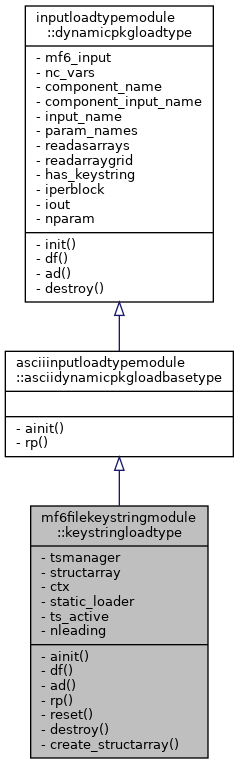

Inheritance diagram for mf6filekeystringmodule::keystringloadtype:
Inheritance graph

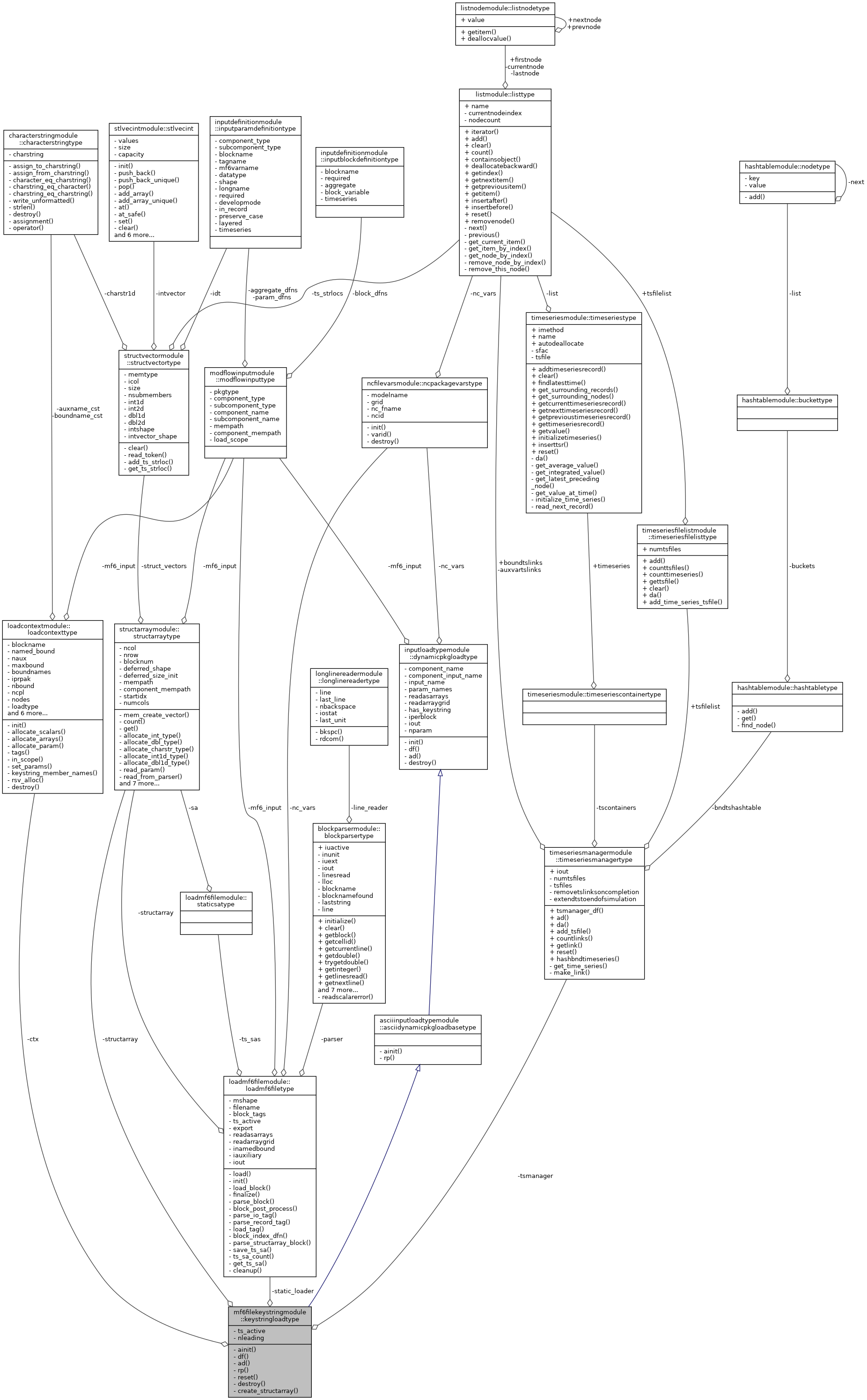

Collaboration diagram for mf6filekeystringmodule::keystringloadtype:
Collaboration graph

Private Member Functions

procedure ainit

procedure df

procedure ts_advance

procedure rp

procedure reset

procedure destroy

procedure create_structarray

procedure allocate_period_settings

procedure apply_period_settings

procedure resolve_nfeatures

procedure resolve_in_scope_setting

procedure allocate_permanent_array

procedure apply_setting_value

procedure allocate_period_node_settings

procedure apply_period_node_settings

procedure init => dynamic_init


Private Attributes

type(timeseriesmanagertype), pointer tsmanager => null()

type(structarraytype), pointer structarray => null()

type(loadcontexttype) ctx
 input load context More...

type(loadmf6filetype) static_loader
 persistent static loader More...

logical(lgp) ts_active
 .true. if TS files are loaded More...

integer(i4b) nleading
 number of leading (pre-keystring) columns More...

type(modflowinputtype) mf6_input
 description of modflow6 input More...

type(ncpackagevarstype), pointer nc_vars => null()

character(len=lencomponentname) component_name
 name of component More...

character(len=linelength) component_input_name
 component input name, e.g. model name file More...

character(len=linelength) input_name
 input name, e.g. package *.chd file More...

character(len=linelength), dimension(:), allocatable param_names
 dynamic param tagnames More...

logical(lgp) readasarrays
 readasarrays style input package More...

logical(lgp) readarraygrid
 readarraygrid style input package More...

logical(lgp) has_keystring
 period block uses keystring-based dispatch More...

integer(i4b) iperblock
 index of period block on block definition list More...

integer(i4b) iout
 inunit number for logging More...

integer(i4b) nparam
 number of in scope params More...


Detailed Description

Leading fixed columns (e.g. CELLID) followed by a dispatch keyword that routes each input row to a typed member column.

Definition at line 41 of file Mf6FileKeystring.f90.

Member Function/Subroutine Documentation

◆ ainit()

procedure mf6filekeystringmodule::keystringloadtype::ainit
private

Definition at line 49 of file Mf6FileKeystring.f90.

◆ allocate_period_node_settings()

procedure mf6filekeystringmodule::keystringloadtype::allocate_period_node_settings
private

Definition at line 62 of file Mf6FileKeystring.f90.

◆ allocate_period_settings()

procedure mf6filekeystringmodule::keystringloadtype::allocate_period_settings
private

Definition at line 56 of file Mf6FileKeystring.f90.

◆ allocate_permanent_array()

procedure mf6filekeystringmodule::keystringloadtype::allocate_permanent_array
private

Definition at line 60 of file Mf6FileKeystring.f90.

◆ apply_period_node_settings()

procedure mf6filekeystringmodule::keystringloadtype::apply_period_node_settings
private

Definition at line 63 of file Mf6FileKeystring.f90.

◆ apply_period_settings()

procedure mf6filekeystringmodule::keystringloadtype::apply_period_settings
private

Definition at line 57 of file Mf6FileKeystring.f90.

◆ apply_setting_value()

procedure mf6filekeystringmodule::keystringloadtype::apply_setting_value
private

Definition at line 61 of file Mf6FileKeystring.f90.

◆ create_structarray()

procedure mf6filekeystringmodule::keystringloadtype::create_structarray
private

Definition at line 55 of file Mf6FileKeystring.f90.

◆ destroy()

procedure mf6filekeystringmodule::keystringloadtype::destroy
private

Definition at line 54 of file Mf6FileKeystring.f90.

◆ df()

procedure mf6filekeystringmodule::keystringloadtype::df
private

Definition at line 50 of file Mf6FileKeystring.f90.

◆ init()

procedure inputloadtypemodule::dynamicpkgloadtype::init
privateinherited

Definition at line 96 of file InputLoadType.f90.

◆ reset()

procedure mf6filekeystringmodule::keystringloadtype::reset
private

Definition at line 53 of file Mf6FileKeystring.f90.

◆ resolve_in_scope_setting()

procedure mf6filekeystringmodule::keystringloadtype::resolve_in_scope_setting
private

Definition at line 59 of file Mf6FileKeystring.f90.

◆ resolve_nfeatures()

procedure mf6filekeystringmodule::keystringloadtype::resolve_nfeatures
private

Definition at line 58 of file Mf6FileKeystring.f90.

◆ rp()

procedure mf6filekeystringmodule::keystringloadtype::rp
private

Definition at line 52 of file Mf6FileKeystring.f90.

◆ ts_advance()

procedure mf6filekeystringmodule::keystringloadtype::ts_advance
private

Definition at line 51 of file Mf6FileKeystring.f90.

Member Data Documentation

◆ component_input_name

character(len=linelength) inputloadtypemodule::dynamicpkgloadtype::component_input_name
privateinherited

Definition at line 86 of file InputLoadType.f90.

86  character(len=LINELENGTH) :: component_input_name !< component input name, e.g. model name file

◆ component_name

character(len=lencomponentname) inputloadtypemodule::dynamicpkgloadtype::component_name
privateinherited

Definition at line 85 of file InputLoadType.f90.

85  character(len=LENCOMPONENTNAME) :: component_name !< name of component

◆ ctx

type(loadcontexttype) mf6filekeystringmodule::keystringloadtype::ctx
private

Definition at line 44 of file Mf6FileKeystring.f90.

44  type(LoadContextType) :: ctx !< input load context

◆ has_keystring

logical(lgp) inputloadtypemodule::dynamicpkgloadtype::has_keystring
privateinherited

Definition at line 91 of file InputLoadType.f90.

91  logical(LGP) :: has_keystring !< period block uses keystring-based dispatch

◆ input_name

character(len=linelength) inputloadtypemodule::dynamicpkgloadtype::input_name
privateinherited

Definition at line 87 of file InputLoadType.f90.

87  character(len=LINELENGTH) :: input_name !< input name, e.g. package *.chd file

◆ iout

integer(i4b) inputloadtypemodule::dynamicpkgloadtype::iout
privateinherited

Definition at line 93 of file InputLoadType.f90.

93  integer(I4B) :: iout !< inunit number for logging

◆ iperblock

integer(i4b) inputloadtypemodule::dynamicpkgloadtype::iperblock
privateinherited

Definition at line 92 of file InputLoadType.f90.

92  integer(I4B) :: iperblock !< index of period block on block definition list

◆ mf6_input

type(modflowinputtype) inputloadtypemodule::dynamicpkgloadtype::mf6_input
privateinherited

Definition at line 83 of file InputLoadType.f90.

83  type(ModflowInputType) :: mf6_input !< description of modflow6 input

◆ nc_vars

type(ncpackagevarstype), pointer inputloadtypemodule::dynamicpkgloadtype::nc_vars => null()
privateinherited

Definition at line 84 of file InputLoadType.f90.

84  type(NCPackageVarsType), pointer :: nc_vars => null()

◆ nleading

integer(i4b) mf6filekeystringmodule::keystringloadtype::nleading
private

Definition at line 47 of file Mf6FileKeystring.f90.

47  integer(I4B) :: nleading !< number of leading (pre-keystring) columns

◆ nparam

integer(i4b) inputloadtypemodule::dynamicpkgloadtype::nparam
privateinherited

Definition at line 94 of file InputLoadType.f90.

94  integer(I4B) :: nparam !< number of in scope params

◆ param_names

character(len=linelength), dimension(:), allocatable inputloadtypemodule::dynamicpkgloadtype::param_names
privateinherited

Definition at line 88 of file InputLoadType.f90.

88  character(len=LINELENGTH), dimension(:), allocatable :: param_names !< dynamic param tagnames

◆ readarraygrid

logical(lgp) inputloadtypemodule::dynamicpkgloadtype::readarraygrid
privateinherited

Definition at line 90 of file InputLoadType.f90.

90  logical(LGP) :: readarraygrid !< readarraygrid style input package

◆ readasarrays

logical(lgp) inputloadtypemodule::dynamicpkgloadtype::readasarrays
privateinherited

Definition at line 89 of file InputLoadType.f90.

89  logical(LGP) :: readasarrays !< readasarrays style input package

◆ static_loader

type(loadmf6filetype) mf6filekeystringmodule::keystringloadtype::static_loader
private

Definition at line 45 of file Mf6FileKeystring.f90.

45  type(LoadMf6FileType) :: static_loader !< persistent static loader

◆ structarray

type(structarraytype), pointer mf6filekeystringmodule::keystringloadtype::structarray => null()
private

Definition at line 43 of file Mf6FileKeystring.f90.

43  type(StructArrayType), pointer :: structarray => null()

◆ ts_active

logical(lgp) mf6filekeystringmodule::keystringloadtype::ts_active
private

Definition at line 46 of file Mf6FileKeystring.f90.

46  logical(LGP) :: ts_active !< .true. if TS files are loaded

◆ tsmanager

type(timeseriesmanagertype), pointer mf6filekeystringmodule::keystringloadtype::tsmanager => null()
private

Definition at line 42 of file Mf6FileKeystring.f90.

42  type(TimeSeriesManagerType), pointer :: tsmanager => null()
The documentation for this type was generated from the following file:
