derived type for boundary package input context More...

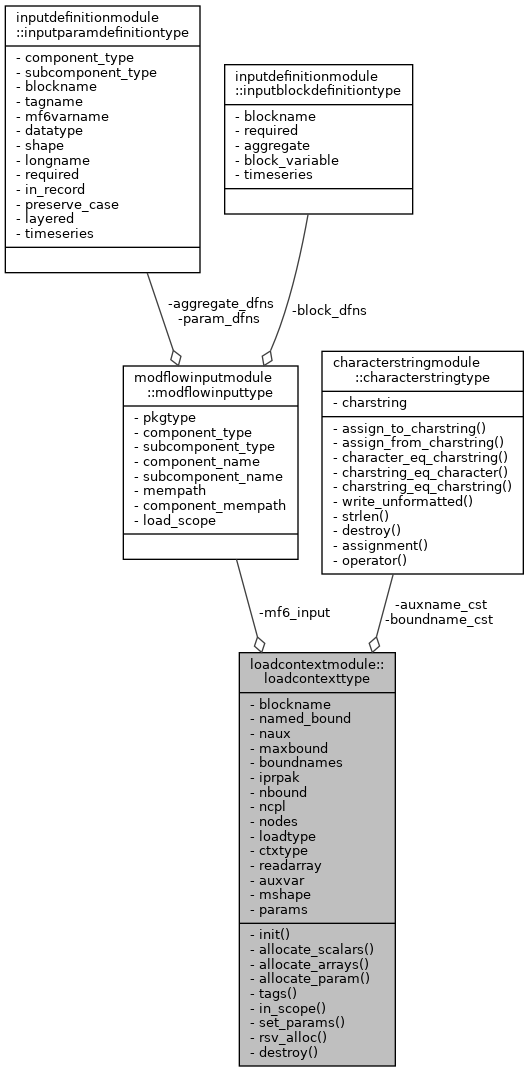

Collaboration diagram for loadcontextmodule::loadcontexttype:

Private Member Functions
procedure	init

procedure	allocate_scalars

procedure	allocate_arrays

procedure	allocate_param

procedure	tags

procedure	in_scope

procedure	set_params

procedure	keystring_member_names

procedure	rsv_alloc

procedure	destroy

Private Attributes
character(len=lenvarname)	blockname
	load block name More...

character(len=lenvarname), dimension(:), allocatable	named_bound
	dimension variable names to sum for maxbound More...

integer(i4b), pointer	naux => null()
	number of auxiliary variables More...

integer(i4b), pointer	maxbound => null()
	value associated with named_bound More...

integer(i4b), pointer	boundnames => null()
	are bound names optioned More...

integer(i4b), pointer	iprpak => null()

integer(i4b), pointer	nbound => null()
	number of bounds in period More...

integer(i4b), pointer	ncpl => null()
	ncpl associated with model shape More...

integer(i4b), pointer	nodes => null()
	nodes associated with model shape More...

integer(i4b)	loadtype
	enum load type More...

integer(i4b)	ctxtype
	enum context type More...

integer(i4b)	nleading = 0
	count of leading (pre-keystring) columns; LIST packages only More...

logical(lgp)	readarray
	is this an array based load More...

logical(lgp)	is_dimensions_scoped = .false.
	.true. for DIMENSIONS-block-paired (e.g. SPC) KEYSTRING loadtype More...

logical(lgp)	is_cellid_scoped = .false.
	.true. for CELLID-addressed (e.g. TVK/TVS) KEYSTRING loadtype More...

logical(lgp)	has_setting_dispatch = .false.
	.true. when is_dimensions_scoped .or. is_cellid_scoped More...

type(inputparamdefinitiontype), pointer	setting_idt => null()
	internal idt for SETTING column More...

type(characterstringtype), dimension(:), pointer, contiguous	auxname_cst => null()
	array of auxiliary names More...

type(characterstringtype), dimension(:), pointer, contiguous	boundname_cst => null()
	array of bound names More...

real(dp), dimension(:, :), pointer, contiguous	auxvar => null()
	auxiliary variable array More...

integer(i4b), dimension(:), pointer, contiguous	mshape => null()
	model shape More...

character(len=linelength), dimension(:), allocatable	params
	in scope param tags More...

type(modflowinputtype)	mf6_input
	description of input More...

Detailed Description

Input Load Context for generic dynamic loaders and StructArray based static loads

Definition at line 65 of file LoadContext.f90.

Member Function/Subroutine Documentation

◆ allocate_arrays()

procedure loadcontextmodule::loadcontexttype::allocate_arrays

private

Definition at line 95 of file LoadContext.f90.

◆ allocate_param()

procedure loadcontextmodule::loadcontexttype::allocate_param

private

Definition at line 96 of file LoadContext.f90.

◆ allocate_scalars()

procedure loadcontextmodule::loadcontexttype::allocate_scalars

private

Definition at line 94 of file LoadContext.f90.

◆ destroy()

procedure loadcontextmodule::loadcontexttype::destroy

private

Definition at line 102 of file LoadContext.f90.

◆ in_scope()

procedure loadcontextmodule::loadcontexttype::in_scope

private

Definition at line 98 of file LoadContext.f90.

◆ init()

procedure loadcontextmodule::loadcontexttype::init

private

Definition at line 93 of file LoadContext.f90.

◆ keystring_member_names()

procedure loadcontextmodule::loadcontexttype::keystring_member_names

private

Definition at line 100 of file LoadContext.f90.

◆ rsv_alloc()

procedure loadcontextmodule::loadcontexttype::rsv_alloc

private

Definition at line 101 of file LoadContext.f90.

◆ set_params()

procedure loadcontextmodule::loadcontexttype::set_params

private

Definition at line 99 of file LoadContext.f90.

◆ tags()

procedure loadcontextmodule::loadcontexttype::tags

private

Definition at line 97 of file LoadContext.f90.

Member Data Documentation

◆ auxname_cst

type(characterstringtype), dimension(:), pointer, contiguous loadcontextmodule::loadcontexttype::auxname_cst => null()

private

Definition at line 83 of file LoadContext.f90.

83 type(CharacterStringType), dimension(:), pointer, &

84 contiguous :: auxname_cst => null() !< array of auxiliary names

◆ auxvar

real(dp), dimension(:, :), pointer, contiguous loadcontextmodule::loadcontexttype::auxvar => null()

private

Definition at line 87 of file LoadContext.f90.

87 real(DP), dimension(:, :), pointer, &

88 contiguous :: auxvar => null() !< auxiliary variable array

◆ blockname

character(len=lenvarname) loadcontextmodule::loadcontexttype::blockname

private

Definition at line 66 of file LoadContext.f90.

66 character(len=LENVARNAME) :: blockname !< load block name

◆ boundname_cst

type(characterstringtype), dimension(:), pointer, contiguous loadcontextmodule::loadcontexttype::boundname_cst => null()

private

Definition at line 85 of file LoadContext.f90.

85 type(CharacterStringType), dimension(:), pointer, &

86 contiguous :: boundname_cst => null() !< array of bound names

◆ boundnames

integer(i4b), pointer loadcontextmodule::loadcontexttype::boundnames => null()

private

Definition at line 70 of file LoadContext.f90.

70 integer(I4B), pointer :: boundnames => null() !< are bound names optioned

◆ ctxtype

integer(i4b) loadcontextmodule::loadcontexttype::ctxtype

private

Definition at line 76 of file LoadContext.f90.

76 integer(I4B) :: ctxtype !< enum context type

◆ has_setting_dispatch

logical(lgp) loadcontextmodule::loadcontexttype::has_setting_dispatch = .false.

private

Definition at line 81 of file LoadContext.f90.

81 logical(LGP) :: has_setting_dispatch = .false. !< .true. when is_dimensions_scoped .or. is_cellid_scoped

◆ iprpak

integer(i4b), pointer loadcontextmodule::loadcontexttype::iprpak => null()

private

Definition at line 71 of file LoadContext.f90.

71 integer(I4B), pointer :: iprpak => null() ! print input option

◆ is_cellid_scoped

logical(lgp) loadcontextmodule::loadcontexttype::is_cellid_scoped = .false.

private

Definition at line 80 of file LoadContext.f90.

80 logical(LGP) :: is_cellid_scoped = .false. !< .true. for CELLID-addressed (e.g. TVK/TVS) KEYSTRING loadtype

◆ is_dimensions_scoped

logical(lgp) loadcontextmodule::loadcontexttype::is_dimensions_scoped = .false.

private

Definition at line 79 of file LoadContext.f90.

79 logical(LGP) :: is_dimensions_scoped = .false. !< .true. for DIMENSIONS-block-paired (e.g. SPC) KEYSTRING loadtype

◆ loadtype

integer(i4b) loadcontextmodule::loadcontexttype::loadtype

private

Definition at line 75 of file LoadContext.f90.

75 integer(I4B) :: loadtype !< enum load type

◆ maxbound

integer(i4b), pointer loadcontextmodule::loadcontexttype::maxbound => null()

private

Definition at line 69 of file LoadContext.f90.

69 integer(I4B), pointer :: maxbound => null() !< value associated with named_bound

◆ mf6_input

type(modflowinputtype) loadcontextmodule::loadcontexttype::mf6_input

private

Definition at line 91 of file LoadContext.f90.

91 type(ModflowInputType) :: mf6_input !< description of input

◆ mshape

integer(i4b), dimension(:), pointer, contiguous loadcontextmodule::loadcontexttype::mshape => null()

private

Definition at line 89 of file LoadContext.f90.

89 integer(I4B), dimension(:), pointer, contiguous :: mshape => null() !< model shape

◆ named_bound

character(len=lenvarname), dimension(:), allocatable loadcontextmodule::loadcontexttype::named_bound

private

Definition at line 67 of file LoadContext.f90.

67 character(len=LENVARNAME), allocatable :: named_bound(:) !< dimension variable names to sum for maxbound

◆ naux

integer(i4b), pointer loadcontextmodule::loadcontexttype::naux => null()

private

Definition at line 68 of file LoadContext.f90.

68 integer(I4B), pointer :: naux => null() !< number of auxiliary variables

◆ nbound

integer(i4b), pointer loadcontextmodule::loadcontexttype::nbound => null()

private

Definition at line 72 of file LoadContext.f90.

72 integer(I4B), pointer :: nbound => null() !< number of bounds in period

◆ ncpl

integer(i4b), pointer loadcontextmodule::loadcontexttype::ncpl => null()

private

Definition at line 73 of file LoadContext.f90.

73 integer(I4B), pointer :: ncpl => null() !< ncpl associated with model shape

◆ nleading

integer(i4b) loadcontextmodule::loadcontexttype::nleading = 0

private

Definition at line 77 of file LoadContext.f90.

77 integer(I4B) :: nleading = 0 !< count of leading (pre-keystring) columns; LIST packages only

◆ nodes

integer(i4b), pointer loadcontextmodule::loadcontexttype::nodes => null()

private

Definition at line 74 of file LoadContext.f90.

74 integer(I4B), pointer :: nodes => null() !< nodes associated with model shape

◆ params

character(len=linelength), dimension(:), allocatable loadcontextmodule::loadcontexttype::params

private

Definition at line 90 of file LoadContext.f90.

90 character(len=LINELENGTH), dimension(:), allocatable :: params !< in scope param tags

◆ readarray

logical(lgp) loadcontextmodule::loadcontexttype::readarray

private

Definition at line 78 of file LoadContext.f90.

78 logical(LGP) :: readarray !< is this an array based load

◆ setting_idt

type(inputparamdefinitiontype), pointer loadcontextmodule::loadcontexttype::setting_idt => null()

private

Definition at line 82 of file LoadContext.f90.

82 type(InputParamDefinitionType), pointer :: setting_idt => null() !< internal idt for SETTING column

The documentation for this type was generated from the following file:

/home/runner/work/modflow6/modflow6/src/Utilities/Idm/LoadContext.f90
