structarraymodule Module Reference

This module contains the StructArrayModule. More...

Data Types
type	structarraytype
	type for structured array More...

Functions/Subroutines
type(structarraytype) function, pointer, public	constructstructarray (mf6_input, ncol, nrow, blocknum, mempath, component_mempath)
	constructor for a struct_array More...
subroutine, public	destructstructarray (struct_array)
	destructor for a struct_array More...
subroutine	mem_create_vector (this, icol, idt)
	create new vector in StructArrayType More...
integer(i4b) function	count (this)
subroutine	set_pointer (sv, sv_target)
type(structvectortype) function, pointer	get (this, idx)
subroutine	allocate_int_type (this, sv)
	allocate integer input type More...
subroutine	allocate_dbl_type (this, sv)
	allocate double input type More...
subroutine	allocate_charstr_type (this, sv)
	allocate charstr input type More...
subroutine	allocate_int1d_type (this, sv)
	allocate int1d input type More...
subroutine	allocate_dbl1d_type (this, sv)
	allocate dbl1d input type More...
subroutine	load_deferred_vector (this, icol)
subroutine	memload_vectors (this)
	load deferred vectors into managed memory More...
subroutine	log_structarray_vars (this, iout)
	log information about the StructArrayType More...
subroutine	check_reallocate (this)
	reallocate local memory for deferred vectors if necessary More...
subroutine	read_param (this, parser, sv_col, irow, timeseries, iout, auxcol)
integer(i4b) function	read_from_parser (this, parser, timeseries, iout)
	read from the block parser to fill the StructArrayType More...
integer(i4b) function	read_from_binary (this, inunit, iout)
	read from binary input to fill the StructArrayType More...

Detailed Description

This module contains the routines for reading a structured list, which consists of a separate vector for each column in the list.

Function/Subroutine Documentation

allocate_charstr_type()

subroutine structarraymodule::allocate_charstr_type ( class(structarraytype)  this, type(structvectortype), intent(inout)  sv  )

private

Parameters

this	StructArrayType

Definition at line 253 of file StructArray.f90.

    class(StructArrayType) :: this !< StructArrayType
    type(StructVectorType), intent(inout) :: sv
    type(CharacterStringType), dimension(:), pointer, contiguous :: charstr1d
    integer(I4B) :: j

    if (this%deferred_shape) then
      allocate (charstr1d(this%deferred_size_init))
    else
      call mem_allocate(charstr1d, linelength, this%nrow, &
                        sv%idt%mf6varname, this%mempath)
    end if

    do j = 1, this%nrow
      charstr1d(j) = ''
    end do

    sv%memtype = 3
    sv%charstr1d => charstr1d

allocate_dbl1d_type()

subroutine structarraymodule::allocate_dbl1d_type	(	class(structarraytype)	this,
		type(structvectortype), intent(inout)	sv
	)

Parameters

this	StructArrayType

Definition at line 350 of file StructArray.f90.

    use memorymanagermodule, only: get_isize
    class(StructArrayType) :: this !< StructArrayType
    type(StructVectorType), intent(inout) :: sv
    real(DP), dimension(:, :), pointer, contiguous :: dbl2d
    integer(I4B), pointer :: naux, nseg, nseg_1
    integer(I4B) :: nseg1_isize, n, m

    if (sv%idt%shape == 'NAUX') then
      call mem_setptr(naux, sv%idt%shape, this%mempath)
      call mem_allocate(dbl2d, naux, this%nrow, sv%idt%mf6varname, this%mempath)

      ! initialize
      do m = 1, this%nrow
        do n = 1, naux
          dbl2d(n, m) = dzero
        end do
      end do

      sv%memtype = 6
      sv%dbl2d => dbl2d
      sv%intshape => naux
    else if (sv%idt%shape == 'NSEG-1') then
      call mem_setptr(nseg, 'NSEG', this%mempath)
      call get_isize('NSEG_1', this%mempath, nseg1_isize)

      if (nseg1_isize < 0) then
        call mem_allocate(nseg_1, 'NSEG_1', this%mempath)
        nseg_1 = nseg - 1
      else
        call mem_setptr(nseg_1, 'NSEG_1', this%mempath)
      end if

      ! allocate
      call mem_allocate(dbl2d, nseg_1, this%nrow, sv%idt%mf6varname, this%mempath)

      ! initialize
      do m = 1, this%nrow
        do n = 1, nseg_1
          dbl2d(n, m) = dzero
        end do
      end do

      sv%memtype = 6
      sv%dbl2d => dbl2d
      sv%intshape => nseg_1
    else
      errmsg = 'IDM unimplemented. StructArray::allocate_dbl1d_type &
               & unsupported shape "'//trim(sv%idt%shape)//'".'
      call store_error(errmsg, terminate=.true.)
    end if

Here is the call graph for this function:

allocate_dbl_type()

subroutine structarraymodule::allocate_dbl_type ( class(structarraytype)  this, type(structvectortype), intent(inout)  sv  )

private

Parameters

this	StructArrayType

Definition at line 226 of file StructArray.f90.

    class(StructArrayType) :: this !< StructArrayType
    type(StructVectorType), intent(inout) :: sv
    real(DP), dimension(:), pointer, contiguous :: dbl1d
    integer(I4B) :: j, nrow

    if (this%deferred_shape) then
      ! shape not known, allocate locally
      nrow = this%deferred_size_init
      allocate (dbl1d(this%deferred_size_init))
    else
      ! shape known, allocate in managed memory
      nrow = this%nrow
      call mem_allocate(dbl1d, this%nrow, sv%idt%mf6varname, this%mempath)
    end if

    ! initialize
    do j = 1, nrow
      dbl1d(j) = dzero
    end do

    sv%memtype = 2
    sv%dbl1d => dbl1d

allocate_int1d_type()

subroutine structarraymodule::allocate_int1d_type ( class(structarraytype)  this, type(structvectortype), intent(inout)  sv  )

private

Parameters

this	StructArrayType

Definition at line 276 of file StructArray.f90.

    use constantsmodule, only: lenmodelname
    use memoryhelpermodule, only: create_mem_path
    use simvariablesmodule, only: idm_context
    class(StructArrayType) :: this !< StructArrayType
    type(StructVectorType), intent(inout) :: sv
    integer(I4B), dimension(:, :), pointer, contiguous :: int2d
    type(STLVecInt), pointer :: intvector
    integer(I4B), pointer :: ncelldim, exgid
    character(len=LENMEMPATH) :: input_mempath
    character(len=LENMODELNAME) :: mname
    type(CharacterStringType), dimension(:), contiguous, &
      pointer :: charstr1d
    integer(I4B) :: nrow, n, m

    if (sv%idt%shape == 'NCELLDIM') then
      ! if EXCHANGE set to NCELLDIM of appropriate model
      if (this%mf6_input%component_type == 'EXG') then
        ! set pointer to EXGID
        call mem_setptr(exgid, 'EXGID', this%mf6_input%mempath)
        ! set pointer to appropriate exchange model array
        input_mempath = create_mem_path('SIM', 'NAM', idm_context)
        if (sv%idt%tagname == 'CELLIDM1') then
          call mem_setptr(charstr1d, 'EXGMNAMEA', input_mempath)
        else if (sv%idt%tagname == 'CELLIDM2') then
          call mem_setptr(charstr1d, 'EXGMNAMEB', input_mempath)
        end if

        ! set the model name
        mname = charstr1d(exgid)

        ! set ncelldim pointer
        input_mempath = create_mem_path(component=mname, context=idm_context)
        call mem_setptr(ncelldim, sv%idt%shape, input_mempath)
      else
        call mem_setptr(ncelldim, sv%idt%shape, this%component_mempath)
      end if

      if (this%deferred_shape) then
        ! shape not known, allocate locally
        nrow = this%deferred_size_init
        allocate (int2d(ncelldim, this%deferred_size_init))
      else
        ! shape known, allocate in managed memory
        nrow = this%nrow
        call mem_allocate(int2d, ncelldim, this%nrow, &
                          sv%idt%mf6varname, this%mempath)
      end if

      ! initialize
      do m = 1, nrow
        do n = 1, ncelldim
          int2d(n, m) = izero
        end do
      end do

      sv%memtype = 5
      sv%int2d => int2d
      sv%intshape => ncelldim
    else
      ! allocate intvector object
      allocate (intvector)
      ! initialize STLVecInt
      call intvector%init()
      sv%memtype = 4
      sv%intvector => intvector
      sv%size = -1
      ! set pointer to dynamic shape
      call mem_setptr(sv%intvector_shape, sv%idt%shape, this%mempath)
    end if

Here is the call graph for this function:

allocate_int_type()

subroutine structarraymodule::allocate_int_type ( class(structarraytype)  this, type(structvectortype), intent(inout)  sv  )

private

Parameters

this	StructArrayType

Definition at line 199 of file StructArray.f90.

    class(StructArrayType) :: this !< StructArrayType
    type(StructVectorType), intent(inout) :: sv
    integer(I4B), dimension(:), pointer, contiguous :: int1d
    integer(I4B) :: j, nrow

    if (this%deferred_shape) then
      ! shape not known, allocate locally
      nrow = this%deferred_size_init
      allocate (int1d(this%deferred_size_init))
    else
      ! shape known, allocate in managed memory
      nrow = this%nrow
      call mem_allocate(int1d, this%nrow, sv%idt%mf6varname, this%mempath)
    end if

    ! initialize vector values
    do j = 1, nrow
      int1d(j) = izero
    end do

    sv%memtype = 1
    sv%int1d => int1d

check_reallocate()

subroutine structarraymodule::check_reallocate ( class(structarraytype)  this )

private

Parameters

this	StructArrayType

Definition at line 669 of file StructArray.f90.

    class(StructArrayType) :: this !< StructArrayType
    integer(I4B) :: i, j, k, newsize
    integer(I4B), dimension(:), pointer, contiguous :: p_int1d
    integer(I4B), dimension(:, :), pointer, contiguous :: p_int2d
    real(DP), dimension(:), pointer, contiguous :: p_dbl1d
    type(CharacterStringType), dimension(:), pointer, contiguous :: p_charstr1d
    integer(I4B) :: reallocate_mult

    ! set growth rate
    reallocate_mult = 2

    do j = 1, this%ncol
      ! reallocate based on memtype
      select case (this%struct_vectors(j)%memtype)
      case (1) ! memtype integer
        ! check if more space needed
        if (this%nrow > this%struct_vectors(j)%size) then
          ! calculate new size
          newsize = this%struct_vectors(j)%size * reallocate_mult
          ! allocate new vector
          allocate (p_int1d(newsize))

          ! copy from old to new
          do i = 1, this%struct_vectors(j)%size
            p_int1d(i) = this%struct_vectors(j)%int1d(i)
          end do

          ! deallocate old vector
          deallocate (this%struct_vectors(j)%int1d)

          ! update struct array object
          this%struct_vectors(j)%int1d => p_int1d
          this%struct_vectors(j)%size = newsize
        end if
      case (2) ! memtype real
        if (this%nrow > this%struct_vectors(j)%size) then
          newsize = this%struct_vectors(j)%size * reallocate_mult
          allocate (p_dbl1d(newsize))

          do i = 1, this%struct_vectors(j)%size
            p_dbl1d(i) = this%struct_vectors(j)%dbl1d(i)
          end do

          deallocate (this%struct_vectors(j)%dbl1d)

          this%struct_vectors(j)%dbl1d => p_dbl1d
          this%struct_vectors(j)%size = newsize
        end if
        !
      case (3) ! memtype charstring
        if (this%nrow > this%struct_vectors(j)%size) then
          newsize = this%struct_vectors(j)%size * reallocate_mult
          allocate (p_charstr1d(newsize))

          do i = 1, this%struct_vectors(j)%size
            p_charstr1d(i) = this%struct_vectors(j)%charstr1d(i)
            call this%struct_vectors(j)%charstr1d(i)%destroy()
          end do

          deallocate (this%struct_vectors(j)%charstr1d)

          this%struct_vectors(j)%charstr1d => p_charstr1d
          this%struct_vectors(j)%size = newsize
        end if
      case (5)
        if (this%nrow > this%struct_vectors(j)%size) then
          newsize = this%struct_vectors(j)%size * reallocate_mult
          allocate (p_int2d(this%struct_vectors(j)%intshape, newsize))

          do i = 1, this%struct_vectors(j)%size
            do k = 1, this%struct_vectors(j)%intshape
              p_int2d(k, i) = this%struct_vectors(j)%int2d(k, i)
            end do
          end do

          deallocate (this%struct_vectors(j)%int2d)

          this%struct_vectors(j)%int2d => p_int2d
          this%struct_vectors(j)%size = newsize
        end if
        ! TODO: case (6)
      case default
        errmsg = 'IDM unimplemented. StructArray::check_reallocate &
                 &unsupported memtype.'
        call store_error(errmsg, terminate=.true.)
      end select
    end do

Here is the call graph for this function:

constructstructarray()

type(structarraytype) function, pointer, public structarraymodule::constructstructarray	(	type(modflowinputtype), intent(in)	mf6_input,
		integer(i4b), intent(in)	ncol,
		integer(i4b), intent(in)	nrow,
		integer(i4b), intent(in)	blocknum,
		character(len=*), intent(in)	mempath,
		character(len=*), intent(in)	component_mempath
	)

Parameters

[in]	ncol	number of columns in the StructArrayType
[in]	nrow	number of rows in the StructArrayType
[in]	blocknum	valid block number or 0
[in]	mempath	memory path for storing the vector

Returns

new StructArrayType

Definition at line 71 of file StructArray.f90.

    type(ModflowInputType), intent(in) :: mf6_input
    integer(I4B), intent(in) :: ncol !< number of columns in the StructArrayType
    integer(I4B), intent(in) :: nrow !< number of rows in the StructArrayType
    integer(I4B), intent(in) :: blocknum !< valid block number or 0
    character(len=*), intent(in) :: mempath !< memory path for storing the vector
    character(len=*), intent(in) :: component_mempath
    type(StructArrayType), pointer :: struct_array !< new StructArrayType

    ! allocate StructArrayType
    allocate (struct_array)

    ! set description of input
    struct_array%mf6_input = mf6_input

    ! set number of arrays
    struct_array%ncol = ncol

    ! set rows if known or set deferred
    struct_array%nrow = nrow
    if (struct_array%nrow == -1) then
      struct_array%nrow = 0
      struct_array%deferred_shape = .true.
    end if

    ! set blocknum
    if (blocknum > 0) then
      struct_array%blocknum = blocknum
    else
      struct_array%blocknum = 0
    end if

    ! set mempath
    struct_array%mempath = mempath
    struct_array%component_mempath = component_mempath

    ! allocate StructVectorType objects
    allocate (struct_array%struct_vectors(ncol))
    allocate (struct_array%startidx(ncol))
    allocate (struct_array%numcols(ncol))

Here is the caller graph for this function:

count()

integer(i4b) function structarraymodule::count ( class(structarraytype)  this )

private

Parameters

this	StructArrayType

Definition at line 178 of file StructArray.f90.

    class(StructArrayType) :: this !< StructArrayType
    integer(I4B) :: count
    count = size(this%struct_vectors)

destructstructarray()

subroutine, public structarraymodule::destructstructarray

(

type(structarraytype), intent(inout), pointer

struct_array

)

Parameters

[in,out]

struct_array

StructArrayType to destroy

Definition at line 116 of file StructArray.f90.

    type(StructArrayType), pointer, intent(inout) :: struct_array !< StructArrayType to destroy
    deallocate (struct_array%struct_vectors)
    deallocate (struct_array%startidx)
    deallocate (struct_array%numcols)
    deallocate (struct_array)
    nullify (struct_array)

Here is the caller graph for this function:

get()

type(structvectortype) function, pointer structarraymodule::get ( class(structarraytype)  this, integer(i4b), intent(in)  idx  )

private

Parameters

this	StructArrayType

Definition at line 190 of file StructArray.f90.

    class(StructArrayType) :: this !< StructArrayType
    integer(I4B), intent(in) :: idx
    type(StructVectorType), pointer :: sv
    call set_pointer(sv, this%struct_vectors(idx))

Here is the call graph for this function:

load_deferred_vector()

subroutine structarraymodule::load_deferred_vector	(	class(structarraytype)	this,
		integer(i4b), intent(in)	icol
	)

Parameters

this	StructArrayType

Definition at line 403 of file StructArray.f90.

    use memorymanagermodule, only: get_isize
    class(StructArrayType) :: this !< StructArrayType
    integer(I4B), intent(in) :: icol
    integer(I4B) :: i, j, isize
    integer(I4B), dimension(:), pointer, contiguous :: p_int1d
    integer(I4B), dimension(:, :), pointer, contiguous :: p_int2d
    real(DP), dimension(:), pointer, contiguous :: p_dbl1d
    type(CharacterStringType), dimension(:), pointer, contiguous :: p_charstr1d
    character(len=LENVARNAME) :: varname
    logical(LGP) :: overwrite

    overwrite = .true.
    if (this%struct_vectors(icol)%idt%blockname == 'SOLUTIONGROUP') &
      overwrite = .false.

    ! set varname
    varname = this%struct_vectors(icol)%idt%mf6varname
    ! check if already mem managed variable
    call get_isize(varname, this%mempath, isize)

    ! allocate and load based on memtype
    select case (this%struct_vectors(icol)%memtype)
    case (1) ! memtype integer
      if (isize > -1) then
        ! variable exists, reallocate and append
        call mem_setptr(p_int1d, varname, this%mempath)

        if (overwrite) then
          ! overwrite existing array
          if (this%nrow > isize) then
            ! reallocate
            call mem_reallocate(p_int1d, this%nrow, varname, this%mempath)
          end if

          ! write new data
          do i = 1, this%nrow
            p_int1d(i) = this%struct_vectors(icol)%int1d(i)
          end do

          if (isize > this%nrow) then
            ! initialize excess space
            do i = this%nrow + 1, isize
              p_int1d(i) = izero
            end do
          end if
        else
          ! reallocate to new size
          call mem_reallocate(p_int1d, this%nrow + isize, varname, this%mempath)

          ! write new data after existing
          do i = 1, this%nrow
            p_int1d(isize + i) = this%struct_vectors(icol)%int1d(i)
          end do
        end if
      else
        ! allocate memory manager vector
        call mem_allocate(p_int1d, this%nrow, varname, this%mempath)

        ! load local vector to managed memory
        do i = 1, this%nrow
          p_int1d(i) = this%struct_vectors(icol)%int1d(i)
        end do
      end if

      ! deallocate local memory
      deallocate (this%struct_vectors(icol)%int1d)

      ! update structvector
      this%struct_vectors(icol)%int1d => p_int1d
      this%struct_vectors(icol)%size = this%nrow
    case (2) ! memtype real
      if (isize > -1) then
        call mem_setptr(p_dbl1d, varname, this%mempath)

        if (overwrite) then
          if (this%nrow > isize) then
            call mem_reallocate(p_dbl1d, this%nrow, varname, this%mempath)
          end if

          do i = 1, this%nrow
            p_dbl1d(i) = this%struct_vectors(icol)%dbl1d(i)
          end do

          if (isize > this%nrow) then
            do i = this%nrow + 1, isize
              p_dbl1d(i) = dzero
            end do
          end if
        else
          call mem_reallocate(p_dbl1d, this%nrow + isize, varname, &
                              this%mempath)
          do i = 1, this%nrow
            p_dbl1d(isize + i) = this%struct_vectors(icol)%dbl1d(i)
          end do
        end if
      else
        call mem_allocate(p_dbl1d, this%nrow, varname, this%mempath)

        do i = 1, this%nrow
          p_dbl1d(i) = this%struct_vectors(icol)%dbl1d(i)
        end do
      end if

      deallocate (this%struct_vectors(icol)%dbl1d)

      this%struct_vectors(icol)%dbl1d => p_dbl1d
      this%struct_vectors(icol)%size = this%nrow
      !
    case (3) ! memtype charstring
      if (isize > -1) then
        call mem_setptr(p_charstr1d, varname, this%mempath)

        if (overwrite) then
          if (this%nrow > isize) then
            call mem_reallocate(p_charstr1d, linelength, this%nrow, varname, &
                                this%mempath)
          end if

          do i = 1, this%nrow
            p_charstr1d(i) = this%struct_vectors(icol)%charstr1d(i)
          end do

          if (isize > this%nrow) then
            do i = this%nrow + 1, isize
              p_charstr1d(i) = ''
            end do
          end if
        else
          call mem_reallocate(p_charstr1d, linelength, this%nrow + isize, &
                              varname, this%mempath)
          do i = 1, this%nrow
            p_charstr1d(isize + i) = this%struct_vectors(icol)%charstr1d(i)
          end do
        end if
      else
        call mem_allocate(p_charstr1d, linelength, this%nrow, varname, &
                          this%mempath)
        do i = 1, this%nrow
          p_charstr1d(i) = this%struct_vectors(icol)%charstr1d(i)
          call this%struct_vectors(icol)%charstr1d(i)%destroy()
        end do
      end if

      deallocate (this%struct_vectors(icol)%charstr1d)

      this%struct_vectors(icol)%charstr1d => p_charstr1d
      this%struct_vectors(icol)%size = this%nrow
    case (4) ! memtype intvector
      errmsg = 'StructArray::load_deferred_vector &
               &intvector reallocate unimplemented.'
      call store_error(errmsg, terminate=.true.)
    case (5)
      if (isize > -1) then
        errmsg = 'StructArray::load_deferred_vector &
                 &int2d reallocate unimplemented.'
        call store_error(errmsg, terminate=.true.)
      else
        call mem_allocate(p_int2d, this%struct_vectors(icol)%intshape, &
                          this%nrow, varname, this%mempath)
        do i = 1, this%nrow
          do j = 1, this%struct_vectors(icol)%intshape
            p_int2d(j, i) = this%struct_vectors(icol)%int2d(j, i)
          end do
        end do
      end if

      deallocate (this%struct_vectors(icol)%int2d)

      this%struct_vectors(icol)%int2d => p_int2d
      this%struct_vectors(icol)%size = this%nrow
    case (6)
      errmsg = 'StructArray::load_deferred_vector &
               &dbl2d reallocate unimplemented.'
      call store_error(errmsg, terminate=.true.)
    case default
    end select

Here is the call graph for this function:

log_structarray_vars()

subroutine structarraymodule::log_structarray_vars ( class(structarraytype)  this, integer(i4b), intent(in)  iout  )

private

Parameters

	this	StructArrayType
[in]	iout	unit number for output

Definition at line 622 of file StructArray.f90.

    class(StructArrayType) :: this !< StructArrayType
    integer(I4B), intent(in) :: iout !< unit number for output
    integer(I4B) :: j
    integer(I4B), dimension(:), pointer, contiguous :: int1d

    ! idm variable logging
    do j = 1, this%ncol
      ! log based on memtype
      select case (this%struct_vectors(j)%memtype)
      case (1) ! memtype integer
        call idm_log_var(this%struct_vectors(j)%int1d, &
                         this%struct_vectors(j)%idt%tagname, &
                         this%mempath, iout)
      case (2) ! memtype real
        if (this%struct_vectors(j)%ts_strlocs%count() > 0) then
          call idm_log_var(this%struct_vectors(j)%idt%tagname, &
                           this%mempath, iout, .false.)
        else
          call idm_log_var(this%struct_vectors(j)%dbl1d, &
                           this%struct_vectors(j)%idt%tagname, &
                           this%mempath, iout)
        end if
      case (4) ! memtype intvector
        call mem_setptr(int1d, this%struct_vectors(j)%idt%mf6varname, &
                        this%mempath)
        call idm_log_var(int1d, this%struct_vectors(j)%idt%tagname, &
                         this%mempath, iout)
      case (5) ! memtype int2d
        call idm_log_var(this%struct_vectors(j)%int2d, &
                         this%struct_vectors(j)%idt%tagname, &
                         this%mempath, iout)
      case (6) ! memtype dbl2d
        if (this%struct_vectors(j)%ts_strlocs%count() > 0) then
          call idm_log_var(this%struct_vectors(j)%idt%tagname, &
                           this%mempath, iout, .false.)
        else
          call idm_log_var(this%struct_vectors(j)%dbl2d, &
                           this%struct_vectors(j)%idt%tagname, &
                           this%mempath, iout)
        end if
      end select
    end do

mem_create_vector()

subroutine structarraymodule::mem_create_vector ( class(structarraytype)  this, integer(i4b), intent(in)  icol, type(inputparamdefinitiontype), pointer  idt  )

private

Parameters

	this	StructArrayType
[in]	icol	column to create

Definition at line 127 of file StructArray.f90.

    class(StructArrayType) :: this !< StructArrayType
    integer(I4B), intent(in) :: icol !< column to create
    type(InputParamDefinitionType), pointer :: idt
    type(StructVectorType) :: sv
    integer(I4B) :: numcol

    ! initialize
    numcol = 1
    sv%idt => idt
    sv%icol = icol

    ! set size
    if (this%deferred_shape) then
      sv%size = this%deferred_size_init
    else
      sv%size = this%nrow
    end if

    ! allocate array memory for StructVectorType
    select case (idt%datatype)
    case ('INTEGER')
      call this%allocate_int_type(sv)
    case ('DOUBLE')
      call this%allocate_dbl_type(sv)
    case ('STRING', 'KEYWORD')
      call this%allocate_charstr_type(sv)
    case ('INTEGER1D')
      call this%allocate_int1d_type(sv)
      if (sv%memtype == 5) then
        numcol = sv%intshape
      end if
    case ('DOUBLE1D')
      call this%allocate_dbl1d_type(sv)
      numcol = sv%intshape
    case default
      errmsg = 'IDM unimplemented. StructArray::mem_create_vector &
               &type='//trim(idt%datatype)
      call store_error(errmsg, .true.)
    end select

    ! set the object in the Struct Array
    this%struct_vectors(icol) = sv
    this%numcols(icol) = numcol
    if (icol == 1) then
      this%startidx(icol) = 1
    else
      this%startidx(icol) = this%startidx(icol - 1) + this%numcols(icol - 1)
    end if

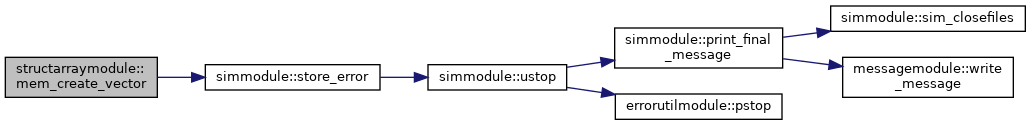

Here is the call graph for this function:

memload_vectors()

subroutine structarraymodule::memload_vectors

(

class(structarraytype)

this

)

Parameters

this	StructArrayType

Definition at line 584 of file StructArray.f90.

    class(StructArrayType) :: this !< StructArrayType
    integer(I4B) :: icol, j
    integer(I4B), dimension(:), pointer, contiguous :: p_intvector
    character(len=LENVARNAME) :: varname

    do icol = 1, this%ncol
      ! set varname
      varname = this%struct_vectors(icol)%idt%mf6varname

      if (this%struct_vectors(icol)%memtype == 4) then
        ! intvectors always need to be loaded
        ! size intvector to number of values read
        call this%struct_vectors(icol)%intvector%shrink_to_fit()

        ! allocate memory manager vector
        call mem_allocate(p_intvector, &
                          this%struct_vectors(icol)%intvector%size, &
                          varname, this%mempath)

        ! load local vector to managed memory
        do j = 1, this%struct_vectors(icol)%intvector%size
          p_intvector(j) = this%struct_vectors(icol)%intvector%at(j)
        end do

        ! cleanup local memory
        call this%struct_vectors(icol)%intvector%destroy()
        deallocate (this%struct_vectors(icol)%intvector)
        nullify (this%struct_vectors(icol)%intvector_shape)
      else if (this%deferred_shape) then
        ! load as shape wasn't known
        call this%load_deferred_vector(icol)
      end if
    end do

read_from_binary()

integer(i4b) function structarraymodule::read_from_binary ( class(structarraytype)  this, integer(i4b), intent(in)  inunit, integer(i4b), intent(in)  iout  )

private

Parameters

	this	StructArrayType
[in]	inunit	unit number for binary input
[in]	iout	unit number for output

Definition at line 881 of file StructArray.f90.

    class(StructArrayType) :: this !< StructArrayType
    integer(I4B), intent(in) :: inunit !< unit number for binary input
    integer(I4B), intent(in) :: iout !< unit number for output
    integer(I4B) :: irow, ierr
    integer(I4B) :: j, k
    integer(I4B) :: intval, numval
    character(len=LINELENGTH) :: fname
    character(len=*), parameter :: fmtlsterronly = &
      "('Error reading LIST from file: ',&
      &1x,a,1x,' on UNIT: ',I0)"

    ! set error and exit if deferred shape
    if (this%deferred_shape) then
      errmsg = 'IDM unimplemented. StructArray::read_from_binary deferred shape &
               &not supported for binary inputs.'
      call store_error(errmsg, terminate=.true.)
    end if
    ! initialize
    irow = 0
    ierr = 0
    readloop: do
      ! update irow index
      irow = irow + 1
      ! handle line reads by column memtype
      do j = 1, this%ncol
        select case (this%struct_vectors(j)%memtype)
        case (1) ! memtype integer
          read (inunit, iostat=ierr) this%struct_vectors(j)%int1d(irow)
        case (2) ! memtype real
          read (inunit, iostat=ierr) this%struct_vectors(j)%dbl1d(irow)
        case (3) ! memtype charstring
          errmsg = 'List style binary inputs not supported &
                   &for text columns, tag='// &
                   trim(this%struct_vectors(j)%idt%tagname)//'.'
          call store_error(errmsg, terminate=.true.)
        case (4) ! memtype intvector
          ! get shape for this row
          numval = this%struct_vectors(j)%intvector_shape(irow)
          ! read and store row values
          do k = 1, numval
            if (ierr == 0) then
              read (inunit, iostat=ierr) intval
              call this%struct_vectors(j)%intvector%push_back(intval)
            end if
          end do
        case (5) ! memtype int2d
          ! read and store row values
          do k = 1, this%struct_vectors(j)%intshape
            if (ierr == 0) then
              read (inunit, iostat=ierr) this%struct_vectors(j)%int2d(k, irow)
            end if
          end do
        case (6) ! memtype dbl2d
          do k = 1, this%struct_vectors(j)%intshape
            if (ierr == 0) then
              read (inunit, iostat=ierr) this%struct_vectors(j)%dbl2d(k, irow)
            end if
          end do
        end select

        ! handle error cases
        select case (ierr)
        case (0)
          ! no error
        case (:-1)
          ! End of block was encountered
          irow = irow - 1
          exit readloop
        case (1:)
          ! Error
          inquire (unit=inunit, name=fname)
          write (errmsg, fmtlsterronly) trim(adjustl(fname)), inunit
          call store_error(errmsg, terminate=.true.)
        case default
        end select
      end do
      if (irow == this%nrow) exit readloop
    end do readloop

    ! Stop if errors were detected
    !if (count_errors() > 0) then
    !  call store_error_unit(inunit)
    !end if

    ! if deferred shape vectors were read, load to input path
    call this%memload_vectors()

    ! log loaded variables
    if (iout > 0) then
      call this%log_structarray_vars(iout)
    end if

Here is the call graph for this function:

read_from_parser()

integer(i4b) function structarraymodule::read_from_parser ( class(structarraytype)  this, type(blockparsertype)  parser, logical(lgp), intent(in)  timeseries, integer(i4b), intent(in)  iout  )

private

Parameters

	this	StructArrayType
	parser	block parser to read from
[in]	iout	unit number for output

Definition at line 840 of file StructArray.f90.

    class(StructArrayType) :: this !< StructArrayType
    type(BlockParserType) :: parser !< block parser to read from
    logical(LGP), intent(in) :: timeseries
    integer(I4B), intent(in) :: iout !< unit number for output
    integer(I4B) :: irow, j
    logical(LGP) :: endOfBlock

    ! initialize index irow
    irow = 0

    ! read entire block
    do
      ! read next line
      call parser%GetNextLine(endofblock)
      if (endofblock) then
        ! no more lines
        exit
      else if (this%deferred_shape) then
        ! shape unknown, track lines read
        this%nrow = this%nrow + 1
        ! check and update memory allocation
        call this%check_reallocate()
      end if
      ! update irow index
      irow = irow + 1
      ! handle line reads by column memtype
      do j = 1, this%ncol
        call this%read_param(parser, j, irow, timeseries, iout)
      end do
    end do
    ! if deferred shape vectors were read, load to input path
    call this%memload_vectors()
    ! log loaded variables
    if (iout > 0) then
      call this%log_structarray_vars(iout)
    end if

read_param()

subroutine structarraymodule::read_param ( class(structarraytype)  this, type(blockparsertype), intent(inout)  parser, integer(i4b), intent(in)  sv_col, integer(i4b), intent(in)  irow, logical(lgp), intent(in)  timeseries, integer(i4b), intent(in)  iout, integer(i4b), intent(in), optional  auxcol  )

private

Parameters

	this	StructArrayType
[in,out]	parser	block parser to read from
[in]	iout	unit number for output

Definition at line 759 of file StructArray.f90.

    class(StructArrayType) :: this !< StructArrayType
    type(BlockParserType), intent(inout) :: parser !< block parser to read from
    integer(I4B), intent(in) :: sv_col
    integer(I4B), intent(in) :: irow
    logical(LGP), intent(in) :: timeseries
    integer(I4B), intent(in) :: iout !< unit number for output
    integer(I4B), optional, intent(in) :: auxcol
    integer(I4B) :: n, intval, numval, icol
    character(len=LINELENGTH) :: str
    character(len=:), allocatable :: line
    logical(LGP) :: preserve_case

    select case (this%struct_vectors(sv_col)%memtype)
    case (1) ! memtype integer
      ! if reloadable block and first col, store blocknum
      if (sv_col == 1 .and. this%blocknum > 0) then
        ! store blocknum
        this%struct_vectors(sv_col)%int1d(irow) = this%blocknum
      else
        ! read and store int
        this%struct_vectors(sv_col)%int1d(irow) = parser%GetInteger()
      end if
    case (2) ! memtype real
      if (this%struct_vectors(sv_col)%idt%timeseries .and. timeseries) then
        call parser%GetString(str)
        if (present(auxcol)) then
          icol = auxcol
        else
          icol = 1
        end if
        this%struct_vectors(sv_col)%dbl1d(irow) = &
          this%struct_vectors(sv_col)%read_token(str, this%startidx(sv_col), &
                                                 icol, irow)
      else
        this%struct_vectors(sv_col)%dbl1d(irow) = parser%GetDouble()
      end if
    case (3) ! memtype charstring
      if (this%struct_vectors(sv_col)%idt%shape /= '') then
        ! if last column with any shape, store rest of line
        if (sv_col == this%ncol) then
          call parser%GetRemainingLine(line)
          this%struct_vectors(sv_col)%charstr1d(irow) = line
          deallocate (line)
        end if
      else
        ! read string token
        preserve_case = (.not. this%struct_vectors(sv_col)%idt%preserve_case)
        call parser%GetString(str, preserve_case)
        this%struct_vectors(sv_col)%charstr1d(irow) = str
      end if
    case (4) ! memtype intvector
      ! get shape for this row
      numval = this%struct_vectors(sv_col)%intvector_shape(irow)
      ! read and store row values
      do n = 1, numval
        intval = parser%GetInteger()
        call this%struct_vectors(sv_col)%intvector%push_back(intval)
      end do
    case (5) ! memtype int2d
      ! read and store row values
      do n = 1, this%struct_vectors(sv_col)%intshape
        this%struct_vectors(sv_col)%int2d(n, irow) = parser%GetInteger()
      end do
    case (6) ! memtype dbl2d
      ! read and store row values
      do n = 1, this%struct_vectors(sv_col)%intshape
        if (this%struct_vectors(sv_col)%idt%timeseries .and. timeseries) then
          call parser%GetString(str)
          icol = this%startidx(sv_col) + n - 1
          this%struct_vectors(sv_col)%dbl2d(n, irow) = &
            this%struct_vectors(sv_col)%read_token(str, icol, n, irow)
        else
          this%struct_vectors(sv_col)%dbl2d(n, irow) = parser%GetDouble()
        end if
      end do
    end select

set_pointer()

subroutine structarraymodule::set_pointer ( type(structvectortype), pointer  sv, type(structvectortype), target  sv_target  )

private

Definition at line 184 of file StructArray.f90.

    type(StructVectorType), pointer :: sv
    type(StructVectorType), target :: sv_target
    sv => sv_target

Here is the caller graph for this function:
