simulationcreatemodule Module Reference

Functions/Subroutines
subroutine, public	simulation_cr ()
	Read the simulation name file and initialize the models, exchanges. More...
subroutine, public	simulation_da ()
	Deallocate simulation variables. More...
subroutine	source_simulation_nam ()
	Source the simulation name file. More...
subroutine	options_create ()
	Set the simulation options. More...
subroutine	timing_create ()
	Set the timing module to be used for the simulation. More...
subroutine	models_create ()
	Set the models to be used for the simulation. More...
subroutine	exchanges_create ()
	Set the exchanges to be used for the simulation. More...
subroutine	solution_group_check (sgp, sgid, isgpsoln)
	Check a solution_group to be used for the simulation. More...
subroutine	solution_groups_create ()
	Set the solution_groups to be used for the simulation. More...
subroutine	check_model_assignment ()
	Check for dangling models, and break with error when found. More...
subroutine	assign_exchanges ()
	Assign exchanges to solutions. More...
subroutine	check_model_name (mtype, mname)
	Check that the model name is valid. More...

Function/Subroutine Documentation

assign_exchanges()

subroutine simulationcreatemodule::assign_exchanges

private

This assigns NumericalExchanges to NumericalSolutions, based on the link between the models in the solution and those exchanges. The BaseExchangeconnects_model() function should be overridden to indicate if such a link exists.

Definition at line 799 of file SimulationCreate.f90.

    ! -- local
    class(BaseSolutionType), pointer :: sp
    class(BaseExchangeType), pointer :: ep
    class(BaseModelType), pointer :: mp
    type(ListType), pointer :: models_in_solution
    integer(I4B) :: is, ie, im

    do is = 1, basesolutionlist%Count()
      sp => getbasesolutionfromlist(basesolutionlist, is)
      !
      ! -- now loop over exchanges
      do ie = 1, baseexchangelist%Count()
        ep => getbaseexchangefromlist(baseexchangelist, ie)
        !
        ! -- and add when it affects (any model in) the solution matrix
        models_in_solution => sp%get_models()
        do im = 1, models_in_solution%Count()
          mp => getbasemodelfromlist(models_in_solution, im)
          if (ep%connects_model(mp)) then
            !
            ! -- add to solution (and only once)
            call sp%add_exchange(ep)
            exit
          end if
        end do
      end do
    end do

Here is the call graph for this function:

Here is the caller graph for this function:

check_model_assignment()

subroutine simulationcreatemodule::check_model_assignment

Definition at line 773 of file SimulationCreate.f90.

    character(len=LINELENGTH) :: errmsg
    class(BaseModelType), pointer :: mp
    integer(I4B) :: im

    do im = 1, basemodellist%Count()
      mp => getbasemodelfromlist(basemodellist, im)
      if (mp%idsoln == 0) then
        write (errmsg, '(a,a)') &
          'Model was not assigned to a solution: ', mp%name
        call store_error(errmsg)
      end if
    end do
    if (count_errors() > 0) then
      call store_error_filename('mfsim.nam')
    end if


Here is the call graph for this function:

Here is the caller graph for this function:

check_model_name()

subroutine simulationcreatemodule::check_model_name ( character(len=*), intent(in)  mtype, character(len=*), intent(inout)  mname  )

private

Definition at line 831 of file SimulationCreate.f90.

    ! -- dummy
    character(len=*), intent(in) :: mtype
    character(len=*), intent(inout) :: mname
    ! -- local
    integer :: ilen
    integer :: i
    character(len=LINELENGTH) :: errmsg
    logical :: terminate = .true.

    ilen = len_trim(mname)
    if (ilen > lenmodelname) then
      write (errmsg, '(a,a)') 'Invalid model name: ', trim(mname)
      call store_error(errmsg)
      write (errmsg, '(a,i0,a,i0)') &
        'Name length of ', ilen, ' exceeds maximum length of ', &
        lenmodelname
      call store_error(errmsg, terminate)
    end if
    do i = 1, ilen
      if (mname(i:i) == ' ') then
        write (errmsg, '(a,a)') 'Invalid model name: ', trim(mname)
        call store_error(errmsg)
        write (errmsg, '(a)') &
          'Model name cannot have spaces within it.'
        call store_error(errmsg, terminate)
      end if
    end do

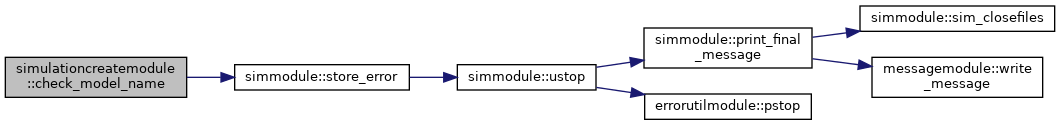

Here is the call graph for this function:

Here is the caller graph for this function:

exchanges_create()

subroutine simulationcreatemodule::exchanges_create

Definition at line 360 of file SimulationCreate.f90.

    ! -- modules
    use memoryhelpermodule, only: create_mem_path
    use memorymanagermodule, only: mem_setptr
    use simvariablesmodule, only: idm_context
    use chfgwfexchangemodule, only: chfgwf_cr
    use gwfgwfexchangemodule, only: gwfexchange_create
    use gwfgwtexchangemodule, only: gwfgwt_cr
    use gwfgweexchangemodule, only: gwfgwe_cr
    use gwfprtexchangemodule, only: gwfprt_cr
    use gwtgwtexchangemodule, only: gwtexchange_create
    use gwegweexchangemodule, only: gweexchange_create
    use olfgwfexchangemodule, only: olfgwf_cr
    use virtualgwfexchangemodule, only: add_virtual_gwf_exchange
    use virtualgwtexchangemodule, only: add_virtual_gwt_exchange
    use virtualgweexchangemodule, only: add_virtual_gwe_exchange
    ! use VirtualPrtExchangeModule, only: add_virtual_prt_exchange
    ! -- dummy
    ! -- locals
    character(len=LENMEMPATH) :: input_mempath
    type(CharacterStringType), dimension(:), contiguous, &
      pointer :: etypes !< exg types
    type(CharacterStringType), dimension(:), contiguous, &
      pointer :: efiles !< exg file names
    type(CharacterStringType), dimension(:), contiguous, &
      pointer :: emnames_a !< model a names
    type(CharacterStringType), dimension(:), contiguous, &
      pointer :: emnames_b !< model b names
    type(CharacterStringType), dimension(:), contiguous, &
      pointer :: emempaths
    character(len=LINELENGTH) :: exgtype
    integer(I4B) :: exg_id
    integer(I4B) :: m1_id, m2_id
    character(len=LINELENGTH) :: fname, name1, name2
    character(len=LENEXCHANGENAME) :: exg_name
    character(len=LENMEMPATH) :: exg_mempath
    integer(I4B) :: n
    character(len=LINELENGTH) :: errmsg
    logical(LGP) :: terminate = .true.
    logical(LGP) :: both_remote, both_local
    ! -- formats
    character(len=*), parameter :: fmtmerr = "('Error in simulation control ', &
      &'file.  Could not find model: ', a)"
    !
    ! -- set input memory path
    input_mempath = create_mem_path('SIM', 'NAM', idm_context)
    !
    ! -- set pointers to input context exchange attribute arrays
    call mem_setptr(etypes, 'EXGTYPE', input_mempath)
    call mem_setptr(efiles, 'EXGFILE', input_mempath)
    call mem_setptr(emnames_a, 'EXGMNAMEA', input_mempath)
    call mem_setptr(emnames_b, 'EXGMNAMEB', input_mempath)
    call mem_setptr(emempaths, 'EXGMEMPATHS', input_mempath)
    !
    ! -- open exchange logging block
    write (iout, '(/1x,a)') 'READING SIMULATION EXCHANGES'
    !
    ! -- initialize
    exg_id = 0
    !
    ! -- create exchanges
    do n = 1, size(etypes)
      !
      ! -- attributes for this exchange
      exgtype = etypes(n)
      fname = efiles(n)
      name1 = emnames_a(n)
      name2 = emnames_b(n)
      exg_mempath = emempaths(n)

      exg_id = exg_id + 1

      ! find model index in list
      m1_id = ifind(model_names, name1)
      if (m1_id < 0) then
        write (errmsg, fmtmerr) trim(name1)
        call store_error(errmsg, terminate)
      end if
      m2_id = ifind(model_names, name2)
      if (m2_id < 0) then
        write (errmsg, fmtmerr) trim(name2)
        call store_error(errmsg, terminate)
      end if

      ! both models on other process? then don't create it here...
      both_remote = (model_loc_idx(m1_id) == -1 .and. &
                     model_loc_idx(m2_id) == -1)
      both_local = (model_loc_idx(m1_id) > 0 .and. &
                    model_loc_idx(m2_id) > 0)
      if (.not. both_remote) then
        write (iout, '(4x,a,a,i0,a,i0,a,i0)') trim(exgtype), ' exchange ', &
          exg_id, ' will be created to connect model ', m1_id, &
          ' with model ', m2_id
      end if

      select case (exgtype)
      case ('CHF6-GWF6')
        write (exg_name, '(a,i0)') 'CHF-GWF_', exg_id
        if (both_local) then
          call chfgwf_cr(fname, exg_name, exg_id, m1_id, m2_id, exg_mempath)
        end if
      case ('GWF6-GWF6')
        write (exg_name, '(a,i0)') 'GWF-GWF_', exg_id
        if (.not. both_remote) then
          call gwfexchange_create(fname, exg_name, exg_id, m1_id, m2_id, &
                                  exg_mempath)
        end if
        call add_virtual_gwf_exchange(exg_name, exg_id, m1_id, m2_id)
      case ('GWF6-GWT6')
        if (both_local) then
          call gwfgwt_cr(fname, exg_id, m1_id, m2_id)
        end if
      case ('GWF6-GWE6')
        if (both_local) then
          call gwfgwe_cr(fname, exg_id, m1_id, m2_id)
        end if
      case ('GWF6-PRT6')
        call gwfprt_cr(fname, exg_id, m1_id, m2_id)
      case ('GWT6-GWT6')
        write (exg_name, '(a,i0)') 'GWT-GWT_', exg_id
        if (.not. both_remote) then
          call gwtexchange_create(fname, exg_name, exg_id, m1_id, m2_id, &
                                  exg_mempath)
        end if
        call add_virtual_gwt_exchange(exg_name, exg_id, m1_id, m2_id)
      case ('GWE6-GWE6')
        write (exg_name, '(a,i0)') 'GWE-GWE_', exg_id
        if (.not. both_remote) then
          call gweexchange_create(fname, exg_name, exg_id, m1_id, m2_id, &
                                  exg_mempath)
        end if
        call add_virtual_gwe_exchange(exg_name, exg_id, m1_id, m2_id)
      case ('OLF6-GWF6')
        write (exg_name, '(a,i0)') 'OLF-GWF_', exg_id
        if (both_local) then
          call olfgwf_cr(fname, exg_name, exg_id, m1_id, m2_id, exg_mempath)
        end if
      case default
        write (errmsg, '(a,a)') &
          'Unknown simulation exchange type: ', trim(exgtype)
        call store_error(errmsg, terminate)
      end select
    end do
    !
    ! -- close exchange logging block
    write (iout, '(1x,a)') 'END OF SIMULATION EXCHANGES'

Here is the call graph for this function:

Here is the caller graph for this function:

models_create()

subroutine simulationcreatemodule::models_create

Definition at line 200 of file SimulationCreate.f90.

    ! -- modules
    use memoryhelpermodule, only: create_mem_path
    use memorymanagermodule, only: mem_setptr, mem_allocate
    use simvariablesmodule, only: idm_context, errmsg
    use distributedsimmodule, only: distributedsimtype, get_dsim
    use chfmodule, only: chf_cr
    use gwfmodule, only: gwf_cr
    use gwtmodule, only: gwt_cr
    use gwemodule, only: gwe_cr
    use olfmodule, only: olf_cr
    use prtmodule, only: prt_cr
    use numericalmodelmodule, only: numericalmodeltype, getnumericalmodelfromlist
    use explicitmodelmodule, only: explicitmodeltype, getexplicitmodelfromlist
    use virtualgwfmodelmodule, only: add_virtual_gwf_model
    use virtualgwtmodelmodule, only: add_virtual_gwt_model
    use virtualgwemodelmodule, only: add_virtual_gwe_model
    ! use VirtualPrtModelModule, only: add_virtual_prt_model
    use constantsmodule, only: lenmodelname
    ! -- dummy
    ! -- locals
    type(DistributedSimType), pointer :: ds
    character(len=LENMEMPATH) :: input_mempath
    type(CharacterStringType), dimension(:), contiguous, &
      pointer :: mtypes !< model types
    type(CharacterStringType), dimension(:), contiguous, &
      pointer :: mfnames !< model file names
    type(CharacterStringType), dimension(:), contiguous, &
      pointer :: mnames !< model names
    integer(I4B) :: im
    class(NumericalModelType), pointer :: num_model
    class(ExplicitModelType), pointer :: exp_model
    character(len=LINELENGTH) :: model_type
    character(len=LINELENGTH) :: fname, model_name
    integer(I4B) :: n, nr_models_glob
    integer(I4B), dimension(:), pointer :: model_ranks => null()
    logical :: terminate = .true.
    !
    ! -- set input memory path
    input_mempath = create_mem_path('SIM', 'NAM', idm_context)
    !
    ! -- set pointers to input context model attribute arrays
    call mem_setptr(mtypes, 'MTYPE', input_mempath)
    call mem_setptr(mfnames, 'MFNAME', input_mempath)
    call mem_setptr(mnames, 'MNAME', input_mempath)
    !
    ! -- allocate global arrays
    nr_models_glob = size(mnames)
    allocate (model_names(nr_models_glob))
    allocate (model_loc_idx(nr_models_glob))
    !
    ! -- get model-to-cpu assignment (in serial all to rank 0)
    ds => get_dsim()
    model_ranks => ds%get_load_balance()
    !
    ! -- open model logging block
    write (iout, '(/1x,a)') 'READING SIMULATION MODELS'
    !
    ! -- create models
    im = 0
    do n = 1, size(mtypes)
      !
      ! -- attributes for this model
      model_type = mtypes(n)
      fname = mfnames(n)
      model_name = mnames(n)
      !
      call check_model_name(model_type, model_name)
      !
      ! increment global model id
      model_names(n) = model_name(1:lenmodelname)
      model_loc_idx(n) = -1
      num_model => null()
      exp_model => null()
      !
      ! -- add a new (local or global) model
      select case (model_type)
      case ('GWF6')
        if (model_ranks(n) == proc_id) then
          im = im + 1
          write (iout, '(4x,2a,i0,a)') trim(model_type), ' model ', &
            n, ' will be created'
          call gwf_cr(fname, n, model_names(n))
          num_model => getnumericalmodelfromlist(basemodellist, im)
          model_loc_idx(n) = im
        end if
        call add_virtual_gwf_model(n, model_names(n), num_model)
      case ('GWT6')
        if (model_ranks(n) == proc_id) then
          im = im + 1
          write (iout, '(4x,2a,i0,a)') trim(model_type), ' model ', &
            n, ' will be created'
          call gwt_cr(fname, n, model_names(n))
          num_model => getnumericalmodelfromlist(basemodellist, im)
          model_loc_idx(n) = im
        end if
        call add_virtual_gwt_model(n, model_names(n), num_model)
      case ('GWE6')
        if (model_ranks(n) == proc_id) then
          im = im + 1
          write (iout, '(4x,2a,i0,a)') trim(model_type), ' model ', &
            n, ' will be created'
          call gwe_cr(fname, n, model_names(n))
          num_model => getnumericalmodelfromlist(basemodellist, im)
          model_loc_idx(n) = im
        end if
        call add_virtual_gwe_model(n, model_names(n), num_model)
      case ('CHF6')
        if (model_ranks(n) == proc_id) then
          im = im + 1
          write (iout, '(4x,2a,i0,a)') trim(model_type), " model ", &
            n, " will be created"
          call chf_cr(fname, n, model_names(n))
          call developmode('CHF is still under development, install the &
            &nightly build or compile from source with IDEVELOPMODE = 1.')
          num_model => getnumericalmodelfromlist(basemodellist, im)
          model_loc_idx(n) = im
        end if
      case ('OLF6')
        if (model_ranks(n) == proc_id) then
          im = im + 1
          write (iout, '(4x,2a,i0,a)') trim(model_type), " model ", &
            n, " will be created"
          call olf_cr(fname, n, model_names(n))
          call developmode('OLF is still under development, install the &
            &nightly build or compile from source with IDEVELOPMODE = 1.')
          num_model => getnumericalmodelfromlist(basemodellist, im)
          model_loc_idx(n) = im
        end if
      case ('PRT6')
        if (model_ranks(n) == proc_id) then
          im = im + 1
          write (iout, '(4x,2a,i0,a)') trim(model_type), ' model ', &
            n, ' will be created'
          call prt_cr(fname, n, model_names(n))
          exp_model => getexplicitmodelfromlist(basemodellist, im)
          model_loc_idx(n) = im
        end if
        ! When virtual PRT is implemented, uncomment:
        ! call add_virtual_prt_model(n, model_names(n), exp_model)
      case default
        write (errmsg, '(a,a)') &
          'Unknown simulation model type: ', trim(model_type)
        call store_error(errmsg, terminate)
      end select
    end do
    !
    ! -- close model logging block
    write (iout, '(1x,a)') 'END OF SIMULATION MODELS'
    !
    ! -- sanity check
    if (simulation_mode == 'PARALLEL' .and. im == 0) then
      write (errmsg, '(a, i0)') &
        'No MODELS assigned to process ', proc_id
      call store_error(errmsg, terminate)
    end if

Here is the call graph for this function:

Here is the caller graph for this function:

options_create()

subroutine simulationcreatemodule::options_create

private

Definition at line 95 of file SimulationCreate.f90.

    ! -- modules
    use memoryhelpermodule, only: create_mem_path
    use memorymanagermodule, only: mem_setptr
    use simvariablesmodule, only: idm_context
    use memorymanagermodule, only: mem_set_print_option
    use simvariablesmodule, only: isimcontinue, isimcheck
    ! -- dummy
    ! -- locals
    character(len=LENMEMPATH) :: input_mempath
    integer(I4B), pointer :: simcontinue, nocheck, maxerror
    character(len=:), pointer :: prmem
    character(len=LINELENGTH) :: errmsg
    !
    ! -- set input memory path
    input_mempath = create_mem_path('SIM', 'NAM', idm_context)
    !
    ! -- set pointers to input context option params
    call mem_setptr(simcontinue, 'CONTINUE', input_mempath)
    call mem_setptr(nocheck, 'NOCHECK', input_mempath)
    call mem_setptr(prmem, 'PRMEM', input_mempath)
    call mem_setptr(maxerror, 'MAXERRORS', input_mempath)
    !
    ! -- update sim options
    isimcontinue = simcontinue
    if (nocheck == 1) then
      isimcheck = 0
    else
      isimcheck = 1
    end if

    call maxerrors(maxerror)

    if (prmem /= '') then
      errmsg = ''
      call mem_set_print_option(iout, prmem, errmsg)
      if (errmsg /= '') then
        call store_error(errmsg, .true.)
      end if
    end if

    !
    ! -- log values to list file
    if (iout > 0) then
      write (iout, '(/1x,a)') 'READING SIMULATION OPTIONS'
      !
      if (isimcontinue == 1) then
        write (iout, '(4x, a)') &
          'SIMULATION WILL CONTINUE EVEN IF THERE IS NONCONVERGENCE.'
      end if
      !
      if (isimcheck == 0) then
        write (iout, '(4x, a)') &
          'MODEL DATA WILL NOT BE CHECKED FOR ERRORS.'
      end if
      !
      write (iout, '(4x, a, i0)') &
        'MAXIMUM NUMBER OF ERRORS THAT WILL BE STORED IS ', maxerror
      !
      if (prmem /= '') then
        write (iout, '(4x, a, a, a)') &
          'MEMORY_PRINT_OPTION SET TO "', trim(prmem), '".'
      end if
      !
      write (iout, '(1x,a)') 'END OF SIMULATION OPTIONS'
    end if

Here is the call graph for this function:

Here is the caller graph for this function:

simulation_cr()

subroutine, public simulationcreatemodule::simulation_cr

Definition at line 34 of file SimulationCreate.f90.

    ! -- modules
    ! -- local
    !
    ! -- Source simulation nam input context and create objects
    call source_simulation_nam()

Here is the call graph for this function:

Here is the caller graph for this function:

simulation_da()

subroutine, public simulationcreatemodule::simulation_da

Definition at line 44 of file SimulationCreate.f90.

    ! -- modules
    use memorymanagermodule, only: mem_deallocate
    use distributedsimmodule, only: distributedsimtype, get_dsim
    ! -- local
    type(DistributedSimType), pointer :: ds

    ! -- variables
    ds => get_dsim()
    call ds%destroy()
    !
    deallocate (model_names)
    deallocate (model_loc_idx)

Here is the call graph for this function:

Here is the caller graph for this function:

solution_group_check()

subroutine simulationcreatemodule::solution_group_check	(	type(solutiongrouptype), intent(inout), pointer	sgp,
		integer(i4b), intent(in)	sgid,
		integer(i4b), intent(in)	isgpsoln
	)

Definition at line 510 of file SimulationCreate.f90.

    ! -- modules
    ! -- dummy
    type(SolutionGroupType), pointer, intent(inout) :: sgp
    integer(I4B), intent(in) :: sgid
    integer(I4B), intent(in) :: isgpsoln
    ! -- local
    character(len=LINELENGTH) :: errmsg
    logical :: terminate = .true.
    ! -- formats
    character(len=*), parameter :: fmterrmxiter = &
      "('MXITER is set to ', i0, ' but there is only one solution', &
      &' in SOLUTION GROUP ', i0, '. Set MXITER to 1 in simulation control', &
      &' file.')"
    !
    ! -- error check completed group
    if (sgid > 0) then
      !
      ! -- Make sure there is a solution in this solution group
      if (isgpsoln == 0) then
        write (errmsg, '(a,i0)') &
          'There are no solutions for solution group ', sgid
        call store_error(errmsg, terminate)
      end if
      !
      ! -- If there is only one solution then mxiter should be 1.
      if (isgpsoln == 1 .and. sgp%mxiter > 1) then
        write (errmsg, fmterrmxiter) sgp%mxiter, isgpsoln
        call store_error(errmsg, terminate)
      end if
    end if

Here is the call graph for this function:

Here is the caller graph for this function:

solution_groups_create()

subroutine simulationcreatemodule::solution_groups_create

private

Definition at line 545 of file SimulationCreate.f90.

    ! -- modules
    use memorymanagermodule, only: mem_setptr
    use memoryhelpermodule, only: create_mem_path
    use simvariablesmodule, only: idm_context, simulation_mode
    use solutiongroupmodule, only: solutiongrouptype, &
                                   solutiongroup_create
    use solutionfactorymodule, only: create_ims_solution, create_ems_solution
    use basesolutionmodule, only: basesolutiontype
    use basemodelmodule, only: basemodeltype
    use baseexchangemodule, only: baseexchangetype
    use inputoutputmodule, only: parseline, upcase
    use numericalmodelmodule, only: numericalmodeltype
    use explicitmodelmodule, only: explicitmodeltype
    ! -- dummy
    ! -- local
    character(len=LENMEMPATH) :: input_mempath
    type(CharacterStringType), dimension(:), contiguous, &
      pointer :: slntype
    type(CharacterStringType), dimension(:), contiguous, &
      pointer :: slnfname
    type(CharacterStringType), dimension(:), contiguous, &
      pointer :: slnmnames
    integer(I4B), dimension(:), contiguous, pointer :: blocknum
    character(len=LINELENGTH) :: stype, fname
    character(len=:), allocatable :: mnames
    type(SolutionGroupType), pointer :: sgp
    class(BaseSolutionType), pointer :: sp
    class(BaseModelType), pointer :: mp
    integer(I4B) :: isoln
    integer(I4B) :: isgpsoln
    integer(I4B) :: sgid
    integer(I4B) :: glo_mid
    integer(I4B) :: loc_idx
    integer(I4B) :: i, j, istat, mxiter
    integer(I4B) :: nwords
    character(len=LENMODELNAME), dimension(:), allocatable :: words
    character(len=:), allocatable :: parse_str
    character(len=LINELENGTH) :: errmsg
    logical :: terminate = .true.
    !
    ! -- set memory path
    input_mempath = create_mem_path('SIM', 'NAM', idm_context)
    !
    ! -- set pointers to input context solution attribute arrays
    call mem_setptr(slntype, 'SLNTYPE', input_mempath)
    call mem_setptr(slnfname, 'SLNFNAME', input_mempath)
    call mem_setptr(slnmnames, 'SLNMNAMES', input_mempath)
    call mem_setptr(blocknum, 'SOLUTIONGROUPNUM', input_mempath)
    !
    ! -- open solution group logging block
    write (iout, '(/1x,a)') 'READING SOLUTIONGROUP'
    !
    ! -- initialize
    sgid = 0 ! integer id of soln group, tracks with blocknum
    isoln = 0 ! cumulative solution number
    !
    ! -- create solution groups
    do i = 1, size(blocknum)
      !
      ! -- allocate slnmnames string
      allocate (character(slnmnames(i)%strlen()) :: mnames)
      !
      ! -- attributes for this solution
      stype = slntype(i)
      fname = slnfname(i)
      mnames = slnmnames(i)

      if (blocknum(i) /= sgid) then
        !
        ! -- check for new soln group
        if (blocknum(i) == sgid + 1) then
          !
          ! -- error check completed group
          call solution_group_check(sgp, sgid, isgpsoln)
          !
          ! -- reinitialize
          nullify (sgp)
          isgpsoln = 0 ! solution counter for this solution group
          !
          ! -- set sgid
          sgid = blocknum(i)
          !
          ! -- create new soln group and add to global list
          call solutiongroup_create(sgp, sgid)
          call addsolutiongrouptolist(solutiongrouplist, sgp)
        else
          write (errmsg, '(a,i0,a,i0,a)') &
            'Solution group blocks are not listed consecutively. Found ', &
            blocknum(i), ' when looking for ', sgid + 1, '.'
          call store_error(errmsg, terminate)
        end if
      end if
      !
      ! --
      select case (stype)
        !
      case ('MXITER')
        read (fname, *, iostat=istat) mxiter
        if (istat == 0) then
          sgp%mxiter = mxiter
        end if
      case ('IMS6')
        !
        ! -- increment solution counters
        isoln = isoln + 1
        isgpsoln = isgpsoln + 1
        !
        ! -- create soln and add to group
        sp => create_ims_solution(simulation_mode, fname, isoln)
        call sgp%add_solution(isoln, sp)
        !
        ! -- parse model names
        parse_str = trim(mnames)//' '
        call parseline(parse_str, nwords, words)
        !
        ! -- Find each model id and get model
        do j = 1, nwords
          call upcase(words(j))
          glo_mid = ifind(model_names, words(j))
          if (glo_mid == -1) then
            write (errmsg, '(a,a)') 'Invalid model name: ', trim(words(j))
            call store_error(errmsg, terminate)
          end if
          !
          loc_idx = model_loc_idx(glo_mid)
          if (loc_idx == -1) then
            if (simulation_mode == 'PARALLEL') then
              ! this is still ok
              cycle
            end if
          end if
          !
          mp => getbasemodelfromlist(basemodellist, loc_idx)
          !
          ! -- Check for solver-model type mismatch
          select type (mp)
          class is (explicitmodeltype)
            write (errmsg, '(4a)') &
              'Model "', trim(words(j)), &
              '" is an explicit model and cannot be added to an IMS6 ', &
              'solution. Explicit models require EMS6.'
            call store_error(errmsg)
          end select
          !
          ! -- Add the model to the solution
          call sp%add_model(mp)
          mp%idsoln = isoln
        end do
        !
        ! -- Check for any errors
        if (count_errors() > 0) then
          call store_error_filename('mfsim.nam')
        end if
      case ('EMS6')
        !
        ! -- increment solution counters
        isoln = isoln + 1
        isgpsoln = isgpsoln + 1
        !
        ! -- create soln and add to group
        sp => create_ems_solution(simulation_mode, fname, isoln)
        call sgp%add_solution(isoln, sp)
        !
        ! -- parse model names
        parse_str = trim(mnames)//' '
        call parseline(parse_str, nwords, words)
        !
        ! -- Find each model id and get model
        do j = 1, nwords
          call upcase(words(j))
          glo_mid = ifind(model_names, words(j))
          if (glo_mid == -1) then
            write (errmsg, '(a,a)') 'Invalid model name: ', trim(words(j))
            call store_error(errmsg, terminate)
          end if
          !
          loc_idx = model_loc_idx(glo_mid)
          if (loc_idx == -1) then
            if (simulation_mode == 'PARALLEL') then
              ! this is still ok
              cycle
            end if
          end if
          !
          mp => getbasemodelfromlist(basemodellist, loc_idx)
          !
          ! -- Check for solver-model type mismatch
          select type (mp)
          class is (numericalmodeltype)
            write (errmsg, '(4a)') &
              'Model "', trim(words(j)), &
              '" is a numerical model and cannot be added to an EMS6 ', &
              'solution. Numerical models require IMS6.'
            call store_error(errmsg)
          end select
          !
          ! -- Add the model to the solution
          call sp%add_model(mp)
          mp%idsoln = isoln
        end do
        !
        ! -- Check for any errors
        if (count_errors() > 0) then
          call store_error_filename('mfsim.nam')
        end if
      case default
      end select
      !
      ! -- clean up
      deallocate (mnames)
    end do
    !
    ! -- error check final group
    call solution_group_check(sgp, sgid, isgpsoln)
    !
    ! -- close exchange logging block
    write (iout, '(1x,a)') 'END OF SOLUTIONGROUP'
    !
    ! -- Check and make sure at least one solution group was found
    if (solutiongrouplist%Count() == 0) then
      call store_error('There are no solution groups.', terminate)
    end if

Here is the call graph for this function:

Here is the caller graph for this function:

source_simulation_nam()

subroutine simulationcreatemodule::source_simulation_nam

Source from the simulation nam input context to initialize the models, exchanges, solutions, solutions groups. Then add the exchanges to the appropriate solutions.

Definition at line 66 of file SimulationCreate.f90.

    ! -- dummy
    ! -- local
    !
    ! -- Process OPTIONS block in namfile
    call options_create()
    !
    ! -- Process TIMING block in namfile
    call timing_create()
    !
    ! -- Process MODELS block in namfile
    call models_create()
    !
    ! -- Process EXCHANGES block in namfile
    call exchanges_create()
    !
    ! -- Process SOLUTION_GROUPS blocks in namfile
    call solution_groups_create()
    !
    ! -- Go through each model and make sure that it has been assigned to
    !    a solution.
    call check_model_assignment()
    !
    ! -- Go through each solution and assign exchanges accordingly
    call assign_exchanges()

Here is the call graph for this function:

Here is the caller graph for this function:

timing_create()

subroutine simulationcreatemodule::timing_create

Definition at line 165 of file SimulationCreate.f90.

    ! -- modules
    use memoryhelpermodule, only: create_mem_path
    use memorymanagermodule, only: mem_setptr
    use simvariablesmodule, only: idm_context
    use tdismodule, only: tdis_cr
    ! -- dummy
    ! -- locals
    character(len=LENMEMPATH) :: input_mempath
    character(len=LENMEMPATH) :: tdis_input_mempath
    character(len=:), pointer :: tdis6
    logical :: terminate = .true.
    !
    ! -- set input memory path
    input_mempath = create_mem_path('SIM', 'NAM', idm_context)
    tdis_input_mempath = create_mem_path('SIM', 'TDIS', idm_context)
    !
    write (iout, '(/1x,a)') 'READING SIMULATION TIMING'
    !
    ! -- set pointers to input context timing params
    call mem_setptr(tdis6, 'TDIS6', input_mempath)
    !
    ! -- create timing
    if (tdis6 /= '') then
      call tdis_cr(tdis6, tdis_input_mempath)
    else
      call store_error('TIMING block variable TDIS6 is unset'// &
                       ' in simulation control input.', terminate)
    end if
    !
    write (iout, '(1x,a)') 'END OF SIMULATION TIMING'

Here is the call graph for this function:

Here is the caller graph for this function:
