disncstructuredmodule Module Reference

This module contains the DisNCStructuredModule. More...

Data Types
type	structuredncdimidtype
type	structuredncvaridtype
type	disncstructuredtype
interface	nc_export_array

Functions/Subroutines
subroutine	dis_export_init (this, modelname, modeltype, modelfname, nc_fname, disenum, nctype, iout)
	netcdf export dis init More...
subroutine	dis_export_destroy (this)
	netcdf export dis destroy More...
subroutine	df (this)
	netcdf export define More...
subroutine	df_export (this)
	define timeseries input variables More...
subroutine	step (this)
	netcdf export step More...
subroutine	export_input_array (this, pkgtype, pkgname, mempath, idt)
	netcdf export an input array More...
subroutine	export_df (this, export_pkg)
	define export package More...
subroutine	create_timeseries (this, idt, iparam, iaux, export_pkg)
	create timeseries export variable More...
subroutine	export_input_arrays (this, pkgtype, pkgname, mempath, param_dfns)
	write package gridded input data More...
subroutine	package_step (this, export_pkg)
	netcdf export package dynamic input More...
subroutine	add_pkg_data (this)
	determine packages to write gridded input More...
subroutine	add_global_att (this)
	create file (group) attributes More...
subroutine	define_dim (this)
	netcdf export define dimensions More...
subroutine	define_dependent (this)
	create the model layer dependent variables More...
subroutine	define_gridmap (this)
	create the file grid mapping container variable More...
subroutine	define_geocoords (this)
	define grid projection variables More...
subroutine	add_proj_data (this)
	add grid projection data More...
subroutine	add_grid_data (this)
	add grid coordinates More...
subroutine	ncvar_chunk2d (ncid, varid, chunk_x, chunk_y, nc_fname)
	define 2d variable chunking More...
subroutine	ncvar_chunk3d (ncid, varid, chunk_x, chunk_y, chunk_z, nc_fname)
	define 3d variable chunking More...
subroutine	ncvar_deflate (ncid, varid, deflate, shuffle, nc_fname)
	define variable compression More...
subroutine	ncvar_gridmap (ncid, varid, gridmap_name, latlon, has_layer, nc_fname)
	put variable gridmap attributes More...
subroutine	ncvar_mf6attr (ncid, varid, iaux, nc_tag, nc_fname)
	put variable internal modflow6 attributes More...
subroutine	nc_export_int1d (p_mem, ncid, dim_ids, var_ids, dis, idt, mempath, nc_tag, pkgname, gridmap_name, latlon, deflate, shuffle, chunk_z, chunk_y, chunk_x, iper, nc_fname)
	netcdf export 1D integer More...
subroutine	nc_export_int2d (p_mem, ncid, dim_ids, var_ids, dis, idt, mempath, nc_tag, pkgname, gridmap_name, latlon, deflate, shuffle, chunk_z, chunk_y, chunk_x, nc_fname)
	netcdf export 2D integer More...
subroutine	nc_export_int3d (p_mem, ncid, dim_ids, var_ids, dis, idt, mempath, nc_tag, pkgname, gridmap_name, latlon, deflate, shuffle, chunk_z, chunk_y, chunk_x, nc_fname)
	netcdf export 3D integer More...
subroutine	nc_export_dbl1d (p_mem, ncid, dim_ids, var_ids, dis, idt, mempath, nc_tag, pkgname, gridmap_name, latlon, deflate, shuffle, chunk_z, chunk_y, chunk_x, iper, iaux, nc_fname)
	netcdf export 1D double More...
subroutine	nc_export_dbl2d (p_mem, ncid, dim_ids, var_ids, dis, idt, mempath, nc_tag, pkgname, gridmap_name, latlon, deflate, shuffle, chunk_z, chunk_y, chunk_x, nc_fname)
	netcdf export 2D double More...
subroutine	nc_export_dbl3d (p_mem, ncid, dim_ids, var_ids, dis, idt, mempath, nc_tag, pkgname, gridmap_name, latlon, deflate, shuffle, chunk_z, chunk_y, chunk_x, nc_fname)
	netcdf export 3D double More...

Detailed Description

This module defines a STRUCTURED (non-ugrid) netcdf export type for DIS models. It is dependent on netcdf libraries.

Function/Subroutine Documentation

add_global_att()

subroutine disncstructuredmodule::add_global_att

(

class(disncstructuredtype), intent(inout)

this

)

Definition at line 755 of file DisNCStructured.f90.

    class(DisNCStructuredType), intent(inout) :: this
    ! file scoped title
    call nf_verify(nf90_put_att(this%ncid, nf90_global, 'title', &
                                this%annotation%title), this%nc_fname)
    ! source (MODFLOW 6)
    call nf_verify(nf90_put_att(this%ncid, nf90_global, 'source', &
                                this%annotation%source), this%nc_fname)
    ! grid type (MODFLOW 6)
    call nf_verify(nf90_put_att(this%ncid, nf90_global, 'modflow_grid', &
                                this%annotation%grid), this%nc_fname)
    ! MODFLOW 6 model type
    call nf_verify(nf90_put_att(this%ncid, nf90_global, 'modflow_model', &
                                this%annotation%model), this%nc_fname)
    ! generation datetime
    call nf_verify(nf90_put_att(this%ncid, nf90_global, 'history', &
                                this%annotation%history), this%nc_fname)
    ! supported conventions
    call nf_verify(nf90_put_att(this%ncid, nf90_global, 'Conventions', &
                                this%annotation%conventions), &
                   this%nc_fname)

Here is the call graph for this function:

add_grid_data()

subroutine disncstructuredmodule::add_grid_data ( class(disncstructuredtype), intent(inout)  this )

private

Definition at line 1219 of file DisNCStructured.f90.

    class(DisNCStructuredType), intent(inout) :: this
    integer(I4B) :: ibnd, n, k
    real(DP), dimension(:, :), pointer, contiguous :: dbl2d
    real(DP), dimension(:), allocatable :: x, y
    real(DP), dimension(:, :, :), allocatable :: elev3d
    real(DP) :: xoff, yoff

    if (this%dis%angrot /= dzero) then
      xoff = dzero
      yoff = dzero
    else
      xoff = this%dis%xorigin
      yoff = this%dis%yorigin
    end if

    allocate (x(size(this%dis%cellx)))
    allocate (y(size(this%dis%celly)))

    do n = 1, size(this%dis%cellx)
      x(n) = this%dis%cellx(n) + xoff
    end do

    do n = 1, size(this%dis%celly)
      y(n) = this%dis%celly(n) + yoff
    end do

    call nf_verify(nf90_put_var(this%ncid, this%var_ids%x, x), &
                   this%nc_fname)
    call nf_verify(nf90_put_var(this%ncid, this%var_ids%y, y), &
                   this%nc_fname)
    ! TODO see cf-conventions 4.3.3. Parametric Vertical Coordinate
    call nf_verify(nf90_put_var(this%ncid, this%var_ids%layer, this%layers), &
                   this%nc_fname)

    deallocate (x)
    deallocate (y)

    ! z: cell center elevation, layer 1 = midpoint of top/bot3d(1),
    ! layer k>1 = midpoint of bot3d(k-1)/bot3d(k)
    allocate (elev3d(this%dis%ncol, this%dis%nrow, this%nlay))
    do k = 1, this%nlay
      if (k == 1) then
        elev3d(:, :, k) = (this%dis%top2d(:, :) + this%dis%bot3d(:, :, k)) * &
                          dhalf
      else
        elev3d(:, :, k) = (this%dis%bot3d(:, :, k - 1) + &
                           this%dis%bot3d(:, :, k)) * dhalf
      end if
    end do
    call nf_verify(nf90_put_var(this%ncid, this%var_ids%elevation, elev3d), &
                   this%nc_fname)
    deallocate (elev3d)

    ! bounds x
    allocate (dbl2d(2, size(this%dis%cellx)))
    ibnd = 1
    do n = 1, size(this%dis%cellx)
      if (ibnd == 1) then
        dbl2d(1, ibnd) = xoff
        dbl2d(2, ibnd) = xoff + this%dis%delr(ibnd)
      else
        dbl2d(1, ibnd) = dbl2d(1, ibnd - 1) + this%dis%delr(ibnd)
        dbl2d(2, ibnd) = dbl2d(2, ibnd - 1) + this%dis%delr(ibnd)
      end if
      ibnd = ibnd + 1
    end do
    call nf_verify(nf90_put_var(this%ncid, this%var_ids%x_bnds, dbl2d), &
                   this%nc_fname)
    deallocate (dbl2d)

    ! bounds y
    allocate (dbl2d(2, size(this%dis%celly)))
    ibnd = 1
    do n = size(this%dis%celly), 1, -1
      if (ibnd == 1) then
        dbl2d(1, ibnd) = yoff + sum(this%dis%delc) - this%dis%delc(n)
        dbl2d(2, ibnd) = yoff + sum(this%dis%delc)
      else
        dbl2d(1, ibnd) = dbl2d(1, ibnd - 1) - this%dis%delc(n)
        dbl2d(2, ibnd) = dbl2d(2, ibnd - 1) - this%dis%delc(n)
      end if
      ibnd = ibnd + 1
    end do
    call nf_verify(nf90_put_var(this%ncid, this%var_ids%y_bnds, dbl2d), &
                   this%nc_fname)
    deallocate (dbl2d)

Here is the call graph for this function:

add_pkg_data()

subroutine disncstructuredmodule::add_pkg_data

(

class(disncstructuredtype), intent(inout)

this

)

Definition at line 698 of file DisNCStructured.f90.

    use simvariablesmodule, only: idm_context
    use memorymanagerextmodule, only: mem_set_value
    use memoryhelpermodule, only: create_mem_path
    use idmdfnselectormodule, only: param_definitions
    use sourcecommonmodule, only: idm_subcomponent_type
    class(DisNCStructuredType), intent(inout) :: this
    character(LENCOMPONENTNAME) :: ptype, pname, pkgtype
    type(CharacterStringType), dimension(:), contiguous, &
      pointer :: pkgtypes => null()
    type(CharacterStringType), dimension(:), contiguous, &
      pointer :: pkgnames => null()
    type(CharacterStringType), dimension(:), contiguous, &
      pointer :: mempaths => null()
    type(InputParamDefinitionType), dimension(:), pointer :: param_dfns
    character(len=LENMEMPATH) :: input_mempath, mempath
    integer(I4B) :: n
    integer(I4B), pointer :: export_arrays
    logical(LGP) :: found

    input_mempath = create_mem_path(component=this%modelname, context=idm_context)

    ! set pointers to model path package info
    call mem_setptr(pkgtypes, 'PKGTYPES', input_mempath)
    call mem_setptr(pkgnames, 'PKGNAMES', input_mempath)
    call mem_setptr(mempaths, 'MEMPATHS', input_mempath)

    do n = 1, size(mempaths)
      ! allocate export_arrays
      allocate (export_arrays)
      export_arrays = 0

      ! set package attributes
      mempath = mempaths(n)
      pname = pkgnames(n)
      ptype = pkgtypes(n)

      ! export input arrays
      if (mempath /= '') then
        ! update export
        call mem_set_value(export_arrays, 'EXPORT_NC', mempath, found, &
                           release=.false.)

        if (export_arrays > 0) then
          pkgtype = idm_subcomponent_type(this%modeltype, ptype)
          param_dfns => param_definitions(this%modeltype, pkgtype)
          call this%export_input_arrays(ptype, pname, mempath, param_dfns)
        end if
      end if

      ! cleanup
      deallocate (export_arrays)
    end do

Here is the call graph for this function:

add_proj_data()

subroutine disncstructuredmodule::add_proj_data ( class(disncstructuredtype), intent(inout)  this )

private

Definition at line 1200 of file DisNCStructured.f90.

    class(DisNCStructuredType), intent(inout) :: this
    if (this%latlon) then
      ! lat
      call nf_verify(nf90_put_var(this%ncid, this%var_ids%latitude, &
                                  this%latitude, start=(/1, 1/), &
                                  count=(/this%dis%ncol, this%dis%nrow/)), &
                     this%nc_fname)

      ! lon
      call nf_verify(nf90_put_var(this%ncid, this%var_ids%longitude, &
                                  this%longitude, start=(/1, 1/), &
                                  count=(/this%dis%ncol, this%dis%nrow/)), &
                     this%nc_fname)
    end if

Here is the call graph for this function:

create_timeseries()

subroutine disncstructuredmodule::create_timeseries	(	class(disncstructuredtype), intent(inout)	this,
		type(inputparamdefinitiontype), intent(in), pointer	idt,
		integer(i4b), intent(in)	iparam,
		integer(i4b), intent(in)	iaux,
		class(exportpackagetype), intent(in), pointer	export_pkg
	)

Definition at line 435 of file DisNCStructured.f90.

    use ncmodelexportmodule, only: exportpackagetype
    class(DisNCStructuredType), intent(inout) :: this
    type(InputParamDefinitionType), pointer, intent(in) :: idt
    integer(I4B), intent(in) :: iparam
    integer(I4B), intent(in) :: iaux
    class(ExportPackageType), pointer, intent(in) :: export_pkg
    character(len=LINELENGTH) :: varname, longname, nc_tag
    integer(I4B) :: varid
    logical(LGP) :: has_layer

    has_layer = .not. (idt%shape == 'NCPL' .or. idt%shape == 'NAUX NCPL')

    ! set variable input tag
    nc_tag = this%input_attribute(export_pkg%mf6_input%subcomponent_name, &
                                  idt)

    ! set names
    varname = export_varname(export_pkg%mf6_input%subcomponent_name, &
                             idt%tagname, export_pkg%mf6_input%mempath, &
                             iaux=iaux)
    longname = export_longname(idt%longname, &
                               export_pkg%mf6_input%subcomponent_name, &
                               idt%tagname, export_pkg%mf6_input%mempath, &
                               iaux=iaux, &
                               component_type=idt%component_type, &
                               subcomponent_type=idt%subcomponent_type)

    ! create the netcdf timeseries variable
    select case (idt%datatype)
    case ('DOUBLE1D', 'DOUBLE2D')
      if (idt%shape == 'NCPL' .or. &
          idt%shape == 'NAUX NCPL') then
        call nf_verify(nf90_def_var(this%ncid, varname, nf90_double, &
                                    (/this%dim_ids%x, &
                                      this%dim_ids%y, &
                                      this%dim_ids%time/), varid), &
                       this%nc_fname)
      else
        call nf_verify(nf90_def_var(this%ncid, varname, nf90_double, &
                                    (/this%dim_ids%x, &
                                      this%dim_ids%y, &
                                      this%dim_ids%layer, &
                                      this%dim_ids%time/), varid), &
                       this%nc_fname)
      end if
      call nf_verify(nf90_put_att(this%ncid, varid, &
                                  '_FillValue', (/dnodata/)), &
                     this%nc_fname)
    case ('INTEGER1D')
      if (idt%shape == 'NCPL' .or. &
          idt%shape == 'NAUX NCPL') then
        call nf_verify(nf90_def_var(this%ncid, varname, nf90_int, &
                                    (/this%dim_ids%x, &
                                      this%dim_ids%y, &
                                      this%dim_ids%time/), varid), &
                       this%nc_fname)
      else
        call nf_verify(nf90_def_var(this%ncid, varname, nf90_int, &
                                    (/this%dim_ids%x, &
                                      this%dim_ids%y, &
                                      this%dim_ids%layer, &
                                      this%dim_ids%time/), varid), &
                       this%nc_fname)
      end if
      call nf_verify(nf90_put_att(this%ncid, varid, &
                                  '_FillValue', (/nf90_fill_int/)), &
                     this%nc_fname)
    end select

    ! apply chunking parameters
    if (this%chunking_active) then
      call nf_verify(nf90_def_var_chunking(this%ncid, &
                                           varid, &
                                           nf90_chunked, &
                                           (/this%chunk_x, this%chunk_y, &
                                             this%chunk_z, this%chunk_time/)), &
                     this%nc_fname)
    end if

    ! deflate and shuffle
    call ncvar_deflate(this%ncid, varid, this%deflate, &
                       this%shuffle, this%nc_fname)

    ! variable attributes
    call nf_verify(nf90_put_att(this%ncid, varid, &
                                'units', this%lenunits), this%nc_fname)
    call nf_verify(nf90_put_att(this%ncid, varid, &
                                'long_name', longname), this%nc_fname)

    ! add grid mapping and mf6 attr
    call ncvar_gridmap(this%ncid, varid, this%gridmap_name, this%latlon, &
                       has_layer, this%nc_fname)
    call ncvar_mf6attr(this%ncid, varid, iaux, nc_tag, this%nc_fname)

    ! store variable id
    if (idt%tagname == 'AUX') then
      export_pkg%varids_aux(iaux, 1) = varid
    else
      export_pkg%varids_param(iparam, 1) = varid
    end if

Here is the call graph for this function:

define_dependent()

subroutine disncstructuredmodule::define_dependent

(

class(disncstructuredtype), intent(inout)

this

)

Definition at line 909 of file DisNCStructured.f90.

    use constantsmodule, only: dhnoflo
    class(DisNCStructuredType), intent(inout) :: this

    call nf_verify(nf90_def_var(this%ncid, this%xname, nf90_double, &
                                (/this%dim_ids%x, this%dim_ids%y, &
                                  this%dim_ids%layer, this%dim_ids%time/), &
                                this%var_ids%dependent), &
                   this%nc_fname)

    ! apply chunking parameters
    if (this%chunking_active) then
      call nf_verify(nf90_def_var_chunking(this%ncid, &
                                           this%var_ids%dependent, &
                                           nf90_chunked, &
                                           (/this%chunk_x, this%chunk_y, &
                                             this%chunk_z, this%chunk_time/)), &
                     this%nc_fname)
    end if

    ! deflate and shuffle
    call ncvar_deflate(this%ncid, this%var_ids%dependent, this%deflate, &
                       this%shuffle, this%nc_fname)

    ! put attr
    call nf_verify(nf90_put_att(this%ncid, this%var_ids%dependent, &
                                'units', this%lenunits), this%nc_fname)
    call nf_verify(nf90_put_att(this%ncid, this%var_ids%dependent, 'long_name', &
                                this%annotation%longname), this%nc_fname)
    call nf_verify(nf90_put_att(this%ncid, this%var_ids%dependent, '_FillValue', &
                                (/dhnoflo/)), this%nc_fname)
    ! cell_methods (CF-1.13 7.3): dependent variable values are the
    ! instantaneous simulated state at each output time, not a time
    ! mean/accumulation over the interval -- an intensive quantity whose
    ! default method is already "point" per CF's own Appendix E, stated
    ! explicitly here per CF's recommendation to do so for every
    ! spatio-temporal dimension.
    call nf_verify(nf90_put_att(this%ncid, this%var_ids%dependent, &
                                'cell_methods', 'time: point'), this%nc_fname)

    ! add grid mapping
    call ncvar_gridmap(this%ncid, this%var_ids%dependent, this%gridmap_name, &
                       this%latlon, .true., this%nc_fname)

Here is the call graph for this function:

define_dim()

subroutine disncstructuredmodule::define_dim ( class(disncstructuredtype), intent(inout)  this )

private

Definition at line 780 of file DisNCStructured.f90.

    use constantsmodule, only: mvalidate
    use simvariablesmodule, only: isim_mode
    class(DisNCStructuredType), intent(inout) :: this

    ! bound dim
    call nf_verify(nf90_def_dim(this%ncid, 'bnd', 2, this%dim_ids%bnd), &
                   this%nc_fname)

    if (isim_mode /= mvalidate .or. this%pkglist%Count() > 0) then
      ! Time
      call nf_verify(nf90_def_dim(this%ncid, 'time', this%totnstp, &
                                  this%dim_ids%time), this%nc_fname)
      call nf_verify(nf90_def_var(this%ncid, 'time', nf90_double, &
                                  this%dim_ids%time, this%var_ids%time), &
                     this%nc_fname)
      call nf_verify(nf90_put_att(this%ncid, this%var_ids%time, 'calendar', &
                                  'standard'), this%nc_fname)
      call nf_verify(nf90_put_att(this%ncid, this%var_ids%time, 'units', &
                                  this%datetime), this%nc_fname)
      call nf_verify(nf90_put_att(this%ncid, this%var_ids%time, 'axis', 'T'), &
                     this%nc_fname)
      !call nf_verify(nf90_put_att(ncid, var_ids%time, 'bounds', 'time_bnds'), this%nc_fname)
      call nf_verify(nf90_put_att(this%ncid, this%var_ids%time, 'standard_name', &
                                  'time'), this%nc_fname)
      call nf_verify(nf90_put_att(this%ncid, this%var_ids%time, 'long_name', &
                                  'time'), this%nc_fname)
    end if

    ! Z dimension
    call nf_verify(nf90_def_dim(this%ncid, 'layer', this%dis%nlay, &
                                this%dim_ids%layer), this%nc_fname)
    call nf_verify(nf90_def_var(this%ncid, 'layer', nf90_int, &
                                this%dim_ids%layer, this%var_ids%layer), &
                   this%nc_fname)
    call nf_verify(nf90_put_att(this%ncid, this%var_ids%layer, 'units', '1'), &
                   this%nc_fname)
    call nf_verify(nf90_put_att(this%ncid, this%var_ids%layer, 'axis', 'Z'), &
                   this%nc_fname)
    call nf_verify(nf90_put_att(this%ncid, this%var_ids%layer, 'positive', &
                                'down'), this%nc_fname)
    call nf_verify(nf90_put_att(this%ncid, this%var_ids%layer, 'long_name', &
                                'model layer'), this%nc_fname)

    ! Y dimension
    call nf_verify(nf90_def_dim(this%ncid, 'y', this%dis%nrow, this%dim_ids%y), &
                   this%nc_fname)
    call nf_verify(nf90_def_var(this%ncid, 'y', nf90_double, this%dim_ids%y, &
                                this%var_ids%y), this%nc_fname)
    call nf_verify(nf90_put_att(this%ncid, this%var_ids%y, 'units', &
                                this%lenunits), this%nc_fname)
    if (this%dis%angrot == dzero .or. &
        wrap_rotated_crs(this%crs_wkt, this%dis%xorigin, this%dis%yorigin, &
                         this%dis%angrot) /= '') then
      ! axis/standard_name assert that y holds the true projected
      ! position. For a rotated grid this only holds once crs_wkt
      ! encodes the rotation (see wrap_rotated_crs in define_gridmap);
      ! otherwise y is grid-local (see add_grid_data) and asserting it
      ! would cause GDAL's netCDF driver to derive an incorrect,
      ! unrotated position directly from y's grid-local values.
      call nf_verify(nf90_put_att(this%ncid, this%var_ids%y, 'axis', 'Y'), &
                     this%nc_fname)
      call nf_verify(nf90_put_att(this%ncid, this%var_ids%y, 'standard_name', &
                                  'projection_y_coordinate'), this%nc_fname)
    end if
    call nf_verify(nf90_put_att(this%ncid, this%var_ids%y, 'long_name', &
                                'Northing'), this%nc_fname)
    if (this%gridmap_name /= '') then
      call nf_verify(nf90_put_att(this%ncid, this%var_ids%y, 'grid_mapping', &
                                  this%gridmap_name), this%nc_fname)
    end if
    call nf_verify(nf90_put_att(this%ncid, this%var_ids%y, 'bounds', 'y_bnds'), &
                   this%nc_fname)
    call nf_verify(nf90_def_var(this%ncid, 'y_bnds', nf90_double, &
                                (/this%dim_ids%bnd, this%dim_ids%y/), &
                                this%var_ids%y_bnds), this%nc_fname)

    ! X dimension
    call nf_verify(nf90_def_dim(this%ncid, 'x', this%dis%ncol, this%dim_ids%x), &
                   this%nc_fname)
    call nf_verify(nf90_def_var(this%ncid, 'x', nf90_double, this%dim_ids%x, &
                                this%var_ids%x), this%nc_fname)
    call nf_verify(nf90_put_att(this%ncid, this%var_ids%x, 'units', &
                                this%lenunits), this%nc_fname)
    if (this%dis%angrot == dzero .or. &
        wrap_rotated_crs(this%crs_wkt, this%dis%xorigin, this%dis%yorigin, &
                         this%dis%angrot) /= '') then
      ! see matching comment on the Y dimension above
      call nf_verify(nf90_put_att(this%ncid, this%var_ids%x, 'axis', 'X'), &
                     this%nc_fname)
      call nf_verify(nf90_put_att(this%ncid, this%var_ids%x, 'standard_name', &
                                  'projection_x_coordinate'), this%nc_fname)
    end if
    call nf_verify(nf90_put_att(this%ncid, this%var_ids%x, 'long_name', &
                                'Easting'), this%nc_fname)
    if (this%gridmap_name /= '') then
      call nf_verify(nf90_put_att(this%ncid, this%var_ids%x, 'grid_mapping', &
                                  this%gridmap_name), this%nc_fname)
    end if
    call nf_verify(nf90_put_att(this%ncid, this%var_ids%x, 'bounds', 'x_bnds'), &
                   this%nc_fname)
    call nf_verify(nf90_def_var(this%ncid, 'x_bnds', nf90_double, &
                                (/this%dim_ids%bnd, this%dim_ids%x/), &
                                this%var_ids%x_bnds), this%nc_fname)

    ! z: cell center elevation auxiliary coordinate -- a real vertical
    ! position, unlike the discrete layer index.  Always written,
    ! independent of CRS/NCF configuration.
    call nf_verify(nf90_def_var(this%ncid, 'z', nf90_double, &
                                (/this%dim_ids%x, this%dim_ids%y, &
                                  this%dim_ids%layer/), &
                                this%var_ids%elevation), this%nc_fname)
    call ncvar_chunk3d(this%ncid, this%var_ids%elevation, this%chunk_x, &
                       this%chunk_y, this%chunk_z, this%nc_fname)
    call ncvar_deflate(this%ncid, this%var_ids%elevation, this%deflate, &
                       this%shuffle, this%nc_fname)
    call nf_verify(nf90_put_att(this%ncid, this%var_ids%elevation, 'units', &
                                this%lenunits), this%nc_fname)
    call nf_verify(nf90_put_att(this%ncid, this%var_ids%elevation, &
                                'standard_name', 'altitude'), this%nc_fname)
    call nf_verify(nf90_put_att(this%ncid, this%var_ids%elevation, &
                                'positive', 'up'), this%nc_fname)
    call nf_verify(nf90_put_att(this%ncid, this%var_ids%elevation, &
                                'long_name', 'cell center elevation'), &
                   this%nc_fname)

Here is the call graph for this function:

define_geocoords()

subroutine disncstructuredmodule::define_geocoords ( class(disncstructuredtype), intent(inout)  this )

private

Definition at line 1171 of file DisNCStructured.f90.

    class(DisNCStructuredType), intent(inout) :: this
    if (this%latlon) then
      ! lat
      call nf_verify(nf90_def_var(this%ncid, 'lat', nf90_double, &
                                  (/this%dim_ids%x, this%dim_ids%y/), &
                                  this%var_ids%latitude), this%nc_fname)
      call nf_verify(nf90_put_att(this%ncid, this%var_ids%latitude, &
                                  'units', 'degrees_north'), this%nc_fname)
      call nf_verify(nf90_put_att(this%ncid, this%var_ids%latitude, &
                                  'standard_name', 'latitude'), this%nc_fname)
      call nf_verify(nf90_put_att(this%ncid, this%var_ids%latitude, &
                                  'long_name', 'latitude'), this%nc_fname)

      ! lon
      call nf_verify(nf90_def_var(this%ncid, 'lon', nf90_double, &
                                  (/this%dim_ids%x, this%dim_ids%y/), &
                                  this%var_ids%longitude), this%nc_fname)
      call nf_verify(nf90_put_att(this%ncid, this%var_ids%longitude, &
                                  'units', 'degrees_east'), this%nc_fname)
      call nf_verify(nf90_put_att(this%ncid, this%var_ids%longitude, &
                                  'standard_name', 'longitude'), this%nc_fname)
      call nf_verify(nf90_put_att(this%ncid, this%var_ids%longitude, &
                                  'long_name', 'longitude'), this%nc_fname)
    end if

Here is the call graph for this function:

define_gridmap()

subroutine disncstructuredmodule::define_gridmap

(

class(disncstructuredtype), intent(inout)

this

)

Definition at line 956 of file DisNCStructured.f90.

    class(DisNCStructuredType), intent(inout) :: this
    integer(I4B) :: var_id
    character(len=LINELENGTH) :: gmname
    character(len=LENBIGLINE) :: effective_crs_wkt, derived_wkt
    character(len=100) :: rotinfo
    real(DP) :: longitude_of_central_meridian, latitude_of_projection_origin
    real(DP) :: scale_factor_at_central_meridian, false_easting, false_northing
    real(DP) :: semi_major_axis, inverse_flattening
    real(DP) :: standard_parallel_1, standard_parallel_2
    logical(LGP) :: params_found, is_2sp

    if (this%wkt /= '' .or. this%crs_wkt /= '') then
      call nf_verify(nf90_redef(this%ncid), this%nc_fname)
      call nf_verify(nf90_def_var(this%ncid, this%gridmap_name, nf90_int, &
                                  var_id), this%nc_fname)
      ! wkt (WKT1, OGC 01-009) -- for legacy/QGIS compatibility.  WKT1
      ! has no derived-CRS syntax, so it cannot encode grid rotation and
      ! is always written unmodified.
      if (this%wkt /= '') then
        call nf_verify(nf90_put_att(this%ncid, var_id, 'wkt', this%wkt), &
                       this%nc_fname)
      end if
      ! crs_wkt (WKT2, ISO 19162:2019) -- required by CF-1.13
      if (this%crs_wkt /= '') then
        effective_crs_wkt = this%crs_wkt
      else
        effective_crs_wkt = this%wkt
      end if
      ! For a rotated structured grid, wrap crs_wkt in a derived CRS
      ! encoding the rotation (see wrap_rotated_crs) so a CRS-aware
      ! consumer resolves the correct real-world position and shape
      ! via ordinary reprojection.  Falls back to an unmodified
      ! crs_wkt, with a warning, if CRS_WKT was not provided or is not
      ! a recognized WKT2 PROJCRS.
      if (this%dis%angrot /= dzero) then
        if (this%crs_wkt == '') then
          write (warnmsg, '(a)') 'Structured rotated grid with no CRS_WKT &
            &input: no rotation-positioning information will be written &
            &to the output CRS; x/y coordinate values will not reflect &
            &the true rotated position. Applies to file "'// &
            trim(this%nc_fname)//'".'
          call store_warning(warnmsg)
        else
          derived_wkt = wrap_rotated_crs(this%crs_wkt, this%dis%xorigin, &
                                         this%dis%yorigin, this%dis%angrot)
          if (derived_wkt /= '') then
            write (rotinfo, '(a,g0,a,g0,a,g0,a)') 'xorigin=', &
              this%dis%xorigin, ', yorigin=', this%dis%yorigin, &
              ', angrot=', this%dis%angrot, ' deg'
            write (warnmsg, '(a)') 'Structured rotated grid: wrapped &
              &CRS_WKT in a derived CRS to encode grid rotation ('// &
              trim(rotinfo)//'). Applies to file "'// &
              trim(this%nc_fname)//'".'
            call store_warning(warnmsg)
            effective_crs_wkt = derived_wkt
          else
            write (warnmsg, '(a)') 'Structured rotated grid: CRS_WKT is &
              &not a recognized WKT2 PROJCRS; no rotation-positioning &
              &information will be written to the output CRS; x/y &
              &coordinate values will not reflect the true rotated &
              &position. Applies to file "'//trim(this%nc_fname)//'".'
            call store_warning(warnmsg)
          end if
        end if
      end if
      call nf_verify(nf90_put_att(this%ncid, var_id, 'crs_wkt', &
                                  trim(effective_crs_wkt)), this%nc_fname)
      ! grid_mapping_name derived from WKT projection keyword
      gmname = wkt_to_cf_gridmapping(trim(effective_crs_wkt))
      if (gmname /= '') then
        call nf_verify(nf90_put_att(this%ncid, var_id, 'grid_mapping_name', &
                                    trim(gmname)), this%nc_fname)
      end if
      ! CF-standard numeric grid_mapping parameters (in addition to
      ! wkt/crs_wkt): some netCDF readers -- notably ArcGIS's classic
      ! netCDF connector -- position a projected grid using these
      ! individual attributes rather than parsing wkt/crs_wkt, and
      ! default every parameter to 0 if they are absent. Covers
      ! transverse_mercator, lambert_conformal_conic (2SP only -- CF has
      ! no scale_factor attribute for this method, so a 1SP/scale-factor
      ! WKT cannot be exactly represented), and albers_conical_equal_area;
      ! other grid_mapping_name values are unaffected. Best-effort
      ! extraction from effective_crs_wkt -- MF6 has no CRS parsing
      ! library, so this is skipped if any parameter cannot be located.
      if (trim(gmname) == 'transverse_mercator') then
        call wkt_transverse_mercator_params(trim(effective_crs_wkt), &
                                            longitude_of_central_meridian, &
                                            latitude_of_projection_origin, &
                                            scale_factor_at_central_meridian, &
                                            false_easting, false_northing, &
                                            semi_major_axis, inverse_flattening, &
                                            params_found)
        if (params_found) then
          call nf_verify(nf90_put_att(this%ncid, var_id, &
                                      'longitude_of_central_meridian', &
                                      longitude_of_central_meridian), &
                         this%nc_fname)
          call nf_verify(nf90_put_att(this%ncid, var_id, &
                                      'latitude_of_projection_origin', &
                                      latitude_of_projection_origin), &
                         this%nc_fname)
          call nf_verify(nf90_put_att(this%ncid, var_id, &
                                      'scale_factor_at_central_meridian', &
                                      scale_factor_at_central_meridian), &
                         this%nc_fname)
          call nf_verify(nf90_put_att(this%ncid, var_id, 'false_easting', &
                                      false_easting), this%nc_fname)
          call nf_verify(nf90_put_att(this%ncid, var_id, 'false_northing', &
                                      false_northing), this%nc_fname)
          call nf_verify(nf90_put_att(this%ncid, var_id, 'semi_major_axis', &
                                      semi_major_axis), this%nc_fname)
          call nf_verify(nf90_put_att(this%ncid, var_id, 'inverse_flattening', &
                                      inverse_flattening), this%nc_fname)
        else
          write (warnmsg, '(a)') 'Structured grid: unable to extract CF &
            &transverse_mercator grid_mapping parameters from CRS_WKT; &
            &some netCDF readers may not correctly position this grid. &
            &Applies to file "'//trim(this%nc_fname)//'".'
          call store_warning(warnmsg)
        end if
      else if (trim(gmname) == 'lambert_conformal_conic') then
        call wkt_lambert_conformal_conic_params(trim(effective_crs_wkt), &
                                                standard_parallel_1, &
                                                standard_parallel_2, &
                                                longitude_of_central_meridian, &
                                                latitude_of_projection_origin, &
                                                false_easting, false_northing, &
                                                semi_major_axis, &
                                                inverse_flattening, is_2sp, &
                                                params_found)
        if (params_found) then
          call nf_verify(nf90_put_att(this%ncid, var_id, 'standard_parallel', &
                                      (/standard_parallel_1, &
                                        standard_parallel_2/)), this%nc_fname)
          call nf_verify(nf90_put_att(this%ncid, var_id, &
                                      'longitude_of_central_meridian', &
                                      longitude_of_central_meridian), &
                         this%nc_fname)
          call nf_verify(nf90_put_att(this%ncid, var_id, &
                                      'latitude_of_projection_origin', &
                                      latitude_of_projection_origin), &
                         this%nc_fname)
          call nf_verify(nf90_put_att(this%ncid, var_id, 'false_easting', &
                                      false_easting), this%nc_fname)
          call nf_verify(nf90_put_att(this%ncid, var_id, 'false_northing', &
                                      false_northing), this%nc_fname)
          call nf_verify(nf90_put_att(this%ncid, var_id, 'semi_major_axis', &
                                      semi_major_axis), this%nc_fname)
          call nf_verify(nf90_put_att(this%ncid, var_id, 'inverse_flattening', &
                                      inverse_flattening), this%nc_fname)
        else if (.not. is_2sp) then
          write (warnmsg, '(a)') 'Structured grid: 1SP lambert_conformal_conic &
            &variants are not supported for CF grid_mapping parameter &
            &extraction (CF has no scale_factor attribute for this method); &
            &some netCDF readers may not correctly position this grid. &
            &Applies to file "'//trim(this%nc_fname)//'".'
          call store_warning(warnmsg)
        else
          write (warnmsg, '(a)') 'Structured grid: unable to extract CF &
            &lambert_conformal_conic grid_mapping parameters from CRS_WKT; &
            &some netCDF readers may not correctly position this grid. &
            &Applies to file "'//trim(this%nc_fname)//'".'
          call store_warning(warnmsg)
        end if
      else if (trim(gmname) == 'albers_conical_equal_area') then
        call wkt_albers_conical_equal_area_params(trim(effective_crs_wkt), &
                                                  standard_parallel_1, &
                                                  standard_parallel_2, &
                                                  longitude_of_central_meridian, &
                                                  latitude_of_projection_origin, &
                                                  false_easting, false_northing, &
                                                  semi_major_axis, &
                                                  inverse_flattening, &
                                                  params_found)
        if (params_found) then
          call nf_verify(nf90_put_att(this%ncid, var_id, 'standard_parallel', &
                                      (/standard_parallel_1, &
                                        standard_parallel_2/)), this%nc_fname)
          call nf_verify(nf90_put_att(this%ncid, var_id, &
                                      'longitude_of_central_meridian', &
                                      longitude_of_central_meridian), &
                         this%nc_fname)
          call nf_verify(nf90_put_att(this%ncid, var_id, &
                                      'latitude_of_projection_origin', &
                                      latitude_of_projection_origin), &
                         this%nc_fname)
          call nf_verify(nf90_put_att(this%ncid, var_id, 'false_easting', &
                                      false_easting), this%nc_fname)
          call nf_verify(nf90_put_att(this%ncid, var_id, 'false_northing', &
                                      false_northing), this%nc_fname)
          call nf_verify(nf90_put_att(this%ncid, var_id, 'semi_major_axis', &
                                      semi_major_axis), this%nc_fname)
          call nf_verify(nf90_put_att(this%ncid, var_id, 'inverse_flattening', &
                                      inverse_flattening), this%nc_fname)
        else
          write (warnmsg, '(a)') 'Structured grid: unable to extract CF &
            &albers_conical_equal_area grid_mapping parameters from &
            &CRS_WKT; some netCDF readers may not correctly position this &
            &grid. Applies to file "'//trim(this%nc_fname)//'".'
          call store_warning(warnmsg)
        end if
      end if
      ! GeoTransform/spatial_ref intentionally not written: a GDAL-only,
      ! non-CF extension ArcGIS does not read, superseded by crs_wkt's
      ! derived-CRS encoding above, which any CRS-aware consumer resolves
      ! via ordinary reprojection.
      call nf_verify(nf90_enddef(this%ncid), this%nc_fname)
      call nf_verify(nf90_put_var(this%ncid, var_id, 1), &
                     this%nc_fname)
    end if

Here is the call graph for this function:

df()

subroutine disncstructuredmodule::df ( class(disncstructuredtype), intent(inout)  this )

private

Definition at line 233 of file DisNCStructured.f90.

    use constantsmodule, only: mvalidate
    use simvariablesmodule, only: isim_mode
    class(DisNCStructuredType), intent(inout) :: this
    ! put root group file scope attributes
    call this%add_global_att()
    ! define root group dimensions and coordinate variables
    call this%define_dim()
    ! define grid projection variables
    call this%define_geocoords()
    if (isim_mode == mvalidate) then
      ! define period input arrays
      call this%df_export()
    else
      ! define the dependent variable
      call this%define_dependent()
    end if
    ! exit define mode
    call nf_verify(nf90_enddef(this%ncid), this%nc_fname)
    ! add data locations
    call this%add_grid_data()
    ! add projection data
    call this%add_proj_data()
    if (isim_mode == mvalidate) then
      ! define and set package input griddata
      call this%add_pkg_data()
    end if
    ! define and set gridmap variable
    call this%define_gridmap()
    ! synchronize file
    call nf_verify(nf90_sync(this%ncid), this%nc_fname)

Here is the call graph for this function:

df_export()

subroutine disncstructuredmodule::df_export

(

class(disncstructuredtype), intent(inout)

this

)

Definition at line 268 of file DisNCStructured.f90.

    use ncmodelexportmodule, only: exportpackagetype
    class(DisNCStructuredType), intent(inout) :: this
    class(ExportPackageType), pointer :: export_pkg
    integer(I4B) :: idx
    do idx = 1, this%pkglist%Count()
      export_pkg => this%get(idx)
      call this%export_df(export_pkg)
    end do

dis_export_destroy()

subroutine disncstructuredmodule::dis_export_destroy

(

class(disncstructuredtype), intent(inout)

this

)

Definition at line 217 of file DisNCStructured.f90.

    class(DisNCStructuredType), intent(inout) :: this
    call nf_verify(nf90_close(this%ncid), this%nc_fname)
    deallocate (this%chunk_z)
    deallocate (this%chunk_y)
    deallocate (this%chunk_x)
    deallocate (this%layers)
    nullify (this%chunk_z)
    nullify (this%chunk_y)
    nullify (this%chunk_x)
    ! destroy base class
    call this%NCModelExportType%destroy()

Here is the call graph for this function:

dis_export_init()

subroutine disncstructuredmodule::dis_export_init ( class(disncstructuredtype), intent(inout)  this, character(len=*), intent(in)  modelname, character(len=*), intent(in)  modeltype, character(len=*), intent(in)  modelfname, character(len=*), intent(in)  nc_fname, integer(i4b), intent(in)  disenum, integer(i4b), intent(in)  nctype, integer(i4b), intent(in)  iout  )

private

Definition at line 99 of file DisNCStructured.f90.

    use memorymanagermodule, only: get_isize
    use memorymanagerextmodule, only: mem_set_value
    class(DisNCStructuredType), intent(inout) :: this
    character(len=*), intent(in) :: modelname
    character(len=*), intent(in) :: modeltype
    character(len=*), intent(in) :: modelfname
    character(len=*), intent(in) :: nc_fname
    integer(I4B), intent(in) :: disenum
    integer(I4B), intent(in) :: nctype
    integer(I4B), intent(in) :: iout
    integer(I4B) :: k, latsz, lonsz
    logical(LGP) :: found

    ! set nlay
    this%nlay = this%dis%nlay

    ! allocate
    allocate (this%chunk_z)
    allocate (this%chunk_y)
    allocate (this%chunk_x)
    allocate (this%layers(this%nlay))

    ! initialize
    this%chunk_z = -1
    this%chunk_y = -1
    this%chunk_x = -1
    do k = 1, this%nlay
      this%layers(k) = k
    end do

    this%latlon = .false.

    ! initialize base class
    call this%NCModelExportType%init(modelname, modeltype, modelfname, nc_fname, &
                                     disenum, nctype, iout)

    ! update values from input context
    if (this%ncf_mempath /= '') then
      call mem_set_value(this%chunk_z, 'CHUNK_Z', this%ncf_mempath, found)
      call mem_set_value(this%chunk_y, 'CHUNK_Y', this%ncf_mempath, found)
      call mem_set_value(this%chunk_x, 'CHUNK_X', this%ncf_mempath, found)

      if (this%chunk_time > 0 .and. this%chunk_z > 0 .and. &
          this%chunk_y > 0 .and. this%chunk_x > 0) then
        this%chunking_active = .true.
      else if (this%chunk_time > 0 .or. this%chunk_z > 0 .or. &
               this%chunk_y > 0 .or. this%chunk_x > 0) then
        this%chunk_time = -1
        this%chunk_z = -1
        this%chunk_y = -1
        this%chunk_x = -1
        write (warnmsg, '(a)') 'Ignoring user provided NetCDF chunking &
          &parameters. Define chunk_time, chunk_x, chunk_y and chunk_z input &
          &parameters to see an effect in file "'//trim(nc_fname)//'".'
        call store_warning(warnmsg)
      end if

      call get_isize('LATITUDE', this%ncf_mempath, latsz)
      call get_isize('LONGITUDE', this%ncf_mempath, lonsz)

      if (latsz > 0 .and. lonsz > 0) then
        this%latlon = .true.
        if (this%wkt /= '' .or. this%crs_wkt /= '') then
          write (warnmsg, '(a)') 'Ignoring user provided NetCDF wkt/crs_wkt &
         &parameter(s) as longitude and latitude arrays have been provided. &
            &Applies to file "'//trim(nc_fname)//'".'
          call store_warning(warnmsg)
          this%wkt = ''
          this%crs_wkt = ''
          this%gridmap_name = ''
        end if
        call mem_setptr(this%latitude, 'LATITUDE', this%ncf_mempath)
        call mem_setptr(this%longitude, 'LONGITUDE', this%ncf_mempath)
        if (this%dis%angrot /= dzero) then
          write (warnmsg, '(a)') 'Structured rotated grid with &
            &user-provided latitude/longitude: MF6 cannot verify these &
            &values correctly account for grid rotation (angrot). They &
            &must be computed from each cell''s true rotated position, &
            &not from grid-local x/y. Applies to file "'// &
            trim(nc_fname)//'".'
          call store_warning(warnmsg)
        end if
      end if

      if (this%gridmap_name /= '') then
        if (this%dis%angrot /= dzero) then
          write (warnmsg, '(a)') 'CRS parameter set with structured rotated &
            &grid. The x/y coordinate variables have grid-local, not &
            &real-world, values. A CRS-aware consumer must apply the full &
            &crs_wkt (which encodes rotation when a valid WKT2 PROJCRS was &
            &supplied) via proper reprojection to resolve the true &
            &position; deriving real longitude/latitude directly from x/y &
            &and the flat/numeric CF grid_mapping parameters alone will be &
            &incorrect, since those parameters never encode grid rotation. &
            &Applies to file "'//trim(nc_fname)//'".'
          call store_warning(warnmsg)
        end if
      end if
    end if

    if (this%dis%lenuni == 1) then
      this%lenunits = 'ft'
    else if (this%dis%lenuni == 3) then
      this%lenunits = 'cm'
    else
      this%lenunits = 'm'
    end if

    ! create the netcdf file
    call nf_verify(nf90_create(this%nc_fname, &
                               ior(nf90_clobber, nf90_netcdf4), this%ncid), &
                   this%nc_fname)

Here is the call graph for this function:

export_df()

subroutine disncstructuredmodule::export_df ( class(disncstructuredtype), intent(inout)  this, class(exportpackagetype), intent(in), pointer  export_pkg  )

private

Definition at line 403 of file DisNCStructured.f90.

    use ncmodelexportmodule, only: exportpackagetype
    use definitionselectmodule, only: get_param_definition_type
    class(DisNCStructuredType), intent(inout) :: this
    class(ExportPackageType), pointer, intent(in) :: export_pkg
    type(InputParamDefinitionType), pointer :: idt
    integer(I4B) :: iparam, iaux

    ! export defined period input
    do iparam = 1, export_pkg%nparam
      ! initialize
      iaux = 0
      ! set input definition
      idt => &
        get_param_definition_type(export_pkg%mf6_input%param_dfns, &
                                  export_pkg%mf6_input%component_type, &
                                  export_pkg%mf6_input%subcomponent_type, &
                                  'PERIOD', export_pkg%param_names(iparam), '')
      select case (idt%shape)
      case ('NCPL', 'NODES')
        call this%create_timeseries(idt, iparam, iaux, export_pkg)
      case ('NAUX NCPL', 'NAUX NODES')
        do iaux = 1, export_pkg%naux
          call this%create_timeseries(idt, iparam, iaux, export_pkg)
        end do
      case default
      end select
    end do

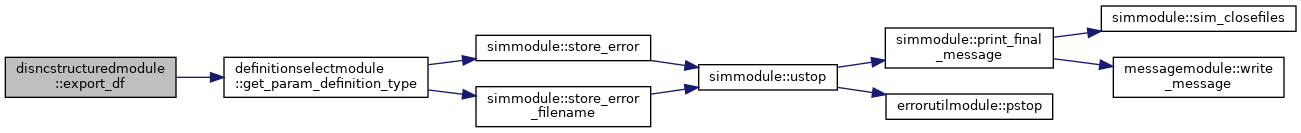

Here is the call graph for this function:

export_input_array()

subroutine disncstructuredmodule::export_input_array	(	class(disncstructuredtype), intent(inout)	this,
		character(len=*), intent(in)	pkgtype,
		character(len=*), intent(in)	pkgname,
		character(len=*), intent(in)	mempath,
		type(inputparamdefinitiontype), intent(in), pointer	idt
	)

Definition at line 331 of file DisNCStructured.f90.

    class(DisNCStructuredType), intent(inout) :: this
    character(len=*), intent(in) :: pkgtype
    character(len=*), intent(in) :: pkgname
    character(len=*), intent(in) :: mempath
    type(InputParamDefinitionType), pointer, intent(in) :: idt
    integer(I4B), dimension(:), pointer, contiguous :: int1d
    integer(I4B), dimension(:, :), pointer, contiguous :: int2d
    integer(I4B), dimension(:, :, :), pointer, contiguous :: int3d
    real(DP), dimension(:), pointer, contiguous :: dbl1d
    real(DP), dimension(:, :), pointer, contiguous :: dbl2d
    real(DP), dimension(:, :, :), pointer, contiguous :: dbl3d
    character(len=LINELENGTH) :: nc_tag
    integer(I4B) :: iper, iaux

    ! initialize
    iper = 0
    iaux = 0

    ! set variable name and input attribute string
    nc_tag = this%input_attribute(pkgname, idt)

    select case (idt%datatype)
    case ('INTEGER1D')
      call mem_setptr(int1d, idt%mf6varname, mempath)
      call nc_export_array(int1d, this%ncid, this%dim_ids, this%var_ids, &
                           this%dis, idt, mempath, nc_tag, pkgname, &
                           this%gridmap_name, this%latlon, this%deflate, &
                           this%shuffle, this%chunk_z, this%chunk_y, &
                           this%chunk_x, iper, this%nc_fname)
    case ('INTEGER2D')
      call mem_setptr(int2d, idt%mf6varname, mempath)
      call nc_export_array(int2d, this%ncid, this%dim_ids, this%var_ids, &
                           this%dis, idt, mempath, nc_tag, pkgname, &
                           this%gridmap_name, this%latlon, this%deflate, &
                           this%shuffle, this%chunk_z, this%chunk_y, &
                           this%chunk_x, this%nc_fname)
    case ('INTEGER3D')
      call mem_setptr(int3d, idt%mf6varname, mempath)
      call nc_export_array(int3d, this%ncid, this%dim_ids, this%var_ids, &
                           this%dis, idt, mempath, nc_tag, pkgname, &
                           this%gridmap_name, this%latlon, this%deflate, &
                           this%shuffle, this%chunk_z, this%chunk_y, &
                           this%chunk_x, this%nc_fname)
    case ('DOUBLE1D')
      call mem_setptr(dbl1d, idt%mf6varname, mempath)
      call nc_export_array(dbl1d, this%ncid, this%dim_ids, this%var_ids, &
                           this%dis, idt, mempath, nc_tag, pkgname, &
                           this%gridmap_name, this%latlon, this%deflate, &
                           this%shuffle, this%chunk_z, this%chunk_y, &
                           this%chunk_x, iper, iaux, this%nc_fname)
    case ('DOUBLE2D')
      call mem_setptr(dbl2d, idt%mf6varname, mempath)
      call nc_export_array(dbl2d, this%ncid, this%dim_ids, this%var_ids, &
                           this%dis, idt, mempath, nc_tag, pkgname, &
                           this%gridmap_name, this%latlon, this%deflate, &
                           this%shuffle, this%chunk_z, this%chunk_y, &
                           this%chunk_x, this%nc_fname)
    case ('DOUBLE3D')
      call mem_setptr(dbl3d, idt%mf6varname, mempath)
      call nc_export_array(dbl3d, this%ncid, this%dim_ids, this%var_ids, &
                           this%dis, idt, mempath, nc_tag, pkgname, &
                           this%gridmap_name, this%latlon, this%deflate, &
                           this%shuffle, this%chunk_z, this%chunk_y, &
                           this%chunk_x, this%nc_fname)
    case default
      ! no-op, no other datatypes exported
    end select

export_input_arrays()

subroutine disncstructuredmodule::export_input_arrays	(	class(disncstructuredtype), intent(inout)	this,
		character(len=*), intent(in)	pkgtype,
		character(len=*), intent(in)	pkgname,
		character(len=*), intent(in)	mempath,
		type(inputparamdefinitiontype), dimension(:), intent(in), pointer	param_dfns
	)

Definition at line 540 of file DisNCStructured.f90.

    use memorymanagermodule, only: get_isize
    class(DisNCStructuredType), intent(inout) :: this
    character(len=*), intent(in) :: pkgtype
    character(len=*), intent(in) :: pkgname
    character(len=*), intent(in) :: mempath
    type(InputParamDefinitionType), dimension(:), pointer, &
      intent(in) :: param_dfns
    type(InputParamDefinitionType), pointer :: idt
    integer(I4B) :: iparam, isize
    do iparam = 1, size(param_dfns)
      ! assign param definition pointer
      idt => param_dfns(iparam)
      ! for now only griddata is exported
      if (idt%blockname == 'GRIDDATA') then
        ! check if variable is already allocated
        call get_isize(idt%mf6varname, mempath, isize)
        if (isize > 0) then
          call this%export_input_array(pkgtype, pkgname, mempath, idt)
        end if
      end if
    end do

Here is the call graph for this function:

nc_export_dbl1d()

subroutine disncstructuredmodule::nc_export_dbl1d ( real(dp), dimension(:), intent(in), pointer, contiguous  p_mem, integer(i4b), intent(in)  ncid, type(structuredncdimidtype), intent(inout)  dim_ids, type(structuredncvaridtype), intent(inout)  var_ids, type(distype), intent(in), pointer  dis, type(inputparamdefinitiontype), intent(in), pointer  idt, character(len=*), intent(in)  mempath, character(len=*), intent(in)  nc_tag, character(len=*), intent(in)  pkgname, character(len=*), intent(in)  gridmap_name, logical(lgp), intent(in)  latlon, integer(i4b), intent(in)  deflate, integer(i4b), intent(in)  shuffle, integer(i4b), intent(in)  chunk_z, integer(i4b), intent(in)  chunk_y, integer(i4b), intent(in)  chunk_x, integer(i4b), intent(in)  iper, integer(i4b), intent(in)  iaux, character(len=*), intent(in)  nc_fname  )

private

Definition at line 1646 of file DisNCStructured.f90.

    use tdismodule, only: kper
    real(DP), dimension(:), pointer, contiguous, intent(in) :: p_mem
    integer(I4B), intent(in) :: ncid
    type(StructuredNCDimIdType), intent(inout) :: dim_ids
    type(StructuredNCVarIdType), intent(inout) :: var_ids
    type(DisType), pointer, intent(in) :: dis
    type(InputParamDefinitionType), pointer, intent(in) :: idt
    character(len=*), intent(in) :: mempath
    character(len=*), intent(in) :: nc_tag
    character(len=*), intent(in) :: pkgname
    character(len=*), intent(in) :: gridmap_name
    logical(LGP), intent(in) :: latlon
    integer(I4B), intent(in) :: deflate
    integer(I4B), intent(in) :: shuffle
    integer(I4B), intent(in) :: chunk_z
    integer(I4B), intent(in) :: chunk_y
    integer(I4B), intent(in) :: chunk_x
    integer(I4B), intent(in) :: iper
    integer(I4B), intent(in) :: iaux
    character(len=*), intent(in) :: nc_fname
    integer(I4B) :: var_id, axis_sz
    character(len=LINELENGTH) :: varname, longname

    if (idt%shape == 'NROW' .or. &
        idt%shape == 'NCOL' .or. &
        idt%shape == 'NCPL' .or. &
        idt%shape == 'NAUX NCPL') then

      if (iper == 0) then
        select case (idt%shape)
        case ('NROW')
          axis_sz = dim_ids%y
        case ('NCOL')
          axis_sz = dim_ids%x
        end select

        varname = export_varname(pkgname, idt%tagname, mempath)
        longname = export_longname(idt%longname, pkgname, idt%tagname, mempath, &
                                   iaux=iaux, &
                                   component_type=idt%component_type, &
                                   subcomponent_type=idt%subcomponent_type)

        ! reenter define mode and create variable
        call nf_verify(nf90_redef(ncid), nc_fname)
        call nf_verify(nf90_def_var(ncid, varname, nf90_double, &
                                    (/axis_sz/), var_id), &
                       nc_fname)

        ! NROW/NCOL shapes use default chunking
        call ncvar_deflate(ncid, var_id, deflate, shuffle, nc_fname)

        ! put attr
        call nf_verify(nf90_put_att(ncid, var_id, '_FillValue', &
                                    (/nf90_fill_double/)), nc_fname)
        call nf_verify(nf90_put_att(ncid, var_id, 'long_name', &
                                    longname), nc_fname)

        ! add mf6 attr
        call ncvar_mf6attr(ncid, var_id, iaux, nc_tag, nc_fname)

        ! exit define mode and write data
        call nf_verify(nf90_enddef(ncid), nc_fname)
        call nf_verify(nf90_put_var(ncid, var_id, p_mem), &
                       nc_fname)
      else
        ! timeseries
        call nf_verify(nf90_put_var(ncid, &
                                    var_ids%export, p_mem, &
                                    start=(/1, 1, kper/), &
                                    count=(/dis%ncol, dis%nrow, 1/)), nc_fname)
      end if

    else

      if (iper == 0) then
        varname = export_varname(pkgname, idt%tagname, mempath, iaux=iaux)
        longname = export_longname(idt%longname, pkgname, idt%tagname, mempath, &
                                   iaux=iaux, &
                                   component_type=idt%component_type, &
                                   subcomponent_type=idt%subcomponent_type)

        ! reenter define mode and create variable
        call nf_verify(nf90_redef(ncid), nc_fname)
        call nf_verify(nf90_def_var(ncid, varname, nf90_double, &
                                    (/dim_ids%x, dim_ids%y, dim_ids%layer/), &
                                    var_id), nc_fname)

        ! apply chunking parameters
        call ncvar_chunk3d(ncid, var_id, chunk_x, chunk_y, chunk_z, nc_fname)
        ! deflate and shuffle
        call ncvar_deflate(ncid, var_id, deflate, shuffle, nc_fname)

        ! put attr
        call nf_verify(nf90_put_att(ncid, var_id, '_FillValue', &
                                    (/nf90_fill_double/)), nc_fname)
        call nf_verify(nf90_put_att(ncid, var_id, 'long_name', &
                                    longname), nc_fname)

        ! add grid mapping and mf6 attr
        call ncvar_gridmap(ncid, var_id, gridmap_name, latlon, .true., &
                           nc_fname)
        call ncvar_mf6attr(ncid, var_id, iaux, nc_tag, nc_fname)

        ! exit define mode and write data
        call nf_verify(nf90_enddef(ncid), nc_fname)
        call nf_verify(nf90_put_var(ncid, var_id, p_mem, start=(/1, 1, 1/), &
                                    count=(/dis%ncol, dis%nrow, dis%nlay/)), &
                       nc_fname)
      else
        ! timeseries
        call nf_verify(nf90_put_var(ncid, &
                                    var_ids%export, p_mem, &
                                    start=(/1, 1, 1, kper/), &
                                    count=(/dis%ncol, dis%nrow, dis%nlay, 1/)), &
                       nc_fname)
      end if
    end if

nc_export_dbl2d()

subroutine disncstructuredmodule::nc_export_dbl2d	(	real(dp), dimension(:, :), intent(in), pointer, contiguous	p_mem,
		integer(i4b), intent(in)	ncid,
		type(structuredncdimidtype), intent(inout)	dim_ids,
		type(structuredncvaridtype), intent(inout)	var_ids,
		type(distype), intent(in), pointer	dis,
		type(inputparamdefinitiontype), intent(in), pointer	idt,
		character(len=*), intent(in)	mempath,
		character(len=*), intent(in)	nc_tag,
		character(len=*), intent(in)	pkgname,
		character(len=*), intent(in)	gridmap_name,
		logical(lgp), intent(in)	latlon,
		integer(i4b), intent(in)	deflate,
		integer(i4b), intent(in)	shuffle,
		integer(i4b), intent(in)	chunk_z,
		integer(i4b), intent(in)	chunk_y,
		integer(i4b), intent(in)	chunk_x,
		character(len=*), intent(in)	nc_fname
	)

Definition at line 1771 of file DisNCStructured.f90.

    real(DP), dimension(:, :), pointer, contiguous, intent(in) :: p_mem
    integer(I4B), intent(in) :: ncid
    type(StructuredNCDimIdType), intent(inout) :: dim_ids
    type(StructuredNCVarIdType), intent(inout) :: var_ids
    type(DisType), pointer, intent(in) :: dis
    type(InputParamDefinitionType), pointer, intent(in) :: idt
    character(len=*), intent(in) :: mempath
    character(len=*), intent(in) :: nc_tag
    character(len=*), intent(in) :: pkgname
    character(len=*), intent(in) :: gridmap_name
    logical(LGP), intent(in) :: latlon
    integer(I4B), intent(in) :: deflate
    integer(I4B), intent(in) :: shuffle
    integer(I4B), intent(in) :: chunk_z
    integer(I4B), intent(in) :: chunk_y
    integer(I4B), intent(in) :: chunk_x
    character(len=*), intent(in) :: nc_fname
    character(len=LINELENGTH) :: varname
    integer(I4B) :: var_id

    varname = export_varname(pkgname, idt%tagname, mempath)

    ! reenter define mode and create variable
    call nf_verify(nf90_redef(ncid), nc_fname)
    call nf_verify(nf90_def_var(ncid, varname, nf90_double, &
                                (/dim_ids%x, dim_ids%y/), var_id), &
                   nc_fname)

    ! apply chunking parameters
    call ncvar_chunk2d(ncid, var_id, chunk_x, chunk_y, nc_fname)
    ! deflate and shuffle
    call ncvar_deflate(ncid, var_id, deflate, shuffle, nc_fname)

    ! put attr
    call nf_verify(nf90_put_att(ncid, var_id, '_FillValue', &
                                (/nf90_fill_double/)), nc_fname)
    call nf_verify(nf90_put_att(ncid, var_id, 'long_name', &
                                idt%longname), nc_fname)

    ! add grid mapping and mf6 attr
    call ncvar_gridmap(ncid, var_id, gridmap_name, latlon, .false., &
                       nc_fname)
    call ncvar_mf6attr(ncid, var_id, 0, nc_tag, nc_fname)

    ! exit define mode and write data
    call nf_verify(nf90_enddef(ncid), nc_fname)
    call nf_verify(nf90_put_var(ncid, var_id, p_mem, start=(/1, 1/), &
                                count=(/dis%ncol, dis%nrow/)), &
                   nc_fname)

nc_export_dbl3d()

subroutine disncstructuredmodule::nc_export_dbl3d ( real(dp), dimension(:, :, :), intent(in), pointer, contiguous  p_mem, integer(i4b), intent(in)  ncid, type(structuredncdimidtype), intent(inout)  dim_ids, type(structuredncvaridtype), intent(inout)  var_ids, type(distype), intent(in), pointer  dis, type(inputparamdefinitiontype), intent(in), pointer  idt, character(len=*), intent(in)  mempath, character(len=*), intent(in)  nc_tag, character(len=*), intent(in)  pkgname, character(len=*), intent(in)  gridmap_name, logical(lgp), intent(in)  latlon, integer(i4b), intent(in)  deflate, integer(i4b), intent(in)  shuffle, integer(i4b), intent(in)  chunk_z, integer(i4b), intent(in)  chunk_y, integer(i4b), intent(in)  chunk_x, character(len=*), intent(in)  nc_fname  )

private

Definition at line 1827 of file DisNCStructured.f90.

    real(DP), dimension(:, :, :), pointer, contiguous, intent(in) :: p_mem
    integer(I4B), intent(in) :: ncid
    type(StructuredNCDimIdType), intent(inout) :: dim_ids
    type(StructuredNCVarIdType), intent(inout) :: var_ids
    type(DisType), pointer, intent(in) :: dis
    type(InputParamDefinitionType), pointer, intent(in) :: idt
    character(len=*), intent(in) :: mempath
    character(len=*), intent(in) :: nc_tag
    character(len=*), intent(in) :: pkgname
    character(len=*), intent(in) :: gridmap_name
    logical(LGP), intent(in) :: latlon
    integer(I4B), intent(in) :: deflate
    integer(I4B), intent(in) :: shuffle
    integer(I4B), intent(in) :: chunk_z
    integer(I4B), intent(in) :: chunk_y
    integer(I4B), intent(in) :: chunk_x
    character(len=*), intent(in) :: nc_fname
    integer(I4B) :: var_id
    character(len=LINELENGTH) :: varname, longname

    varname = export_varname(pkgname, idt%tagname, mempath)
    longname = export_longname(idt%longname, pkgname, idt%tagname, mempath, &
                               component_type=idt%component_type, &
                               subcomponent_type=idt%subcomponent_type)

    ! reenter define mode and create variable
    call nf_verify(nf90_redef(ncid), nc_fname)
    call nf_verify(nf90_def_var(ncid, varname, nf90_double, &
                                (/dim_ids%x, dim_ids%y, dim_ids%layer/), &
                                var_id), nc_fname)

    ! apply chunking parameters
    call ncvar_chunk3d(ncid, var_id, chunk_x, chunk_y, chunk_z, nc_fname)
    ! deflate and shuffle
    call ncvar_deflate(ncid, var_id, deflate, shuffle, nc_fname)

    ! put attr
    call nf_verify(nf90_put_att(ncid, var_id, '_FillValue', &
                                (/nf90_fill_double/)), nc_fname)
    call nf_verify(nf90_put_att(ncid, var_id, 'long_name', &
                                longname), nc_fname)

    ! add grid mapping and mf6 attr
    call ncvar_gridmap(ncid, var_id, gridmap_name, latlon, .true., &
                       nc_fname)
    call ncvar_mf6attr(ncid, var_id, 0, nc_tag, nc_fname)

    ! exit define mode and write data
    call nf_verify(nf90_enddef(ncid), nc_fname)
    call nf_verify(nf90_put_var(ncid, var_id, p_mem, start=(/1, 1, 1/), &
                                count=(/dis%ncol, dis%nrow, dis%nlay/)), &
                   nc_fname)

nc_export_int1d()

subroutine disncstructuredmodule::nc_export_int1d ( integer(i4b), dimension(:), intent(in), pointer, contiguous  p_mem, integer(i4b), intent(in)  ncid, type(structuredncdimidtype), intent(inout)  dim_ids, type(structuredncvaridtype), intent(inout)  var_ids, type(distype), intent(in), pointer  dis, type(inputparamdefinitiontype), intent(in), pointer  idt, character(len=*), intent(in)  mempath, character(len=*), intent(in)  nc_tag, character(len=*), intent(in)  pkgname, character(len=*), intent(in)  gridmap_name, logical(lgp), intent(in)  latlon, integer(i4b), intent(in)  deflate, integer(i4b), intent(in)  shuffle, integer(i4b), intent(in)  chunk_z, integer(i4b), intent(in)  chunk_y, integer(i4b), intent(in)  chunk_x, integer(i4b), intent(in)  iper, character(len=*), intent(in)  nc_fname  )

private

Definition at line 1417 of file DisNCStructured.f90.

    use tdismodule, only: kper
    integer(I4B), dimension(:), pointer, contiguous, intent(in) :: p_mem
    integer(I4B), intent(in) :: ncid
    type(StructuredNCDimIdType), intent(inout) :: dim_ids
    type(StructuredNCVarIdType), intent(inout) :: var_ids
    type(DisType), pointer, intent(in) :: dis
    type(InputParamDefinitionType), pointer, intent(in) :: idt
    character(len=*), intent(in) :: mempath
    character(len=*), intent(in) :: nc_tag
    character(len=*), intent(in) :: pkgname
    character(len=*), intent(in) :: gridmap_name
    logical(LGP), intent(in) :: latlon
    integer(I4B), intent(in) :: deflate
    integer(I4B), intent(in) :: shuffle
    integer(I4B), intent(in) :: chunk_z
    integer(I4B), intent(in) :: chunk_y
    integer(I4B), intent(in) :: chunk_x
    integer(I4B), intent(in) :: iper
    character(len=*), intent(in) :: nc_fname
    integer(I4B) :: var_id, axis_sz
    character(len=LINELENGTH) :: varname, longname

    varname = export_varname(pkgname, idt%tagname, mempath)

    if (idt%shape == 'NROW' .or. &
        idt%shape == 'NCOL' .or. &
        idt%shape == 'NCPL' .or. &
        idt%shape == 'NAUX NCPL') then

      if (iper == 0) then
        select case (idt%shape)
        case ('NROW')
          axis_sz = dim_ids%y
        case ('NCOL')
          axis_sz = dim_ids%x
        end select

        longname = export_longname(idt%longname, pkgname, idt%tagname, mempath, &
                                   component_type=idt%component_type, &
                                   subcomponent_type=idt%subcomponent_type)

        ! reenter define mode and create variable
        call nf_verify(nf90_redef(ncid), nc_fname)
        call nf_verify(nf90_def_var(ncid, varname, nf90_int, &
                                    (/axis_sz/), var_id), &
                       nc_fname)

        ! NROW/NCOL shapes use default chunking
        call ncvar_deflate(ncid, var_id, deflate, shuffle, nc_fname)

        ! put attr
        call nf_verify(nf90_put_att(ncid, var_id, '_FillValue', &
                                    (/nf90_fill_int/)), nc_fname)
        call nf_verify(nf90_put_att(ncid, var_id, 'long_name', &
                                    longname), nc_fname)

        ! add mf6 attr
        call ncvar_mf6attr(ncid, var_id, 0, nc_tag, nc_fname)

        ! exit define mode and write data
        call nf_verify(nf90_enddef(ncid), nc_fname)
        call nf_verify(nf90_put_var(ncid, var_id, p_mem), &
                       nc_fname)
      else
        ! timeseries
        call nf_verify(nf90_put_var(ncid, &
                                    var_ids%export, p_mem, &
                                    start=(/1, 1, kper/), &
                                    count=(/dis%ncol, dis%nrow, 1/)), nc_fname)
      end if

    else

      if (iper == 0) then
        ! reenter define mode and create variable
        call nf_verify(nf90_redef(ncid), nc_fname)
        call nf_verify(nf90_def_var(ncid, varname, nf90_int, &
                                    (/dim_ids%x, dim_ids%y, dim_ids%layer/), &
                                    var_id), nc_fname)

        ! apply chunking parameters
        call ncvar_chunk3d(ncid, var_id, chunk_x, chunk_y, chunk_z, nc_fname)
        ! deflate and shuffle
        call ncvar_deflate(ncid, var_id, deflate, shuffle, nc_fname)

        ! put attr
        call nf_verify(nf90_put_att(ncid, var_id, '_FillValue', &
                                    (/nf90_fill_int/)), nc_fname)
        call nf_verify(nf90_put_att(ncid, var_id, 'long_name', &
                                    idt%longname), nc_fname)

        ! add grid mapping and mf6 attr
        call ncvar_gridmap(ncid, var_id, gridmap_name, latlon, .true., &
                           nc_fname)
        call ncvar_mf6attr(ncid, var_id, 0, nc_tag, nc_fname)

        ! exit define mode and write data
        call nf_verify(nf90_enddef(ncid), nc_fname)
        call nf_verify(nf90_put_var(ncid, var_id, p_mem, start=(/1, 1, 1/), &
                                    count=(/dis%ncol, dis%nrow, dis%nlay/)), &
                       nc_fname)
      else
        ! timeseries
        call nf_verify(nf90_put_var(ncid, &
                                    var_ids%export, p_mem, &
                                    start=(/1, 1, 1, kper/), &
                                    count=(/dis%ncol, dis%nrow, dis%nlay, 1/)), &
                       nc_fname)
      end if
    end if

nc_export_int2d()

subroutine disncstructuredmodule::nc_export_int2d	(	integer(i4b), dimension(:, :), intent(in), pointer, contiguous	p_mem,
		integer(i4b), intent(in)	ncid,
		type(structuredncdimidtype), intent(inout)	dim_ids,
		type(structuredncvaridtype), intent(inout)	var_ids,
		type(distype), intent(in), pointer	dis,
		type(inputparamdefinitiontype), intent(in), pointer	idt,
		character(len=*), intent(in)	mempath,
		character(len=*), intent(in)	nc_tag,
		character(len=*), intent(in)	pkgname,
		character(len=*), intent(in)	gridmap_name,
		logical(lgp), intent(in)	latlon,
		integer(i4b), intent(in)	deflate,
		integer(i4b), intent(in)	shuffle,
		integer(i4b), intent(in)	chunk_z,
		integer(i4b), intent(in)	chunk_y,
		integer(i4b), intent(in)	chunk_x,
		character(len=*), intent(in)	nc_fname
	)

Definition at line 1534 of file DisNCStructured.f90.

    integer(I4B), dimension(:, :), pointer, contiguous, intent(in) :: p_mem
    integer(I4B), intent(in) :: ncid
    type(StructuredNCDimIdType), intent(inout) :: dim_ids
    type(StructuredNCVarIdType), intent(inout) :: var_ids
    type(DisType), pointer, intent(in) :: dis
    type(InputParamDefinitionType), pointer, intent(in) :: idt
    character(len=*), intent(in) :: mempath
    character(len=*), intent(in) :: nc_tag
    character(len=*), intent(in) :: pkgname
    character(len=*), intent(in) :: gridmap_name
    logical(LGP), intent(in) :: latlon
    integer(I4B), intent(in) :: deflate
    integer(I4B), intent(in) :: shuffle
    integer(I4B), intent(in) :: chunk_z
    integer(I4B), intent(in) :: chunk_y
    integer(I4B), intent(in) :: chunk_x
    character(len=*), intent(in) :: nc_fname
    character(len=LINELENGTH) :: varname
    integer(I4B) :: var_id

    varname = export_varname(pkgname, idt%tagname, mempath)

    ! reenter define mode and create variable
    call nf_verify(nf90_redef(ncid), nc_fname)
    call nf_verify(nf90_def_var(ncid, varname, nf90_int, &
                                (/dim_ids%x, dim_ids%y/), var_id), &
                   nc_fname)

    ! apply chunking parameters
    call ncvar_chunk2d(ncid, var_id, chunk_x, chunk_y, nc_fname)
    ! deflate and shuffle
    call ncvar_deflate(ncid, var_id, deflate, shuffle, nc_fname)

    ! put attr
    call nf_verify(nf90_put_att(ncid, var_id, '_FillValue', &
                                (/nf90_fill_int/)), nc_fname)
    call nf_verify(nf90_put_att(ncid, var_id, 'long_name', &
                                idt%longname), nc_fname)

    ! add grid mapping and mf6 attr
    call ncvar_gridmap(ncid, var_id, gridmap_name, latlon, .false., &
                       nc_fname)
    call ncvar_mf6attr(ncid, var_id, 0, nc_tag, nc_fname)

    ! exit define mode and write data
    call nf_verify(nf90_enddef(ncid), nc_fname)
    call nf_verify(nf90_put_var(ncid, var_id, p_mem, start=(/1, 1/), &
                                count=(/dis%ncol, dis%nrow/)), &
                   nc_fname)

nc_export_int3d()

subroutine disncstructuredmodule::nc_export_int3d ( integer(i4b), dimension(:, :, :), intent(in), pointer, contiguous  p_mem, integer(i4b), intent(in)  ncid, type(structuredncdimidtype), intent(inout)  dim_ids, type(structuredncvaridtype), intent(inout)  var_ids, type(distype), intent(in), pointer  dis, type(inputparamdefinitiontype), intent(in), pointer  idt, character(len=*), intent(in)  mempath, character(len=*), intent(in)  nc_tag, character(len=*), intent(in)  pkgname, character(len=*), intent(in)  gridmap_name, logical(lgp), intent(in)  latlon, integer(i4b), intent(in)  deflate, integer(i4b), intent(in)  shuffle, integer(i4b), intent(in)  chunk_z, integer(i4b), intent(in)  chunk_y, integer(i4b), intent(in)  chunk_x, character(len=*), intent(in)  nc_fname  )

private

Definition at line 1590 of file DisNCStructured.f90.

    integer(I4B), dimension(:, :, :), pointer, contiguous, intent(in) :: p_mem
    integer(I4B), intent(in) :: ncid
    type(StructuredNCDimIdType), intent(inout) :: dim_ids
    type(StructuredNCVarIdType), intent(inout) :: var_ids
    type(DisType), pointer, intent(in) :: dis
    type(InputParamDefinitionType), pointer, intent(in) :: idt
    character(len=*), intent(in) :: mempath
    character(len=*), intent(in) :: nc_tag
    character(len=*), intent(in) :: pkgname
    character(len=*), intent(in) :: gridmap_name
    logical(LGP), intent(in) :: latlon
    integer(I4B), intent(in) :: deflate
    integer(I4B), intent(in) :: shuffle
    integer(I4B), intent(in) :: chunk_z
    integer(I4B), intent(in) :: chunk_y
    integer(I4B), intent(in) :: chunk_x
    character(len=*), intent(in) :: nc_fname
    character(len=LINELENGTH) :: varname
    integer(I4B) :: var_id

    varname = export_varname(pkgname, idt%tagname, mempath)

    ! reenter define mode and create variable
    call nf_verify(nf90_redef(ncid), nc_fname)
    call nf_verify(nf90_def_var(ncid, varname, nf90_int, &
                                (/dim_ids%x, dim_ids%y, dim_ids%layer/), &
                                var_id), nc_fname)

    ! apply chunking parameters
    call ncvar_chunk3d(ncid, var_id, chunk_x, chunk_y, chunk_z, nc_fname)
    ! deflate and shuffle
    call ncvar_deflate(ncid, var_id, deflate, shuffle, nc_fname)

    ! put attr
    call nf_verify(nf90_put_att(ncid, var_id, '_FillValue', &
                                (/nf90_fill_int/)), nc_fname)
    call nf_verify(nf90_put_att(ncid, var_id, 'long_name', &
                                idt%longname), nc_fname)

    ! add grid mapping and mf6 attr
    call ncvar_gridmap(ncid, var_id, gridmap_name, latlon, .true., &
                       nc_fname)
    call ncvar_mf6attr(ncid, var_id, 0, nc_tag, nc_fname)

    ! exit define mode and write data
    call nf_verify(nf90_enddef(ncid), nc_fname)
    call nf_verify(nf90_put_var(ncid, var_id, p_mem, start=(/1, 1, 1/), &
                                count=(/dis%ncol, dis%nrow, dis%nlay/)), &
                   nc_fname)

ncvar_chunk2d()

subroutine disncstructuredmodule::ncvar_chunk2d ( integer(i4b), intent(in)  ncid, integer(i4b), intent(in)  varid, integer(i4b), intent(in)  chunk_x, integer(i4b), intent(in)  chunk_y, character(len=*), intent(in)  nc_fname  )

private

Definition at line 1310 of file DisNCStructured.f90.

    integer(I4B), intent(in) :: ncid
    integer(I4B), intent(in) :: varid
    integer(I4B), intent(in) :: chunk_x
    integer(I4B), intent(in) :: chunk_y
    character(len=*), intent(in) :: nc_fname
    if (chunk_y > 0 .and. chunk_x > 0) then
      call nf_verify(nf90_def_var_chunking(ncid, varid, nf90_chunked, &
                                           (/chunk_x, chunk_y/)), nc_fname)
    end if

Here is the call graph for this function:

Here is the caller graph for this function:

ncvar_chunk3d()

subroutine disncstructuredmodule::ncvar_chunk3d ( integer(i4b), intent(in)  ncid, integer(i4b), intent(in)  varid, integer(i4b), intent(in)  chunk_x, integer(i4b), intent(in)  chunk_y, integer(i4b), intent(in)  chunk_z, character(len=*), intent(in)  nc_fname  )

private

Definition at line 1324 of file DisNCStructured.f90.

    integer(I4B), intent(in) :: ncid
    integer(I4B), intent(in) :: varid
    integer(I4B), intent(in) :: chunk_x
    integer(I4B), intent(in) :: chunk_y
    integer(I4B), intent(in) :: chunk_z
    character(len=*), intent(in) :: nc_fname
    if (chunk_z > 0 .and. chunk_y > 0 .and. chunk_x > 0) then
      call nf_verify(nf90_def_var_chunking(ncid, varid, nf90_chunked, &
                                           (/chunk_x, chunk_y, chunk_z/)), &
                     nc_fname)
    end if

Here is the call graph for this function:

Here is the caller graph for this function:

ncvar_deflate()

subroutine disncstructuredmodule::ncvar_deflate ( integer(i4b), intent(in)  ncid, integer(i4b), intent(in)  varid, integer(i4b), intent(in)  deflate, integer(i4b), intent(in)  shuffle, character(len=*), intent(in)  nc_fname  )

private

Definition at line 1340 of file DisNCStructured.f90.

    integer(I4B), intent(in) :: ncid
    integer(I4B), intent(in) :: varid
    integer(I4B), intent(in) :: deflate
    integer(I4B), intent(in) :: shuffle
    character(len=*), intent(in) :: nc_fname
    ! deflate and shuffle
    if (deflate >= 0) then
      call nf_verify(nf90_def_var_deflate(ncid, varid, shuffle=shuffle, &
                                          deflate=1, deflate_level=deflate), &
                     nc_fname)
    end if

Here is the call graph for this function:

Here is the caller graph for this function:

ncvar_gridmap()

subroutine disncstructuredmodule::ncvar_gridmap ( integer(i4b), intent(in)  ncid, integer(i4b), intent(in)  varid, character(len=*), intent(in)  gridmap_name, logical(lgp), intent(in)  latlon, logical(lgp), intent(in)  has_layer, character(len=*), intent(in)  nc_fname  )

private

has_layer must be true only for variables carrying the layer, y, and x dimensions – z(layer, y, x) can only be legally referenced via coordinates from a variable whose dimensions are a superset of its own (CF-1.13 5.2). 2D (y, x)-only variables such as dis_top must pass has_layer=.false. z is written unconditionally, independent of gridmap_name/latlon.

Definition at line 1363 of file DisNCStructured.f90.

    integer(I4B), intent(in) :: ncid
    integer(I4B), intent(in) :: varid
    character(len=*), intent(in) :: gridmap_name
    logical(LGP), intent(in) :: latlon
    logical(LGP), intent(in) :: has_layer
    character(len=*), intent(in) :: nc_fname
    character(len=LINELENGTH) :: coords
    coords = ''
    ! NOTE: x/y are not listed here even when gridmap_name is set -- unlike
    ! lon/lat (real 2D auxiliary coordinates), x/y are true CF dimension
    ! coordinates already discoverable by dimension-name matching alone, so
    ! listing them in 'coordinates' is redundant (CF-1.13 Ch.5 preamble).
    if (latlon) then
      coords = 'lon lat'
    end if
    if (has_layer) then
      if (len_trim(coords) > 0) then
        coords = trim(coords)//' z'
      else
        coords = 'z'
      end if
    end if
    if (len_trim(coords) > 0) then
      call nf_verify(nf90_put_att(ncid, varid, 'coordinates', trim(coords)), &
                     nc_fname)
    end if
    if (gridmap_name /= '') then
      call nf_verify(nf90_put_att(ncid, varid, 'grid_mapping', gridmap_name), &
                     nc_fname)
    end if

Here is the call graph for this function:

Here is the caller graph for this function:

ncvar_mf6attr()

subroutine disncstructuredmodule::ncvar_mf6attr ( integer(i4b), intent(in)  ncid, integer(i4b), intent(in)  varid, integer(i4b), intent(in)  iaux, character(len=*), intent(in)  nc_tag, character(len=*), intent(in)  nc_fname  )

private

Definition at line 1399 of file DisNCStructured.f90.

    integer(I4B), intent(in) :: ncid
    integer(I4B), intent(in) :: varid
    integer(I4B), intent(in) :: iaux
    character(len=*), intent(in) :: nc_tag
    character(len=*), intent(in) :: nc_fname
    if (nc_tag /= '') then
      call nf_verify(nf90_put_att(ncid, varid, 'modflow_input', &
                                  nc_tag), nc_fname)
      if (iaux > 0) then
        call nf_verify(nf90_put_att(ncid, varid, 'modflow_iaux', &
                                    iaux), nc_fname)
      end if
    end if

Here is the call graph for this function:

Here is the caller graph for this function:

package_step()

subroutine disncstructuredmodule::package_step	(	class(disncstructuredtype), intent(inout)	this,
		class(exportpackagetype), intent(in), pointer	export_pkg
	)

Definition at line 566 of file DisNCStructured.f90.

    use tdismodule, only: totim, kper
    use definitionselectmodule, only: get_param_definition_type
    use ncmodelexportmodule, only: exportpackagetype
    class(DisNCStructuredType), intent(inout) :: this
    class(ExportPackageType), pointer, intent(in) :: export_pkg
    type(InputParamDefinitionType), pointer :: idt
    integer(I4B), dimension(:), pointer, contiguous :: int1d
    real(DP), dimension(:), pointer, contiguous :: dbl1d, nodes
    real(DP), dimension(:, :), pointer, contiguous :: dbl2d
    character(len=LINELENGTH) :: nc_tag
    integer(I4B) :: iaux, iparam, nvals, n
    integer(I4B), pointer :: nbound

    ! initialize
    iaux = 0

    ! export defined period input
    do iparam = 1, export_pkg%nparam
      if (export_pkg%iper /= kper) cycle
      ! check if variable was read this period
      if (export_pkg%param_reads(iparam)%invar < 1) cycle

      ! set input definition
      idt => &
        get_param_definition_type(export_pkg%mf6_input%param_dfns, &
                                  export_pkg%mf6_input%component_type, &
                                  export_pkg%mf6_input%subcomponent_type, &
                                  'PERIOD', export_pkg%param_names(iparam), '')

      ! set variable input tag
      nc_tag = this%input_attribute(export_pkg%mf6_input%subcomponent_name, &
                                    idt)

      ! export arrays
      select case (idt%datatype)
      case ('INTEGER1D')
        call mem_setptr(int1d, idt%mf6varname, export_pkg%mf6_input%mempath)
        this%var_ids%export = export_pkg%varids_param(iparam, 1)
        call nc_export_array(int1d, this%ncid, this%dim_ids, this%var_ids, &
                             this%dis, idt, export_pkg%mf6_input%mempath, &
                             nc_tag, export_pkg%mf6_input%subcomponent_name, &
                             this%gridmap_name, this%latlon, this%deflate, &
                             this%shuffle, this%chunk_z, this%chunk_y, &
                             this%chunk_x, kper, this%nc_fname)
      case ('DOUBLE1D')
        call mem_setptr(dbl1d, idt%mf6varname, export_pkg%mf6_input%mempath)
        this%var_ids%export = export_pkg%varids_param(iparam, 1)
        select case (idt%shape)
        case ('NCPL')
          call nc_export_array(dbl1d, this%ncid, this%dim_ids, this%var_ids, &
                               this%dis, idt, export_pkg%mf6_input%mempath, &
                               nc_tag, export_pkg%mf6_input%subcomponent_name, &
                               this%gridmap_name, this%latlon, this%deflate, &
                               this%shuffle, this%chunk_z, this%chunk_y, &
                               this%chunk_x, kper, iaux, this%nc_fname)
        case ('NODES')
          nvals = this%dis%nodesuser
          allocate (nodes(nvals))
          nodes = dnodata
          call mem_setptr(dbl1d, idt%mf6varname, export_pkg%mf6_input%mempath)
          call mem_setptr(int1d, 'NODEULIST', export_pkg%mf6_input%mempath)
          call mem_setptr(nbound, 'NBOUND', export_pkg%mf6_input%mempath)
          do n = 1, nbound
            nodes(int1d(n)) = dbl1d(n)
          end do
          call nc_export_array(nodes, this%ncid, this%dim_ids, this%var_ids, &
                               this%dis, idt, export_pkg%mf6_input%mempath, &
                               nc_tag, export_pkg%mf6_input%subcomponent_name, &
                               this%gridmap_name, this%latlon, this%deflate, &
                               this%shuffle, this%chunk_z, this%chunk_y, &
                               this%chunk_x, kper, iaux, this%nc_fname)
          deallocate (nodes)
        case default
        end select
      case ('DOUBLE2D')
        call mem_setptr(dbl2d, idt%mf6varname, export_pkg%mf6_input%mempath)
        select case (idt%shape)
        case ('NAUX NCPL')
          nvals = this%dis%nrow * this%dis%ncol
          allocate (nodes(nvals))
          do iaux = 1, size(dbl2d, dim=1) !naux
            this%var_ids%export = export_pkg%varids_aux(iaux, 1)
            do n = 1, nvals
              nodes(n) = dbl2d(iaux, n)
            end do
            call nc_export_array(nodes, this%ncid, this%dim_ids, this%var_ids, &
                                 this%dis, idt, export_pkg%mf6_input%mempath, &
                                 nc_tag, export_pkg%mf6_input%subcomponent_name, &
                                 this%gridmap_name, this%latlon, this%deflate, &
                                 this%shuffle, this%chunk_z, this%chunk_y, &
                                 this%chunk_x, kper, iaux, this%nc_fname)
          end do
          deallocate (nodes)
        case ('NAUX NODES')
          nvals = this%dis%nodesuser
          allocate (nodes(nvals))
          call mem_setptr(int1d, 'NODEULIST', export_pkg%mf6_input%mempath)
          call mem_setptr(nbound, 'NBOUND', export_pkg%mf6_input%mempath)
          do iaux = 1, size(dbl2d, dim=1) ! naux
            nodes = dnodata
            this%var_ids%export = export_pkg%varids_aux(iaux, 1)
            do n = 1, nbound
              nodes(int1d(n)) = dbl2d(iaux, n)
            end do
            call nc_export_array(nodes, this%ncid, this%dim_ids, this%var_ids, &
                                 this%dis, idt, export_pkg%mf6_input%mempath, &
                                 nc_tag, export_pkg%mf6_input%subcomponent_name, &
                                 this%gridmap_name, this%latlon, this%deflate, &
                                 this%shuffle, this%chunk_z, this%chunk_y, &
                                 this%chunk_x, kper, iaux, this%nc_fname)

          end do
          deallocate (nodes)
        case default
        end select
      case default
        ! no-op, no other datatypes exported
      end select
    end do

    ! write to time coordinate variable
    call nf_verify(nf90_put_var(this%ncid, this%var_ids%time, &
                                totim, start=(/kper/)), &
                   this%nc_fname)

    ! synchronize file
    call nf_verify(nf90_sync(this%ncid), this%nc_fname)

Here is the call graph for this function:

step()

subroutine disncstructuredmodule::step

(

class(disncstructuredtype), intent(inout)

this

)

Definition at line 281 of file DisNCStructured.f90.

    use constantsmodule, only: dhnoflo
    use tdismodule, only: totim
    class(DisNCStructuredType), intent(inout) :: this
    real(DP), dimension(:), pointer, contiguous :: dbl1d
    integer(I4B) :: n, istp

    ! set global step index
    istp = this%istp()

    if (size(this%dis%nodeuser) < &
        size(this%dis%nodereduced)) then
      allocate (dbl1d(size(this%dis%nodereduced)))
      dbl1d = dhnoflo
      do n = 1, size(this%dis%nodereduced)
        if (this%dis%nodereduced(n) > 0) then
          dbl1d(n) = this%x(this%dis%nodereduced(n))
        end if
      end do
      ! write step data to dependent variable
      call nf_verify(nf90_put_var(this%ncid, &
                                  this%var_ids%dependent, dbl1d, &
                                  start=(/1, 1, 1, istp/), &
                                  count=(/this%dis%ncol, &
                                          this%dis%nrow, &
                                          this%dis%nlay, 1/)), &
                     this%nc_fname)
      deallocate (dbl1d)
    else
      ! write step data to dependent variable
      call nf_verify(nf90_put_var(this%ncid, &
                                  this%var_ids%dependent, this%x, &
                                  start=(/1, 1, 1, istp/), &
                                  count=(/this%dis%ncol, &
                                          this%dis%nrow, &
                                          this%dis%nlay, 1/)), &
                     this%nc_fname)
    end if

    ! write to time coordinate variable
    call nf_verify(nf90_put_var(this%ncid, this%var_ids%time, &
                                totim, start=(/istp/)), &
                   this%nc_fname)

    ! synchronize file
    call nf_verify(nf90_sync(this%ncid), this%nc_fname)

Here is the call graph for this function:
