This module contains the NCModelExportModule. More...

Data Types
type	exportpackagetype

type	ncexportannotation
	netcdf export attribute annotations More...

type	ncmodelexporttype
	base class for an export model More...

type	ncbasemodelexporttype
	abstract type for model netcdf export type More...

interface	model_define
	abstract interfaces for model netcdf export type More...

interface	model_step

interface	package_export

interface	package_export_ilayer

Enumerations
enum
	netcdf export types enumerator More...

Functions/Subroutines
subroutine	epkg_init (this, mf6_input, mshape, naux, param_names, nparam)
	initialize dynamic package export object More...

subroutine	epkg_destroy (this)
	destroy dynamic package export object More...

subroutine	set (this, modelname, modeltype, modelfname, nctype, disenum)
	set netcdf file scoped attributes More...

subroutine	export_init (this, modelname, modeltype, modelfname, nc_fname, disenum, nctype, iout)
	initialization of model netcdf export More...

class(exportpackagetype) function, pointer	export_get (this, idx)
	retrieve dynamic export object from package list More...

character(len=linelength) function	input_attribute (this, pkgname, idt)
	build modflow_input attribute string More...

character(len=linelength) function, public	export_varname (pkgname, tagname, mempath, layer, iaux)
	build netcdf variable name More...

character(len=linelength) function, public	export_longname (longname, pkgname, tagname, mempath, layer, iaux)
	build netcdf variable longname More...

subroutine	export_input (this)
	netcdf dynamic package period export More...

subroutine	export_destroy (this)
	destroy model netcdf export object More...

Variables
@, public	netcdf_undef = 0
	undefined netcdf export type More...

@, public	netcdf_structured = 1
	netcdf structrured export More...

@, public	netcdf_mesh2d = 2
	netcdf ugrid layered mesh export More...

Detailed Description

This module defines a model export and base type for supported netcdf files and is not dependent on netcdf libraries.

Enumeration Type Documentation

◆ anonymous enum

anonymous enum

private

Definition at line 31 of file NCModel.f90.

Function/Subroutine Documentation

◆ epkg_destroy()

subroutine ncmodelexportmodule::epkg_destroy ( class(exportpackagetype), intent(inout) this )

Definition at line 192 of file NCModel.f90.

     use inputdefinitionmodule, only: inputparamdefinitiontype
     class(ExportPackageType), intent(inout) :: this
     if (allocated(this%param_names)) deallocate (this%param_names)

◆ epkg_init()

subroutine ncmodelexportmodule::epkg_init	(	class(exportpackagetype), intent(inout)	this,
		type(modflowinputtype), intent(in)	mf6_input,
		integer(i4b), dimension(:), intent(in), pointer, contiguous	mshape,
		integer(i4b), intent(in)	naux,
		character(len=linelength), dimension(:), intent(in), allocatable	param_names,
		integer(i4b), intent(in)	nparam
	)

private

Parameters

[in] mshape model shape

Definition at line 144 of file NCModel.f90.

     use simvariablesmodule, only: idm_context
     use memorymanagermodule, only: mem_setptr
     use memorymanagerextmodule, only: mem_set_value
     use memoryhelpermodule, only: create_mem_path
     class(ExportPackageType), intent(inout) :: this
     type(ModflowInputType), intent(in) :: mf6_input
     integer(I4B), dimension(:), pointer, contiguous, intent(in) :: mshape !< model shape
     integer(I4B), intent(in) :: naux
     character(len=LINELENGTH), dimension(:), allocatable, &
       intent(in) :: param_names
     integer(I4B), intent(in) :: nparam
     integer(I4B) :: n
     character(len=LENVARNAME) :: rs_varname
     character(len=LENMEMPATH) :: input_mempath
     integer(I4B), pointer :: rsvar

     this%mf6_input = mf6_input
     this%mshape => mshape
     this%nparam = nparam
     this%naux = naux
     this%iper_export = 0

     input_mempath = create_mem_path(component=mf6_input%component_name, &
                                     subcomponent=mf6_input%subcomponent_name, &
                                     context=idm_context)

     ! allocate param arrays
     allocate (this%param_names(nparam))
     allocate (this%param_reads(nparam))
     allocate (this%varids_param(nparam, mshape(1)))
     allocate (this%varids_aux(naux, mshape(1)))

     ! set param arrays
     do n = 1, nparam
       this%param_names(n) = param_names(n)
       rs_varname = rsv_name(param_names(n))
       call mem_setptr(rsvar, rs_varname, mf6_input%mempath)
       this%param_reads(n)%invar => rsvar
     end do

     ! set pointer to loaded input period
     call mem_setptr(this%iper, 'IPER', mf6_input%mempath)

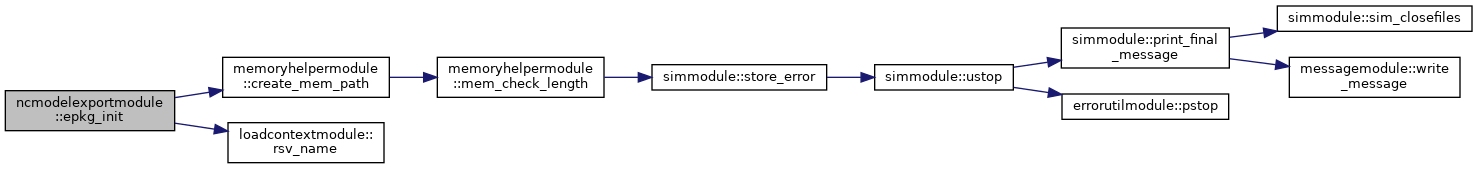

Here is the call graph for this function:

◆ export_destroy()

subroutine ncmodelexportmodule::export_destroy ( class(ncmodelexporttype), intent(inout) this )

Definition at line 545 of file NCModel.f90.

     use memorymanagerextmodule, only: memorystore_remove
     use simvariablesmodule, only: idm_context
     class(NCModelExportType), intent(inout) :: this
     ! override in derived class
     deallocate (this%deflate)
     deallocate (this%shuffle)
     deallocate (this%input_attr)
     deallocate (this%chunk_time)
     ! Deallocate idm memory
     if (this%ncf_mempath /= '') then
       call memorystore_remove(this%modelname, 'NCF', idm_context)
     end if

Here is the call graph for this function:

◆ export_get()

class(exportpackagetype) function, pointer ncmodelexportmodule::export_get	(	class(ncmodelexporttype), intent(inout)	this,
		integer(i4b), intent(in)	idx
	)

Definition at line 403 of file NCModel.f90.

     use listmodule, only: listtype
     class(NCModelExportType), intent(inout) :: this
     integer(I4B), intent(in) :: idx
     class(ExportPackageType), pointer :: res
     class(*), pointer :: obj
     nullify (res)
     obj => this%pkglist%GetItem(idx)
     if (associated(obj)) then
       select type (obj)
       class is (exportpackagetype)
         res => obj
       end select
     end if

◆ export_init()

subroutine ncmodelexportmodule::export_init	(	class(ncmodelexporttype), intent(inout)	this,
		character(len=*), intent(in)	modelname,
		character(len=*), intent(in)	modeltype,
		character(len=*), intent(in)	modelfname,
		character(len=*), intent(in)	nc_fname,
		integer(i4b), intent(in)	disenum,
		integer(i4b), intent(in)	nctype,
		integer(i4b), intent(in)	iout
	)

Definition at line 278 of file NCModel.f90.

     use tdismodule, only: datetime0, nstp, inats
     use memorymanagermodule, only: mem_setptr
     use memoryhelpermodule, only: create_mem_path
     use memorymanagerextmodule, only: mem_set_value
     use inputoutputmodule, only: lowcase
     use utlncfinputmodule, only: utlncfparamfoundtype
     class(NCModelExportType), intent(inout) :: this
     character(len=*), intent(in) :: modelname
     character(len=*), intent(in) :: modeltype
     character(len=*), intent(in) :: modelfname
     character(len=*), intent(in) :: nc_fname
     integer(I4B), intent(in) :: disenum
     integer(I4B), intent(in) :: nctype
     integer(I4B), intent(in) :: iout
     character(len=LENMEMPATH) :: model_mempath
     type(UtlNcfParamFoundType) :: ncf_found
     logical(LGP) :: found_mempath

     ! allocate
     allocate (this%deflate)
     allocate (this%shuffle)
     allocate (this%input_attr)
     allocate (this%chunk_time)

     ! initialize
     this%modelname = modelname
     this%modeltype = modeltype
     this%modelfname = modelfname
     this%nc_fname = nc_fname
     this%gridmap_name = ''
     this%ncf_mempath = ''
     this%wkt = ''
     this%datetime = ''
     this%xname = ''
     this%lenunits = ''
     this%disenum = disenum
     this%ncid = 0
     this%totnstp = 0
     this%deflate = -1
     this%shuffle = 0
     this%input_attr = 1
     this%chunk_time = -1
     this%iout = iout
     this%chunking_active = .false.

     ! set file scoped attributes
     call this%annotation%set(modelname, modeltype, modelfname, nctype, disenum)

     ! set dependent variable basename
     select case (modeltype)
     case ('GWF')
       this%xname = 'head'
     case ('GWT')
       this%xname = 'concentration'
     case ('GWE')
       this%xname = 'temperature'
     case default
       errmsg = trim(modeltype)//' models not supported for NetCDF export.'
       call store_error(errmsg)
       call store_error_filename(modelfname)
     end select

     ! set discretization input mempath
     if (disenum == dis) then
       this%dis_mempath = create_mem_path(modelname, 'DIS', idm_context)
     else if (disenum == disu) then
       this%dis_mempath = create_mem_path(modelname, 'DISU', idm_context)
     else if (disenum == disv) then
       this%dis_mempath = create_mem_path(modelname, 'DISV', idm_context)
     end if

     ! set dependent variable pointer
     model_mempath = create_mem_path(component=modelname)
     call mem_setptr(this%x, 'X', model_mempath)

     ! set ncf_mempath if provided
     call mem_set_value(this%ncf_mempath, 'NCF6_MEMPATH', this%dis_mempath, &
                        found_mempath)

     if (found_mempath) then
       call mem_set_value(this%wkt, 'WKT', this%ncf_mempath, &
                          ncf_found%wkt)
       call mem_set_value(this%deflate, 'DEFLATE', this%ncf_mempath, &
                          ncf_found%deflate)
       call mem_set_value(this%shuffle, 'SHUFFLE', this%ncf_mempath, &
                          ncf_found%shuffle)
       call mem_set_value(this%input_attr, 'ATTR_OFF', this%ncf_mempath, &
                          ncf_found%attr_off)
       call mem_set_value(this%chunk_time, 'CHUNK_TIME', this%ncf_mempath, &
                          ncf_found%chunk_time)
     end if

     if (ncf_found%wkt) then
       this%gridmap_name = 'projection'
     end if

     ! ATTR_OFF turns off modflow 6 input attributes
     if (ncf_found%attr_off) then
       this%input_attr = 0
     end if

     ! set datetime string
     if (datetime0 /= '') then
       this%datetime = 'days since '//trim(datetime0)
     else
       ! January 1, 1970 at 00:00:00 UTC
       this%datetime = 'days since 1970-01-01T00:00:00'
     end if

     ! Set error and exit if ATS is on
     if (inats > 0) then
       errmsg = 'Adaptive time stepping not currently supported &
                &with NetCDF exports.'
       call store_error(errmsg)
       call store_error_filename(modelfname)
     end if

     ! set total nstp
     this%totnstp = sum(nstp)

Here is the call graph for this function:

◆ export_input()

subroutine ncmodelexportmodule::export_input ( class(ncbasemodelexporttype), intent(inout) this )

Definition at line 525 of file NCModel.f90.

     use tdismodule, only: kper
     class(NCBaseModelExportType), intent(inout) :: this
     integer(I4B) :: idx
     class(ExportPackageType), pointer :: export_pkg
     do idx = 1, this%pkglist%Count()
       export_pkg => this%get(idx)
       ! last loaded data is not current period
       if (export_pkg%iper /= kper) cycle
       ! period input already exported
       if (export_pkg%iper_export >= export_pkg%iper) cycle
       ! set exported iper
       export_pkg%iper_export = export_pkg%iper
       ! update export package
       call this%package_step(export_pkg)
     end do

◆ export_longname()

character(len=linelength) function, public ncmodelexportmodule::export_longname	(	character(len=*), intent(in)	longname,
		character(len=*), intent(in)	pkgname,
		character(len=*), intent(in)	tagname,
		character(len=*), intent(in)	mempath,
		integer(i4b), intent(in), optional	layer,
		integer(i4b), intent(in), optional	iaux
	)

Definition at line 479 of file NCModel.f90.

     use memorymanagermodule, only: mem_setptr
     use characterstringmodule, only: characterstringtype
     use inputoutputmodule, only: lowcase
     character(len=*), intent(in) :: longname
     character(len=*), intent(in) :: pkgname
     character(len=*), intent(in) :: tagname
     character(len=*), intent(in) :: mempath
     integer(I4B), optional, intent(in) :: layer
     integer(I4B), optional, intent(in) :: iaux
     character(len=LINELENGTH) :: lname
     type(CharacterStringType), dimension(:), pointer, &
       contiguous :: auxnames
     character(len=LINELENGTH) :: pname, vname, auxname
     pname = pkgname
     vname = tagname
     call lowcase(pname)
     call lowcase(vname)
     if (longname == '') then
       lname = trim(pname)//' '//trim(vname)
     else
       lname = longname
     end if

     if (present(iaux)) then
       if (iaux > 0) then
         if (tagname == 'AUX') then
           ! reset vname to auxiliary variable name
           call mem_setptr(auxnames, 'AUXILIARY', mempath)
           auxname = auxnames(iaux)
           call lowcase(auxname)
           lname = trim(lname)//' '//trim(auxname)
         end if
       end if
     end if

     if (present(layer)) then
       if (layer > 0) then
         write (lname, '(a,i0)') trim(lname)//' layer=', layer
       end if
     end if

Here is the call graph for this function:

Here is the caller graph for this function:

◆ export_varname()

character(len=linelength) function, public ncmodelexportmodule::export_varname	(	character(len=*), intent(in)	pkgname,
		character(len=*), intent(in)	tagname,
		character(len=*), intent(in)	mempath,
		integer(i4b), intent(in), optional	layer,
		integer(i4b), intent(in), optional	iaux
	)

Definition at line 438 of file NCModel.f90.

     use memorymanagermodule, only: mem_setptr
     use characterstringmodule, only: characterstringtype
     use inputoutputmodule, only: lowcase
     character(len=*), intent(in) :: pkgname
     character(len=*), intent(in) :: tagname
     character(len=*), intent(in) :: mempath
     integer(I4B), optional, intent(in) :: layer
     integer(I4B), optional, intent(in) :: iaux
     character(len=LINELENGTH) :: varname
     type(CharacterStringType), dimension(:), pointer, &
       contiguous :: auxnames
     character(len=LINELENGTH) :: pname, vname
     vname = tagname
     pname = pkgname

     if (present(iaux)) then
       if (iaux > 0) then
         if (tagname == 'AUX') then
           ! reset vname to auxiliary variable name
           call mem_setptr(auxnames, 'AUXILIARY', mempath)
           vname = auxnames(iaux)
         end if
       end if
     end if

     call lowcase(vname)
     call lowcase(pname)
     varname = trim(pname)//'_'//trim(vname)

     if (present(layer)) then
       if (layer > 0) then
         !write (varname, '(a,i0)') trim(varname)//'_L', layer
         write (varname, '(a,i0)') trim(varname)//'_l', layer
       end if
     end if

Here is the call graph for this function:

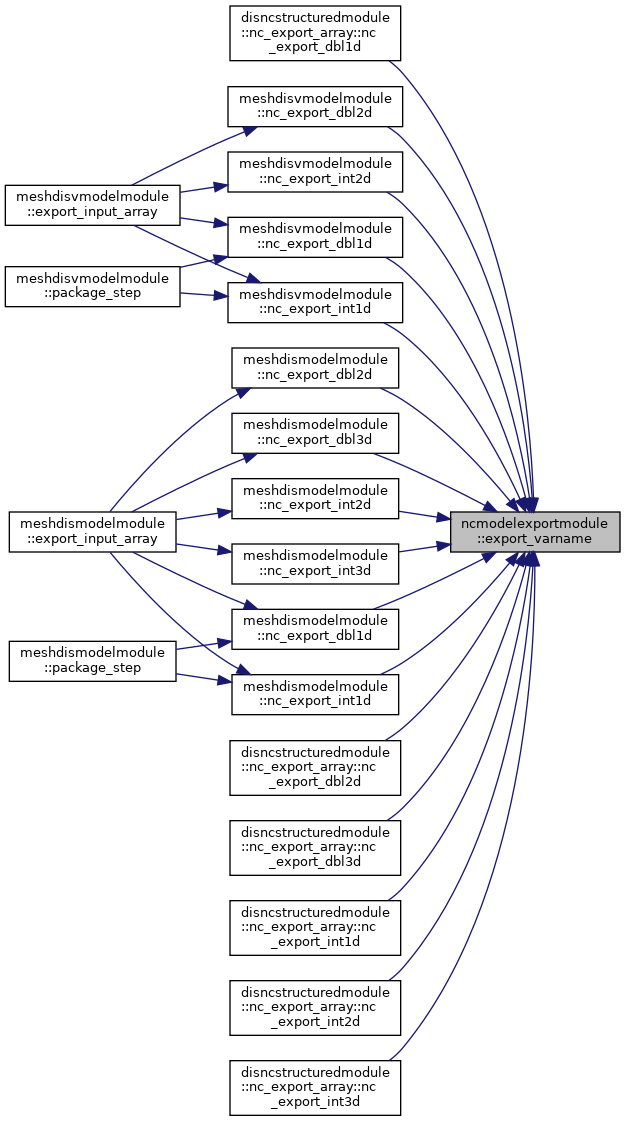

Here is the caller graph for this function:

◆ input_attribute()

character(len=linelength) function ncmodelexportmodule::input_attribute	(	class(ncmodelexporttype), intent(inout)	this,
		character(len=*), intent(in)	pkgname,
		type(inputparamdefinitiontype), intent(in), pointer	idt
	)

Definition at line 421 of file NCModel.f90.

     use inputoutputmodule, only: lowcase
     use memoryhelpermodule, only: mempathseparator
     use inputdefinitionmodule, only: inputparamdefinitiontype
     class(NCModelExportType), intent(inout) :: this
     character(len=*), intent(in) :: pkgname
     type(InputParamDefinitionType), pointer, intent(in) :: idt
     character(len=LINELENGTH) :: attr
     attr = ''
     if (this%input_attr > 0) then
       attr = trim(this%modelname)//mempathseparator//trim(pkgname)// &
              mempathseparator//trim(idt%tagname)
     end if

Here is the call graph for this function:

◆ set()

subroutine ncmodelexportmodule::set	(	class(ncexportannotation), intent(inout)	this,
		character(len=*), intent(in)	modelname,
		character(len=*), intent(in)	modeltype,
		character(len=*), intent(in)	modelfname,
		integer(i4b), intent(in)	nctype,
		integer(i4b), intent(in)	disenum
	)

Definition at line 200 of file NCModel.f90.

     use versionmodule, only: version
     class(NCExportAnnotation), intent(inout) :: this
     character(len=*), intent(in) :: modelname
     character(len=*), intent(in) :: modeltype
     character(len=*), intent(in) :: modelfname
     integer(I4B), intent(in) :: nctype
     integer(I4B), intent(in) :: disenum
     character(len=LINELENGTH) :: fullname
     integer :: values(8)

     this%title = ''
     this%model = ''
     this%mesh = ''
     this%grid = ''
     this%history = ''
     this%source = ''
     this%conventions = ''
     this%stdname = ''
     this%longname = ''

     ! set file conventions
     this%conventions = 'CF-1.11'
     if (nctype == netcdf_mesh2d) this%conventions = &
       trim(this%conventions)//' UGRID-1.0'

     ! set model specific attributes
     select case (modeltype)
     case ('GWF')
       fullname = 'Groundwater Flow'
       this%title = trim(modelname)//' hydraulic head'
       this%longname = 'head'
     case ('GWT')
       fullname = 'Groundwater Transport'
       this%title = trim(modelname)//' concentration'
       this%longname = 'concentration'
     case ('GWE')
       fullname = 'Groundwater Energy'
       this%title = trim(modelname)//' temperature'
       this%longname = 'temperature'
     case default
       errmsg = trim(modeltype)//' models not supported for NetCDF export.'
       call store_error(errmsg)
       call store_error_filename(modelfname)
     end select

     if (isim_mode == mvalidate) then
       this%title = trim(this%title)//' array input'
     end if

     ! set mesh type
     if (nctype == netcdf_mesh2d) then
       this%mesh = 'LAYERED'
     end if

     ! set grid type
     if (disenum == dis) then
       this%grid = 'STRUCTURED'
     else if (disenum == disv) then
       this%grid = 'VERTEX'
     end if

     ! model description string
     this%model = trim(modelname)//': MODFLOW 6 '//trim(fullname)// &
                  ' ('//trim(modeltype)//') model'

     ! modflow6 version string
     this%source = 'MODFLOW 6 '//trim(adjustl(version))

     ! create timestamp
     call date_and_time(values=values)
     write (this%history, '(a,i0,a,i0,a,i0,a,i0,a,i0,a,i0,a,i0)') &
       'first created ', values(1), '/', values(2), '/', values(3), ' ', &
       values(5), ':', values(6), ':', values(7), '.', values(8)

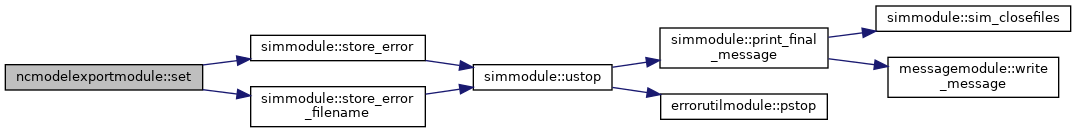

Here is the call graph for this function:

Variable Documentation

◆ netcdf_mesh2d

@, public ncmodelexportmodule::netcdf_mesh2d = 2

Definition at line 34 of file NCModel.f90.

34 ENUMERATOR :: NETCDF_MESH2D = 2 !< netcdf ugrid layered mesh export

◆ netcdf_structured

@, public ncmodelexportmodule::netcdf_structured = 1

Definition at line 33 of file NCModel.f90.

33 ENUMERATOR :: NETCDF_STRUCTURED = 1 !< netcdf structrured export

◆ netcdf_undef

@, public ncmodelexportmodule::netcdf_undef = 0

Definition at line 32 of file NCModel.f90.

32 ENUMERATOR :: NETCDF_UNDEF = 0 !< undefined netcdf export type

Data Types

Enumerations

Functions/Subroutines

Variables

Detailed Description

Enumeration Type Documentation

◆ anonymous enum

Function/Subroutine Documentation

◆ epkg_destroy()

◆ epkg_init()

◆ export_destroy()

◆ export_get()

◆ export_init()

◆ export_input()

◆ export_longname()

◆ export_varname()

◆ input_attribute()

◆ set()

Variable Documentation

◆ netcdf_mesh2d

◆ netcdf_structured

◆ netcdf_undef
