mawmodule Module Reference

Data Types
type	mawtype

Functions/Subroutines

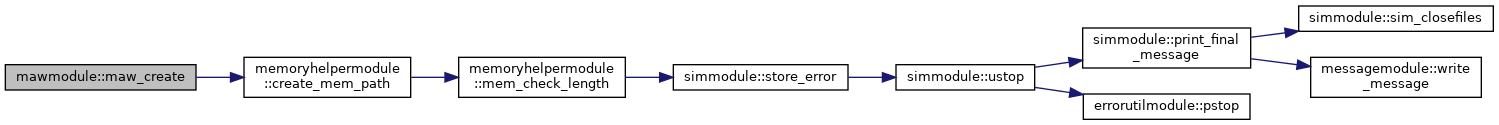

subroutine, public	maw_create (packobj, id, ibcnum, inunit, iout, namemodel, pakname)
	Create a New Multi-Aquifer Well (MAW) Package. More...
subroutine	maw_allocate_scalars (this)
	Allocate scalar members. More...
subroutine	maw_allocate_well_conn_arrays (this)
	Allocate well arrays. More...
subroutine	maw_allocate_arrays (this)
	Allocate arrays. More...
subroutine	maw_read_wells (this)
	Read the packagedata for this package. More...
subroutine	maw_read_well_connections (this)
	Read the dimensions for this package. More...

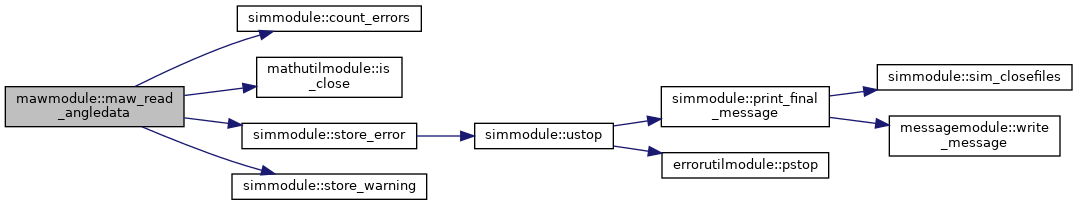

subroutine	maw_read_angledata (this)
	Read the optional ANGLEDATA block for non-vertical (slanted) MAW well connections. More...
pure real(dp) function, public	maw_screen_length (dz, radius, omega)
	In-cell screen length of a non-vertical well connection. More...
real(dp) function	maw_cell_extent (this, node, estimated)
	Maximum horizontal extent of a cell. More...
real(dp) function	maw_calc_lcorr (this, i, jpos)
	Calculate the length correction factor for a multi-aquifer well connection. More...
subroutine	maw_read_dimensions (this)
	Read the dimensions for this package. More...
subroutine	maw_read_initial_attr (this)
	Read the initial parameters for this package. More...
subroutine	maw_set_stressperiod (this, imaw, iheadlimit_warning)
	Set a stress period attribute for mawweslls(imaw) using keywords. More...
subroutine	maw_set_attribute_error (this, imaw, keyword, msg)
	Issue a parameter error for mawweslls(imaw) More...
subroutine	maw_check_attributes (this)
	Issue parameter errors for mawwells(imaw) More...
subroutine	maw_ac (this, moffset, sparse)
	Add package connection to matrix. More...
subroutine	maw_mc (this, moffset, matrix_sln)
	Map package connection to matrix. More...
subroutine	maw_read_options (this, option, found)
	Set options specific to MawType. More...
subroutine	maw_ar (this)
	Allocate and Read. More...
subroutine	maw_rp (this)
	Read and Prepare. More...
subroutine	maw_ad (this)
	Add package connection to matrix. More...
subroutine	maw_cf (this)
	Formulate the HCOF and RHS terms. More...
subroutine	maw_fc (this, rhs, ia, idxglo, matrix_sln)
	Copy rhs and hcof into solution rhs and amat. More...
subroutine	maw_fn (this, rhs, ia, idxglo, matrix_sln)
	Fill newton terms. More...
subroutine	maw_nur (this, neqpak, x, xtemp, dx, inewtonur, dxmax, locmax)
	Apply Newton under-relaxation to the MAW Package well heads. More...
pure real(dp) function, public	maw_damp_weight (dxprop, dxold, weight, damptheta, damptol, weightmin, recover)
	Update the oscillation-damping weight for a single MAW well head. More...
subroutine	maw_cc (this, innertot, kiter, iend, icnvgmod, cpak, ipak, dpak)
	Extra convergence check for the MAW package. More...
subroutine	maw_cq (this, x, flowja, iadv)
	Calculate flows. More...
subroutine	maw_ot_model_flows (this, icbcfl, ibudfl, icbcun, imap)
	Write flows to binary file and/or print flows to budget. More...
subroutine	maw_ot_package_flows (this, icbcfl, ibudfl)
	Output MAW package flow terms. More...
subroutine	maw_ot_dv (this, idvsave, idvprint)
	Save maw-calculated values to binary file. More...
subroutine	maw_ot_bdsummary (this, kstp, kper, iout, ibudfl)
	Write MAW budget to listing file. More...
subroutine	maw_da (this)
	Deallocate memory. More...
subroutine	define_listlabel (this)
	Define the list heading that is written to iout when PRINT_INPUT option is used. More...
subroutine	maw_set_pointers (this, neq, ibound, xnew, xold, flowja)
	Set pointers to model arrays and variables so that a package has has access to these things. More...
logical function	maw_obs_supported (this)
	Return true because MAW package supports observations. More...
subroutine	maw_df_obs (this)
	Store observation type supported by MAW package. More...
subroutine	maw_bd_obs (this)
	Calculate observations this time step and call ObsTypeSaveOneSimval for each MawType observation. More...
subroutine	maw_rp_obs (this)
	Process each observation. More...
subroutine	maw_process_obsid (obsrv, dis, inunitobs, iout)
	This procedure is pointed to by ObsDataTypeProcesssIdPtr. It processes the ID string of an observation definition for MAW package observations. More...
subroutine	maw_redflow_csv_init (this, fname)
	Initialize the auto flow reduce csv output file. More...
subroutine	maw_redflow_csv_write (this)
	MAW reduced flows only when & where they occur. More...
subroutine	maw_calculate_satcond (this, i, j, node)
	Calculate the appropriate saturated conductance to use based on aquifer and multi-aquifer well characteristics. More...
subroutine	maw_calculate_saturation (this, n, j, node, sat, hwell_in)
	Calculate the saturation between the aquifer maw well_head. More...
subroutine	maw_calculate_conn_terms (this, n, j, icflow, cmaw, cterm, term, flow, term2)
	Calculate matrix terms for a multi-aquifer well connection. Terms for fc and fn methods are calculated based on whether term2 is passed Arguments are as follows: n : maw well number j : connection number for well n icflow : flag indicating that flow should be corrected cmaw : maw-gwf conducance cterm : correction term for flow to dry cell term : xxx flow : calculated flow for this connection, positive into well term2 : xxx. More...
subroutine	maw_calculate_wellq (this, n, hmaw, q)
	Calculate well pumping rate based on constraints. More...
subroutine	maw_calculate_qpot (this, n, qnet)
	Calculate groundwater inflow to a maw well. More...
subroutine	maw_cfupdate (this)
	Update MAW satcond and package rhs and hcof. More...
subroutine	maw_setup_budobj (this)
	Set up the budget object that stores all the maw flows The terms listed here must correspond in number and order to the ones listed in the maw_fill_budobj routine. More...
subroutine	maw_fill_budobj (this)
	Copy flow terms into thisbudobj. More...
subroutine	maw_setup_tableobj (this)
	Set up the table object that is used to write the maw head data. More...
integer(i4b) function	get_jpos (this, n, j)
	Get position of value in connection data. More...
integer(i4b) function	get_gwfnode (this, n, j)
	Get the gwfnode for connection. More...
subroutine	maw_activate_density (this)
	Activate density terms. More...
subroutine	maw_activate_viscosity (this)
	Activate viscosity terms. More...
subroutine	maw_calculate_density_exchange (this, iconn, hmaw, hgwf, cond, bmaw, flow, hcofterm, rhsterm)
	Calculate the groundwater-maw density exchange terms. More...

Variables
character(len=lenftype)	ftype = 'MAW'
character(len=lenpackagename)	text = ' MAW'

Function/Subroutine Documentation

define_listlabel()

subroutine mawmodule::define_listlabel

(

class(mawtype), intent(inout)

this

)

Definition at line 3579 of file gwf-maw.f90.

    class(MawType), intent(inout) :: this
    !
    ! -- create the header list label
    this%listlabel = trim(this%filtyp)//' NO.'
    if (this%dis%ndim == 3) then
      write (this%listlabel, '(a, a7)') trim(this%listlabel), 'LAYER'
      write (this%listlabel, '(a, a7)') trim(this%listlabel), 'ROW'
      write (this%listlabel, '(a, a7)') trim(this%listlabel), 'COL'
    elseif (this%dis%ndim == 2) then
      write (this%listlabel, '(a, a7)') trim(this%listlabel), 'LAYER'
      write (this%listlabel, '(a, a7)') trim(this%listlabel), 'CELL2D'
    else
      write (this%listlabel, '(a, a7)') trim(this%listlabel), 'NODE'
    end if
    write (this%listlabel, '(a, a16)') trim(this%listlabel), 'STRESS RATE'
    if (this%inamedbound == 1) then
      write (this%listlabel, '(a, a16)') trim(this%listlabel), 'BOUNDARY NAME'
    end if

get_gwfnode()

integer(i4b) function mawmodule::get_gwfnode ( class(mawtype)  this, integer(i4b), intent(in)  n, integer(i4b), intent(in)  j  )

private

Definition at line 5257 of file gwf-maw.f90.

    ! -- return variable
    integer(I4B) :: igwfnode
    ! -- dummy
    class(MawType) :: this
    integer(I4B), intent(in) :: n
    integer(I4B), intent(in) :: j
    ! -- local
    integer(I4B) :: jpos
    !
    ! -- set jpos
    jpos = this%get_jpos(n, j)
    igwfnode = this%gwfnodes(jpos)

get_jpos()

integer(i4b) function mawmodule::get_jpos	(	class(mawtype)	this,
		integer(i4b), intent(in)	n,
		integer(i4b), intent(in)	j
	)

Definition at line 5242 of file gwf-maw.f90.

    ! -- return variable
    integer(I4B) :: jpos
    ! -- dummy
    class(MawType) :: this
    integer(I4B), intent(in) :: n
    integer(I4B), intent(in) :: j
    ! -- local
    !
    ! -- set jpos
    jpos = this%iaconn(n) + j - 1

maw_ac()

subroutine mawmodule::maw_ac	(	class(mawtype), intent(inout)	this,
		integer(i4b), intent(in)	moffset,
		type(sparsematrix), intent(inout)	sparse
	)

Definition at line 2017 of file gwf-maw.f90.

    use sparsemodule, only: sparsematrix
    ! -- dummy
    class(MawType), intent(inout) :: this
    integer(I4B), intent(in) :: moffset
    type(sparsematrix), intent(inout) :: sparse
    ! -- local
    integer(I4B) :: j
    integer(I4B) :: n
    integer(I4B) :: jj
    integer(I4B) :: jglo
    integer(I4B) :: nglo
    ! -- format
    !
    ! -- Add package rows to sparse
    do n = 1, this%nmawwells
      nglo = moffset + this%dis%nodes + this%ioffset + n
      call sparse%addconnection(nglo, nglo, 1)
      do j = 1, this%ngwfnodes(n)
        jj = this%get_gwfnode(n, j)
        jglo = jj + moffset
        call sparse%addconnection(nglo, jglo, 1)
        call sparse%addconnection(jglo, nglo, 1)
      end do

    end do

maw_activate_density()

subroutine mawmodule::maw_activate_density ( class(mawtype), intent(inout)  this )

private

Definition at line 5274 of file gwf-maw.f90.

    ! -- dummy
    class(MawType), intent(inout) :: this
    ! -- local
    integer(I4B) :: i, j
    ! -- formats
    !
    ! -- Set idense and reallocate denseterms to be of size MAXBOUND
    this%idense = 1
    call mem_reallocate(this%denseterms, 3, this%MAXBOUND, 'DENSETERMS', &
                        this%memoryPath)
    do i = 1, this%maxbound
      do j = 1, 3
        this%denseterms(j, i) = dzero
      end do
    end do
    write (this%iout, '(/1x,a)') 'DENSITY TERMS HAVE BEEN ACTIVATED FOR MAW &
      &PACKAGE: '//trim(adjustl(this%packName))

maw_activate_viscosity()

subroutine mawmodule::maw_activate_viscosity ( class(mawtype), intent(inout)  this )

private

Method to activate addition of viscosity terms for a MAW package reach.

Parameters

[in,out]

this

MawType object

Definition at line 5298 of file gwf-maw.f90.

    ! -- modules
    use memorymanagermodule, only: mem_reallocate
    ! -- dummy variables
    class(MawType), intent(inout) :: this !< MawType object
    ! -- local variables
    integer(I4B) :: i
    integer(I4B) :: j
    !
    ! -- Set ivsc and reallocate viscratios to be of size MAXBOUND
    this%ivsc = 1
    call mem_reallocate(this%viscratios, 2, this%MAXBOUND, 'VISCRATIOS', &
                        this%memoryPath)
    do i = 1, this%maxbound
      do j = 1, 2
        this%viscratios(j, i) = done
      end do
    end do
    write (this%iout, '(/1x,a)') 'VISCOSITY HAS BEEN ACTIVATED FOR MAW &
      &PACKAGE: '//trim(adjustl(this%packName))

maw_ad()

subroutine mawmodule::maw_ad

(

class(mawtype)

this

)

Definition at line 2545 of file gwf-maw.f90.

    use tdismodule, only: kper, kstp
    ! -- dummy
    class(MawType) :: this
    ! -- local
    integer(I4B) :: n
    integer(I4B) :: j
    integer(I4B) :: jj
    integer(I4B) :: ibnd
    !
    ! -- Advance the time series
    call this%TsManager%ad()
    !
    ! -- update auxiliary variables by copying from the derived-type time
    !    series variable into the bndpackage auxvar variable so that this
    !    information is properly written to the GWF budget file
    if (this%naux > 0) then
      ibnd = 1
      do n = 1, this%nmawwells
        do j = 1, this%ngwfnodes(n)
          do jj = 1, this%naux
            if (this%noupdateauxvar(jj) /= 0) cycle
            this%auxvar(jj, ibnd) = this%mauxvar(jj, n)
          end do
          ibnd = ibnd + 1
        end do
      end do
    end if
    !
    ! -- copy xnew into xold
    do n = 1, this%nmawwells
      this%xoldpak(n) = this%xnewpak(n)
      this%xoldsto(n) = this%xsto(n)
      if (this%iboundpak(n) < 0) then
        this%xnewpak(n) = this%well_head(n)
      end if
      !
      ! -- start each time step with damping turned off. Clearing the weight
      !    and the previous head change stops a leftover value from the last
      !    time step from triggering damping on the first iteration.
      this%nurdxold(n) = dzero
      this%nurweight(n) = done
    end do
    !
    !--use the appropriate xoldsto if initial heads are above the
    !  specified flowing well discharge elevation
    if (kper == 1 .and. kstp == 1) then
      do n = 1, this%nmawwells
        if (this%fwcond(n) > dzero) then
          if (this%xoldsto(n) > this%fwelev(n)) then
            this%xoldsto(n) = this%fwelev(n)
          end if
        end if
      end do
    end if
    !
    ! -- reset ishutoffcnt (equivalent to kiter) to zero
    this%ishutoffcnt = 0
    !
    ! -- pakmvrobj ad
    if (this%imover == 1) then
      call this%pakmvrobj%ad()
    end if
    !
    ! -- For each observation, push simulated value and corresponding
    !    simulation time from "current" to "preceding" and reset
    !    "current" value.
    call this%obs%obs_ad()

maw_allocate_arrays()

subroutine mawmodule::maw_allocate_arrays

(

class(mawtype), intent(inout)

this

)

Definition at line 555 of file gwf-maw.f90.

    ! -- modules
    use memorymanagermodule, only: mem_allocate
    ! -- dummy
    class(MawType), intent(inout) :: this
    ! -- local
    !
    ! -- call standard BndType allocate scalars
    call this%BndType%allocate_arrays()

maw_allocate_scalars()

subroutine mawmodule::maw_allocate_scalars ( class(mawtype), intent(inout)  this )

private

Definition at line 285 of file gwf-maw.f90.

    ! -- modules
    use memorymanagermodule, only: mem_allocate
    ! -- dummy
    class(MawType), intent(inout) :: this
    !
    ! -- call standard BndType allocate scalars
    call this%BndType%allocate_scalars()
    !
    ! -- allocate the object and assign values to object variables
    call mem_allocate(this%correct_flow, 'CORRECT_FLOW', this%memoryPath)
    call mem_allocate(this%iprhed, 'IPRHED', this%memoryPath)
    call mem_allocate(this%iheadout, 'IHEADOUT', this%memoryPath)
    call mem_allocate(this%ibudgetout, 'IBUDGETOUT', this%memoryPath)
    call mem_allocate(this%ibudcsv, 'IBUDCSV', this%memoryPath)
    call mem_allocate(this%iflowingwells, 'IFLOWINGWELLS', this%memoryPath)
    call mem_allocate(this%imawiss, 'IMAWISS', this%memoryPath)
    call mem_allocate(this%imawissopt, 'IMAWISSOPT', this%memoryPath)
    call mem_allocate(this%nmawwells, 'NMAWWELLS', this%memoryPath)
    call mem_allocate(this%check_attr, 'CHECK_ATTR', this%memoryPath)
    call mem_allocate(this%ishutoffcnt, 'ISHUTOFFCNT', this%memoryPath)
    call mem_allocate(this%ieffradopt, 'IEFFRADOPT', this%memoryPath)
    call mem_allocate(this%inonvert, 'INONVERT', this%memoryPath)
    call mem_allocate(this%ioutredflowcsv, 'IOUTREDFLOWCSV', this%memoryPath) !for writing reduced MAW flows to csv file
    call mem_allocate(this%satomega, 'SATOMEGA', this%memoryPath)
    call mem_allocate(this%bditems, 'BDITEMS', this%memoryPath)
    call mem_allocate(this%theta, 'THETA', this%memoryPath)
    call mem_allocate(this%kappa, 'KAPPA', this%memoryPath)
    call mem_allocate(this%cbcauxitems, 'CBCAUXITEMS', this%memoryPath)
    call mem_allocate(this%idense, 'IDENSE', this%memoryPath)
    !
    ! -- Set values
    this%correct_flow = .false.
    this%nmawwells = 0
    this%iprhed = 0
    this%iheadout = 0
    this%ibudgetout = 0
    this%ibudcsv = 0
    this%iflowingwells = 0
    this%imawiss = 0
    this%imawissopt = 0
    this%ieffradopt = 0
    this%inonvert = 0
    this%ioutredflowcsv = 0
    this%satomega = dzero
    this%bditems = 8
    this%theta = dp7
    this%kappa = dem4
    this%cbcauxitems = 1
    this%idense = 0
    this%ivsc = 0

maw_allocate_well_conn_arrays()

subroutine mawmodule::maw_allocate_well_conn_arrays

(

class(mawtype), intent(inout)

this

)

Definition at line 340 of file gwf-maw.f90.

    ! -- modules
    use memorymanagermodule, only: mem_allocate
    ! -- dummy
    class(MawType), intent(inout) :: this
    ! -- local
    integer(I4B) :: j
    integer(I4B) :: n
    integer(I4B) :: jj
    !
    ! -- allocate character array for budget text
    call mem_allocate(this%cmawbudget, lenbudtxt, this%bditems, 'CMAWBUDGET', &
                      this%memoryPath)
    !
    !-- fill cmawbudget
    this%cmawbudget(1) = '             GWF'
    this%cmawbudget(2) = '            RATE'
    this%cmawbudget(3) = '         STORAGE'
    this%cmawbudget(4) = '        CONSTANT'
    this%cmawbudget(5) = '         FW-RATE'
    this%cmawbudget(6) = '        FROM-MVR'
    this%cmawbudget(7) = '     RATE-TO-MVR'
    this%cmawbudget(8) = '  FW-RATE-TO-MVR'
    !
    ! -- allocate character arrays
    call mem_allocate(this%cmawname, lenboundname, this%nmawwells, 'CMAWNAME', &
                      this%memoryPath)
    call mem_allocate(this%status, 8, this%nmawwells, 'STATUS', this%memoryPath)
    !
    ! -- allocate well data pointers in memory manager
    call mem_allocate(this%ngwfnodes, this%nmawwells, 'NGWFNODES', &
                      this%memoryPath)
    call mem_allocate(this%ieqn, this%nmawwells, 'IEQN', this%memoryPath)
    call mem_allocate(this%ishutoff, this%nmawwells, 'ISHUTOFF', this%memoryPath)
    call mem_allocate(this%ifwdischarge, this%nmawwells, 'IFWDISCHARGE', &
                      this%memoryPath)
    call mem_allocate(this%strt, this%nmawwells, 'STRT', this%memoryPath)
    call mem_allocate(this%radius, this%nmawwells, 'RADIUS', this%memoryPath)
    call mem_allocate(this%area, this%nmawwells, 'AREA', this%memoryPath)
    call mem_allocate(this%pumpelev, this%nmawwells, 'PUMPELEV', this%memoryPath)
    call mem_allocate(this%bot, this%nmawwells, 'BOT', this%memoryPath)
    call mem_allocate(this%ratesim, this%nmawwells, 'RATESIM', this%memoryPath)
    call mem_allocate(this%qsim0, this%nmawwells, 'QSIM0', this%memoryPath)
    call mem_allocate(this%reduction_length, this%nmawwells, 'REDUCTION_LENGTH', &
                      this%memoryPath)
    call mem_allocate(this%fwelev, this%nmawwells, 'FWELEV', this%memoryPath)
    call mem_allocate(this%fwcond, this%nmawwells, 'FWCONDS', this%memoryPath)
    call mem_allocate(this%fwrlen, this%nmawwells, 'FWRLEN', this%memoryPath)
    call mem_allocate(this%fwcondsim, this%nmawwells, 'FWCONDSIM', &
                      this%memoryPath)
    call mem_allocate(this%xsto, this%nmawwells, 'XSTO', this%memoryPath)
    call mem_allocate(this%xoldsto, this%nmawwells, 'XOLDSTO', this%memoryPath)
    call mem_allocate(this%shutoffmin, this%nmawwells, 'SHUTOFFMIN', &
                      this%memoryPath)
    call mem_allocate(this%shutoffmax, this%nmawwells, 'SHUTOFFMAX', &
                      this%memoryPath)
    call mem_allocate(this%shutofflevel, this%nmawwells, 'SHUTOFFLEVEL', &
                      this%memoryPath)
    call mem_allocate(this%shutoffweight, this%nmawwells, 'SHUTOFFWEIGHT', &
                      this%memoryPath)
    call mem_allocate(this%shutoffdq, this%nmawwells, 'SHUTOFFDQ', &
                      this%memoryPath)
    call mem_allocate(this%shutoffqold, this%nmawwells, 'SHUTOFFQOLD', &
                      this%memoryPath)
    call mem_allocate(this%nurdxold, this%nmawwells, 'NURDXOLD', &
                      this%memoryPath)
    call mem_allocate(this%nurweight, this%nmawwells, 'NURWEIGHT', &
                      this%memoryPath)
    !
    ! -- timeseries aware variables
    call mem_allocate(this%rate, this%nmawwells, 'RATE', this%memoryPath)
    call mem_allocate(this%well_head, this%nmawwells, 'WELL_HEAD', &
                      this%memoryPath)
    if (this%naux > 0) then
      jj = this%naux
    else
      jj = 1
    end if
    call mem_allocate(this%mauxvar, jj, this%nmawwells, 'MAUXVAR', &
                      this%memoryPath)
    !
    ! -- allocate and initialize dbuff
    if (this%iheadout > 0) then
      call mem_allocate(this%dbuff, this%nmawwells, 'DBUFF', this%memoryPath)
    else
      call mem_allocate(this%dbuff, 0, 'DBUFF', this%memoryPath)
    end if
    !
    ! -- allocate iaconn
    call mem_allocate(this%iaconn, this%nmawwells + 1, 'IACONN', this%memoryPath)
    !
    ! -- allocate imap
    call mem_allocate(this%imap, this%MAXBOUND, 'IMAP', this%memoryPath)
    !
    ! -- allocate connection data
    call mem_allocate(this%gwfnodes, this%maxbound, 'GWFNODES', this%memoryPath)
    call mem_allocate(this%sradius, this%maxbound, 'SRADIUS', this%memoryPath)
    call mem_allocate(this%hk, this%maxbound, 'HK', this%memoryPath)
    call mem_allocate(this%satcond, this%maxbound, 'SATCOND', this%memoryPath)
    call mem_allocate(this%simcond, this%maxbound, 'SIMCOND', this%memoryPath)
    call mem_allocate(this%topscrn, this%maxbound, 'TOPSCRN', this%memoryPath)
    call mem_allocate(this%botscrn, this%maxbound, 'BOTSCRN', this%memoryPath)
    call mem_allocate(this%angle, this%maxbound, 'ANGLE', this%memoryPath)
    call mem_allocate(this%connlen, this%maxbound, 'CONNLEN', this%memoryPath)
    call mem_allocate(this%usrtopscrn, this%maxbound, 'USRTOPSCRN', &
                      this%memoryPath)
    call mem_allocate(this%usrbotscrn, this%maxbound, 'USRBOTSCRN', &
                      this%memoryPath)
    !
    ! -- allocate qleak
    call mem_allocate(this%qleak, this%maxbound, 'QLEAK', this%memoryPath)
    !
    ! -- initialize well data
    do n = 1, this%nmawwells
      this%status(n) = 'ACTIVE'
      this%ngwfnodes(n) = 0
      this%ieqn(n) = 0
      this%ishutoff(n) = 0
      this%ifwdischarge(n) = 0
      this%strt(n) = dep20
      this%radius(n) = dep20
      this%area(n) = dzero
      this%pumpelev(n) = dep20
      this%bot(n) = dep20
      this%ratesim(n) = dzero
      this%qsim0(n) = dzero
      this%reduction_length(n) = dep20
      this%fwelev(n) = dzero
      this%fwcond(n) = dzero
      this%fwrlen(n) = dzero
      this%fwcondsim(n) = dzero
      this%xsto(n) = dzero
      this%xoldsto(n) = dzero
      this%shutoffmin(n) = dzero
      this%shutoffmax(n) = dzero
      this%shutofflevel(n) = dep20
      this%shutoffweight(n) = done
      this%shutoffdq(n) = done
      this%shutoffqold(n) = done
      this%nurdxold(n) = dzero
      this%nurweight(n) = done
      !
      ! -- timeseries aware variables
      this%rate(n) = dzero
      this%well_head(n) = dzero
      do jj = 1, max(1, this%naux)
        this%mauxvar(jj, n) = dzero
      end do
      !
      ! -- dbuff
      if (this%iheadout > 0) then
        this%dbuff(n) = dzero
      end if
    end do
    !
    ! -- initialize iaconn
    do n = 1, this%nmawwells + 1
      this%iaconn(n) = 0
    end do
    !
    ! -- allocate character array for budget text
    call mem_allocate(this%cauxcbc, lenauxname, this%cbcauxitems, 'CAUXCBC', &
                      this%memoryPath)
    !
    ! -- allocate and initialize qauxcbc
    call mem_allocate(this%qauxcbc, this%cbcauxitems, 'QAUXCBC', this%memoryPath)
    do j = 1, this%cbcauxitems
      this%qauxcbc(j) = dzero
    end do
    !
    ! -- allocate flowing well data
    if (this%iflowingwells /= 0) then
      call mem_allocate(this%qfw, this%nmawwells, 'QFW', this%memoryPath)
    else
      call mem_allocate(this%qfw, 1, 'QFW', this%memoryPath)
    end if
    call mem_allocate(this%qout, this%nmawwells, 'QOUT', this%memoryPath)
    call mem_allocate(this%qsto, this%nmawwells, 'QSTO', this%memoryPath)
    call mem_allocate(this%qconst, this%nmawwells, 'QCONST', this%memoryPath)
    !
    ! -- initialize flowing well, storage, and constant flow terms
    do n = 1, this%nmawwells
      if (this%iflowingwells > 0) then
        this%qfw(n) = dzero
      end if
      this%qsto(n) = dzero
      this%qconst(n) = dzero
    end do
    !
    ! -- initialize connection data
    do j = 1, this%maxbound
      this%imap(j) = 0
      this%gwfnodes(j) = 0
      this%sradius(j) = dzero
      this%hk(j) = dzero
      this%satcond(j) = dzero
      this%simcond(j) = dzero
      this%topscrn(j) = dzero
      this%botscrn(j) = dzero
      this%angle(j) = dzero
      this%connlen(j) = dzero
      this%usrtopscrn(j) = dzero
      this%usrbotscrn(j) = dzero
      this%qleak(j) = dzero
    end do
    !
    ! -- allocate denseterms to size 0
    call mem_allocate(this%denseterms, 3, 0, 'DENSETERMS', this%memoryPath)
    !
    ! -- allocate viscratios to size 0
    call mem_allocate(this%viscratios, 2, 0, 'VISCRATIOS', this%memoryPath)

maw_ar()

subroutine mawmodule::maw_ar

(

class(mawtype), intent(inout)

this

)

Create new MAW package and point bndobj to the new package

Definition at line 2231 of file gwf-maw.f90.

    ! -- dummy
    class(MawType), intent(inout) :: this
    ! -- local
    ! -- format
    !
    call this%obs%obs_ar()
    !
    ! -- set omega value used for saturation calculations
    if (this%inewton > 0) then
      this%satomega = dem6
    end if
    !
    ! -- Allocate connection arrays in MAW and in package superclass
    call this%maw_allocate_arrays()
    !
    ! -- read optional initial package parameters
    call this%read_initial_attr()
    !
    ! -- setup pakmvrobj
    if (this%imover /= 0) then
      allocate (this%pakmvrobj)
      call this%pakmvrobj%ar(this%nmawwells, this%nmawwells, this%memoryPath)
    end if

maw_bd_obs()

subroutine mawmodule::maw_bd_obs ( class(mawtype)  this )

private

Definition at line 3718 of file gwf-maw.f90.

    ! -- dummy
    class(MawType) :: this
    ! -- local
    integer(I4B) :: i
    integer(I4B) :: j
    integer(I4B) :: jj
    integer(I4B) :: n
    integer(I4B) :: nn
    integer(I4B) :: jpos
    real(DP) :: cmaw
    real(DP) :: hmaw
    real(DP) :: v
    real(DP) :: qfact
    type(ObserveType), pointer :: obsrv => null()
    !
    ! Calculate, save, and write simulated values for all MAW observations
    if (this%obs%npakobs > 0) then
      call this%obs%obs_bd_clear()
      do i = 1, this%obs%npakobs
        obsrv => this%obs%pakobs(i)%obsrv
        do j = 1, obsrv%indxbnds_count
          v = dnodata
          jj = obsrv%indxbnds(j)
          select case (obsrv%ObsTypeId)
          case ('HEAD')
            if (this%iboundpak(jj) /= 0) then
              v = this%xnewpak(jj)
            end if
          case ('FROM-MVR')
            if (this%iboundpak(jj) /= 0) then
              if (this%imover == 1) then
                v = this%pakmvrobj%get_qfrommvr(jj)
              end if
            end if
          case ('MAW')
            n = this%imap(jj)
            if (this%iboundpak(n) /= 0) then
              v = this%qleak(jj)
            end if
          case ('RATE')
            if (this%iboundpak(jj) /= 0) then
              v = this%ratesim(jj)
              if (v < dzero .and. this%qout(jj) < dzero) then
                qfact = v / this%qout(jj)
                if (this%imover == 1) then
                  v = v + this%pakmvrobj%get_qtomvr(jj) * qfact
                end if
              end if
            end if
          case ('RATE-TO-MVR')
            if (this%iboundpak(jj) /= 0) then
              if (this%imover == 1) then
                v = this%ratesim(jj)
                qfact = dzero
                if (v < dzero .and. this%qout(jj) < dzero) then
                  qfact = v / this%qout(jj)
                end if
                v = this%pakmvrobj%get_qtomvr(jj) * qfact
                if (v > dzero) then
                  v = -v
                end if
              end if
            end if
          case ('FW-RATE')
            if (this%iboundpak(jj) /= 0 .and. this%iflowingwells > 0) then
              hmaw = this%xnewpak(jj)
              cmaw = this%fwcondsim(jj)
              v = cmaw * (this%fwelev(jj) - hmaw)
              if (v < dzero .and. this%qout(jj) < dzero) then
                qfact = v / this%qout(jj)
                if (this%imover == 1) then
                  v = v + this%pakmvrobj%get_qtomvr(jj) * qfact
                end if
              end if
            end if
          case ('FW-TO-MVR')
            if (this%iboundpak(jj) /= 0 .and. this%iflowingwells > 0) then
              if (this%imover == 1) then
                hmaw = this%xnewpak(jj)
                cmaw = this%fwcondsim(jj)
                v = cmaw * (this%fwelev(jj) - hmaw)
                qfact = dzero
                if (v < dzero .and. this%qout(jj) < dzero) then
                  qfact = v / this%qout(jj)
                end if
                v = this%pakmvrobj%get_qtomvr(jj) * qfact
                if (v > dzero) then
                  v = -v
                end if
              end if
            end if
          case ('STORAGE')
            if (this%iboundpak(jj) /= 0 .and. this%imawissopt /= 1) then
              v = this%qsto(jj)
            end if
          case ('CONSTANT')
            if (this%iboundpak(jj) /= 0) then
              v = this%qconst(jj)
            end if
          case ('CONDUCTANCE')
            n = this%imap(jj)
            if (this%iboundpak(n) /= 0) then
              nn = jj - this%iaconn(n) + 1
              jpos = this%get_jpos(n, nn)
              v = this%simcond(jpos)
            end if
          case ('FW-CONDUCTANCE')
            if (this%iboundpak(jj) /= 0) then
              v = this%fwcondsim(jj)
            end if
          case default
            errmsg = 'Unrecognized observation type: '//trim(obsrv%ObsTypeId)
            call store_error(errmsg)
          end select
          call this%obs%SaveOneSimval(obsrv, v)
        end do
      end do
      !
      ! -- write summary of error messages
      if (count_errors() > 0) then
        call store_error_unit(this%inunit)
      end if
    end if
    !
    ! -- Write the MAW reduced flows to csv file entries for this step
    if (this%ioutredflowcsv > 0) then
      call this%maw_redflow_csv_write()
    end if

Here is the call graph for this function:

maw_calc_lcorr()

real(dp) function mawmodule::maw_calc_lcorr	(	class(mawtype), intent(inout)	this,
		integer(i4b), intent(in)	i,
		integer(i4b), intent(in)	jpos
	)

The saturated conductance of a non-vertical (slanted) connection is scaled by the ratio of the in-cell screen length to the vertical screen thickness. The factor is 1.0 for vertical connections (angle = 0 and no connection length specified). The in-cell screen length is either specified directly (CONNLEN > 0) or derived from the screen elevations and the tilt angle, accounting for the vertical band occupied by the finite-radius borehole.

Parameters

[in]	i	well number
[in]	jpos	connection position

Definition at line 1440 of file gwf-maw.f90.

    use constantsmodule, only: dzero, done, dtwo, dpio180
    ! -- dummy
    class(MawType), intent(inout) :: this
    integer(I4B), intent(in) :: i !< well number
    integer(I4B), intent(in) :: jpos !< connection position
    ! -- return
    real(DP) :: lcorr
    ! -- local
    real(DP) :: dz
    real(DP) :: omega
    real(DP) :: lw
    !
    ! -- default to no correction (vertical connection)
    lcorr = done
    if (this%angle(jpos) == dzero .and. this%connlen(jpos) <= dzero) then
      return
    end if
    !
    ! -- vertical screen thickness
    dz = this%topscrn(jpos) - this%botscrn(jpos)
    if (dz <= dzero) then
      return
    end if
    !
    ! -- in-cell screen length: specified directly or derived from the screen
    !    elevations and the tilt angle
    if (this%connlen(jpos) > dzero) then
      lw = this%connlen(jpos)
    else
      omega = this%angle(jpos) * dpio180
      lw = maw_screen_length(dz, this%radius(i), omega)
    end if
    !
    lcorr = lw / dz

Here is the call graph for this function:

maw_calculate_conn_terms()

subroutine mawmodule::maw_calculate_conn_terms ( class(mawtype)  this, integer(i4b), intent(in)  n, integer(i4b), intent(in)  j, integer(i4b), intent(inout)  icflow, real(dp), intent(inout)  cmaw, real(dp), intent(inout)  cterm, real(dp), intent(inout)  term, real(dp), intent(inout)  flow, real(dp), intent(inout), optional  term2  )

private

Definition at line 4326 of file gwf-maw.f90.

    ! -- dummy
    class(MawType) :: this
    integer(I4B), intent(in) :: n
    integer(I4B), intent(in) :: j
    integer(I4B), intent(inout) :: icflow
    real(DP), intent(inout) :: cmaw
    real(DP), intent(inout) :: cterm
    real(DP), intent(inout) :: term
    real(DP), intent(inout) :: flow
    real(DP), intent(inout), optional :: term2
    ! -- local
    logical(LGP) :: correct_flow
    integer(I4B) :: inewton
    integer(I4B) :: jpos
    integer(I4B) :: igwfnode
    real(DP) :: hmaw
    real(DP) :: hgwf
    real(DP) :: hups
    real(DP) :: hdowns
    real(DP) :: sat
    real(DP) :: tmaw
    real(DP) :: bmaw
    real(DP) :: en
    real(DP) :: hbar
    real(DP) :: drterm
    real(DP) :: dhbarterm
    real(DP) :: vscratio
    !
    ! -- initialize terms
    cterm = dzero
    vscratio = done
    icflow = 0
    if (present(term2)) then
      inewton = 1
    else
      inewton = 0
    end if
    !
    ! -- set common terms
    jpos = this%get_jpos(n, j)
    igwfnode = this%get_gwfnode(n, j)
    hgwf = this%xnew(igwfnode)
    hmaw = this%xnewpak(n)
    tmaw = this%topscrn(jpos)
    bmaw = this%botscrn(jpos)
    !
    ! -- if vsc active, select appropriate viscosity ratio
    if (this%ivsc == 1) then
      ! flow out of well (flow is negative)
      if (flow < 0) then
        vscratio = this%viscratios(1, n)
      else
        vscratio = this%viscratios(2, n)
      end if
    end if
    !
    ! -- calculate saturation
    call this%maw_calculate_saturation(n, j, igwfnode, sat)
    cmaw = this%satcond(jpos) * vscratio * sat
    !
    ! -- set upstream head, term, and term2 if returning newton terms
    if (inewton == 1) then
      term = dzero
      term2 = dzero
      hups = hmaw
      if (hgwf > hups) then
        hups = hgwf
      end if
      !
      ! -- slope of the saturation with head. In a confined (non-convertible)
      !    cell the saturation is always one and does not change with head, so
      !    this slope must be zero. Otherwise the matrix terms would not match
      !    the flow that is actually calculated for the well.
      if (this%icelltype(igwfnode) /= 0) then
        drterm = squadraticsaturationderivative(tmaw, bmaw, hups, this%satomega)
      else
        drterm = dzero
      end if
    else
      term = cmaw
    end if
    !
    ! -- calculate correction term if flow_correction option specified
    if (this%correct_flow) then
      !
      ! -- set bmaw, determine en, and set correct_flow flag
      en = max(bmaw, this%dis%bot(igwfnode))
      correct_flow = .false.
      if (hmaw < en) then
        correct_flow = .true.
      end if
      if (hgwf < en .and. this%icelltype(igwfnode) /= 0) then
        correct_flow = .true.
      end if
      !
      ! -- if flow should be corrected because hgwf or hmaw is below bottom
      !    then calculate correction term (cterm)
      if (correct_flow) then
        icflow = 1
        hdowns = min(hmaw, hgwf)
        hbar = squadratic0sp(hdowns, en, this%satomega)
        if (hgwf > hmaw) then
          cterm = cmaw * (hmaw - hbar)
        else
          cterm = cmaw * (hbar - hgwf)
        end if
      end if
      !
      ! -- if newton formulation then calculate newton terms
      if (inewton /= 0) then
        !
        ! -- maw is upstream
        if (hmaw > hgwf) then
          hbar = squadratic0sp(hgwf, en, this%satomega)
          term = drterm * this%satcond(jpos) * vscratio * (hbar - hmaw)
          dhbarterm = squadratic0spderivative(hgwf, en, this%satomega)
          term2 = cmaw * (dhbarterm - done)
          !
          ! -- gwf is upstream
        else
          hbar = squadratic0sp(hmaw, en, this%satomega)
          term = -drterm * this%satcond(jpos) * vscratio * (hgwf - hbar)
          dhbarterm = squadratic0spderivative(hmaw, en, this%satomega)
          term2 = cmaw * (done - dhbarterm)
        end if
      end if
    else
      !
      ! -- flow is not corrected, so calculate term for newton formulation
      if (inewton /= 0) then
        term = drterm * this%satcond(jpos) * vscratio * (hgwf - hmaw)
      end if
    end if
    !
    ! -- calculate flow relative to maw for fc and bd
    flow = dzero
    if (inewton == 0) then
      flow = term * (hgwf - hmaw) + cterm
    end if
    !
    ! -- add density part here
    if (this%idense /= 0 .and. inewton == 0) then
      call this%maw_calculate_density_exchange(jpos, hmaw, hgwf, cmaw, &
                                               bmaw, flow, term, cterm)
    end if

Here is the call graph for this function:

maw_calculate_density_exchange()

subroutine mawmodule::maw_calculate_density_exchange	(	class(mawtype), intent(inout)	this,
		integer(i4b), intent(in)	iconn,
		real(dp), intent(in)	hmaw,
		real(dp), intent(in)	hgwf,
		real(dp), intent(in)	cond,
		real(dp), intent(in)	bmaw,
		real(dp), intent(inout)	flow,
		real(dp), intent(inout)	hcofterm,
		real(dp), intent(inout)	rhsterm
	)

Arguments are as follows: iconn : maw-gwf connection number hmaw : maw head hgwf : gwf head cond : conductance bmaw : bottom elevation of this connection flow : calculated flow, updated here with density terms, + into maw hcofterm : head coefficient term rhsterm : right-hand-side value, updated here with density terms

Member variable used here denseterms : shape (3, MAXBOUND), filled by buoyancy package col 1 is relative density of maw (densemaw / denseref) col 2 is relative density of gwf cell (densegwf / denseref) col 3 is elevation of gwf cell

Upon return, amat and rhs for maw row should be updated as: amat(idiag) = amat(idiag) - hcofterm rhs(n) = rhs(n) + rhsterm

Definition at line 5342 of file gwf-maw.f90.

    ! -- dummy
    class(MawType), intent(inout) :: this
    integer(I4B), intent(in) :: iconn
    real(DP), intent(in) :: hmaw
    real(DP), intent(in) :: hgwf
    real(DP), intent(in) :: cond
    real(DP), intent(in) :: bmaw
    real(DP), intent(inout) :: flow
    real(DP), intent(inout) :: hcofterm
    real(DP), intent(inout) :: rhsterm
    ! -- local
    real(DP) :: t
    real(DP) :: havg
    real(DP) :: rdensemaw
    real(DP) :: rdensegwf
    real(DP) :: rdenseavg
    real(DP) :: elevavg
    ! -- formats
    !
    ! -- assign relative density terms, return if zero which means not avail yet
    rdensemaw = this%denseterms(1, iconn)
    rdensegwf = this%denseterms(2, iconn)
    if (rdensegwf == dzero) return
    !
    ! -- update rhsterm with density contribution
    if (hmaw > bmaw .and. hgwf > bmaw) then
      !
      ! -- hmaw and hgwf both above bmaw
      rdenseavg = dhalf * (rdensemaw + rdensegwf)
      !
      ! -- update rhsterm with first density term
      t = cond * (rdenseavg - done) * (hgwf - hmaw)
      rhsterm = rhsterm + t
      flow = flow + t
      !
      ! -- update rhterm with second density term
      havg = dhalf * (hgwf + hmaw)
      elevavg = this%denseterms(3, iconn)
      t = cond * (havg - elevavg) * (rdensegwf - rdensemaw)
      rhsterm = rhsterm + t
      flow = flow + t
    else if (hmaw > bmaw) then
      !
      ! -- if only hmaw is above bmaw, then increase correction term by density
      t = (rdensemaw - done) * rhsterm
      rhsterm = rhsterm + t
      !
    else if (hgwf > bmaw) then
      !
      ! -- if only hgwf is above bmaw, then increase correction term by density
      t = (rdensegwf - done) * rhsterm
      rhsterm = rhsterm + t
      !
    else
      !
      ! -- Flow should be zero so do nothing
    end if

maw_calculate_qpot()

subroutine mawmodule::maw_calculate_qpot ( class(mawtype), intent(inout)  this, integer(i4b), intent(in)  n, real(dp), intent(inout)  qnet  )

private

Definition at line 4642 of file gwf-maw.f90.

    use tdismodule, only: delt
    ! -- dummy
    class(MawType), intent(inout) :: this
    integer(I4B), intent(in) :: n
    real(DP), intent(inout) :: qnet
    ! -- local
    integer(I4B) :: j
    integer(I4B) :: jpos
    integer(I4B) :: igwfnode
    real(DP) :: bt
    real(DP) :: tp
    real(DP) :: scale
    real(DP) :: cfw
    real(DP) :: hdterm
    real(DP) :: sat
    real(DP) :: cmaw
    real(DP) :: hgwf
    real(DP) :: bmaw
    real(DP) :: h_temp
    real(DP) :: hv
    real(DP) :: vscratio
    ! -- format
    !
    ! -- initialize qnet and h_temp
    qnet = dzero
    vscratio = done
    h_temp = this%shutofflevel(n)
    !
    ! -- if vsc active, select appropriate viscosity ratio
    if (this%ivsc == 1) then
      ! flow out of well (flow is negative)
      if (qnet < 0) then
        vscratio = this%viscratios(1, n)
      else
        vscratio = this%viscratios(2, n)
      end if
    end if
    !
    ! -- calculate discharge to flowing wells
    if (this%iflowingwells > 0) then
      if (this%fwcond(n) > dzero) then
        bt = this%fwelev(n)
        tp = bt + this%fwrlen(n)
        scale = sqsaturation(tp, bt, h_temp)
        cfw = scale * this%fwcond(n) * this%viscratios(2, n)
        this%ifwdischarge(n) = 0
        if (cfw > dzero) then
          this%ifwdischarge(n) = 1
          this%xsto(n) = bt
        end if
        qnet = qnet + cfw * (bt - h_temp)
      end if
    end if
    !
    ! -- calculate maw storage changes
    if (this%imawiss /= 1) then
      if (this%ifwdischarge(n) /= 1) then
        hdterm = this%xoldsto(n) - h_temp
      else
        hdterm = this%xoldsto(n) - this%fwelev(n)
      end if
      qnet = qnet - (this%area(n) * hdterm / delt)
    end if
    !
    ! -- calculate inflow from aquifer
    do j = 1, this%ngwfnodes(n)
      jpos = this%get_jpos(n, j)
      igwfnode = this%get_gwfnode(n, j)
      call this%maw_calculate_saturation(n, j, igwfnode, sat)
      cmaw = this%satcond(jpos) * vscratio * sat
      hgwf = this%xnew(igwfnode)
      bmaw = this%botscrn(jpos)
      hv = h_temp
      if (hv < bmaw) then
        hv = bmaw
      end if
      if (hgwf < bmaw) then
        hgwf = bmaw
      end if
      qnet = qnet + cmaw * (hgwf - hv)
    end do

Here is the call graph for this function:

maw_calculate_satcond()

subroutine mawmodule::maw_calculate_satcond	(	class(mawtype), intent(inout)	this,
		integer(i4b), intent(in)	i,
		integer(i4b), intent(in)	j,
		integer(i4b), intent(in)	node
	)

Definition at line 4082 of file gwf-maw.f90.

    ! -- dummy
    class(MawType), intent(inout) :: this
    integer(I4B), intent(in) :: i
    integer(I4B), intent(in) :: j
    integer(I4B), intent(in) :: node
    ! -- local
    integer(I4B) :: iTcontrastErr
    integer(I4B) :: jpos
    real(DP) :: c
    real(DP) :: k11
    real(DP) :: k22
    real(DP) :: sqrtk11k22
    real(DP) :: hks
    real(DP) :: area
    real(DP) :: eradius
    real(DP) :: topw
    real(DP) :: botw
    real(DP) :: tthkw
    real(DP) :: tthka
    real(DP) :: Tcontrast
    real(DP) :: skin
    real(DP) :: ravg
    real(DP) :: slen
    real(DP) :: pavg
    real(DP) :: gwfsat
    real(DP) :: gwftop
    real(DP) :: gwfbot
    real(DP) :: lc1
    real(DP) :: lc2
    real(DP) :: dx
    real(DP) :: dy
    real(DP) :: Txx
    real(DP) :: Tyy
    real(DP) :: T2pi
    real(DP) :: yx4
    real(DP) :: xy4
    ! -- formats
    !
    ! -- initialize conductance variables
    itcontrasterr = 0
    lc1 = dzero
    lc2 = dzero
    !
    ! -- calculate connection position
    jpos = this%get_jpos(i, j)
    !
    ! -- set K11 and K22
    k11 = this%gwfk11(node)
    if (this%gwfik22 == 0) then
      k22 = this%gwfk11(node)
    else
      k22 = this%gwfk22(node)
    end if
    sqrtk11k22 = sqrt(k11 * k22)
    !
    ! -- set gwftop, gwfbot, and gwfsat
    gwftop = this%dis%top(node)
    gwfbot = this%dis%bot(node)
    tthka = gwftop - gwfbot
    gwfsat = this%gwfsat(node)
    !
    ! -- set top and bottom of well screen
    c = dzero
    topw = this%topscrn(jpos)
    botw = this%botscrn(jpos)
    tthkw = topw - botw
    !
    ! -- scale screen thickness using gwfsat (for NPF Package THICKSTRT)
    if (gwftop == topw .and. gwfbot == botw) then
      if (this%icelltype(node) == 0) then
        tthkw = tthkw * gwfsat
        tthka = tthka * gwfsat
      end if
    end if
    !
    ! -- calculate the aquifer transmissivity (T2pi)
    t2pi = dtwopi * tthka * sqrtk11k22
    !
    ! -- calculate effective radius
    if (this%dis%ndim == 3 .and. this%ieffradopt /= 0) then
      txx = k11 * tthka
      tyy = k22 * tthka
      dx = sqrt(this%dis%area(node))
      dy = dx
      yx4 = (tyy / txx)**dquarter
      xy4 = (txx / tyy)**dquarter
      eradius = 0.28_dp * ((yx4 * dx)**dtwo + &
                           (xy4 * dy)**dtwo)**dhalf / (yx4 + xy4)
    else
      area = this%dis%area(node)
      eradius = sqrt(area / (deight * dpi))
    end if
    !
    ! -- conductance calculations
    ! -- Thiem equation (1) and cumulative Thiem and skin equations (3)
    if (this%ieqn(i) == 1 .or. this%ieqn(i) == 3) then
      lc1 = log(eradius / this%radius(i)) / t2pi
    end if
    !
    ! -- skin equation (2) and cumulative Thiem and skin equations (3)
    if (this%ieqn(i) == 2 .or. this%ieqn(i) == 3) then
      hks = this%hk(jpos)
      if (tthkw * hks > dzero) then
        tcontrast = (sqrtk11k22 * tthka) / (hks * tthkw)
        skin = (tcontrast - done) * log(this%sradius(jpos) / this%radius(i))
        !
        ! -- trap invalid transmissvity contrast if using skin equation (2).
        !    Not trapped for cumulative Thiem and skin equations (3)
        !    because the MNW2 package allowed this condition (for
        !    backward compatibility with the MNW2 package for
        !    MODFLOW-2005, MODFLOW-NWT, and MODFLOW-USG).
        if (tcontrast <= 1 .and. this%ieqn(i) == 2) then
          itcontrasterr = 1
          write (errmsg, '(a,g0,a,1x,i0,1x,a,1x,i0,a,4(1x,a))') &
            'Invalid calculated transmissivity contrast (', tcontrast, &
            ') for maw well', i, 'connection', j, '.', 'This happens when the', &
            'skin transmissivity equals or exceeds the aquifer transmissivity.', &
            'Consider decreasing HK_SKIN for the connection or using the', &
            'CUMULATIVE or MEAN conductance equations.'
          call store_error(errmsg)
        else
          lc2 = skin / t2pi
        end if
      end if
    end if
    ! -- conductance using screen elevations, hk, well radius,
    !    and screen radius
    if (this%ieqn(i) == 4) then
      hks = this%hk(jpos)
      ravg = dhalf * (this%radius(i) + this%sradius(jpos))
      slen = this%sradius(jpos) - this%radius(i)
      pavg = dtwopi * ravg
      c = hks * pavg * tthkw / slen
    end if
    !
    ! -- calculate final conductance for Thiem (1), Skin (2), and
    ! and cumulative Thiem and skin equations (3)
    if (this%ieqn(i) < 4) then
      if (lc1 + lc2 /= dzero) then
        c = done / (lc1 + lc2)
      else
        c = -dnodata
      end if
    end if
    !
    ! -- ensure that the conductance is not negative. Only write error message
    !    if error condition has not occurred for skin calculations (LC2)
    if (c < dzero .and. itcontrasterr == 0) then
      write (errmsg, '(a,g0,a,1x,i0,1x,a,1x,i0,a,4(1x,a))') &
        'Invalid calculated negative conductance (', c, &
        ') for maw well', i, 'connection', j, '.', 'this happens when the', &
        'skin transmissivity equals or exceeds the aquifer transmissivity.', &
        'consider decreasing hk_skin for the connection or using the', &
        'mean conductance equation.'
      call store_error(errmsg)
    end if
    !
    ! -- scale the saturated conductance by the length correction factor for
    !    non-vertical (slanted) connections. The factor is 1.0 for vertical
    !    connections, so this has no effect unless an ANGLEDATA block was read.
    if (this%inonvert /= 0) then
      c = c * this%maw_calc_lcorr(i, jpos)
    end if
    !
    ! -- set saturated conductance
    this%satcond(jpos) = c

Here is the call graph for this function:

maw_calculate_saturation()

subroutine mawmodule::maw_calculate_saturation ( class(mawtype), intent(inout)  this, integer(i4b), intent(in)  n, integer(i4b), intent(in)  j, integer(i4b), intent(in)  node, real(dp), intent(inout)  sat, real(dp), intent(in), optional  hwell_in  )

private

Definition at line 4253 of file gwf-maw.f90.

    ! -- dummy
    class(MawType), intent(inout) :: this
    integer(I4B), intent(in) :: n
    integer(I4B), intent(in) :: j
    integer(I4B), intent(in) :: node
    real(DP), intent(inout) :: sat
    real(DP), intent(in), optional :: hwell_in !well head to use instead of the current well head
    ! -- local
    integer(I4B) :: jpos
    real(DP) :: h_temp
    real(DP) :: hwell
    real(DP) :: topw
    real(DP) :: botw
    ! -- formats
    !
    ! -- initialize saturation
    sat = dzero
    !
    ! -- calculate current saturation for convertible cells
    if (this%icelltype(node) /= 0) then
      !
      ! -- set hwell (use the caller-supplied head if provided)
      hwell = this%xnewpak(n)
      if (present(hwell_in)) then
        hwell = hwell_in
      end if
      !
      ! -- set connection position
      jpos = this%get_jpos(n, j)
      !
      ! -- set top and bottom of the well connection
      topw = this%topscrn(jpos)
      botw = this%botscrn(jpos)
      !
      ! -- calculate appropriate saturation
      if (this%inewton /= 1) then
        h_temp = this%xnew(node)
        if (h_temp < botw) then
          h_temp = botw
        end if
        if (hwell < botw) then
          hwell = botw
        end if
        h_temp = dhalf * (h_temp + hwell)
      else
        h_temp = this%xnew(node)
        if (hwell > h_temp) then
          h_temp = hwell
        end if
        if (h_temp < botw) then
          h_temp = botw
        end if
      end if
      ! -- calculate saturation
      sat = squadraticsaturation(topw, botw, h_temp, this%satomega)
    else
      sat = done
    end if

Here is the call graph for this function:

maw_calculate_wellq()

subroutine mawmodule::maw_calculate_wellq ( class(mawtype)  this, integer(i4b), intent(in)  n, real(dp), intent(in)  hmaw, real(dp), intent(inout)  q  )

private

Definition at line 4477 of file gwf-maw.f90.

    ! -- dummy
    class(MawType) :: this
    integer(I4B), intent(in) :: n
    real(DP), intent(in) :: hmaw
    real(DP), intent(inout) :: q
    ! -- local
    real(DP) :: scale
    real(DP) :: tp
    real(DP) :: bt
    real(DP) :: rate
    real(DP) :: weight
    real(DP) :: dq
    !
    ! -- Initialize q
    q = dzero
    !
    ! -- Assign rate as the user-provided base pumping rate
    rate = this%rate(n)
    !
    ! -- Assign q differently depending on whether this is an extraction well
    !    (rate < 0) or an injection well (rate > 0).
    if (rate < dzero) then
      !
      ! -- If well shut off is activated, then turn off well if necessary,
      !    or if shut off is not activated then check to see if rate scaling
      !    is on.
      if (this%shutofflevel(n) /= dep20) then
        call this%maw_calculate_qpot(n, q)
        if (q < dzero) q = dzero
        if (q > -rate) q = -rate

        if (this%ishutoffcnt == 1) then
          this%shutoffweight(n) = done
          this%shutoffdq(n) = dzero
          this%shutoffqold(n) = q
        end if

        dq = q - this%shutoffqold(n)
        weight = this%shutoffweight(n)
        !
        ! -- for oscillating condition, decrease factor
        if (this%shutoffdq(n) * dq < dzero) then
          weight = this%theta * this%shutoffweight(n)
          !
          ! -- when change is of same sign, increase factor
        else
          weight = this%shutoffweight(n) + this%kappa
        end if
        if (weight > done) weight = done

        q = this%shutoffqold(n) + weight * dq

        this%shutoffqold(n) = q
        this%shutoffdq(n) = dq
        this%shutoffweight(n) = weight
        !
        ! -- If shutoffmin and shutoffmax are specified then apply
        !    additional checks for when to shut off the well.
        if (this%shutoffmin(n) > dzero) then
          if (hmaw < this%shutofflevel(n)) then
            !
            ! -- calculate adjusted well rate subject to constraints
            ! -- well is shutoff
            if (this%ishutoff(n) /= 0) then
              q = dzero
              !
              ! --- well is not shut off
            else
              ! -- turn off well if q is less than the minimum rate and
              !    reset the ishutoff flag if at least on iteration 3
              if (q < this%shutoffmin(n)) then
                if (this%ishutoffcnt > 2) then
                  this%ishutoff(n) = 1
                end if
                q = dzero
                !
                ! -- leave well on and use the specified rate
                !    or the potential rate
              end if
            end if
            !
            ! -- try to use the specified rate or the potential rate
          else
            if (q > this%shutoffmax(n)) then
              if (this%ishutoffcnt <= 2) then
                this%ishutoff(n) = 0
              end if
            end if
            if (this%ishutoff(n) /= 0) then
              q = dzero
            end if
          end if
        end if

        if (q /= dzero) q = -q

      else
        scale = done
        !
        ! -- Apply rate scaling by reducing pumpage when hmaw is less than the
        !    sum of maw pump elevation (pumpelev) and the specified reduction
        !    length.  The rate will go to zero as hmaw drops to the pump
        !    elevation.
        if (this%reduction_length(n) /= dep20) then
          bt = this%pumpelev(n)
          tp = bt + this%reduction_length(n)
          scale = sqsaturation(tp, bt, hmaw)
        end if
        q = scale * rate
      end if
      !
    else
      !
      ! -- Handle the injection case (rate > 0) differently than extraction.
      q = rate
      if (this%shutofflevel(n) /= dep20) then
        call this%maw_calculate_qpot(n, q)
        q = -q
        if (q < dzero) q = dzero
        if (q > rate) q = rate

        if (this%ishutoffcnt == 1) then
          this%shutoffweight(n) = done
          this%shutoffdq(n) = dzero
          this%shutoffqold(n) = q
        end if

        dq = q - this%shutoffqold(n)
        weight = this%shutoffweight(n)
        !
        ! -- for oscillating condition, decrease factor
        if (this%shutoffdq(n) * dq < dzero) then
          weight = this%theta * this%shutoffweight(n)
          !
          ! -- when change is of same sign, increase factor
        else
          weight = this%shutoffweight(n) + this%kappa
        end if
        if (weight > done) weight = done

        q = this%shutoffqold(n) + weight * dq

        this%shutoffqold(n) = q
        this%shutoffdq(n) = dq
        this%shutoffweight(n) = weight

      else
        scale = done
        !
        ! -- Apply rate scaling for an injection well by reducing the
        !    injection rate as hmaw rises above the pump elevation.  The rate
        !    will approach zero as hmaw approaches pumpelev + reduction_length.
        if (this%reduction_length(n) /= dep20) then
          bt = this%pumpelev(n)
          tp = bt + this%reduction_length(n)
          scale = done - sqsaturation(tp, bt, hmaw)
        end if
        q = scale * rate
      end if
    end if

Here is the call graph for this function:

maw_cc()

subroutine mawmodule::maw_cc ( class(mawtype), intent(inout)  this, integer(i4b), intent(in)  innertot, integer(i4b), intent(in)  kiter, integer(i4b), intent(in)  iend, integer(i4b), intent(in)  icnvgmod, character(len=lenpakloc), intent(inout)  cpak, integer(i4b), intent(inout)  ipak, real(dp), intent(inout)  dpak  )

private

This does two things:

1. While a well is being damped by Newton under-relaxation, it keeps the model from converging until the well rate has also stopped changing (reported through dpak). Wells that are not being damped, and models that do not use Newton under-relaxation, are not affected.
2. When the model fails to converge, it warns about any pumping well that is asking for more water than the aquifer can supply, a likely reason for the failure.

Definition at line 3087 of file gwf-maw.f90.

    ! -- modules
    use tdismodule, only: delt
    ! -- dummy
    class(MawType), intent(inout) :: this
    integer(I4B), intent(in) :: innertot
    integer(I4B), intent(in) :: kiter
    integer(I4B), intent(in) :: iend
    integer(I4B), intent(in) :: icnvgmod
    character(len=LENPAKLOC), intent(inout) :: cpak
    integer(I4B), intent(inout) :: ipak
    real(DP), intent(inout) :: dpak
    ! -- local
    integer(I4B) :: n
    integer(I4B) :: j
    integer(I4B) :: jpos
    integer(I4B) :: igwfnode
    integer(I4B) :: locdpak
    real(DP) :: botw
    real(DP) :: bmaw
    real(DP) :: hgwf
    real(DP) :: hv
    real(DP) :: sat
    real(DP) :: cmaw
    real(DP) :: qmax
    real(DP) :: qreq
    real(DP) :: qtolfact
    real(DP) :: dq
    real(DP) :: dpakmax
    character(len=LENPAKLOC) :: cloc
    ! -- parameters
    real(DP), parameter :: qtol = 1.001_dp !the request must exceed supply by this factor to warn
    ! -- formats
    character(len=*), parameter :: fmtwarn = &
      "('MAW well ', a, ' requests an extraction rate (', g0.5, &
      &') larger than the maximum rate (', g0.5, ') the aquifer can supply &
      &with the well head at its bottom. This may be preventing convergence. &
      &Consider reducing the requested rate, applying or widening RATE_SCALING, &
      &or reviewing the connection conductance (e.g. aquifer K).')"
    !
    ! -- rate convergence check. While a well is being damped (nurweight < 1)
    !    its head barely moves, so also require the well rate to stop changing
    !    before the model is allowed to converge. The rate change is turned
    !    into an equivalent head change (using the well area and time step) so
    !    it can be compared with the solver tolerance, and is passed back in
    !    dpak. Wells that are not being damped are left unchanged.
    dpakmax = dzero
    locdpak = 0
    do n = 1, this%nmawwells
      if (this%iboundpak(n) < 1) cycle
      if (this%nurweight(n) >= done) cycle
      if (this%area(n) > dzero) then
        qtolfact = delt / this%area(n)
      else
        qtolfact = dzero
      end if
      ! -- qsim0 and ratesim both come from maw_fc (before the solve), so dq is
      !    the rate change from the previous outer iteration -- one step behind
      !    the newest heads. That is fine here: a lagged rate can only delay
      !    convergence, never accept a bad answer, because the solver already
      !    checks the heads and steady heads mean a steady rate. The up-to-date
      !    rate is not used because recomputing it would change the well's
      !    shutoff and RATE_SCALING state.
      dq = (this%qsim0(n) - this%ratesim(n)) * qtolfact
      if (abs(dq) > abs(dpakmax)) then
        dpakmax = dq
        locdpak = n
      end if
    end do
    if (locdpak > 0 .and. abs(dpakmax) > abs(dpak)) then
      ipak = locdpak
      dpak = dpakmax
      write (cloc, "(a,'-',a)") trim(this%packName), 'rate'
      cpak = trim(cloc)
    end if
    !
    ! -- the over-demand warning is only written on the last outer iteration of
    !    a model that did not converge
    if (iend == 0) return
    if (icnvgmod /= 0) return
    !
    ! -- look at each active pumping (extraction) well
    do n = 1, this%nmawwells
      if (this%iboundpak(n) < 1) cycle
      if (this%rate(n) >= dzero) cycle
      botw = this%bot(n)
      !
      ! -- largest rate the aquifer could supply if the well head dropped all
      !    the way to the bottom of the well
      qmax = dzero
      do j = 1, this%ngwfnodes(n)
        jpos = this%get_jpos(n, j)
        igwfnode = this%get_gwfnode(n, j)
        hgwf = this%xnew(igwfnode)
        bmaw = this%botscrn(jpos)
        hv = max(botw, bmaw)
        !
        ! -- connection saturation evaluated with the well head at the bottom of
        !    the well (hv), consistent with this maximum-supply estimate, rather
        !    than at the current well head
        call this%maw_calculate_saturation(n, j, igwfnode, sat, hv)
        cmaw = this%satcond(jpos) * sat
        !
        ! -- only count connections that can supply water. A connection whose
        !    aquifer head is below the well bottom would take water in, so skip
        !    it instead of letting it lower the maximum supply.
        qmax = qmax + cmaw * max(hgwf - hv, dzero)
      end do
      !
      ! -- warn if the well is asking for more than the aquifer can supply
      qreq = -this%rate(n)
      if (qmax >= dzero .and. qreq > qtol * qmax) then
        write (cloc, '(a, a, a, a, i0, a, i0, a)') trim(this%name_model), '-(', &
          trim(this%filtyp), '_', this%ibcnum, '-', n, ')'
        write (warnmsg, fmtwarn) trim(cloc), qreq, qmax
        call store_warning(warnmsg)
      end if
    end do

Here is the call graph for this function:

maw_cell_extent()

real(dp) function mawmodule::maw_cell_extent ( class(mawtype), intent(inout)  this, integer(i4b), intent(in)  node, logical(lgp), intent(out)  estimated  )

private

The extent is the largest distance between two cell vertices where they are defined, and is estimated as the diagonal of a square with the same area where they are not.

Parameters

[in]	node	reduced node number of the connected cell
[out]	estimated	extent is estimated from the cell area

Definition at line 1399 of file gwf-maw.f90.

    use constantsmodule, only: dis, disv, disu, dtwo
    use geomutilmodule, only: polygon_extent
    ! -- dummy
    class(MawType), intent(inout) :: this
    integer(I4B), intent(in) :: node !< reduced node number of the connected cell
    logical(LGP), intent(out) :: estimated !< extent is estimated from the cell area
    ! -- return
    real(DP) :: extent
    ! -- local
    real(DP), allocatable, dimension(:, :) :: polyverts
    integer(I4B) :: nverts
    !
    ! -- the vertices are optional for a disu grid and are not defined for
    !    grids that have no cell polygons
    nverts = 0
    select case (this%dis%get_dis_enum())
    case (dis, disv, disu)
      nverts = this%dis%get_npolyverts(node)
    end select
    !
    estimated = nverts == 0
    if (estimated) then
      extent = sqrt(dtwo * this%dis%area(node))
    else
      call this%dis%get_polyverts(node, polyverts)
      extent = polygon_extent(polyverts(1, :), polyverts(2, :))
      deallocate (polyverts)
    end if

Here is the call graph for this function:

maw_cf()

subroutine mawmodule::maw_cf

(

class(mawtype)

this

)

Skip if no multi-aquifer wells, otherwise, calculate hcof and rhs

Definition at line 2619 of file gwf-maw.f90.

    ! -- dummy
    class(MawType) :: this
    ! -- local
    !
    ! -- Calculate maw conductance and update package RHS and HCOF
    call this%maw_cfupdate()

maw_cfupdate()

subroutine mawmodule::maw_cfupdate

(

class(mawtype)

this

)

Definition at line 4728 of file gwf-maw.f90.

    class(MawType) :: this
    ! -- dummy
    ! -- local
    integer(I4B) :: j
    integer(I4B) :: n
    integer(I4B) :: jpos
    integer(I4B) :: icflow
    integer(I4B) :: ibnd
    real(DP) :: flow
    real(DP) :: cmaw
    real(DP) :: hmaw
    real(DP) :: cterm
    real(DP) :: term
    !
    ! -- Return if no maw wells
    if (this%nbound .eq. 0) return
    !
    ! -- Update shutoff count
    this%ishutoffcnt = this%ishutoffcnt + 1
    !
    ! -- Calculate hcof and rhs for each maw entry
    ibnd = 1
    do n = 1, this%nmawwells
      hmaw = this%xnewpak(n)
      do j = 1, this%ngwfnodes(n)
        jpos = this%get_jpos(n, j)
        this%hcof(ibnd) = dzero
        this%rhs(ibnd) = dzero
        !
        ! -- set bound, hcof, and rhs components
        !
        ! -- use connection method so the gwf-maw budget flows
        !    are consistent with the maw-gwf budget flows
        if (this%iboundpak(n) == 0) then
          cmaw = dzero
          term = dzero
          cterm = dzero
        else
          call this%maw_calculate_conn_terms(n, j, icflow, cmaw, cterm, &
                                             term, flow)
        end if
        this%simcond(jpos) = cmaw
        this%bound(2, ibnd) = cmaw
        this%hcof(ibnd) = -term
        this%rhs(ibnd) = -term * hmaw + cterm
        !
        ! -- increment boundary number
        ibnd = ibnd + 1
      end do
    end do

maw_check_attributes()

subroutine mawmodule::maw_check_attributes

(

class(mawtype), intent(inout)

this

)

Definition at line 1946 of file gwf-maw.f90.

    use simmodule, only: store_error
    ! -- dummy
    class(MawType), intent(inout) :: this
    ! -- local
    character(len=LINELENGTH) :: cgwfnode
    integer(I4B) :: idx
    integer(I4B) :: n
    integer(I4B) :: j
    integer(I4B) :: jpos
    ! -- formats
    !
    idx = 1
    do n = 1, this%nmawwells
      if (this%ngwfnodes(n) < 1) then
        call this%maw_set_attribute_error(n, 'NGWFNODES', 'must be greater '// &
                                          'than 0.')
      end if
      if (this%radius(n) == dep20) then
        call this%maw_set_attribute_error(n, 'RADIUS', 'has not been specified.')
      end if
      if (this%shutoffmin(n) > dzero) then
        if (this%shutoffmin(n) >= this%shutoffmax(n)) then
          call this%maw_set_attribute_error(n, 'SHUT_OFF', 'shutoffmax must '// &
                                            'be greater than shutoffmin.')
        end if
      end if
      do j = 1, this%ngwfnodes(n)
        !
        ! -- calculate jpos
        jpos = this%get_jpos(n, j)
        !
        ! -- write gwfnode number
        write (cgwfnode, '(a,i0,a)') 'gwfnode(', j, ')'
        !
        ! -- connection screen data
        if (this%botscrn(jpos) >= this%topscrn(jpos)) then
          call this%maw_set_attribute_error(n, 'SCREEN_TOP', 'screen bottom '// &
                                            'must be less than screen top. '// &
                                            trim(cgwfnode))
        end if
        !
        ! -- connection skin hydraulic conductivity
        if (this%ieqn(n) == 2 .OR. this%ieqn(n) == 3 .OR. &
            this%ieqn(n) == 4) then
          if (this%hk(jpos) <= dzero) then
            call this%maw_set_attribute_error(n, 'HK_SKIN', 'skin hyraulic '// &
                                              'conductivity must be greater '// &
                                              'than zero. '//trim(cgwfnode))
          end if
        else if (this%ieqn(n) == 0) then
          !
          ! -- saturated conductance
          if (this%satcond(jpos) < dzero) then
            call this%maw_set_attribute_error(n, 'HK_SKIN', &
                                              'skin hyraulic conductivity '// &
                                              'must be greater than or '// &
                                              'equal to zero when using '// &
                                              'SPECIFIED condeqn. '// &
                                              trim(cgwfnode))
          end if
        end if
        idx = idx + 1
      end do
    end do
    ! -- reset check_attr
    this%check_attr = 0

Here is the call graph for this function:

maw_cq()

subroutine mawmodule::maw_cq	(	class(mawtype), intent(inout)	this,
		real(dp), dimension(:), intent(in)	x,
		real(dp), dimension(:), intent(inout), contiguous	flowja,
		integer(i4b), intent(in), optional	iadv
	)

Definition at line 3209 of file gwf-maw.f90.

    ! -- modules
    use tdismodule, only: delt
    use constantsmodule, only: lenboundname
    use budgetmodule, only: budgettype
    ! -- dummy
    class(MawType), intent(inout) :: this
    real(DP), dimension(:), intent(in) :: x
    real(DP), dimension(:), contiguous, intent(inout) :: flowja
    integer(I4B), optional, intent(in) :: iadv
    ! -- local
    real(DP) :: rrate
    real(DP) :: ss
    real(DP) :: ssold
    ! -- for budget
    integer(I4B) :: j
    integer(I4B) :: n
    integer(I4B) :: ibnd
    real(DP) :: hmaw
    real(DP) :: cfw
    ! -- for observations
    ! -- formats
    !
    ! -- recalculate package HCOF and RHS terms with latest groundwater and
    !    maw heads prior to calling base budget functionality
    call this%maw_cfupdate()
    !
    ! -- call base functionality in bnd_cq.  This will calculate maw-gwf flows
    !    and put them into this%simvals
    call this%BndType%bnd_cq(x, flowja, iadv=1)
    !
    ! -- calculate maw budget flow and storage terms
    do n = 1, this%nmawwells
      this%qout(n) = dzero
      this%qsto(n) = dzero
      if (this%iflowingwells > 0) then
        this%qfw(n) = dzero
      end if
      if (this%iboundpak(n) == 0) then
        cycle
      end if
      !
      ! -- set hmaw and xsto
      hmaw = this%xnewpak(n)
      this%xsto(n) = hmaw
      !
      ! -- add pumping rate to active maw well
      rrate = this%ratesim(n)
      !
      ! -- If flow is out of maw set qout to rrate.
      if (rrate < dzero) then
        this%qout(n) = rrate
      end if
      !
      ! -- add flowing well
      if (this%iflowingwells > 0) then
        if (this%fwcond(n) > dzero) then
          cfw = this%fwcondsim(n)
          ! -- only raise the storage level to the flowing-well elevation when
          !    the well is actually discharging (ifwdischarge == 1), matching
          !    the storage term assembled in maw_fc
          if (this%ifwdischarge(n) == 1) then
            this%xsto(n) = this%fwelev(n)
          end if
          rrate = cfw * (this%fwelev(n) - hmaw)
          this%qfw(n) = rrate
          !
          ! -- Subtract flowing well rrate from qout.
          this%qout(n) = this%qout(n) + rrate
        end if
      end if
      !
      ! -- Calculate qsto so it matches the storage term built in maw_fc. A
      !    flowing well that is actively discharging (ifwdischarge == 1) uses
      !    the flowing-well elevation (xsto = fwelev). Otherwise the storage
      !    water level is not allowed to drop below the bottom of the well.
      !    Testing ifwdischarge (not fwcond) keeps the budget in step with the
      !    matrix when a flowing well is at or below its discharge elevation.
      if (this%imawiss /= 1) then
        if (this%iflowingwells > 0 .and. this%ifwdischarge(n) == 1) then
          rrate = -this%area(n) * (this%xsto(n) - this%xoldsto(n)) / delt
        else
          ss = squadratic0sp(hmaw, this%bot(n), this%satomega)
          ssold = squadratic0sp(this%xoldsto(n), this%bot(n), this%satomega)
          rrate = -this%area(n) * (ss - ssold) / delt
        end if
        this%qsto(n) = rrate
      end if
    end do
    !
    ! -- gwf and constant flow
    ibnd = 1
    do n = 1, this%nmawwells
      hmaw = this%xnewpak(n)
      this%qconst(n) = dzero
      do j = 1, this%ngwfnodes(n)
        rrate = -this%simvals(ibnd)
        this%qleak(ibnd) = rrate
        if (this%iboundpak(n) < 0) then
          this%qconst(n) = this%qconst(n) - rrate
          !
          ! -- If flow is out increment qout by -rrate.
          if (-rrate < dzero) then
            this%qout(n) = this%qout(n) - rrate
          end if
        end if
        !
        ! -- increment ibnd counter
        ibnd = ibnd + 1
      end do
      !
      ! -- add additional flow terms to constant head term
      if (this%iboundpak(n) < 0) then
        !
        ! -- add well pumping rate
        this%qconst(n) = this%qconst(n) - this%ratesim(n)
        !
        ! -- add flowing well rate
        if (this%iflowingwells > 0) then
          this%qconst(n) = this%qconst(n) - this%qfw(n)
        end if
        !
        ! -- add storage term
        if (this%imawiss /= 1) then
          this%qconst(n) = this%qconst(n) - this%qsto(n)
        end if
      end if
    end do
    !
    ! -- fill the budget object
    call this%maw_fill_budobj()

Here is the call graph for this function:

maw_create()

subroutine, public mawmodule::maw_create	(	class(bndtype), pointer	packobj,
		integer(i4b), intent(in)	id,
		integer(i4b), intent(in)	ibcnum,
		integer(i4b), intent(in)	inunit,
		integer(i4b), intent(in)	iout,
		character(len=*), intent(in)	namemodel,
		character(len=*), intent(in)	pakname
	)

After creating the package object point bndobj to the new package

Definition at line 248 of file gwf-maw.f90.

    ! -- dummy
    class(BndType), pointer :: packobj
    integer(I4B), intent(in) :: id
    integer(I4B), intent(in) :: ibcnum
    integer(I4B), intent(in) :: inunit
    integer(I4B), intent(in) :: iout
    character(len=*), intent(in) :: namemodel
    character(len=*), intent(in) :: pakname
    type(MawType), pointer :: mawobj
    !
    ! -- allocate the object and assign values to object variables
    allocate (mawobj)
    packobj => mawobj
    !
    ! -- create name and memory path
    call packobj%set_names(ibcnum, namemodel, pakname, ftype)
    packobj%text = text
    !
    ! -- allocate scalars
    call mawobj%maw_allocate_scalars()
    !
    ! -- initialize package
    call packobj%pack_initialize()
    !
    packobj%inunit = inunit
    packobj%iout = iout
    packobj%id = id
    packobj%ibcnum = ibcnum
    packobj%ncolbnd = 4
    packobj%iscloc = 0 ! not supported
    packobj%isadvpak = 1
    packobj%ictMemPath = create_mem_path(namemodel, 'NPF')

Here is the call graph for this function:

Here is the caller graph for this function:

maw_da()

subroutine mawmodule::maw_da

(

class(mawtype)

this

)

Definition at line 3454 of file gwf-maw.f90.

    ! -- modules
    use memorymanagermodule, only: mem_deallocate
    ! -- dummy
    class(MawType) :: this
    ! -- local
    !
    ! -- budobj
    call this%budobj%budgetobject_da()
    deallocate (this%budobj)
    nullify (this%budobj)
    !
    ! -- head table
    if (this%iprhed > 0) then
      call this%headtab%table_da()
      deallocate (this%headtab)
      nullify (this%headtab)
    end if
    !
    ! -- character arrays
    call mem_deallocate(this%cmawbudget, 'CMAWBUDGET', this%memoryPath)
    call mem_deallocate(this%cmawname, 'CMAWNAME', this%memoryPath)
    call mem_deallocate(this%status, 'STATUS', this%memoryPath)
    !
    ! -- deallocate well data pointers in memory manager
    call mem_deallocate(this%ngwfnodes)
    call mem_deallocate(this%ieqn)
    call mem_deallocate(this%ishutoff)
    call mem_deallocate(this%ifwdischarge)
    call mem_deallocate(this%strt)
    call mem_deallocate(this%radius)
    call mem_deallocate(this%area)
    call mem_deallocate(this%pumpelev)
    call mem_deallocate(this%bot)
    call mem_deallocate(this%ratesim)
    call mem_deallocate(this%qsim0)
    call mem_deallocate(this%reduction_length)
    call mem_deallocate(this%fwelev)
    call mem_deallocate(this%fwcond)
    call mem_deallocate(this%fwrlen)
    call mem_deallocate(this%fwcondsim)
    call mem_deallocate(this%xsto)
    call mem_deallocate(this%xoldsto)
    call mem_deallocate(this%shutoffmin)
    call mem_deallocate(this%shutoffmax)
    call mem_deallocate(this%shutofflevel)
    call mem_deallocate(this%shutoffweight)
    call mem_deallocate(this%shutoffdq)
    call mem_deallocate(this%shutoffqold)
    call mem_deallocate(this%nurdxold)
    call mem_deallocate(this%nurweight)
    !
    ! -- timeseries aware variables
    call mem_deallocate(this%mauxvar)
    call mem_deallocate(this%rate)
    call mem_deallocate(this%well_head)
    !
    ! -- connection data
    call mem_deallocate(this%iaconn)
    call mem_deallocate(this%gwfnodes)
    call mem_deallocate(this%sradius)
    call mem_deallocate(this%hk)
    call mem_deallocate(this%satcond)
    call mem_deallocate(this%simcond)
    call mem_deallocate(this%topscrn)
    call mem_deallocate(this%botscrn)
    call mem_deallocate(this%angle)
    call mem_deallocate(this%connlen)
    call mem_deallocate(this%usrtopscrn)
    call mem_deallocate(this%usrbotscrn)
    !
    ! -- imap vector
    call mem_deallocate(this%imap)
    call mem_deallocate(this%dbuff)
    call mem_deallocate(this%cauxcbc, 'CAUXCBC', this%memoryPath)
    call mem_deallocate(this%qauxcbc)
    call mem_deallocate(this%qleak)
    call mem_deallocate(this%qfw)
    call mem_deallocate(this%qout)
    call mem_deallocate(this%qsto)
    call mem_deallocate(this%qconst)
    call mem_deallocate(this%denseterms)
    call mem_deallocate(this%viscratios)
    call mem_deallocate(this%idxlocnode)
    call mem_deallocate(this%idxdglo)
    call mem_deallocate(this%idxoffdglo)
    call mem_deallocate(this%idxsymdglo)
    call mem_deallocate(this%idxsymoffdglo)
    call mem_deallocate(this%xoldpak)
    !
    ! -- nullify pointers
    call mem_deallocate(this%xnewpak, 'HEAD', this%memoryPath)
    !
    ! -- scalars
    call mem_deallocate(this%correct_flow)
    call mem_deallocate(this%iprhed)
    call mem_deallocate(this%iheadout)
    call mem_deallocate(this%ibudgetout)
    call mem_deallocate(this%ibudcsv)
    call mem_deallocate(this%iflowingwells)
    call mem_deallocate(this%imawiss)
    call mem_deallocate(this%imawissopt)
    call mem_deallocate(this%nmawwells)
    call mem_deallocate(this%check_attr)
    call mem_deallocate(this%ishutoffcnt)
    call mem_deallocate(this%ieffradopt)
    call mem_deallocate(this%inonvert)
    call mem_deallocate(this%ioutredflowcsv)
    call mem_deallocate(this%satomega)
    call mem_deallocate(this%bditems)
    call mem_deallocate(this%theta)
    call mem_deallocate(this%kappa)
    call mem_deallocate(this%cbcauxitems)
    call mem_deallocate(this%idense)
    !
    ! -- pointers to gwf variables
    nullify (this%gwfiss)
    !
    ! -- call standard BndType deallocate
    call this%BndType%bnd_da()

maw_damp_weight()

pure real(dp) function, public mawmodule::maw_damp_weight	(	real(dp), intent(in)	dxprop,
		real(dp), intent(in)	dxold,
		real(dp), intent(in)	weight,
		real(dp), intent(in)	damptheta,
		real(dp), intent(in)	damptol,
		real(dp), intent(in)	weightmin,
		real(dp), intent(in)	recover
	)

This is the decision used by maw_nur. The weight is cut back (multiplied by damptheta, but never below weightmin) only when the proposed head change reversed direction and is not already getting smaller (its size is at least damptol times the previous change). Otherwise the weight grows back toward one by recover. It is a pure function so the logic can be unit tested.

Definition at line 3056 of file gwf-maw.f90.

    ! -- dummy
    real(DP), intent(in) :: dxprop !proposed well head change this outer iteration
    real(DP), intent(in) :: dxold !well head change applied last outer iteration
    real(DP), intent(in) :: weight !current damping weight
    real(DP), intent(in) :: damptheta !factor the weight is cut by when oscillating
    real(DP), intent(in) :: damptol !smallest |dxprop|/|dxold| ratio that is damped
    real(DP), intent(in) :: weightmin !smallest allowed weight
    real(DP), intent(in) :: recover !amount the weight grows back each iteration
    ! -- return
    real(DP) :: new_weight
    !
    if (dxprop * dxold < dzero .and. abs(dxprop) > damptol * abs(dxold)) then
      new_weight = max(damptheta * weight, weightmin)
    else
      new_weight = min(weight + recover, done)
    end if

Here is the caller graph for this function:

maw_df_obs()

subroutine mawmodule::maw_df_obs ( class(mawtype)  this )

private

Overrides BndTypebnd_df_obs

Definition at line 3653 of file gwf-maw.f90.

    ! -- dummy
    class(MawType) :: this
    ! -- local
    integer(I4B) :: indx
    !
    ! -- Store obs type and assign procedure pointer
    !    for head observation type.
    call this%obs%StoreObsType('head', .false., indx)
    this%obs%obsData(indx)%ProcessIdPtr => maw_process_obsid
    !
    ! -- Store obs type and assign procedure pointer
    !    for frommvr observation type.
    call this%obs%StoreObsType('from-mvr', .false., indx)
    this%obs%obsData(indx)%ProcessIdPtr => maw_process_obsid
    !
    ! -- Store obs type and assign procedure pointer
    !    for conn-rate observation type.
    call this%obs%StoreObsType('maw', .true., indx)
    this%obs%obsData(indx)%ProcessIdPtr => maw_process_obsid
    !
    ! -- Store obs type and assign procedure pointer
    !    for rate observation type.
    call this%obs%StoreObsType('rate', .true., indx)
    this%obs%obsData(indx)%ProcessIdPtr => maw_process_obsid
    !
    ! -- Store obs type and assign procedure pointer
    !    for rate-to-mvr observation type.
    call this%obs%StoreObsType('rate-to-mvr', .true., indx)
    this%obs%obsData(indx)%ProcessIdPtr => maw_process_obsid
    !
    ! -- Store obs type and assign procedure pointer
    !    for fw-rate observation type.
    call this%obs%StoreObsType('fw-rate', .true., indx)
    this%obs%obsData(indx)%ProcessIdPtr => maw_process_obsid
    !
    ! -- Store obs type and assign procedure pointer
    !    for rate-to-mvr observation type.
    call this%obs%StoreObsType('fw-to-mvr', .true., indx)
    this%obs%obsData(indx)%ProcessIdPtr => maw_process_obsid
    !
    ! -- Store obs type and assign procedure pointer
    !    for storage observation type.
    call this%obs%StoreObsType('storage', .true., indx)
    this%obs%obsData(indx)%ProcessIdPtr => maw_process_obsid
    !
    ! -- Store obs type and assign procedure pointer
    !    for constant observation type.
    call this%obs%StoreObsType('constant', .true., indx)
    this%obs%obsData(indx)%ProcessIdPtr => maw_process_obsid
    !
    ! -- Store obs type and assign procedure pointer
    !    for cond observation type.
    call this%obs%StoreObsType('conductance', .true., indx)
    this%obs%obsData(indx)%ProcessIdPtr => maw_process_obsid
    !
    ! -- Store obs type and assign procedure pointer
    !    for fw-conductance observation type.
    call this%obs%StoreObsType('fw-conductance', .true., indx)
    this%obs%obsData(indx)%ProcessIdPtr => maw_process_obsid

Here is the call graph for this function:

maw_fc()

subroutine mawmodule::maw_fc ( class(mawtype)  this, real(dp), dimension(:), intent(inout)  rhs, integer(i4b), dimension(:), intent(in)  ia, integer(i4b), dimension(:), intent(in)  idxglo, class(matrixbasetype), pointer  matrix_sln  )

private

Definition at line 2630 of file gwf-maw.f90.

    ! -- modules
    use tdismodule, only: delt
    ! -- dummy
    class(MawType) :: this
    real(DP), dimension(:), intent(inout) :: rhs
    integer(I4B), dimension(:), intent(in) :: ia
    integer(I4B), dimension(:), intent(in) :: idxglo
    class(MatrixBaseType), pointer :: matrix_sln
    ! -- local
    integer(I4B) :: j
    integer(I4B) :: n
    integer(I4B) :: idx
    integer(I4B) :: iloc
    integer(I4B) :: isymloc
    integer(I4B) :: igwfnode
    integer(I4B) :: iposd
    integer(I4B) :: iposoffd
    integer(I4B) :: isymnode
    integer(I4B) :: ipossymd
    integer(I4B) :: ipossymoffd
    integer(I4B) :: jpos
    integer(I4B) :: icflow
    real(DP) :: hmaw
    real(DP) :: hgwf
    real(DP) :: cfw
    real(DP) :: cmaw
    real(DP) :: cterm
    real(DP) :: term
    real(DP) :: scale
    real(DP) :: tp
    real(DP) :: bt
    real(DP) :: rate
    real(DP) :: ratefw
    real(DP) :: flow
    real(DP) :: tled
    real(DP) :: sd
    real(DP) :: ss
    real(DP) :: ssold
    !
    ! -- pakmvrobj fc
    if (this%imover == 1) then
      call this%pakmvrobj%fc()
    end if
    !
    ! -- Copy package rhs and hcof into solution rhs and amat
    idx = 1
    do n = 1, this%nmawwells
      iloc = this%idxlocnode(n)
      !
      ! -- save the well rate from the previous outer iteration before it is
      !    recalculated below, for the rate convergence check in maw_cc
      this%qsim0(n) = this%ratesim(n)
      !
      ! -- update head value for constant head maw wells
      if (this%iboundpak(n) < 0) then
        this%xnewpak(n) = this%well_head(n)
      end if
      hmaw = this%xnewpak(n)
      !
      ! -- add pumping rate to active or constant maw well
      if (this%iboundpak(n) == 0) then
        this%ratesim(n) = dzero
      else
        call this%maw_calculate_wellq(n, hmaw, rate)
        this%ratesim(n) = rate
        rhs(iloc) = rhs(iloc) - rate
        !
        ! -- location of diagonal for maw row
        iposd = this%idxdglo(idx)
        !
        ! -- add flowing well
        this%xsto(n) = hmaw
        ratefw = dzero
        if (this%iflowingwells > 0) then
          if (this%fwcond(n) > dzero) then
            bt = this%fwelev(n)
            tp = bt + this%fwrlen(n)
            scale = sqsaturation(tp, bt, hmaw)
            cfw = scale * this%fwcond(n)
            this%ifwdischarge(n) = 0
            if (cfw > dzero) then
              this%ifwdischarge(n) = 1
              this%xsto(n) = bt
            end if
            this%fwcondsim(n) = cfw
            call matrix_sln%add_value_pos(iposd, -cfw)
            rhs(iloc) = rhs(iloc) - cfw * bt
            ratefw = cfw * (bt - hmaw)
          end if
        end if
        !
        ! -- add maw storage changes
        if (this%imawiss /= 1) then
          if (this%ifwdischarge(n) /= 1) then
            ! -- well storage. The storage water level is not allowed to drop
            !    below the bottom of the well: ss is a smooth version of
            !    max(hmaw, well bottom). The storage release then fades out as
            !    the well empties instead of drawing water from below the well
            !    bottom. While the head is above the bottom this is the original
            !    term (sd = 1, ss = hmaw, giving -area/delt).
            tled = this%area(n) / delt
            sd = squadratic0spderivative(hmaw, this%bot(n), this%satomega)
            ss = squadratic0sp(hmaw, this%bot(n), this%satomega)
            ssold = squadratic0sp(this%xoldsto(n), this%bot(n), this%satomega)
            call matrix_sln%add_value_pos(iposd, -tled * sd)
            rhs(iloc) = rhs(iloc) - tled * (sd * hmaw - ss + ssold)
          else
            cterm = this%xoldsto(n) - this%fwelev(n)
            rhs(iloc) = rhs(iloc) - (this%area(n) * cterm / delt)
          end if
        end if
        !
        ! -- If mover is active, add receiver water to rhs and
        !    store available water (as positive value)
        if (this%imover == 1) then
          rhs(iloc) = rhs(iloc) - this%pakmvrobj%get_qfrommvr(n)
          !
          ! -- add pumping rate to mover if not injection
          if (rate < 0) then
            call this%pakmvrobj%accumulate_qformvr(n, -rate) !pumped water
          end if
          !
          ! -- add flowing well flow to mover
          call this%pakmvrobj%accumulate_qformvr(n, -ratefw) !flowing water
        end if
        !
      end if
      !
      ! -- process each maw/gwf connection
      do j = 1, this%ngwfnodes(n)
        if (this%iboundpak(n) /= 0) then
          jpos = this%get_jpos(n, j)
          igwfnode = this%get_gwfnode(n, j)
          hgwf = this%xnew(igwfnode)
          !
          ! -- calculate connection terms
          call this%maw_calculate_conn_terms(n, j, icflow, cmaw, cterm, term, &
                                             flow)
          this%simcond(jpos) = cmaw
          !
          ! -- add to maw row
          iposd = this%idxdglo(idx)
          iposoffd = this%idxoffdglo(idx)
          call matrix_sln%add_value_pos(iposd, -term)
          call matrix_sln%set_value_pos(iposoffd, term)
          !
          ! -- add correction term
          rhs(iloc) = rhs(iloc) - cterm
          !
          ! -- add to gwf row for maw connection
          isymnode = this%get_gwfnode(n, j)
          isymloc = ia(isymnode)
          ipossymd = this%idxsymdglo(idx)
          ipossymoffd = this%idxsymoffdglo(idx)
          call matrix_sln%add_value_pos(ipossymd, -term)
          call matrix_sln%set_value_pos(ipossymoffd, term)
          !
          ! -- add correction term to gwf row
          rhs(isymnode) = rhs(isymnode) + cterm
        end if
        !
        ! -- increment maw connection counter
        idx = idx + 1
      end do
    end do

Here is the call graph for this function:

maw_fill_budobj()

subroutine mawmodule::maw_fill_budobj

(

class(mawtype)

this

)

terms include a combination of the following: gwf rate [flowing_well] [storage] constant_flow [frommvr tomvr tomvrcf [tomvrfw]] [aux]

Definition at line 4987 of file gwf-maw.f90.

    ! -- modules
    ! -- dummy
    class(MawType) :: this
    ! -- local
    integer(I4B) :: naux
    integer(I4B) :: j
    integer(I4B) :: n
    integer(I4B) :: n2
    integer(I4B) :: jpos
    integer(I4B) :: idx
    integer(I4B) :: ibnd
    real(DP) :: q
    real(DP) :: tmaw
    real(DP) :: bmaw
    real(DP) :: sat
    real(DP) :: qfact
    real(DP) :: q2
    real(DP) :: b
    real(DP) :: v
    ! -- formats
    !
    ! -- initialize counter
    idx = 0
    !
    ! -- GWF (LEAKAGE) and connection surface area (aux)
    idx = idx + 1
    call this%budobj%budterm(idx)%reset(this%maxbound)
    ibnd = 1
    do n = 1, this%nmawwells
      do j = 1, this%ngwfnodes(n)
        jpos = this%get_jpos(n, j)
        n2 = this%get_gwfnode(n, j)
        tmaw = this%topscrn(jpos)
        bmaw = this%botscrn(jpos)
        call this%maw_calculate_saturation(n, j, n2, sat)
        this%qauxcbc(1) = dtwo * dpi * this%radius(n) * sat * (tmaw - bmaw)
        q = this%qleak(ibnd)
        call this%budobj%budterm(idx)%update_term(n, n2, q, this%qauxcbc)
        ibnd = ibnd + 1
      end do
    end do
    !
    ! -- RATE (WITHDRAWAL RATE)
    idx = idx + 1
    call this%budobj%budterm(idx)%reset(this%nmawwells)
    do n = 1, this%nmawwells
      q = this%ratesim(n)
      !
      ! -- adjust if well rate is an outflow
      if (this%imover == 1 .and. q < dzero) then
        qfact = done
        if (this%qout(n) < dzero) then
          qfact = q / this%qout(n)
        end if
        q = q + qfact * this%pakmvrobj%get_qtomvr(n)
      end if
      call this%budobj%budterm(idx)%update_term(n, n, q)
    end do
    !
    ! -- FLOWING WELL
    if (this%iflowingwells > 0) then
      idx = idx + 1
      call this%budobj%budterm(idx)%reset(this%nmawwells)
      do n = 1, this%nmawwells
        q = this%qfw(n)
        if (this%imover == 1) then
          qfact = done
          !
          ! -- adjust if well rate is an outflow
          if (this%qout(n) < dzero) then
            qfact = q / this%qout(n)
          end if
          q = q + qfact * this%pakmvrobj%get_qtomvr(n)
        end if
        call this%budobj%budterm(idx)%update_term(n, n, q)
      end do
    end if
    !
    ! -- STORAGE (AND VOLUME AS AUX)
    idx = idx + 1
    call this%budobj%budterm(idx)%reset(this%nmawwells)
    do n = 1, this%nmawwells
      b = this%xsto(n) - this%bot(n)
      if (b < dzero) then
        b = dzero
      end if
      v = this%area(n) * b
      if (this%imawissopt /= 1) then
        q = this%qsto(n)
      else
        q = dzero
      end if
      this%qauxcbc(1) = v
      call this%budobj%budterm(idx)%update_term(n, n, q, this%qauxcbc)
    end do
    !
    ! -- CONSTANT FLOW
    idx = idx + 1
    call this%budobj%budterm(idx)%reset(this%nmawwells)
    do n = 1, this%nmawwells
      q = this%qconst(n)
      !
      ! -- adjust if constant-flow rate is an outflow
      if (this%imover == 1 .and. q < dzero) then
        qfact = done
        if (this%qout(n) < dzero) then
          qfact = q / this%qout(n)
        end if
        q = q + qfact * this%pakmvrobj%get_qtomvr(n)
      end if
      call this%budobj%budterm(idx)%update_term(n, n, q)
    end do
    !
    ! -- MOVER
    if (this%imover == 1) then
      !
      ! -- FROM MOVER
      idx = idx + 1
      call this%budobj%budterm(idx)%reset(this%nmawwells)
      do n = 1, this%nmawwells
        if (this%iboundpak(n) == 0) then
          q = dzero
        else
          q = this%pakmvrobj%get_qfrommvr(n)
        end if
        call this%budobj%budterm(idx)%update_term(n, n, q)
      end do
      !
      ! -- RATE TO MOVER
      idx = idx + 1
      call this%budobj%budterm(idx)%reset(this%nmawwells)
      do n = 1, this%nmawwells
        q = this%pakmvrobj%get_qtomvr(n)
        if (q > dzero) then
          q = -q
          q2 = this%ratesim(n)
          !
          ! -- adjust TO MOVER if well rate is outflow
          if (q2 < dzero) then
            qfact = q2 / this%qout(n)
            q = q * qfact
          else
            q = dzero
          end if
        end if
        call this%budobj%budterm(idx)%update_term(n, n, q)
      end do
      !
      ! -- CONSTANT TO MOVER
      idx = idx + 1
      call this%budobj%budterm(idx)%reset(this%nmawwells)
      do n = 1, this%nmawwells
        q = this%pakmvrobj%get_qtomvr(n)
        if (q > dzero) then
          q = -q
          q2 = this%qconst(n)
          ! -- adjust TO MOVER if well rate is outflow
          if (q2 < dzero) then
            qfact = q2 / this%qout(n)
            q = q * qfact
          else
            q = dzero
          end if
        end if
        call this%budobj%budterm(idx)%update_term(n, n, q)
      end do
      !
      ! -- FLOWING WELL TO MOVER
      if (this%iflowingwells > 0) then
        idx = idx + 1
        call this%budobj%budterm(idx)%reset(this%nmawwells)
        do n = 1, this%nmawwells
          q = this%pakmvrobj%get_qtomvr(n)
          if (q > dzero) then
            q = -q
            q2 = this%ratesim(n)
            !
            ! -- adjust TO MOVER if well rate is outflow
            qfact = done
            if (this%qout(n) < dzero) then
              qfact = this%qfw(n) / this%qout(n)
            end if
            q = q * qfact
          end if
          call this%budobj%budterm(idx)%update_term(n, n, q)
        end do
      end if

    end if
    !
    ! -- AUXILIARY VARIABLES
    naux = this%naux
    if (naux > 0) then
      idx = idx + 1
      call this%budobj%budterm(idx)%reset(this%nmawwells)
      do n = 1, this%nmawwells
        q = dzero
        call this%budobj%budterm(idx)%update_term(n, n, q, this%auxvar(:, n))
      end do
    end if
    !
    ! --Terms are filled, now accumulate them for this time step
    call this%budobj%accumulate_terms()

maw_fn()

subroutine mawmodule::maw_fn	(	class(mawtype)	this,
		real(dp), dimension(:), intent(inout)	rhs,
		integer(i4b), dimension(:), intent(in)	ia,
		integer(i4b), dimension(:), intent(in)	idxglo,
		class(matrixbasetype), pointer	matrix_sln
	)

Definition at line 2800 of file gwf-maw.f90.

    ! -- dummy
    class(MawType) :: this
    real(DP), dimension(:), intent(inout) :: rhs
    integer(I4B), dimension(:), intent(in) :: ia
    integer(I4B), dimension(:), intent(in) :: idxglo
    class(MatrixBaseType), pointer :: matrix_sln
    ! -- local
    integer(I4B) :: j
    integer(I4B) :: n
    integer(I4B) :: idx
    integer(I4B) :: iloc
    integer(I4B) :: isymloc
    integer(I4B) :: igwfnode
    integer(I4B) :: iposd
    integer(I4B) :: iposoffd
    integer(I4B) :: isymnode
    integer(I4B) :: ipossymd
    integer(I4B) :: ipossymoffd
    integer(I4B) :: jpos
    integer(I4B) :: icflow
    real(DP) :: hmaw
    real(DP) :: hgwf
    real(DP) :: scale
    real(DP) :: tp
    real(DP) :: bt
    real(DP) :: cfw
    real(DP) :: rate
    real(DP) :: rate2
    real(DP) :: rterm
    real(DP) :: derv
    real(DP) :: drterm
    real(DP) :: cmaw
    real(DP) :: cterm
    real(DP) :: term
    real(DP) :: flow
    real(DP) :: term2
    real(DP) :: rhsterm
    !
    ! -- Calculate Newton-Raphson corrections
    idx = 1
    do n = 1, this%nmawwells
      iloc = this%idxlocnode(n)
      hmaw = this%xnewpak(n)
      !
      ! -- add pumping rate to active or constant maw well
      if (this%iboundpak(n) /= 0) then
        iposd = this%idxdglo(idx)
        scale = done
        drterm = dzero
        rate = this%ratesim(n)
        !
        !-- calculate final derivative for pumping rate
        call this%maw_calculate_wellq(n, hmaw + dem4, rate2)
        drterm = (rate2 - rate) / dem4
        !
        !-- fill amat and rhs with newton-raphson terms
        call matrix_sln%add_value_pos(iposd, drterm)
        rhs(iloc) = rhs(iloc) + drterm * hmaw
        !
        ! -- add flowing well
        if (this%iflowingwells > 0) then
          if (this%fwcond(n) > dzero) then
            bt = this%fwelev(n)
            tp = bt + this%fwrlen(n)
            scale = sqsaturation(tp, bt, hmaw)
            cfw = scale * this%fwcond(n)
            this%ifwdischarge(n) = 0
            if (cfw > dzero) then
              this%ifwdischarge(n) = 1
            end if
            this%fwcondsim(n) = cfw
            rate = cfw * (bt - hmaw)
            rterm = -cfw * hmaw
            !
            ! --calculate derivative for flowing well
            if (hmaw < tp) then
              derv = sqsaturationderivative(tp, bt, hmaw)
              drterm = -(cfw + this%fwcond(n) * derv * (hmaw - bt))
              !
              ! -- fill amat and rhs with newton-raphson terms
              call matrix_sln%add_value_pos(iposd, &
                                            -this%fwcond(n) * derv * (hmaw - bt))
              rhs(iloc) = rhs(iloc) - rterm + drterm * hmaw
            end if
          end if
        end if
      end if
      !
      ! -- process each maw/gwf connection
      do j = 1, this%ngwfnodes(n)
        if (this%iboundpak(n) /= 0) then
          jpos = this%get_jpos(n, j)
          igwfnode = this%get_gwfnode(n, j)
          hgwf = this%xnew(igwfnode)
          !
          ! -- add to maw row
          iposd = this%idxdglo(idx)
          iposoffd = this%idxoffdglo(idx)
          !
          ! -- add to gwf row for maw connection
          isymnode = this%get_gwfnode(n, j)
          isymloc = ia(isymnode)
          ipossymd = this%idxsymdglo(idx)
          ipossymoffd = this%idxsymoffdglo(idx)
          !
          ! -- calculate newton terms
          call this%maw_calculate_conn_terms(n, j, icflow, cmaw, cterm, term, &
                                             flow, term2)
          !
          ! -- maw is upstream
          if (hmaw > hgwf) then
            if (icflow /= 0) then
              rhsterm = term2 * hgwf + term * hmaw
              rhs(iloc) = rhs(iloc) + rhsterm
              rhs(isymnode) = rhs(isymnode) - rhsterm
              if (this%iboundpak(n) > 0) then
                call matrix_sln%add_value_pos(iposd, term)
                call matrix_sln%add_value_pos(iposoffd, term2)
              end if
              call matrix_sln%add_value_pos(ipossymd, -term2)
              call matrix_sln%add_value_pos(ipossymoffd, -term)
            else
              rhs(iloc) = rhs(iloc) + term * hmaw
              rhs(isymnode) = rhs(isymnode) - term * hmaw
              call matrix_sln%add_value_pos(iposd, term)
              if (this%ibound(igwfnode) > 0) then
                call matrix_sln%add_value_pos(ipossymoffd, -term)
              end if
            end if
            !
            ! -- gwf is upstream
          else
            if (icflow /= 0) then
              rhsterm = term2 * hmaw + term * hgwf
              rhs(iloc) = rhs(iloc) + rhsterm
              rhs(isymnode) = rhs(isymnode) - rhsterm
              if (this%iboundpak(n) > 0) then
                call matrix_sln%add_value_pos(iposd, term2)
                call matrix_sln%add_value_pos(iposoffd, term)
              end if
              call matrix_sln%add_value_pos(ipossymd, -term)
              call matrix_sln%add_value_pos(ipossymoffd, -term2)
            else
              rhs(iloc) = rhs(iloc) + term * hgwf
              rhs(isymnode) = rhs(isymnode) - term * hgwf
              if (this%iboundpak(n) > 0) then
                call matrix_sln%add_value_pos(iposoffd, term)
              end if
              call matrix_sln%add_value_pos(ipossymd, -term)
            end if
          end if
        end if
        !
        ! -- increment maw connection counter
        idx = idx + 1
      end do
    end do

Here is the call graph for this function:

maw_mc()

subroutine mawmodule::maw_mc	(	class(mawtype), intent(inout)	this,
		integer(i4b), intent(in)	moffset,
		class(matrixbasetype), pointer	matrix_sln
	)

Definition at line 2047 of file gwf-maw.f90.

    use sparsemodule, only: sparsematrix
    use memorymanagermodule, only: mem_allocate
    ! -- dummy
    class(MawType), intent(inout) :: this
    integer(I4B), intent(in) :: moffset
    class(MatrixBaseType), pointer :: matrix_sln
    ! -- local
    integer(I4B) :: n
    integer(I4B) :: j
    integer(I4B) :: ii
    integer(I4B) :: iglo
    integer(I4B) :: jglo
    integer(I4B) :: ipos
    ! -- format
    !
    ! -- allocate connection mapping vectors
    call mem_allocate(this%idxlocnode, this%nmawwells, 'IDXLOCNODE', &
                      this%memoryPath)
    call mem_allocate(this%idxdglo, this%maxbound, 'IDXDGLO', this%memoryPath)
    call mem_allocate(this%idxoffdglo, this%maxbound, 'IDXOFFDGLO', &
                      this%memoryPath)
    call mem_allocate(this%idxsymdglo, this%maxbound, 'IDXSYMDGLO', &
                      this%memoryPath)
    call mem_allocate(this%idxsymoffdglo, this%maxbound, 'IDXSYMOFFDGLO', &
                      this%memoryPath)
    !
    ! -- Find the position of each connection in the global ia, ja structure
    !    and store them in idxglo.  idxglo allows this model to insert or
    !    retrieve values into or from the global A matrix
    ! -- maw rows
    ipos = 1
    do n = 1, this%nmawwells
      iglo = moffset + this%dis%nodes + this%ioffset + n
      this%idxlocnode(n) = this%dis%nodes + this%ioffset + n
      do ii = 1, this%ngwfnodes(n)
        j = this%get_gwfnode(n, ii)
        jglo = j + moffset
        this%idxdglo(ipos) = matrix_sln%get_position_diag(iglo)
        this%idxoffdglo(ipos) = matrix_sln%get_position(iglo, jglo)
        ipos = ipos + 1
      end do
    end do
    ! -- maw contributions gwf portion of global matrix
    ipos = 1
    do n = 1, this%nmawwells
      do ii = 1, this%ngwfnodes(n)
        iglo = this%get_gwfnode(n, ii) + moffset
        jglo = moffset + this%dis%nodes + this%ioffset + n
        this%idxsymdglo(ipos) = matrix_sln%get_position_diag(iglo)
        this%idxsymoffdglo(ipos) = matrix_sln%get_position(iglo, jglo)
        ipos = ipos + 1
      end do
    end do

maw_nur()

subroutine mawmodule::maw_nur ( class(mawtype), intent(inout)  this, integer(i4b), intent(in)  neqpak, real(dp), dimension(neqpak), intent(inout)  x, real(dp), dimension(neqpak), intent(in)  xtemp, real(dp), dimension(neqpak), intent(inout)  dx, integer(i4b), intent(inout)  inewtonur, real(dp), intent(inout)  dxmax, integer(i4b), intent(inout)  locmax  )

private

Two corrections are applied to each well head, in order:

1. Oscillation damping. If the well head change reverses direction and is not getting smaller, it is cut back by a per-well weight. The weight shrinks while the head oscillates and grows back when the head moves steadily in one direction. This settles poorly connected wells (for example a low-K cell or a single connection) whose full Newton step is too large.
2. Bottom limit. If the head is still below the well bottom, it is moved back up toward the well bottom (the original behavior).

Definition at line 2972 of file gwf-maw.f90.

    ! -- dummy
    class(MawType), intent(inout) :: this
    integer(I4B), intent(in) :: neqpak
    real(DP), dimension(neqpak), intent(inout) :: x
    real(DP), dimension(neqpak), intent(in) :: xtemp
    real(DP), dimension(neqpak), intent(inout) :: dx
    integer(I4B), intent(inout) :: inewtonur
    real(DP), intent(inout) :: dxmax
    integer(I4B), intent(inout) :: locmax
    ! -- local
    integer(I4B) :: n
    real(DP) :: botw
    real(DP) :: xx
    real(DP) :: dxx
    real(DP) :: dxprop
    real(DP) :: weight
    ! -- parameters
    real(DP), parameter :: damptheta = dp7 !factor the weight is cut by when the head oscillates
    real(DP), parameter :: damptol = dhalf !only damp if the change is at least this fraction of the last one
    real(DP), parameter :: weightmin = dem2 !smallest allowed weight
    real(DP), parameter :: recover = 0.2_dp !amount the weight grows back each iteration
    !
    ! -- Newton-Raphson under-relaxation
    do n = 1, this%nmawwells
      if (this%iboundpak(n) < 1) cycle
      botw = this%bot(n)
      !
      ! -- full Newton head change proposed for this outer iteration
      dxprop = x(n) - xtemp(n)
      !
      ! -- oscillation damping. Cut the weight only when the head change flips
      !    direction and is not already shrinking on its own (it is still at
      !    least damptol times the previous change). Otherwise let the weight
      !    grow back toward one, so a normal, converging well is not slowed
      !    down. This catches oscillations above the well bottom, which the
      !    bottom limit below cannot.
      weight = maw_damp_weight(dxprop, this%nurdxold(n), this%nurweight(n), &
                               damptheta, damptol, weightmin, recover)
      this%nurweight(n) = weight
      !
      ! -- apply the reduced step when damping is turned on
      if (weight < done) then
        inewtonur = 1
        xx = xtemp(n) + weight * dxprop
        dxx = x(n) - xx
        if (abs(dxx) > abs(dxmax)) then
          locmax = n
          dxmax = dxx
        end if
        x(n) = xx
        dx(n) = weight * dxprop
      end if
      !
      ! -- bottom limit: if the (reduced) head is still below the bottom of the
      !    well, move it back up toward the well bottom
      if (x(n) < botw) then
        inewtonur = 1
        xx = xtemp(n) * (done - dp9) + botw * dp9
        dxx = x(n) - xx
        if (abs(dxx) > abs(dxmax)) then
          locmax = n
          dxmax = dxx
        end if
        x(n) = xx
        dx(n) = dzero
      end if
      !
      ! -- save the head change actually applied this iteration (after damping
      !    and the bottom limit). Saving it after the bottom limit lets the
      !    next iteration see the downward push from the limit, so the upward
      !    swing that follows can be damped.
      this%nurdxold(n) = x(n) - xtemp(n)
    end do

Here is the call graph for this function:

maw_obs_supported()

logical function mawmodule::maw_obs_supported

(

class(mawtype)

this

)

Overrides BndTypebnd_obs_supported()

Definition at line 3643 of file gwf-maw.f90.

    class(MawType) :: this
    !
    maw_obs_supported = .true.

maw_ot_bdsummary()

subroutine mawmodule::maw_ot_bdsummary	(	class(mawtype)	this,
		integer(i4b), intent(in)	kstp,
		integer(i4b), intent(in)	kper,
		integer(i4b), intent(in)	iout,
		integer(i4b), intent(in)	ibudfl
	)

Parameters

	this	MawType object
[in]	kstp	time step number
[in]	kper	period number
[in]	iout	flag and unit number for the model listing file
[in]	ibudfl	flag indicating budget should be written

Definition at line 3439 of file gwf-maw.f90.

    ! -- module
    use tdismodule, only: totim, delt
    ! -- dummy
    class(MawType) :: this !< MawType object
    integer(I4B), intent(in) :: kstp !< time step number
    integer(I4B), intent(in) :: kper !< period number
    integer(I4B), intent(in) :: iout !< flag and unit number for the model listing file
    integer(I4B), intent(in) :: ibudfl !< flag indicating budget should be written
    !
    call this%budobj%write_budtable(kstp, kper, iout, ibudfl, totim, delt)

maw_ot_dv()

subroutine mawmodule::maw_ot_dv	(	class(mawtype)	this,
		integer(i4b), intent(in)	idvsave,
		integer(i4b), intent(in)	idvprint
	)

Definition at line 3384 of file gwf-maw.f90.

    use tdismodule, only: kstp, kper, pertim, totim
    use constantsmodule, only: dhnoflo, dhdry
    use inputoutputmodule, only: ulasav
    class(MawType) :: this
    integer(I4B), intent(in) :: idvsave
    integer(I4B), intent(in) :: idvprint
    integer(I4B) :: ibinun
    integer(I4B) :: n
    real(DP) :: v
    real(DP) :: d
    !
    ! -- set unit number for binary dependent variable output
    ibinun = 0
    if (this%iheadout /= 0) then
      ibinun = this%iheadout
    end if
    if (idvsave == 0) ibinun = 0
    !
    ! -- write maw binary output
    if (ibinun > 0) then
      do n = 1, this%nmawwells
        v = this%xnewpak(n)
        d = v - this%bot(n)
        if (this%iboundpak(n) == 0) then
          v = dhnoflo
        else if (d <= dzero) then
          v = dhdry
        end if
        this%dbuff(n) = v
      end do
      call ulasav(this%dbuff, '            HEAD', &
                  kstp, kper, pertim, totim, &
                  this%nmawwells, 1, 1, ibinun)
    end if
    !
    ! -- write maw head table
    if (idvprint /= 0 .and. this%iprhed /= 0) then
      !
      ! -- set table kstp and kper
      call this%headtab%set_kstpkper(kstp, kper)
      !
      ! -- fill stage data
      do n = 1, this%nmawwells
        if (this%inamedbound == 1) then
          call this%headtab%add_term(this%cmawname(n))
        end if
        call this%headtab%add_term(n)
        call this%headtab%add_term(this%xnewpak(n))
      end do
    end if

Here is the call graph for this function:

maw_ot_model_flows()

subroutine mawmodule::maw_ot_model_flows	(	class(mawtype)	this,
		integer(i4b), intent(in)	icbcfl,
		integer(i4b), intent(in)	ibudfl,
		integer(i4b), intent(in)	icbcun,
		integer(i4b), dimension(:), intent(in), optional	imap
	)

Definition at line 3344 of file gwf-maw.f90.

    ! -- dummy
    class(MawType) :: this
    integer(I4B), intent(in) :: icbcfl
    integer(I4B), intent(in) :: ibudfl
    integer(I4B), intent(in) :: icbcun
    integer(I4B), dimension(:), optional, intent(in) :: imap
    !
    ! -- write the flows from the budobj
    call this%BndType%bnd_ot_model_flows(icbcfl, ibudfl, icbcun, this%imap)

maw_ot_package_flows()

subroutine mawmodule::maw_ot_package_flows ( class(mawtype)  this, integer(i4b), intent(in)  icbcfl, integer(i4b), intent(in)  ibudfl  )

private

Definition at line 3358 of file gwf-maw.f90.

    use tdismodule, only: kstp, kper, delt, pertim, totim
    class(MawType) :: this
    integer(I4B), intent(in) :: icbcfl
    integer(I4B), intent(in) :: ibudfl
    integer(I4B) :: ibinun
    !
    ! -- write the flows from the budobj
    ibinun = 0
    if (this%ibudgetout /= 0) then
      ibinun = this%ibudgetout
    end if
    if (icbcfl == 0) ibinun = 0
    if (ibinun > 0) then
      call this%budobj%save_flows(this%dis, ibinun, kstp, kper, delt, &
                                  pertim, totim, this%iout)
    end if
    !
    ! -- Print maw flows table
    if (ibudfl /= 0 .and. this%iprflow /= 0) then
      call this%budobj%write_flowtable(this%dis, kstp, kper)
    end if

maw_process_obsid()

subroutine mawmodule::maw_process_obsid	(	type(observetype), intent(inout)	obsrv,
		class(disbasetype), intent(in)	dis,
		integer(i4b), intent(in)	inunitobs,
		integer(i4b), intent(in)	iout
	)

Definition at line 3982 of file gwf-maw.f90.

    ! -- dummy
    type(ObserveType), intent(inout) :: obsrv
    class(DisBaseType), intent(in) :: dis
    integer(I4B), intent(in) :: inunitobs
    integer(I4B), intent(in) :: iout
    ! -- local
    integer(I4B) :: nn1, nn2
    integer(I4B) :: icol, istart, istop
    character(len=LINELENGTH) :: string
    character(len=LENBOUNDNAME) :: bndname
    ! formats
    !
    string = obsrv%IDstring
    ! -- Extract multi-aquifer well number from string and store it.
    !    If 1st item is not an integer(I4B), it should be a
    !    maw name--deal with it.
    icol = 1
    ! -- get multi-aquifer well number or boundary name
    call extract_idnum_or_bndname(string, icol, istart, istop, nn1, bndname)
    if (nn1 == namedboundflag) then
      obsrv%FeatureName = bndname
    else
      if (obsrv%ObsTypeId == 'MAW' .or. &
          obsrv%ObsTypeId == 'CONDUCTANCE') then
        call extract_idnum_or_bndname(string, icol, istart, istop, nn2, bndname)
        if (len_trim(bndname) < 1 .and. nn2 < 0) then
          write (errmsg, '(a,1x,a,a,1x,a,1x,a)') &
            'For observation type', trim(adjustl(obsrv%ObsTypeId)), &
            ', ID given as an integer and not as boundname,', &
            'but ID2 (icon) is missing.  Either change ID to valid', &
            'boundname or supply valid entry for ID2.'
          call store_error(errmsg)
        end if
        if (nn2 == namedboundflag) then
          obsrv%FeatureName = bndname
          ! -- reset nn1
          nn1 = nn2
        else
          obsrv%NodeNumber2 = nn2
        end if
      end if
    end if
    ! -- store multi-aquifer well number (NodeNumber)
    obsrv%NodeNumber = nn1

Here is the call graph for this function:

Here is the caller graph for this function:

maw_read_angledata()

subroutine mawmodule::maw_read_angledata

(

class(mawtype), intent(inout)

this

)

Each row identifies a non-vertical multi-aquifer well connection and the tilt angle (deviation from vertical, in degrees) used to calculate the in-cell screen length. An optional connection length can be specified to set the in-cell screen length directly; the connection length is required for horizontal connections (angle close to 90 degrees). Connections that are not listed in the ANGLEDATA block are assumed to be vertical.

Definition at line 1085 of file gwf-maw.f90.

    use constantsmodule, only: linelength, dzero, dem6, dtwo, dpio180
    use mathutilmodule, only: is_close
    ! -- dummy
    class(MawType), intent(inout) :: this
    ! -- local
    logical :: isfound
    logical :: endOfBlock
    logical(LGP) :: success
    integer(I4B) :: ierr
    integer(I4B) :: ival
    integer(I4B) :: n
    integer(I4B) :: j
    integer(I4B) :: jpos
    integer(I4B) :: ipos
    integer(I4B) :: node
    real(DP) :: angle
    real(DP) :: conn_len
    real(DP) :: dz
    real(DP) :: omega
    real(DP) :: lw
    real(DP) :: hlen
    real(DP) :: extent
    real(DP) :: topexp
    character(len=LINELENGTH) :: cndmsg
    character(len=LINELENGTH) :: extmsg
    logical(LGP) :: estimated
    integer(I4B), dimension(:), pointer, contiguous :: nboundchk
    integer(I4B), dimension(:), pointer, contiguous :: iachk
    ! -- minimum cosine of the tilt angle for which the in-cell screen length
    !    can be derived from the screen elevations (i.e., the connection is not
    !    treated as horizontal); connections steeper than this require a
    !    connection length to be specified.
    real(DP), parameter :: coszero = dem6
    ! -- maximum tilt angle (degrees from vertical)
    real(DP), parameter :: dninety = 9.0d1
    !
    ! -- get angledata block
    call this%parser%GetBlock('ANGLEDATA', isfound, ierr, &
                              supportopenclose=.true., blockrequired=.false.)
    !
    ! -- parse angledata block if detected
    if (isfound) then
      !
      ! -- the angledata block is only valid when the NON_VERTICAL_WELLS option
      !    has been specified
      if (this%inonvert == 0) then
        call store_error('An ANGLEDATA block was specified but the '// &
                         'NON_VERTICAL_WELLS option was not specified in the '// &
                         'OPTIONS block.')
        call this%parser%StoreErrorUnit()
      end if
      !
      ! -- allocate and initialize local storage used to check for duplicate
      !    connection entries
      allocate (iachk(this%nmawwells + 1))
      iachk(1) = 1
      do n = 1, this%nmawwells
        iachk(n + 1) = iachk(n) + this%ngwfnodes(n)
      end do
      allocate (nboundchk(this%maxbound))
      do n = 1, this%maxbound
        nboundchk(n) = 0
      end do
      !
      write (this%iout, '(/1x,a)') 'PROCESSING '//trim(adjustl(this%text))// &
        ' ANGLEDATA'
      do
        call this%parser%GetNextLine(endofblock)
        if (endofblock) exit
        !
        ! -- well number
        ival = this%parser%GetInteger()
        n = ival
        if (n < 1 .or. n > this%nmawwells) then
          write (errmsg, '(a,1x,i0,a)') &
            'IFNO must be greater than 0 and less than or equal to ', &
            this%nmawwells, '.'
          call store_error(errmsg)
          cycle
        end if
        !
        ! -- connection number
        ival = this%parser%GetInteger()
        if (ival < 1 .or. ival > this%ngwfnodes(n)) then
          write (errmsg, '(a,1x,i0,1x,a,1x,i0,a)') &
            'ICON for well ', n, &
            'must be greater than 0 and less than or equal to ', &
            this%ngwfnodes(n), '.'
          call store_error(errmsg)
          cycle
        end if
        j = ival
        jpos = this%get_jpos(n, j)
        !
        ! -- check for duplicate entries
        ipos = iachk(n) + j - 1
        nboundchk(ipos) = nboundchk(ipos) + 1
        if (nboundchk(ipos) > 1) then
          write (errmsg, '(a,1x,i0,1x,a,1x,i0,1x,a)') &
            'ANGLEDATA for maw well', n, 'connection', j, &
            'is specified more than once.'
          call store_error(errmsg)
        end if
        !
        ! -- tilt angle (degrees from vertical)
        angle = this%parser%GetDouble()
        !
        ! -- optional in-cell screen length
        call this%parser%TryGetDouble(conn_len, success)
        if (.not. success) then
          conn_len = dzero
        end if
        !
        ! -- store the angle and connection length
        this%angle(jpos) = angle
        this%connlen(jpos) = conn_len
        !
        ! -- the tilt angle must be between 0 and 90 degrees
        if (angle < dzero .or. angle > dninety) then
          write (errmsg, '(a,1x,i0,1x,a,1x,i0,1x,a,g0,a)') &
            'ANGLE for maw well', n, 'connection', j, '(', angle, &
            ') must be greater than or equal to 0.0 and less than or '// &
            'equal to 90.0 degrees.'
          call store_error(errmsg)
          cycle
        end if
        !
        node = this%get_gwfnode(n, j)
        !
        ! -- a SPECIFIED connection provides the saturated conductance directly,
        !    so the length correction is not applied; the user-specified screen
        !    elevations (which are otherwise reset to the cell top and bottom)
        !    are restored here, clamped to the cell, so the connection
        !    saturation is calculated over the correct interval. It is the
        !    user's responsibility to calculate the correct conductance.
        if (this%ieqn(n) == 0) then
          this%topscrn(jpos) = min(this%usrtopscrn(jpos), this%dis%top(node))
          this%botscrn(jpos) = max(this%usrbotscrn(jpos), this%dis%bot(node))
        end if
        !
        ! -- screen thickness (vertical extent of the connection)
        dz = this%topscrn(jpos) - this%botscrn(jpos)
        if (dz <= dzero) then
          write (errmsg, '(a,1x,i0,1x,a,1x,i0,1x,a)') &
            'The screen top must be greater than the screen bottom for maw '// &
            'well', n, 'connection', j, 'listed in the ANGLEDATA block.'
          call store_error(errmsg)
          cycle
        end if
        !
        omega = angle * dpio180
        !
        ! -- the in-cell screen length is specified directly or derived from
        !    the screen elevations, well radius, and tilt angle; it cannot be
        !    derived for a (near) horizontal connection
        if (conn_len > dzero) then
          lw = conn_len
        else if (cos(omega) > coszero) then
          lw = maw_screen_length(dz, this%radius(n), omega)
        else
          lw = dzero
        end if
        !
        ! -- the in-cell screen length is used only by the conductance
        !    equations calculated by the program (it is not used by the
        !    SPECIFIED equation). For those equations a (near) horizontal
        !    connection requires a connection length, because the length cannot
        !    be derived from the screen elevations, and the calculated length
        !    must be positive.
        if (this%ieqn(n) /= 0) then
          if (cos(omega) <= coszero .and. conn_len <= dzero) then
            write (errmsg, '(a,1x,i0,1x,a,1x,i0,1x,a)') &
              'A connection length must be specified for the (near) '// &
              'horizontal maw well', n, 'connection', j, &
              'listed in the ANGLEDATA block.'
            call store_error(errmsg)
            cycle
          end if
          if (lw <= dzero) then
            write (errmsg, '(a,1x,i0,1x,a,1x,i0,1x,a,g0,a)') &
              'The calculated in-cell screen length for maw well', n, &
              'connection', j, '(', lw, &
              ') is not greater than zero. Specify a connection length in '// &
              'the ANGLEDATA block.'
            call store_error(errmsg)
            cycle
          end if
        end if
        !
        ! -- a connection spans a horizontal distance of lw * sin(omega), which
        !    cannot exceed the horizontal extent of the connected cell
        if (lw > dzero) then
          hlen = lw * sin(omega)
          extent = this%maw_cell_extent(node, estimated)
          if (hlen > extent) then
            !
            ! -- the extent is estimated from the cell area where the cell
            !    vertices are not defined
            if (estimated) then
              extmsg = 'estimated maximum horizontal extent'
            else
              extmsg = 'maximum horizontal extent'
            end if
            !
            ! -- the length correction is not applied to a SPECIFIED
            !    connection, so the conductance of one is not the program's
            !    to describe as too large
            if (this%ieqn(n) == 0) then
              cndmsg = 'The specified saturated conductance is applied to a '// &
                       'screen that is longer than the cell.'
            else
              cndmsg = 'The calculated saturated conductance is '// &
                       'correspondingly too large.'
            end if
            write (warnmsg, '(a,1x,i0,1x,a,1x,i0,1x,a,g0,a,g0,a)') &
              'The horizontal distance spanned by maw well', n, 'connection', &
              j, '(', hlen, &
              ') is greater than the '//trim(extmsg)//' of the '// &
              'connected cell (', extent, &
              '), so the screen extends beyond the cell it is connected '// &
              'to. '//trim(cndmsg)//' Reduce ANGLE or CONN_LENGTH, or '// &
              'specify a separate connection to each cell the connection '// &
              'passes through.'
            call store_warning(warnmsg)
          end if
        end if
        !
        ! -- the radial (THIEM, SKIN, and CUMULATIVE) conductance equations use
        !    the horizontal-plane flow geometry, so a (near) horizontal
        !    connection is an approximation; recommend the MEAN equation
        if (cos(omega) <= coszero .and. &
            this%ieqn(n) /= 4 .and. this%ieqn(n) /= 0) then
          write (warnmsg, '(a,1x,i0,1x,a,1x,i0,1x,a)') &
            'The (near) horizontal maw well', n, 'connection', j, &
            'uses a radial conductance equation (THIEM, SKIN, or '// &
            'CUMULATIVE). The calculated conductance is an approximation '// &
            'for horizontal connections; the MEAN conductance equation is '// &
            'recommended for horizontal connections.'
          call store_warning(warnmsg)
        end if
        !
        ! -- for a (near) horizontal connection using the MEAN or SPECIFIED
        !    conductance equation, the vertical screen extent (SCRN_TOP -
        !    SCRN_BOT) should equal the well diameter (2 * RADIUS) because it is
        !    used to determine the saturation of the connection. Snap the screen
        !    top to the well diameter if the specified extent is essentially
        !    equal to it; otherwise warn the user.
        if (cos(omega) <= coszero .and. &
            (this%ieqn(n) == 4 .or. this%ieqn(n) == 0)) then
          topexp = this%botscrn(jpos) + dtwo * this%radius(n)
          if (is_close(this%topscrn(jpos), topexp)) then
            this%topscrn(jpos) = topexp
          else
            write (warnmsg, '(a,1x,i0,1x,a,1x,i0,1x,a,g0,a)') &
              'The vertical screen extent (SCRN_TOP - SCRN_BOT) for the '// &
              '(near) horizontal maw well', n, 'connection', j, &
              'is not equal to the well diameter (2 * RADIUS = ', &
              dtwo * this%radius(n), &
              '). The vertical screen extent is used to determine the '// &
              'saturation of a connection and should equal the well '// &
              'diameter for a horizontal connection.'
            call store_warning(warnmsg)
          end if
        end if
      end do
      write (this%iout, '(1x,a)') &
        'END OF '//trim(adjustl(this%text))//' ANGLEDATA'
      !
      ! -- deallocate local storage
      deallocate (iachk)
      deallocate (nboundchk)
    else
      !
      ! -- the NON_VERTICAL_WELLS option was specified but no ANGLEDATA block
      !    was found; warn that all connections will be treated as vertical
      if (this%inonvert /= 0) then
        write (warnmsg, '(a)') &
          'The NON_VERTICAL_WELLS option was specified but an ANGLEDATA '// &
          'block was not found. All multi-aquifer well connections will be '// &
          'treated as vertical.'
        call store_warning(warnmsg)
      end if
    end if
    !
    ! -- terminate if errors were encountered in the angledata block
    if (count_errors() > 0) then
      call this%parser%StoreErrorUnit()
    end if

Here is the call graph for this function:

maw_read_dimensions()

subroutine mawmodule::maw_read_dimensions

(

class(mawtype), intent(inout)

this

)

Definition at line 1479 of file gwf-maw.f90.

    use constantsmodule, only: linelength
    ! -- dummy
    class(MawType), intent(inout) :: this
    ! -- local
    character(len=LENBOUNDNAME) :: keyword
    integer(I4B) :: ierr
    logical :: isfound, endOfBlock
    ! -- format
    !
    ! -- initialize dimensions to -1
    this%nmawwells = -1
    this%maxbound = -1
    !
    ! -- get dimensions block
    call this%parser%GetBlock('DIMENSIONS', isfound, ierr, &
                              supportopenclose=.true.)
    !
    ! -- parse dimensions block if detected
    if (isfound) then
      write (this%iout, '(/1x,a)') &
        'PROCESSING '//trim(adjustl(this%text))//' DIMENSIONS'
      do
        call this%parser%GetNextLine(endofblock)
        if (endofblock) exit
        call this%parser%GetStringCaps(keyword)
        select case (keyword)
        case ('NMAWWELLS')
          this%nmawwells = this%parser%GetInteger()
          write (this%iout, '(4x,a,i0)') 'NMAWWELLS = ', this%nmawwells
        case default
          write (errmsg, '(3a)') &
            'Unknown '//trim(this%text)//' dimension: ', trim(keyword), '.'
          call store_error(errmsg)
        end select
      end do
      write (this%iout, '(1x,a)') &
        'END OF '//trim(adjustl(this%text))//' DIMENSIONS'
    else
      call store_error('Required dimensions block not found.', terminate=.true.)
    end if
    !
    ! -- verify dimensions were set correctly
    if (this%nmawwells < 0) then
      write (errmsg, '(a)') &
        'NMAWWELLS was not specified or was specified incorrectly.'
      call store_error(errmsg)
    end if
    !
    ! -- stop if errors were encountered in the DIMENSIONS block
    if (count_errors() > 0) then
      call this%parser%StoreErrorUnit()
    end if
    !
    ! -- read wells block
    call this%maw_read_wells()
    !
    ! -- read well_connections block
    call this%maw_read_well_connections()
    !
    ! -- read optional angledata block (non-vertical well connections)
    call this%maw_read_angledata()
    !
    ! -- Call define_listlabel to construct the list label that is written
    !    when PRINT_INPUT option is used.
    call this%define_listlabel()
    !
    ! -- setup the budget object
    call this%maw_setup_budobj()
    !
    ! -- setup the head table object
    call this%maw_setup_tableobj()

Here is the call graph for this function:

maw_read_initial_attr()

subroutine mawmodule::maw_read_initial_attr

(

class(mawtype), intent(inout)

this

)

Definition at line 1555 of file gwf-maw.f90.

    ! -- modules
    use constantsmodule, only: linelength
    use memorymanagermodule, only: mem_setptr
    ! -- dummy
    class(MawType), intent(inout) :: this
    ! -- local
    character(len=LINELENGTH) :: title
    character(len=LINELENGTH) :: text
    integer(I4B) :: ntabcols
    integer(I4B) :: j
    integer(I4B) :: n
    integer(I4B) :: nn
    integer(I4B) :: jpos
    integer(I4B) :: inode
    integer(I4B) :: idx
    real(DP) :: k11
    real(DP) :: k22
    character(len=10), dimension(0:4) :: ccond
    character(len=30) :: nodestr
    ! -- data
    data ccond(0)/'SPECIFIED '/
    data ccond(1)/'THIEM     '/
    data ccond(2)/'SKIN      '/
    data ccond(3)/'CUMULATIVE'/
    data ccond(4)/'MEAN      '/
    ! -- format
    character(len=*), parameter :: fmtwelln = &
      "(1X,//43X,'MULTI-AQUIFER WELL DATA'&
      &/1X,109('-'),&
      &/1X,7(A10,1X),A16)"
    character(len=*), parameter :: fmtwelld = &
      &"(1X,I10,1X,4(G10.3,1X),I10,1X,A10,1X,A16)"
    character(len=*), parameter :: fmtline = &
      &"(1X,119('-'),//)"
    character(len=*), parameter :: fmtwellcn = &
      "(1X,//37X,'MULTI-AQUIFER WELL CONNECTION DATA'&
      &/1X,119('-'),&
      &/1X,2(A10,1X),A20,7(A10,1X))"
    character(len=*), parameter :: fmtwellcd = &
      &"(1X,2(I10,1X),A20,1X,2(G10.3,1X),2(A10,1X),3(G10.3,1X))"
    !
    ! -- initialize xnewpak
    do n = 1, this%nmawwells
      this%xnewpak(n) = this%strt(n)
      this%xsto(n) = this%strt(n)
    end do
    !
    ! -- initialize status (iboundpak) of maw wells to active
    do n = 1, this%nmawwells
      select case (this%status(n))
      case ('CONSTANT')
        this%iboundpak(n) = -1
      case ('INACTIVE')
        this%iboundpak(n) = 0
      case ('ACTIVE')
        this%iboundpak(n) = 1
      end select
    end do
    !
    ! -- set imap and boundname for each connection
    if (this%inamedbound /= 0) then
      idx = 0
      do n = 1, this%nmawwells
        do j = 1, this%ngwfnodes(n)
          idx = idx + 1
          this%boundname(idx) = this%cmawname(n)
          this%imap(idx) = n
        end do
      end do
    else
      do n = 1, this%nmawwells
        this%cmawname(n) = ''
      end do
    end if
    !
    ! -- copy boundname into boundname_cst
    call this%copy_boundname()
    !
    ! -- set pointer to gwf iss and gwf hk
    call mem_setptr(this%gwfiss, 'ISS', create_mem_path(this%name_model))
    call mem_setptr(this%gwfk11, 'K11', create_mem_path(this%name_model, 'NPF'))
    call mem_setptr(this%gwfk22, 'K22', create_mem_path(this%name_model, 'NPF'))
    call mem_setptr(this%gwfik22, 'IK22', create_mem_path(this%name_model, 'NPF'))
    call mem_setptr(this%gwfsat, 'SAT', create_mem_path(this%name_model, 'NPF'))
    !
    ! -- qa data
    call this%maw_check_attributes()
    !
    ! -- Calculate the saturated conductance
    do n = 1, this%nmawwells
      !
      ! -- calculate saturated conductance only if CONDUCTANCE was not
      !    specified for each maw-gwf connection (CONDUCTANCE keyword).
      do j = 1, this%ngwfnodes(n)
        if (this%ieqn(n) /= 0) then
          inode = this%get_gwfnode(n, j)
          call this%maw_calculate_satcond(n, j, inode)
        end if
      end do
    end do
    !
    ! -- write summary of static well data
    ! -- write well data
    if (this%iprpak /= 0) then
      ntabcols = 7
      if (this%inamedbound /= 0) then
        ntabcols = ntabcols + 1
      end if
      title = trim(adjustl(this%text))//' PACKAGE ('// &
              trim(adjustl(this%packName))//') STATIC WELL DATA'
      call table_cr(this%inputtab, this%packName, title)
      call this%inputtab%table_df(this%nmawwells, ntabcols, this%iout)
      text = 'NUMBER'
      call this%inputtab%initialize_column(text, 10, alignment=tabcenter)
      text = 'RADIUS'
      call this%inputtab%initialize_column(text, 10, alignment=tabcenter)
      text = 'AREA'
      call this%inputtab%initialize_column(text, 10, alignment=tabcenter)
      text = 'WELL BOTTOM'
      call this%inputtab%initialize_column(text, 10, alignment=tabcenter)
      text = 'STARTING HEAD'
      call this%inputtab%initialize_column(text, 10, alignment=tabcenter)
      text = 'NUMBER OF GWF NODES'
      call this%inputtab%initialize_column(text, 10, alignment=tabcenter)
      text = 'CONDUCT. EQUATION'
      call this%inputtab%initialize_column(text, 10, alignment=tabcenter)
      if (this%inamedbound /= 0) then
        text = 'NAME'
        call this%inputtab%initialize_column(text, 20, alignment=tableft)
      end if
      do n = 1, this%nmawwells
        call this%inputtab%add_term(n)
        call this%inputtab%add_term(this%radius(n))
        call this%inputtab%add_term(this%area(n))
        call this%inputtab%add_term(this%bot(n))
        call this%inputtab%add_term(this%strt(n))
        call this%inputtab%add_term(this%ngwfnodes(n))
        call this%inputtab%add_term(ccond(this%ieqn(n)))
        if (this%inamedbound /= 0) then
          call this%inputtab%add_term(this%cmawname(n))
        end if
      end do
    end if
    !
    ! -- write well connection data
    if (this%iprpak /= 0) then
      ntabcols = 10
      if (this%inonvert /= 0) then
        ntabcols = ntabcols + 1
      end if
      title = trim(adjustl(this%text))//' PACKAGE ('// &
              trim(adjustl(this%packName))//') STATIC WELL CONNECTION DATA'
      call table_cr(this%inputtab, this%packName, title)
      call this%inputtab%table_df(this%maxbound, ntabcols, this%iout)
      text = 'NUMBER'
      call this%inputtab%initialize_column(text, 10, alignment=tabcenter)
      text = 'WELL CONNECTION'
      call this%inputtab%initialize_column(text, 10, alignment=tabcenter)
      text = 'CELLID'
      call this%inputtab%initialize_column(text, 20, alignment=tableft)
      text = 'TOP OF SCREEN'
      call this%inputtab%initialize_column(text, 10, alignment=tabcenter)
      text = 'BOTTOM OF SCREEN'
      call this%inputtab%initialize_column(text, 10, alignment=tabcenter)
      text = 'SKIN RADIUS'
      call this%inputtab%initialize_column(text, 10, alignment=tabcenter)
      text = 'SKIN K'
      call this%inputtab%initialize_column(text, 10, alignment=tabcenter)
      text = 'K11'
      call this%inputtab%initialize_column(text, 10, alignment=tabcenter)
      text = 'K22'
      call this%inputtab%initialize_column(text, 10, alignment=tabcenter)
      text = 'SATURATED WELL CONDUCT.'
      call this%inputtab%initialize_column(text, 10, alignment=tabcenter)
      if (this%inonvert /= 0) then
        text = 'ANGLE (DEG)'
        call this%inputtab%initialize_column(text, 10, alignment=tabcenter)
      end if
      !
      ! -- write the data to the table
      do n = 1, this%nmawwells
        do j = 1, this%ngwfnodes(n)
          call this%inputtab%add_term(n)
          call this%inputtab%add_term(j)
          jpos = this%get_jpos(n, j)
          nn = this%get_gwfnode(n, j)
          call this%dis%noder_to_string(nn, nodestr)
          call this%inputtab%add_term(nodestr)
          call this%inputtab%add_term(this%topscrn(jpos))
          call this%inputtab%add_term(this%botscrn(jpos))
          if (this%ieqn(n) == 2 .or. &
              this%ieqn(n) == 3 .or. &
              this%ieqn(n) == 4) then
            call this%inputtab%add_term(this%sradius(jpos))
            call this%inputtab%add_term(this%hk(jpos))
          else
            call this%inputtab%add_term(' ')
            call this%inputtab%add_term(' ')
          end if
          if (this%ieqn(n) == 1 .or. &
              this%ieqn(n) == 2 .or. &
              this%ieqn(n) == 3) then
            k11 = this%gwfk11(nn)
            if (this%gwfik22 == 0) then
              k22 = this%gwfk11(nn)
            else
              k22 = this%gwfk22(nn)
            end if
            call this%inputtab%add_term(k11)
            call this%inputtab%add_term(k22)
          else
            call this%inputtab%add_term(' ')
            call this%inputtab%add_term(' ')
          end if
          call this%inputtab%add_term(this%satcond(jpos))
          if (this%inonvert /= 0) then
            call this%inputtab%add_term(this%angle(jpos))
          end if
        end do
      end do
    end if
    !
    ! -- finished with pointer to gwf hydraulic conductivity
    this%gwfk11 => null()
    this%gwfk22 => null()
    this%gwfik22 => null()
    this%gwfsat => null()
    !
    ! -- check for any error conditions
    if (count_errors() > 0) then
      call store_error_unit(this%inunit)
    end if

Here is the call graph for this function:

maw_read_options()

subroutine mawmodule::maw_read_options	(	class(mawtype), intent(inout)	this,
		character(len=*), intent(inout)	option,
		logical, intent(inout)	found
	)

Overrides BndTypebnd_options

Definition at line 2107 of file gwf-maw.f90.

    use constantsmodule, only: maxcharlen, dzero, mnormal
    use openspecmodule, only: access, form
    use inputoutputmodule, only: urword, assign_iounit, openfile
    ! -- dummy
    class(MawType), intent(inout) :: this
    character(len=*), intent(inout) :: option
    logical, intent(inout) :: found
    ! -- local
    character(len=MAXCHARLEN) :: fname, keyword
    ! -- formats
    character(len=*), parameter :: fmtflowingwells = &
      &"(4x, 'FLOWING WELLS WILL BE SIMULATED.')"
    character(len=*), parameter :: fmtshutdown = &
      &"(4x, 'SHUTDOWN ', a, ' VALUE (',g15.7,') SPECIFIED.')"
    character(len=*), parameter :: fmtnostoragewells = &
      &"(4x, 'WELL STORAGE WILL NOT BE SIMULATED.')"
    character(len=*), parameter :: fmtmawbin = &
      "(4x, 'MAW ', 1x, a, 1x, ' WILL BE SAVED TO FILE: ', a, /4x, &
     &'OPENED ON UNIT: ', I0)"
    !
    ! -- Check for 'FLOWING_WELLS' and set this%iflowingwells
    found = .true.
    select case (option)
    case ('PRINT_HEAD')
      this%iprhed = 1
      write (this%iout, '(4x,a)') &
        trim(adjustl(this%text))//' heads will be printed to listing file.'
    case ('HEAD')
      call this%parser%GetStringCaps(keyword)
      if (keyword == 'FILEOUT') then
        call this%parser%GetString(fname)
        call assign_iounit(this%iheadout, this%inunit, "HEAD fileout")
        call openfile(this%iheadout, this%iout, fname, 'DATA(BINARY)', &
                      form, access, 'REPLACE', mode_opt=mnormal)
        write (this%iout, fmtmawbin) 'HEAD', trim(adjustl(fname)), &
          this%iheadout
      else
        call store_error('Optional maw stage keyword must be '// &
                         'followed by fileout.')
      end if
    case ('BUDGET')
      call this%parser%GetStringCaps(keyword)
      if (keyword == 'FILEOUT') then
        call this%parser%GetString(fname)
        call assign_iounit(this%ibudgetout, this%inunit, "BUDGET fileout")
        call openfile(this%ibudgetout, this%iout, fname, 'DATA(BINARY)', &
                      form, access, 'REPLACE', mode_opt=mnormal)
        write (this%iout, fmtmawbin) 'BUDGET', trim(adjustl(fname)), &
          this%ibudgetout
      else
        call store_error('Optional maw budget keyword must be '// &
                         'followed by fileout.')
      end if
    case ('BUDGETCSV')
      call this%parser%GetStringCaps(keyword)
      if (keyword == 'FILEOUT') then
        call this%parser%GetString(fname)
        call assign_iounit(this%ibudcsv, this%inunit, "BUDGETCSV fileout")
        call openfile(this%ibudcsv, this%iout, fname, 'CSV', &
                      filstat_opt='REPLACE')
        write (this%iout, fmtmawbin) 'BUDGET CSV', trim(adjustl(fname)), &
          this%ibudcsv
      else
        call store_error('OPTIONAL BUDGETCSV KEYWORD MUST BE FOLLOWED BY &
          &FILEOUT')
      end if
    case ('FLOWING_WELLS')
      this%iflowingwells = 1
      write (this%iout, fmtflowingwells)
    case ('SHUTDOWN_THETA')
      this%theta = this%parser%GetDouble()
      write (this%iout, fmtshutdown) 'THETA', this%theta
    case ('SHUTDOWN_KAPPA')
      this%kappa = this%parser%GetDouble()
      write (this%iout, fmtshutdown) 'KAPPA', this%kappa
    case ('MOVER')
      this%imover = 1
      write (this%iout, '(4x,A)') 'MOVER OPTION ENABLED'
    case ('NO_WELL_STORAGE')
      this%imawissopt = 1
      write (this%iout, fmtnostoragewells)
    case ('NON_VERTICAL_WELLS')
      this%inonvert = 1
      write (this%iout, '(4x,a)') &
        'NON-VERTICAL (SLANTED) MULTI-AQUIFER WELL CONNECTIONS WILL BE '// &
        'SIMULATED. SCREEN LENGTHS FOR CONNECTIONS LISTED IN THE ANGLEDATA '// &
        'BLOCK WILL BE USED TO CALCULATE THE SATURATED CONDUCTANCE.'
    case ('FLOW_CORRECTION')
      this%correct_flow = .true.
      write (this%iout, '(4x,a,/,4x,a)') &
        'MAW-GWF FLOW CORRECTIONS WILL BE APPLIED WHEN MAW HEADS ARE BELOW', &
        'OR GWF HEADS IN CONNECTED CELLS ARE BELOW THE CELL BOTTOM.'
    case ('MAW_FLOW_REDUCE_CSV')
      call this%parser%GetStringCaps(keyword)
      if (keyword == 'FILEOUT') then
        call this%parser%GetString(fname)
        call this%maw_redflow_csv_init(fname)
      else
        call store_error('OPTIONAL MAW_FLOW_REDUCE_CSV KEYWORD MUST BE &
          &FOLLOWED BY FILEOUT')
      end if
      !
      ! -- right now these are options that are only available in the
      !    development version and are not included in the documentation.
      !    These options are only available when IDEVELOPMODE in
      !    constants module is set to 1
    case ('DEV_PEACEMAN_EFFECTIVE_RADIUS')
      call this%parser%DevOpt()
      this%ieffradopt = 1
      write (this%iout, '(4x,a)') &
        'EFFECTIVE RADIUS FOR STRUCTURED GRIDS WILL BE CALCULATED &
        &USING PEACEMAN 1983'
    case default
      !
      ! -- No options found
      found = .false.
    end select

Here is the call graph for this function:

maw_read_well_connections()

subroutine mawmodule::maw_read_well_connections

(

class(mawtype), intent(inout)

this

)

Definition at line 826 of file gwf-maw.f90.

    use constantsmodule, only: linelength
    ! -- dummy
    class(MawType), intent(inout) :: this
    ! -- local
    character(len=LINELENGTH) :: cellid
    character(len=30) :: nodestr
    logical :: isfound
    logical :: endOfBlock
    integer(I4B) :: ierr
    integer(I4B) :: ival
    integer(I4B) :: j
    integer(I4B) :: jj
    integer(I4B) :: n
    integer(I4B) :: nn
    integer(I4B) :: nn2
    integer(I4B) :: ipos
    integer(I4B) :: jpos
    integer(I4B) :: ireset_scrntop
    integer(I4B) :: ireset_scrnbot
    integer(I4B) :: ireset_wellbot
    real(DP) :: rval
    real(DP) :: topnn
    real(DP) :: botnn
    real(DP) :: botw
    integer(I4B), dimension(:), pointer, contiguous :: nboundchk
    integer(I4B), dimension(:), pointer, contiguous :: iachk
    !
    ! -- initialize counters
    ireset_scrntop = 0
    ireset_scrnbot = 0
    ireset_wellbot = 0
    !
    ! -- allocate and initialize local storage
    allocate (iachk(this%nmawwells + 1))
    iachk(1) = 1
    do n = 1, this%nmawwells
      iachk(n + 1) = iachk(n) + this%ngwfnodes(n)
    end do
    allocate (nboundchk(this%maxbound))
    do n = 1, this%maxbound
      nboundchk(n) = 0
    end do
    !
    ! -- get well_connections block
    call this%parser%GetBlock('CONNECTIONDATA', isfound, ierr, &
                              supportopenclose=.true.)
    !
    ! -- parse well_connections block if detected
    if (isfound) then
      write (this%iout, '(/1x,a)') 'PROCESSING '//trim(adjustl(this%text))// &
        ' CONNECTIONDATA'
      do
        call this%parser%GetNextLine(endofblock)
        if (endofblock) exit
        !
        ! -- well number
        ival = this%parser%GetInteger()
        n = ival
        !
        ! -- check for error condition
        if (n < 1 .or. n > this%nmawwells) then
          write (errmsg, '(a,1x,i0,a)') &
            'IMAW must be greater than 0 and less than or equal to ', &
            this%nmawwells, '.'
          call store_error(errmsg)
          cycle
        end if
        !
        ! -- read connection number
        ival = this%parser%GetInteger()
        if (ival < 1 .or. ival > this%ngwfnodes(n)) then
          write (errmsg, '(a,1x,i0,1x,a,1x,i0,a)') &
            'JCONN for well ', n, &
            'must be greater than 1 and less than or equal to ', &
            this%ngwfnodes(n), '.'
          call store_error(errmsg)
          cycle
        end if

        ipos = iachk(n) + ival - 1
        nboundchk(ipos) = nboundchk(ipos) + 1

        j = ival
        jpos = this%get_jpos(n, ival)
        !
        ! -- read gwfnodes from the line
        call this%parser%GetCellid(this%dis%ndim, cellid)
        nn = this%dis%noder_from_cellid(cellid, this%inunit, this%iout)
        topnn = this%dis%top(nn)
        botnn = this%dis%bot(nn)
        botw = this%bot(n)
        !
        ! -- set gwf node number for connection
        this%gwfnodes(jpos) = nn
        !
        ! -- top of screen
        rval = this%parser%GetDouble()
        ! -- retain the user-specified screen top so a non-vertical SPECIFIED
        !    connection can honor it (it is otherwise reset to the cell top)
        this%usrtopscrn(jpos) = rval
        if (this%ieqn(n) /= 4) then
          rval = topnn
        else
          if (rval > topnn) then
            ireset_scrntop = ireset_scrntop + 1
            rval = topnn
          end if
        end if
        this%topscrn(jpos) = rval
        !
        ! -- bottom of screen
        rval = this%parser%GetDouble()
        ! -- retain the user-specified screen bottom so a non-vertical SPECIFIED
        !    connection can honor it (it is otherwise reset to the cell bottom)
        this%usrbotscrn(jpos) = rval
        if (this%ieqn(n) /= 4) then
          rval = botnn
        else
          if (rval < botnn) then
            ireset_scrnbot = ireset_scrnbot + 1
            rval = botnn
          end if
        end if
        this%botscrn(jpos) = rval
        !
        ! -- adjust the bottom of the well for all conductance approaches
        !    except for "mean"
        if (rval < botw) then
          if (this%ieqn(n) /= 4) then
            ireset_wellbot = ireset_wellbot + 1
            botw = rval
            this%bot(n) = rval
          else
            write (errmsg, '(a,1x,i0,1x,a,1x,i0,1x,a,g0,a,g0,a)') &
              'Screen bottom for maw well', n, 'connection', j, '(', &
              this%botscrn(jpos), ') is less than the well bottom (', &
              this%bot(n), ').'
            call store_error(errmsg)
          end if
        end if
        !
        ! -- hydraulic conductivity or conductance
        rval = this%parser%GetDouble()
        if (this%ieqn(n) == 0) then
          this%satcond(jpos) = rval
        else if (this%ieqn(n) == 2 .OR. this%ieqn(n) == 3 .OR. &
                 this%ieqn(n) == 4) then
          this%hk(jpos) = rval
        end if
        !
        ! -- skin radius
        rval = this%parser%GetDouble()
        if (this%ieqn(n) == 2 .OR. this%ieqn(n) == 3 .OR. &
            this%ieqn(n) == 4) then
          this%sradius(jpos) = rval
          if (this%sradius(jpos) <= this%radius(n)) then
            write (errmsg, '(a,1x,i0,1x,a,1x,i0,1x,a,g0,a,g0,a)') &
              'Screen radius for maw well', n, 'connection', j, '(', &
              this%sradius(jpos), &
              ') is less than or equal to the well radius (', &
              this%radius(n), ').'
            call store_error(errmsg)
          end if
        end if
      end do
      write (this%iout, '(1x,a)') &
        'END OF '//trim(adjustl(this%text))//' CONNECTIONDATA'

      ipos = 0
      do n = 1, this%nmawwells
        do j = 1, this%ngwfnodes(n)
          ipos = ipos + 1
          !
          ! -- check for missing or duplicate maw well connections
          if (nboundchk(ipos) == 0) then
            write (errmsg, '(a,1x,i0,1x,a,1x,i0,a)') &
              'No data specified for maw well', n, 'connection', j, '.'
            call store_error(errmsg)
          else if (nboundchk(ipos) > 1) then
            write (errmsg, '(a,1x,i0,1x,a,1x,i0,1x,a,1x,i0,1x,a)') &
              'Data for maw well', n, 'connection', j, &
              'specified', nboundchk(n), 'times.'
            call store_error(errmsg)
          end if
        end do
      end do
      !
      ! -- make sure that more than one connection per cell is only specified
      !    wells using the mean conducance type
      do n = 1, this%nmawwells
        if (this%ieqn(n) /= 4) then
          do j = 1, this%ngwfnodes(n)
            nn = this%get_gwfnode(n, j)
            do jj = 1, this%ngwfnodes(n)
              !
              ! -- skip current maw node
              if (jj == j) then
                cycle
              end if
              nn2 = this%get_gwfnode(n, jj)
              if (nn2 == nn) then
                call this%dis%noder_to_string(nn, nodestr)
                write (errmsg, '(a,1x,i0,1x,a,1x,i0,3(1x,a))') &
                  'Only one connection can be specified for maw well', &
                  n, 'connection', j, 'to gwf cell', trim(adjustl(nodestr)), &
                  'unless the mean condeqn is specified.'
                call store_error(errmsg)
              end if
            end do
          end do
        end if
      end do
    else
      call store_error('Required connectiondata block not found.')
    end if
    !
    ! -- deallocate local variable
    deallocate (iachk)
    deallocate (nboundchk)
    !
    ! -- add warning messages
    if (ireset_scrntop > 0) then
      write (warnmsg, '(a,1x,a,1x,a,1x,i0,1x,a)') &
        'The screen tops in multi-aquifer well package', trim(this%packName), &
        'were reset to the top of the connected cell', ireset_scrntop, 'times.'
      call store_warning(warnmsg)
    end if
    if (ireset_scrnbot > 0) then
      write (warnmsg, '(a,1x,a,1x,a,1x,i0,1x,a)') &
        'The screen bottoms in multi-aquifer well package', trim(this%packName), &
        'were reset to the bottom of the connected cell', ireset_scrnbot, &
        'times.'
      call store_warning(warnmsg)
    end if
    if (ireset_wellbot > 0) then
      write (warnmsg, '(a,1x,a,1x,a,1x,i0,1x,a)') &
        'The well bottoms in multi-aquifer well package', trim(this%packName), &
        'were reset to the bottom of the connected cell', ireset_wellbot, &
        'times.'
      call store_warning(warnmsg)
    end if
    !
    ! -- write summary of maw well_connection error messages
    if (count_errors() > 0) then
      call this%parser%StoreErrorUnit()
    end if

Here is the call graph for this function:

maw_read_wells()

subroutine mawmodule::maw_read_wells

(

class(mawtype), intent(inout)

this

)

Definition at line 568 of file gwf-maw.f90.

    use constantsmodule, only: linelength
    use timeseriesmanagermodule, only: read_value_or_time_series_adv
    ! -- dummy
    class(MawType), intent(inout) :: this
    ! -- local
    character(len=LINELENGTH) :: text
    character(len=LINELENGTH) :: keyword
    character(len=LINELENGTH) :: cstr
    character(len=LENBOUNDNAME) :: bndName
    character(len=LENBOUNDNAME) :: bndNameTemp
    character(len=9) :: cno
    logical :: isfound
    logical :: endOfBlock
    integer(I4B) :: ival
    integer(I4B) :: n
    integer(I4B) :: j
    integer(I4B) :: ii
    integer(I4B) :: jj
    integer(I4B) :: ieqn
    integer(I4B) :: itmp
    integer(I4B) :: ierr
    integer(I4B) :: idx
    real(DP) :: rval
    real(DP), pointer :: bndElem => null()
    ! -- local allocatable arrays
    character(len=LINELENGTH), dimension(:), allocatable :: strttext
    character(len=LENBOUNDNAME), dimension(:), allocatable :: nametxt
    character(len=50), dimension(:, :), allocatable :: caux
    integer(I4B), dimension(:), allocatable :: nboundchk
    integer(I4B), dimension(:), allocatable :: wellieqn
    integer(I4B), dimension(:), allocatable :: ngwfnodes
    real(DP), dimension(:), allocatable :: radius
    real(DP), dimension(:), allocatable :: bottom
    ! -- format
    character(len=*), parameter :: fmthdbot = &
      "('well head (', G0, ') must be greater than or equal to the &
      &BOTTOM_ELEVATION (', G0, ').')"
    !
    ! -- allocate and initialize temporary variables
    allocate (strttext(this%nmawwells))
    allocate (nametxt(this%nmawwells))
    if (this%naux > 0) then
      allocate (caux(this%naux, this%nmawwells))
    end if
    allocate (nboundchk(this%nmawwells))
    allocate (wellieqn(this%nmawwells))
    allocate (ngwfnodes(this%nmawwells))
    allocate (radius(this%nmawwells))
    allocate (bottom(this%nmawwells))
    !
    ! -- initialize temporary variables
    do n = 1, this%nmawwells
      nboundchk(n) = 0
    end do
    !
    ! -- initialize itmp
    itmp = 0
    !
    ! -- set npakeq to nmawwells
    this%npakeq = this%nmawwells
    !
    ! -- read maw well data
    ! -- get wells block
    call this%parser%GetBlock('PACKAGEDATA', isfound, ierr, &
                              supportopenclose=.true.)
    !
    ! -- parse locations block if detected
    if (isfound) then
      write (this%iout, '(/1x,a)') &
        'PROCESSING '//trim(adjustl(this%text))//' PACKAGEDATA'
      do
        call this%parser%GetNextLine(endofblock)
        if (endofblock) exit
        ival = this%parser%GetInteger()
        n = ival

        if (n < 1 .or. n > this%nmawwells) then
          write (errmsg, '(a,1x,i0,a)') &
            'IMAW must be greater than 0 and less than or equal to', &
            this%nmawwells, '.'
          call store_error(errmsg)
          cycle
        end if
        !
        ! -- increment nboundchk
        nboundchk(n) = nboundchk(n) + 1
        !
        ! -- radius
        rval = this%parser%GetDouble()
        if (rval <= dzero) then
          write (errmsg, '(a,1x,i0,1x,a)') &
            'Radius for well', n, 'must be greater than zero.'
          call store_error(errmsg)
        end if
        radius(n) = rval
        !
        ! -- well bottom
        bottom(n) = this%parser%GetDouble()
        !
        ! -- strt
        call this%parser%GetString(strttext(n))
        !
        ! -- ieqn
        call this%parser%GetStringCaps(keyword)
        if (keyword == 'SPECIFIED') then
          ieqn = 0
        else if (keyword == 'THIEM') then
          ieqn = 1
        else if (keyword == 'THEIM') then ! # codespell:ignore
          ieqn = 1
          write (warnmsg, '(a,a,a,a,a,a)') &
            "CONDEQN in '", trim(this%packName), "' should be ", &
            "corrected from '", trim(keyword), "' to 'THIEM'."
          call store_warning(warnmsg)
        else if (keyword == 'SKIN') then
          ieqn = 2
        else if (keyword == 'CUMULATIVE') then
          ieqn = 3
        else if (keyword == 'MEAN') then
          ieqn = 4
        else
          write (errmsg, '(a,1x,i0,1x,a)') &
            'CONDEQN for well', n, &
            "must be 'CUMULATIVE', 'THIEM', 'MEAN', or 'SKIN'."
        end if
        wellieqn(n) = ieqn
        !
        ! -- ngwnodes
        ival = this%parser%GetInteger()
        if (ival < 1) then
          ival = 0
          write (errmsg, '(a,1x,i0,1x,a)') &
            'NGWFNODES for well', n, 'must be greater than zero.'
          call store_error(errmsg)
        end if

        if (ival > 0) then
          ngwfnodes(n) = ival
        end if
        !
        ! -- increment maxbound
        itmp = itmp + ival
        !
        ! -- get aux data
        do jj = 1, this%naux
          call this%parser%GetString(caux(jj, n))
        end do
        !
        ! -- set default bndName
        write (cno, '(i9.9)') n
        bndname = 'MAWWELL'//cno
        !
        ! -- read well name
        if (this%inamedbound /= 0) then
          call this%parser%GetStringCaps(bndnametemp)
          if (bndnametemp /= '') then
            bndname = bndnametemp
          end if
        end if
        nametxt(n) = bndname
      end do

      write (this%iout, '(1x,a)') &
        'END OF '//trim(adjustl(this%text))//' PACKAGEDATA'
      !
      ! -- check for duplicate or missing wells
      do n = 1, this%nmawwells
        if (nboundchk(n) == 0) then
          write (errmsg, '(a,1x,i0,a)') 'No data specified for maw well', n, '.'
          call store_error(errmsg)
        else if (nboundchk(n) > 1) then
          write (errmsg, '(a,1x,i0,1x,a,1x,i0,1x,a)') &
            'Data for maw well', n, 'specified', nboundchk(n), 'times.'
          call store_error(errmsg)
        end if
      end do
    else
      call store_error('Required packagedata block not found.')
    end if
    !
    ! -- terminate if any errors were detected
    if (count_errors() > 0) then
      call this%parser%StoreErrorUnit()
    end if
    !
    ! -- set MAXBOUND
    this%maxbound = itmp
    write (this%iout, '(//4x,a,i7)') 'MAXBOUND = ', this%maxbound
    !
    ! -- allocate well and connection data
    call this%maw_allocate_well_conn_arrays()
    !
    ! -- fill well data with data stored in temporary local arrays
    do n = 1, this%nmawwells
      rval = radius(n)
      this%radius(n) = rval
      this%area(n) = dpi * rval**dtwo
      this%bot(n) = bottom(n)
      this%ieqn(n) = wellieqn(n)
      this%ngwfnodes(n) = ngwfnodes(n)
      this%cmawname(n) = nametxt(n)
      !
      ! fill timeseries aware data
      !
      ! -- well_head and strt
      jj = 1 ! For WELL_HEAD
      bndelem => this%well_head(n)
      call read_value_or_time_series_adv(strttext(n), n, jj, bndelem, &
                                         this%packName, 'BND', this%tsManager, &
                                         this%iprpak, 'WELL_HEAD')
      !
      ! -- set starting head value
      this%strt(n) = this%well_head(n)
      !
      ! -- check for error condition
      if (this%strt(n) < this%bot(n)) then
        write (cstr, fmthdbot) this%strt(n), this%bot(n)
        call this%maw_set_attribute_error(n, 'STRT', trim(cstr))
      end if
      !
      ! -- fill aux data
      do jj = 1, this%naux
        text = caux(jj, n)
        ii = n
        bndelem => this%mauxvar(jj, ii)
        call read_value_or_time_series_adv(text, ii, jj, bndelem, this%packName, &
                                           'AUX', this%tsManager, this%iprpak, &
                                           this%auxname(jj))
      end do
    end do
    !
    ! -- set iaconn and imap for each connection
    idx = 0
    this%iaconn(1) = 1
    do n = 1, this%nmawwells
      do j = 1, this%ngwfnodes(n)
        idx = idx + 1
        this%imap(idx) = n
      end do
      this%iaconn(n + 1) = idx + 1
    end do
    !
    ! -- deallocate local storage
    deallocate (strttext)
    deallocate (nametxt)
    if (this%naux > 0) then
      deallocate (caux)
    end if
    deallocate (nboundchk)
    deallocate (wellieqn)
    deallocate (ngwfnodes)
    deallocate (radius)
    deallocate (bottom)

Here is the call graph for this function:

maw_redflow_csv_init()

subroutine mawmodule::maw_redflow_csv_init ( class(mawtype), intent(inout)  this, character(len=*), intent(in)  fname  )

private

Parameters

[in,out]

this

MawType object

Definition at line 4034 of file gwf-maw.f90.

    ! -- dummy variables
    class(MawType), intent(inout) :: this !< MawType object
    character(len=*), intent(in) :: fname
    ! -- format
    character(len=*), parameter :: fmtredflowcsv = &
      "(4x, 'MAW REDUCED FLOW INFORMATION WILL BE SAVED TO FILE: ', a, /4x, &
    &'OPENED ON UNIT: ', I0)"

    this%ioutredflowcsv = getunit()
    call openfile(this%ioutredflowcsv, this%iout, fname, 'CSV', &
                  filstat_opt='REPLACE')
    write (this%iout, fmtredflowcsv) trim(adjustl(fname)), &
      this%ioutredflowcsv
    write (this%ioutredflowcsv, '(a)') &
      'time,period,step,MAWnumber,rate-requested,rate-actual,maw-reduction'

Here is the call graph for this function:

maw_redflow_csv_write()

subroutine mawmodule::maw_redflow_csv_write ( class(mawtype), intent(inout)  this )

private

Parameters

[in,out]

this

MawType object

Definition at line 4054 of file gwf-maw.f90.

    ! -- modules
    use tdismodule, only: totim, kstp, kper
    ! -- dummy variables
    class(MawType), intent(inout) :: this !< MawType object
    ! -- local
    integer(I4B) :: n
    !integer(I4B) :: nodereduced
    !integer(I4B) :: nodeuser
    real(DP) :: v
    ! -- format
    do n = 1, this%nmawwells
      !
      ! -- test if node is constant or inactive
      if (this%status(n) .ne. 'ACTIVE') then
        cycle
      end if
      v = this%rate(n) - this%ratesim(n) !reductions in extraction will be negative and reductions in injection will be positive; follows convention of WEL AUTO_FLOW_REDUCE_CSV
      if (abs(v) > dem9) then !need to check absolute value of difference for both extraction and injection; using 1e-9 as epsilon value but could be tweaked
        write (this%ioutredflowcsv, '(*(G0,:,","))') &
          totim, kper, kstp, n, this%rate(n), this%ratesim(n), v
      end if
    end do

maw_rp()

subroutine mawmodule::maw_rp ( class(mawtype), intent(inout)  this )

private

Read itmp and new boundaries if itmp > 0

Definition at line 2261 of file gwf-maw.f90.

    use constantsmodule, only: linelength
    use tdismodule, only: kper, nper
    ! -- dummy
    class(MawType), intent(inout) :: this
    ! -- local
    character(len=LINELENGTH) :: title
    character(len=LINELENGTH) :: line
    character(len=LINELENGTH) :: text
    character(len=16) :: csteady
    logical :: isfound
    logical :: endOfBlock
    integer(I4B) :: ierr
    integer(I4B) :: node
    integer(I4B) :: n
    integer(I4B) :: ntabcols
    integer(I4B) :: ntabrows
    integer(I4B) :: imaw
    integer(I4B) :: ibnd
    integer(I4B) :: j
    integer(I4B) :: jpos
    integer(I4B) :: iheadlimit_warning
    ! -- formats
    character(len=*), parameter :: fmtblkerr = &
      &"('Looking for BEGIN PERIOD iper.  Found ', a, ' instead.')"
    character(len=*), parameter :: fmtlsp = &
      &"(1X,/1X,'REUSING ',A,'S FROM LAST STRESS PERIOD')"
    !
    ! -- initialize counters
    iheadlimit_warning = 0
    !
    ! -- set steady-state flag based on gwfiss
    this%imawiss = this%gwfiss
    !
    ! -- reset maw steady flag if 'STEADY-STATE' specified in the OPTIONS block
    if (this%imawissopt == 1) then
      this%imawiss = 1
    end if
    !
    ! -- set nbound to maxbound
    this%nbound = this%maxbound
    !
    ! -- Set ionper to the stress period number for which a new block of data
    !    will be read.
    if (this%inunit == 0) return
    !
    ! -- get stress period data
    if (this%ionper < kper) then
      !
      ! -- get period block
      call this%parser%GetBlock('PERIOD', isfound, ierr, &
                                supportopenclose=.true., &
                                blockrequired=.false.)
      if (isfound) then
        !
        ! -- read ionper and check for increasing period numbers
        call this%read_check_ionper()
      else
        !
        ! -- PERIOD block not found
        if (ierr < 0) then
          ! -- End of file found; data applies for remainder of simulation.
          this%ionper = nper + 1
        else
          ! -- Found invalid block
          call this%parser%GetCurrentLine(line)
          write (errmsg, fmtblkerr) adjustl(trim(line))
          call store_error(errmsg, terminate=.true.)
        end if
      end if
    end if
    !
    ! -- Read data if ionper == kper
    if (this%ionper == kper) then
      !
      ! -- setup table for period data
      if (this%iprpak /= 0) then
        !
        ! -- reset the input table object
        title = trim(adjustl(this%text))//' PACKAGE ('// &
                trim(adjustl(this%packName))//') DATA FOR PERIOD'
        write (title, '(a,1x,i6)') trim(adjustl(title)), kper
        call table_cr(this%inputtab, this%packName, title)
        call this%inputtab%table_df(1, 5, this%iout, finalize=.false.)
        text = 'NUMBER'
        call this%inputtab%initialize_column(text, 10, alignment=tabcenter)
        text = 'KEYWORD'
        call this%inputtab%initialize_column(text, 20, alignment=tableft)
        do n = 1, 3
          write (text, '(a,1x,i6)') 'VALUE', n
          call this%inputtab%initialize_column(text, 15, alignment=tabcenter)
        end do
      end if
      !
      ! -- set flag to check attributes
      this%check_attr = 1
      do
        call this%parser%GetNextLine(endofblock)
        if (endofblock) exit

        imaw = this%parser%GetInteger()
        if (imaw < 1 .or. imaw > this%nmawwells) then
          write (errmsg, '(2(a,1x),i0,a)') &
            'IMAW must be greater than 0 and', &
            'less than or equal to ', this%nmawwells, '.'
          call store_error(errmsg)
          cycle
        end if
        !
        ! -- set stress period data
        call this%maw_set_stressperiod(imaw, iheadlimit_warning)
        !
        ! -- write line to table
        if (this%iprpak /= 0) then
          call this%parser%GetCurrentLine(line)
          call this%inputtab%line_to_columns(line)
        end if
      end do
      if (this%iprpak /= 0) then
        call this%inputtab%finalize_table()
      end if
      !
      ! -- using data from the last stress period
    else
      write (this%iout, fmtlsp) trim(this%filtyp)
    end if
    !
    ! -- issue warning messages
    if (iheadlimit_warning > 0) then
      write (warnmsg, '(a,a,a,1x,a,1x,a)') &
        "HEAD_LIMIT in '", trim(this%packName), "' was below the well bottom", &
        "for one or more multi-aquifer well(s). This may result in", &
        "convergence failures for some models."
      call store_warning(warnmsg, substring=warnmsg(:50))
    end if
    !
    ! -- write summary of maw well stress period error messages
    if (count_errors() > 0) then
      call this%parser%StoreErrorUnit()
    end if
    !
    ! -- qa data if necessary
    if (this%check_attr /= 0) then
      call this%maw_check_attributes()

      ! -- write summary of stress period data for MAW
      if (this%iprpak == 1) then
        if (this%imawiss /= 0) then
          csteady = 'STEADY-STATE    '
        else
          csteady = 'TRANSIENT       '
        end if
        !
        ! -- reset the input table object for rate data
        title = trim(adjustl(this%text))//' PACKAGE ('// &
                trim(adjustl(this%packName))//') '//trim(adjustl(csteady))// &
                ' RATE DATA FOR PERIOD'
        write (title, '(a,1x,i6)') trim(adjustl(title)), kper
        ntabcols = 6
        call table_cr(this%inputtab, this%packName, title)
        call this%inputtab%table_df(this%nmawwells, ntabcols, this%iout)
        text = 'NUMBER'
        call this%inputtab%initialize_column(text, 10, alignment=tabcenter)
        text = 'STATUS'
        call this%inputtab%initialize_column(text, 12, alignment=tabcenter)
        text = 'RATE'
        call this%inputtab%initialize_column(text, 12, alignment=tabcenter)
        text = 'SPECIFIED HEAD'
        call this%inputtab%initialize_column(text, 12, alignment=tabcenter)
        text = 'PUMP ELEVATION'
        call this%inputtab%initialize_column(text, 12, alignment=tabcenter)
        text = 'REDUCTION LENGTH'
        call this%inputtab%initialize_column(text, 12, alignment=tabcenter)
        do n = 1, this%nmawwells
          call this%inputtab%add_term(n)
          call this%inputtab%add_term(this%status(n))
          call this%inputtab%add_term(this%rate(n))
          if (this%iboundpak(n) < 0) then
            call this%inputtab%add_term(this%well_head(n))
          else
            call this%inputtab%add_term(' ')
          end if
          call this%inputtab%add_term(this%pumpelev(n))
          if (this%reduction_length(n) /= dep20) then
            call this%inputtab%add_term(this%reduction_length(n))
          else
            call this%inputtab%add_term(' ')
          end if
        end do
        !
        ! -- flowing wells
        if (this%iflowingwells > 0) then
          !
          ! -- reset the input table object for flowing well data
          title = trim(adjustl(this%text))//' PACKAGE ('// &
                  trim(adjustl(this%packName))//') '//trim(adjustl(csteady))// &
                  ' FLOWING WELL DATA FOR PERIOD'
          write (title, '(a,1x,i6)') trim(adjustl(title)), kper
          ntabcols = 4
          ntabrows = 0
          do n = 1, this%nmawwells
            if (this%fwcond(n) > dzero) then
              ntabrows = ntabrows + 1
            end if
          end do
          if (ntabrows > 0) then
            call table_cr(this%inputtab, this%packName, title)
            call this%inputtab%table_df(ntabrows, ntabcols, this%iout)
            text = 'NUMBER'
            call this%inputtab%initialize_column(text, 10, alignment=tabcenter)
            text = 'ELEVATION'
            call this%inputtab%initialize_column(text, 12, alignment=tabcenter)
            text = 'CONDUCT.'
            call this%inputtab%initialize_column(text, 12, alignment=tabcenter)
            text = 'REDUCTION LENGTH'
            call this%inputtab%initialize_column(text, 12, alignment=tabcenter)
            do n = 1, this%nmawwells
              if (this%fwcond(n) > dzero) then
                call this%inputtab%add_term(n)
                call this%inputtab%add_term(this%fwelev(n))
                call this%inputtab%add_term(this%fwcond(n))
                call this%inputtab%add_term(this%fwrlen(n))
              end if
            end do
          end if
        end if
        !
        ! -- reset the input table object for shutoff data
        title = trim(adjustl(this%text))//' PACKAGE ('// &
                trim(adjustl(this%packName))//') '//trim(adjustl(csteady))// &
                ' WELL SHUTOFF DATA FOR PERIOD'
        write (title, '(a,1x,i6)') trim(adjustl(title)), kper
        ntabcols = 4
        ntabrows = 0
        do n = 1, this%nmawwells
          if (this%shutofflevel(n) /= dep20) then
            ntabrows = ntabrows + 1
          end if
        end do
        if (ntabrows > 0) then
          call table_cr(this%inputtab, this%packName, title)
          call this%inputtab%table_df(ntabrows, ntabcols, this%iout)
          text = 'NUMBER'
          call this%inputtab%initialize_column(text, 10, alignment=tabcenter)
          text = 'ELEVATION'
          call this%inputtab%initialize_column(text, 12, alignment=tabcenter)
          text = 'MINIMUM. Q'
          call this%inputtab%initialize_column(text, 12, alignment=tabcenter)
          text = 'MAXIMUM Q'
          call this%inputtab%initialize_column(text, 12, alignment=tabcenter)
          do n = 1, this%nmawwells
            if (this%shutofflevel(n) /= dep20) then
              call this%inputtab%add_term(n)
              call this%inputtab%add_term(this%shutofflevel(n))
              call this%inputtab%add_term(this%shutoffmin(n))
              call this%inputtab%add_term(this%shutoffmax(n))
            end if
          end do
        end if
      end if
    end if
    !
    ! -- fill arrays
    ibnd = 1
    do n = 1, this%nmawwells
      do j = 1, this%ngwfnodes(n)
        jpos = this%get_jpos(n, j)
        node = this%get_gwfnode(n, j)
        this%nodelist(ibnd) = node
        this%bound(1, ibnd) = this%xnewpak(n)
        this%bound(2, ibnd) = this%satcond(jpos)
        this%bound(3, ibnd) = this%botscrn(jpos)
        if (this%iboundpak(n) > 0) then
          this%bound(4, ibnd) = this%rate(n)
        else
          this%bound(4, ibnd) = dzero
        end if
        ibnd = ibnd + 1
      end do
    end do

Here is the call graph for this function:

maw_rp_obs()

subroutine mawmodule::maw_rp_obs ( class(mawtype), intent(inout)  this )

private

Only done the first stress period since boundaries are fixed for the simulation

Definition at line 3854 of file gwf-maw.f90.

    use tdismodule, only: kper
    ! -- dummy
    class(MawType), intent(inout) :: this
    ! -- local
    integer(I4B) :: i
    integer(I4B) :: j
    integer(I4B) :: n
    integer(I4B) :: nn1
    integer(I4B) :: nn2
    integer(I4B) :: jj
    character(len=LENBOUNDNAME) :: bname
    logical :: jfound
    class(ObserveType), pointer :: obsrv => null()
    ! -- formats
10  format('Boundary "', a, '" for observation "', a, &
           '" is invalid in package "', a, '"')
    !
    if (kper == 1) then
      do i = 1, this%obs%npakobs
        obsrv => this%obs%pakobs(i)%obsrv
        !
        ! -- get node number 1
        nn1 = obsrv%NodeNumber
        if (nn1 == namedboundflag) then
          bname = obsrv%FeatureName
          if (bname /= '') then
            ! -- Observation maw is based on a boundary name.
            !    Iterate through all multi-aquifer wells to identify and store
            !    corresponding index in bound array.
            jfound = .false.
            if (obsrv%ObsTypeId == 'MAW' .or. &
                obsrv%ObsTypeId == 'CONDUCTANCE') then
              do j = 1, this%nmawwells
                do jj = this%iaconn(j), this%iaconn(j + 1) - 1
                  if (this%boundname(jj) == bname) then
                    jfound = .true.
                    call obsrv%AddObsIndex(jj)
                  end if
                end do
              end do
            else
              do j = 1, this%nmawwells
                if (this%cmawname(j) == bname) then
                  jfound = .true.
                  call obsrv%AddObsIndex(j)
                end if
              end do
            end if
            if (.not. jfound) then
              write (errmsg, 10) &
                trim(bname), trim(obsrv%Name), trim(this%packName)
              call store_error(errmsg)
            end if
          end if
        else
          if (obsrv%indxbnds_count == 0) then
            if (obsrv%ObsTypeId == 'MAW' .or. &
                obsrv%ObsTypeId == 'CONDUCTANCE') then
              nn2 = obsrv%NodeNumber2
              j = this%iaconn(nn1) + nn2 - 1
              call obsrv%AddObsIndex(j)
            else
              call obsrv%AddObsIndex(nn1)
            end if
          else
            errmsg = 'Programming error in maw_rp_obs'
            call store_error(errmsg)
          end if
        end if
        !
        ! -- catch non-cumulative observation assigned to observation defined
        !    by a boundname that is assigned to more than one element
        if (obsrv%ObsTypeId == 'HEAD') then
          if (obsrv%indxbnds_count > 1) then
            write (errmsg, '(a,3(1x,a))') &
              trim(adjustl(obsrv%ObsTypeId)), &
              'for observation', trim(adjustl(obsrv%Name)), &
              'must be assigned to a multi-aquifer well with a unique boundname.'
            call store_error(errmsg)
          end if
        end if
        !
        ! -- check that index values are valid
        if (obsrv%ObsTypeId == 'MAW' .or. &
            obsrv%ObsTypeId == 'CONDUCTANCE') then
          do j = 1, obsrv%indxbnds_count
            nn1 = obsrv%indxbnds(j)
            n = this%imap(nn1)
            nn2 = nn1 - this%iaconn(n) + 1
            jj = this%iaconn(n + 1) - this%iaconn(n)
            if (nn1 < 1 .or. nn1 > this%maxbound) then
              write (errmsg, '(3(a,1x),i0,1x,a,i0,a)') &
                trim(adjustl(obsrv%ObsTypeId)), &
                'multi-aquifer well connection number must be greater than 0', &
                'and less than', jj, '(specified value is ', nn2, ').'
              call store_error(errmsg)
            end if
          end do
        else
          do j = 1, obsrv%indxbnds_count
            nn1 = obsrv%indxbnds(j)
            if (nn1 < 1 .or. nn1 > this%nmawwells) then
              write (errmsg, '(3(a,1x),i0,1x,a,i0,a)') &
                trim(adjustl(obsrv%ObsTypeId)), &
                'multi-aquifer well must be greater than 0 ', &
                'and less than or equal to', this%nmawwells, &
                '(specified value is ', nn1, ').'
              call store_error(errmsg)
            end if
          end do
        end if
      end do
      !
      ! -- evaluate if there are any observation errors
      if (count_errors() > 0) then
        call store_error_unit(this%inunit)
      end if
    end if

Here is the call graph for this function:

maw_screen_length()

pure real(dp) function, public mawmodule::maw_screen_length	(	real(dp), intent(in)	dz,
		real(dp), intent(in)	radius,
		real(dp), intent(in)	omega
	)

The length is derived from the vertical screen extent, the well radius, and the tilt angle, and grows without bound as the connection approaches horizontal.

Parameters

[in]	dz	vertical screen extent
[in]	radius	well radius
[in]	omega	tilt angle from vertical, in radians

Definition at line 1382 of file gwf-maw.f90.

    ! -- dummy
    real(DP), intent(in) :: dz !< vertical screen extent
    real(DP), intent(in) :: radius !< well radius
    real(DP), intent(in) :: omega !< tilt angle from vertical, in radians
    ! -- return
    real(DP) :: lw
    !
    lw = (dz - dtwo * radius * sin(omega)) / cos(omega)

Here is the caller graph for this function:

maw_set_attribute_error()

subroutine mawmodule::maw_set_attribute_error	(	class(mawtype), intent(inout)	this,
		integer(i4b), intent(in)	imaw,
		character(len=*), intent(in)	keyword,
		character(len=*), intent(in)	msg
	)

Definition at line 1924 of file gwf-maw.f90.

    use simmodule, only: store_error
    ! -- dummy
    class(MawType), intent(inout) :: this
    integer(I4B), intent(in) :: imaw
    character(len=*), intent(in) :: keyword
    character(len=*), intent(in) :: msg
    ! -- local
    ! -- formats
    !
    if (len(msg) == 0) then
      write (errmsg, '(a,1x,a,1x,i0,1x,a)') &
        keyword, ' for MAW well', imaw, 'has already been set.'
    else
      write (errmsg, '(a,1x,a,1x,i0,1x,a)') &
        keyword, ' for MAW well', imaw, msg
    end if
    call store_error(errmsg)

Here is the call graph for this function:

maw_set_pointers()

subroutine mawmodule::maw_set_pointers ( class(mawtype)  this, integer(i4b), pointer  neq, integer(i4b), dimension(:), pointer, contiguous  ibound, real(dp), dimension(:), pointer, contiguous  xnew, real(dp), dimension(:), pointer, contiguous  xold, real(dp), dimension(:), pointer, contiguous  flowja  )

private

Definition at line 3603 of file gwf-maw.f90.

    ! -- modules
    use memorymanagermodule, only: mem_allocate, mem_checkin
    ! -- dummy
    class(MawType) :: this
    integer(I4B), pointer :: neq
    integer(I4B), dimension(:), pointer, contiguous :: ibound
    real(DP), dimension(:), pointer, contiguous :: xnew
    real(DP), dimension(:), pointer, contiguous :: xold
    real(DP), dimension(:), pointer, contiguous :: flowja
    ! -- local
    integer(I4B) :: n
    integer(I4B) :: istart, iend
    !
    ! -- call base BndType set_pointers
    call this%BndType%set_pointers(neq, ibound, xnew, xold, flowja)
    !
    ! -- Set the MAW pointers
    !
    ! -- set package pointers
    istart = this%dis%nodes + this%ioffset + 1
    iend = istart + this%nmawwells - 1
    this%iboundpak => this%ibound(istart:iend)
    this%xnewpak => this%xnew(istart:iend)
    call mem_checkin(this%xnewpak, 'HEAD', this%memoryPath, 'X', &
                     this%memoryPathModel)
    call mem_allocate(this%xoldpak, this%nmawwells, 'XOLDPAK', this%memoryPath)
    !
    ! -- initialize xnewpak
    do n = 1, this%nmawwells
      this%xnewpak(n) = dep20
    end do

maw_set_stressperiod()

subroutine mawmodule::maw_set_stressperiod	(	class(mawtype), intent(inout)	this,
		integer(i4b), intent(in)	imaw,
		integer(i4b), intent(inout)	iheadlimit_warning
	)

Definition at line 1792 of file gwf-maw.f90.

    ! -- modules
    use timeseriesmanagermodule, only: read_value_or_time_series_adv
    ! -- dummy
    class(MawType), intent(inout) :: this
    integer(I4B), intent(in) :: imaw
    integer(I4B), intent(inout) :: iheadlimit_warning
    ! -- local
    character(len=LINELENGTH) :: errmsgr
    character(len=LINELENGTH) :: text
    character(len=LINELENGTH) :: cstr
    character(len=LINELENGTH) :: caux
    character(len=LINELENGTH) :: keyword
    integer(I4B) :: ii
    integer(I4B) :: jj
    real(DP) :: rval
    real(DP), pointer :: bndElem => null()
    integer(I4B) :: istat
    ! -- formats
    character(len=*), parameter :: fmthdbot = &
      &"('well head (',G0,') must be >= BOTTOM_ELEVATION (',G0, ').')"
    !
    ! -- read remainder of variables on the line
    call this%parser%GetStringCaps(keyword)
    select case (keyword)
    case ('STATUS')
      call this%parser%GetStringCaps(text)
      this%status(imaw) = text(1:8)
      select case (text)
      case ('CONSTANT')
        this%iboundpak(imaw) = -1
      case ('INACTIVE')
        this%iboundpak(imaw) = 0
      case ('ACTIVE')
        this%iboundpak(imaw) = 1
      case default
        write (errmsg, '(2a)') &
          'Unknown '//trim(this%text)//" maw status keyword: '", &
          trim(text)//"'."
        call store_error(errmsg)
      end select
    case ('RATE')
      call this%parser%GetString(text)
      jj = 1 ! For RATE
      bndelem => this%rate(imaw)
      call read_value_or_time_series_adv(text, imaw, jj, bndelem, &
                                         this%packName, 'BND', this%tsManager, &
                                         this%iprpak, 'RATE')
    case ('WELL_HEAD')
      call this%parser%GetString(text)
      jj = 1 ! For WELL_HEAD
      bndelem => this%well_head(imaw)
      call read_value_or_time_series_adv(text, imaw, jj, bndelem, &
                                         this%packName, 'BND', this%tsManager, &
                                         this%iprpak, 'WELL_HEAD')
      !
      ! -- set xnewpak to well_head
      this%xnewpak(imaw) = this%well_head(imaw)
      !
      ! -- check for error condition
      if (this%well_head(imaw) < this%bot(imaw)) then
        write (cstr, fmthdbot) &
          this%well_head(imaw), this%bot(imaw)
        call this%maw_set_attribute_error(imaw, 'WELL HEAD', trim(cstr))
      end if
    case ('FLOWING_WELL')
      this%fwelev(imaw) = this%parser%GetDouble()
      this%fwcond(imaw) = this%parser%GetDouble()
      this%fwrlen(imaw) = this%parser%GetDouble()
      !
      ! -- test for condition where flowing well data is specified but
      !    flowing_wells is not specified in the options block
      if (this%iflowingwells == 0) then
        this%iflowingwells = -1
        text = 'Flowing well data is specified in the '//trim(this%packName)// &
               ' package but FLOWING_WELL was not specified in the '// &
               'OPTIONS block.'
        call store_warning(text)
      end if
    case ('RATE_SCALING')
      rval = this%parser%GetDouble()
      this%pumpelev(imaw) = rval
      rval = this%parser%GetDouble()
      this%reduction_length(imaw) = rval
      if (rval < dzero) then
        call this%maw_set_attribute_error(imaw, trim(keyword), &
                                          'must be greater than or equal to 0.')
      end if
    case ('HEAD_LIMIT')
      call this%parser%GetString(text)
      if (trim(text) == 'OFF') then
        this%shutofflevel(imaw) = dep20
      else
        read (text, *, iostat=istat, iomsg=errmsgr) &
          this%shutofflevel(imaw)
        if (istat /= 0) then
          errmsg = 'Could not read HEAD_LIMIT value. '//trim(errmsgr)
          call store_error(errmsg)
        end if
        if (this%shutofflevel(imaw) <= this%bot(imaw)) then
          iheadlimit_warning = iheadlimit_warning + 1
        end if
      end if
    case ('SHUT_OFF')
      rval = this%parser%GetDouble()
      this%shutoffmin(imaw) = rval
      rval = this%parser%GetDouble()
      this%shutoffmax(imaw) = rval
    case ('AUXILIARY')
      call this%parser%GetStringCaps(caux)
      do jj = 1, this%naux
        if (trim(adjustl(caux)) /= trim(adjustl(this%auxname(jj)))) cycle
        call this%parser%GetString(text)
        ii = imaw
        bndelem => this%mauxvar(jj, ii)
        call read_value_or_time_series_adv(text, ii, jj, bndelem, &
                                           this%packName, 'AUX', &
                                           this%tsManager, this%iprpak, &
                                           this%auxname(jj))
        exit
      end do
    case default
      write (errmsg, '(2a)') &
        'Unknown '//trim(this%text)//" maw data keyword: '", &
        trim(keyword)//"'."
      call store_error(errmsg)
    end select


Here is the call graph for this function:

maw_setup_budobj()

subroutine mawmodule::maw_setup_budobj ( class(mawtype)  this )

private

Definition at line 4785 of file gwf-maw.f90.

    ! -- modules
    use constantsmodule, only: lenbudtxt
    ! -- dummy
    class(MawType) :: this
    ! -- local
    integer(I4B) :: nbudterm
    integer(I4B) :: n, j, n2
    real(DP) :: q
    integer(I4B) :: maxlist, naux
    integer(I4B) :: idx
    character(len=LENBUDTXT) :: text
    character(len=LENBUDTXT), dimension(1) :: auxtxt
    !
    ! -- Determine the number of maw budget terms. These are fixed for
    !    the simulation and cannot change.
    ! gwf rate [flowing_well] storage constant_flow [frommvr tomvr tomvrcf [tomvrfw]] [aux]
    nbudterm = 4
    if (this%iflowingwells > 0) then
      nbudterm = nbudterm + 1
    end if
    if (this%imover == 1) then
      nbudterm = nbudterm + 3
      if (this%iflowingwells > 0) then
        nbudterm = nbudterm + 1
      end if
    end if
    if (this%naux > 0) nbudterm = nbudterm + 1
    !
    ! -- set up budobj
    call budgetobject_cr(this%budobj, this%packName)
    call this%budobj%budgetobject_df(this%nmawwells, nbudterm, 0, 0, &
                                     ibudcsv=this%ibudcsv)
    idx = 0
    !
    ! -- Go through and set up each budget term
    !
    ! --
    text = '             GWF'
    idx = idx + 1
    maxlist = this%maxbound
    naux = 1
    auxtxt(1) = '       FLOW-AREA'
    call this%budobj%budterm(idx)%initialize(text, &
                                             this%name_model, &
                                             this%packName, &
                                             this%name_model, &
                                             this%name_model, &
                                             maxlist, .false., .true., &
                                             naux, auxtxt)
    call this%budobj%budterm(idx)%reset(this%maxbound)
    q = dzero
    do n = 1, this%nmawwells
      do j = 1, this%ngwfnodes(n)
        n2 = this%get_gwfnode(n, j)
        call this%budobj%budterm(idx)%update_term(n, n2, q)
      end do
    end do
    !
    ! --
    text = '            RATE'
    idx = idx + 1
    maxlist = this%nmawwells
    naux = 0
    call this%budobj%budterm(idx)%initialize(text, &
                                             this%name_model, &
                                             this%packName, &
                                             this%name_model, &
                                             this%packName, &
                                             maxlist, .false., .false., &
                                             naux)
    !
    ! --
    if (this%iflowingwells > 0) then
      text = '         FW-RATE'
      idx = idx + 1
      maxlist = this%nmawwells
      naux = 0
      call this%budobj%budterm(idx)%initialize(text, &
                                               this%name_model, &
                                               this%packName, &
                                               this%name_model, &
                                               this%packName, &
                                               maxlist, .false., .false., &
                                               naux)
    end if
    !
    ! --
    text = '         STORAGE'
    idx = idx + 1
    maxlist = this%nmawwells
    naux = 1
    auxtxt(1) = '          VOLUME'
    call this%budobj%budterm(idx)%initialize(text, &
                                             this%name_model, &
                                             this%packName, &
                                             this%name_model, &
                                             this%name_model, &
                                             maxlist, .false., .true., &
                                             naux, auxtxt)
    !
    ! --
    text = '        CONSTANT'
    idx = idx + 1
    maxlist = this%nmawwells
    naux = 0
    call this%budobj%budterm(idx)%initialize(text, &
                                             this%name_model, &
                                             this%packName, &
                                             this%name_model, &
                                             this%packName, &
                                             maxlist, .false., .false., &
                                             naux)
    !
    ! --
    if (this%imover == 1) then
      !
      ! --
      text = '        FROM-MVR'
      idx = idx + 1
      maxlist = this%nmawwells
      naux = 0
      call this%budobj%budterm(idx)%initialize(text, &
                                               this%name_model, &
                                               this%packName, &
                                               this%name_model, &
                                               this%packName, &
                                               maxlist, .false., .false., &
                                               naux)
      !
      ! --
      text = '     RATE-TO-MVR'
      idx = idx + 1
      maxlist = this%nmawwells
      naux = 0
      call this%budobj%budterm(idx)%initialize(text, &
                                               this%name_model, &
                                               this%packName, &
                                               this%name_model, &
                                               this%packName, &
                                               maxlist, .false., .false., &
                                               naux)
      !
      ! -- constant-head flow to mover
      text = ' CONSTANT-TO-MVR'
      idx = idx + 1
      maxlist = this%nmawwells
      naux = 0
      call this%budobj%budterm(idx)%initialize(text, &
                                               this%name_model, &
                                               this%packName, &
                                               this%name_model, &
                                               this%packName, &
                                               maxlist, .false., .false., &
                                               naux)
      !
      ! -- flowing-well flow to mover
      if (this%iflowingwells > 0) then
        !
        ! --
        text = '  FW-RATE-TO-MVR'
        idx = idx + 1
        maxlist = this%nmawwells
        naux = 0
        call this%budobj%budterm(idx)%initialize(text, &
                                                 this%name_model, &
                                                 this%packName, &
                                                 this%name_model, &
                                                 this%packName, &
                                                 maxlist, .false., .false., &
                                                 naux)
      end if
    end if
    !
    ! -- auxiliary variable
    naux = this%naux
    if (naux > 0) then
      !
      ! --
      text = '       AUXILIARY'
      idx = idx + 1
      maxlist = this%maxbound
      call this%budobj%budterm(idx)%initialize(text, &
                                               this%name_model, &
                                               this%packName, &
                                               this%name_model, &
                                               this%packName, &
                                               maxlist, .false., .false., &
                                               naux, this%auxname)
    end if
    !
    ! -- if maw flow for each reach are written to the listing file
    if (this%iprflow /= 0) then
      call this%budobj%flowtable_df(this%iout)
    end if

Here is the call graph for this function:

maw_setup_tableobj()

subroutine mawmodule::maw_setup_tableobj ( class(mawtype)  this )

private

The terms listed here must correspond in number and order to the ones written to the head table in the maw_ot method.

Definition at line 5198 of file gwf-maw.f90.

    ! -- modules
    use constantsmodule, only: linelength, lenbudtxt
    ! -- dummy
    class(MawType) :: this
    ! -- local
    integer(I4B) :: nterms
    character(len=LINELENGTH) :: title
    character(len=LINELENGTH) :: text
    !
    ! -- setup well head table
    if (this%iprhed > 0) then
      !
      ! -- Determine the number of head table columns
      nterms = 2
      if (this%inamedbound == 1) nterms = nterms + 1
      !
      ! -- set up table title
      title = trim(adjustl(this%text))//' PACKAGE ('// &
              trim(adjustl(this%packName))//') HEADS FOR EACH CONTROL VOLUME'
      !
      ! -- set up head tableobj
      call table_cr(this%headtab, this%packName, title)
      call this%headtab%table_df(this%nmawwells, nterms, this%iout, &
                                 transient=.true.)
      !
      ! -- Go through and set up table budget term
      if (this%inamedbound == 1) then
        text = 'NAME'
        call this%headtab%initialize_column(text, 20, alignment=tableft)
      end if
      !
      ! -- reach number
      text = 'NUMBER'
      call this%headtab%initialize_column(text, 10, alignment=tabcenter)
      !
      ! -- reach stage
      text = 'HEAD'
      call this%headtab%initialize_column(text, 12, alignment=tabcenter)
    end if

Here is the call graph for this function:

Variable Documentation

ftype

character(len=lenftype) mawmodule::ftype = 'MAW'

Definition at line 40 of file gwf-maw.f90.

  character(len=LENFTYPE) :: ftype = 'MAW'

text

character(len=lenpackagename) mawmodule::text = ' MAW'

Definition at line 41 of file gwf-maw.f90.

  character(len=LENPACKAGENAME) :: text = '             MAW'
