gwfstomodule Module Reference

This module contains the storage package methods. More...

Data Types
type	gwfstotype
type	defaultstorageformulationtype
	Default storage formulation. More...

Functions/Subroutines
subroutine, public	sto_cr (stoobj, name_model, mempath, inunit, iout)
	@ brief Create a new package object More...
subroutine	sto_ar (this, dis, ibound)
	@ brief Allocate and read method for package More...
subroutine	sto_rp (this)
	@ brief Read and prepare method for package More...
subroutine	sto_ad (this)
	@ brief Advance the package More...
subroutine	sto_fc (this, kiter, hold, hnew, matrix_sln, idxglo, rhs)
	@ brief Fill A and right-hand side for the package More...
subroutine	default_storage_fc (this, kiter, matrix_sln, rhs, idxglo, h_old, h_new)
	Fill coefficients for the default storage formulation. More...
subroutine	fc_default_sto (this, n, matrix_sln, rhs, idxglo, hold, hnew)
	Default storage FC. More...
subroutine	sto_fn (this, kiter, hold, hnew, matrix_sln, idxglo, rhs)
	@ brief Fill Newton-Raphson terms in A and right-hand side for the package More...
subroutine	default_storage_fn (this, kiter, matrix_sln, rhs, idxglo, h_old, h_new)
	Fill newton terms for the default storage formulation. More...
subroutine	fn_default_sto (this, n, matrix_sln, rhs, idxglo, hold, hnew)
subroutine	sto_cq (this, flowja, hnew, hold)
	@ brief Calculate flows for package More...
subroutine	default_storage_cq (this, flowja, h_new, h_old)
	Calculate flows for the default storage formulation. More...
logical(lgp) function	default_storage_is_active (this, n)
	The default formulation uses the claim mask, not is_active. More...
subroutine	default_storage_bd (this, isuppress_output, model_budget)
	Default storage budget is handled directly by sto_bd. More...
subroutine	default_storage_save_flows (this, iprint, ibinun)
	Default storage flows are saved directly by sto_save_model_flows. More...
subroutine	cq_default_sto (this, n, flowja, hnew, hold)
	Standard flow calculation for the storage. More...
subroutine	sto_bd (this, isuppress_output, model_budget)
	@ brief Model budget calculation for package More...
subroutine	sto_save_model_flows (this, icbcfl, icbcun)
	@ brief Save model flows for package More...
subroutine	sto_da (this)
	@ brief Deallocate package memory More...
subroutine	allocate_scalars (this)
	@ brief Allocate scalars More...
subroutine	allocate_arrays (this, nodes)
	@ brief Allocate package arrays More...
subroutine	source_options (this)
	@ brief Source input options for package More...
subroutine	log_options (this, found)
	@ brief Log found options for package More...
subroutine	source_data (this)
	@ brief Source input data for package More...
subroutine	save_old_ss_sy (this)
	@ brief Save old storage property values More...
subroutine	add_sto_formulation (this, sto_form, form_id)

Variables
character(len=lenbudtxt), dimension(2)	budtxt = [' STO-SS', ' STO-SY']

Detailed Description

This module contains the methods used to add the effects of storage on the groundwater flow equation. The contribution of specific storage and specific yield can be represented.

Function/Subroutine Documentation

add_sto_formulation()

subroutine gwfstomodule::add_sto_formulation	(	class(gwfstotype), intent(inout)	this,
		class(gwfstoformulationtype), pointer	sto_form,
		integer(i4b)	form_id
	)

Parameters

[in,out]	this	this NPF instance
	sto_form	the alternative storage calculator
	form_id	the id for the flow formulation

Definition at line 1209 of file gwf-sto.f90.

    class(GwfStoType), intent(inout) :: this !< this NPF instance
    class(GwfStoFormulationType), pointer :: sto_form !< the alternative storage calculator
    integer(I4B) :: form_id !< the id for the flow formulation

    this%sto_formulations(form_id)%is_active = .true.
    this%sto_formulations(form_id)%form => sto_form


allocate_arrays()

subroutine gwfstomodule::allocate_arrays	(	class(gwfstotype), target	this,
		integer(i4b), intent(in)	nodes
	)

Allocate and initialize STO package arrays.

Parameters

	this	GwfStoType object
[in]	nodes	active model nodes

Definition at line 914 of file gwf-sto.f90.

    ! -- modules
    use memorymanagermodule, only: mem_allocate, mem_setptr
    ! -- dummy variables
    class(GwfStoType), target :: this !< GwfStoType object
    integer(I4B), intent(in) :: nodes !< active model nodes
    ! -- local variables
    integer(I4B) :: n
    !
    ! -- Allocate arrays
    call mem_allocate(this%iconvert, nodes, 'ICONVERT', this%memoryPath)
    call mem_allocate(this%ss, nodes, 'SS', this%memoryPath)
    call mem_allocate(this%sy, nodes, 'SY', this%memoryPath)
    call mem_allocate(this%strgss, nodes, 'STRGSS', this%memoryPath)
    call mem_allocate(this%strgsy, nodes, 'STRGSY', this%memoryPath)
    call mem_allocate(this%iformulation, nodes, 'IFORM', this%memoryPath)
    !
    ! -- set input context pointers
    if (this%inunit > 0) then
      call mem_setptr(this%iper, 'IPER', this%input_mempath)
      call mem_setptr(this%storage, 'STORAGE', this%input_mempath)
    end if
    !
    ! -- Initialize arrays
    this%iss = 0
    do n = 1, nodes
      this%iconvert(n) = 1
      this%ss(n) = dzero
      this%sy(n) = dzero
      this%strgss(n) = dzero
      this%strgsy(n) = dzero
      if (this%integratechanges /= 0) then
        this%oldss(n) = dzero
        if (this%iusesy /= 0) then
          this%oldsy(n) = dzero
        end if
      end if

      this%iformulation(n) = default_storage
    end do
    !
    ! -- create the default storage formulation and point it at this package
    allocate (defaultstorageformulationtype :: this%default_form)
    select type (form => this%default_form)
    type is (defaultstorageformulationtype)
      form%sto => this
    end select

allocate_scalars()

subroutine gwfstomodule::allocate_scalars

(

class(gwfstotype)

this

)

Allocate and initialize scalars for the STO package. The base numerical package allocate scalars method is also called.

Parameters

this	GwfStoType object

Definition at line 880 of file gwf-sto.f90.

    ! -- modules
    use memorymanagermodule, only: mem_allocate
    ! -- dummy variables
    class(GwfStoType) :: this !< GwfStoType object
    !
    ! -- allocate scalars in NumericalPackageType
    call this%NumericalPackageType%allocate_scalars()
    !
    ! -- allocate scalars
    call mem_allocate(this%istor_coef, 'ISTOR_COEF', this%memoryPath)
    call mem_allocate(this%iconf_ss, 'ICONF_SS', this%memoryPath)
    call mem_allocate(this%iorig_ss, 'IORIG_SS', this%memoryPath)
    call mem_allocate(this%iusesy, 'IUSESY', this%memoryPath)
    call mem_allocate(this%satomega, 'SATOMEGA', this%memoryPath)
    call mem_allocate(this%integratechanges, 'INTEGRATECHANGES', &
                      this%memoryPath)
    call mem_allocate(this%intvs, 'INTVS', this%memoryPath)
    !
    ! -- initialize scalars
    this%istor_coef = 0
    this%iconf_ss = 0
    this%iorig_ss = 0
    this%iusesy = 0
    this%satomega = dzero
    this%integratechanges = 0
    this%intvs = 0

cq_default_sto()

subroutine gwfstomodule::cq_default_sto	(	class(gwfstotype), intent(inout)	this,
		integer(i4b), intent(in)	n,
		real(dp), dimension(:), intent(inout)	flowja,
		real(dp), dimension(:), intent(in)	hnew,
		real(dp), dimension(:), intent(in)	hold
	)

Definition at line 630 of file gwf-sto.f90.

    use tdismodule, only: delt
    class(GwfStoType), intent(inout) :: this
    integer(I4B), intent(in) :: n
    real(DP), dimension(:), intent(inout) :: flowja
    real(DP), dimension(:), intent(in) :: hnew
    real(DP), dimension(:), intent(in) :: hold
    ! local
    integer(I4B) :: idiag
    real(DP) :: rate
    real(DP) :: tled
    real(DP) :: sc1, sc2, rho1, rho2
    real(DP) :: sc1old, sc2old, rho1old, rho2old
    real(DP) :: tp, bt
    real(DP) :: snold, snnew
    real(DP) :: aterm, rhsterm
    !
    tled = done / delt
    !
    ! -- aquifer elevations and thickness
    tp = this%dis%top(n)
    bt = this%dis%bot(n)
    !
    ! -- aquifer saturation
    if (this%iconvert(n) == 0) then
      snold = done
      snnew = done
    else
      snold = squadraticsaturation(tp, bt, hold(n), this%satomega)
      snnew = squadraticsaturation(tp, bt, hnew(n), this%satomega)
    end if
    !
    ! -- primary storage coefficient
    sc1 = sscapacity(this%istor_coef, tp, bt, this%dis%area(n), this%ss(n))
    rho1 = sc1 * tled
    !
    if (this%integratechanges /= 0) then
      ! -- Integration of storage changes (e.g. when using TVS):
      !    separate the old (start of time step) and new (end of time step)
      !    primary storage capacities
      sc1old = sscapacity(this%istor_coef, tp, bt, this%dis%area(n), &
                          this%oldss(n))
      rho1old = sc1old * tled
    else
      ! -- No integration of storage changes: old and new values are
      !    identical => normal MF6 storage formulation
      rho1old = rho1
    end if
    !
    ! -- calculate specific storage terms and rate
    call ssterms(this%iconvert(n), this%iorig_ss, this%iconf_ss, tp, bt, &
                 rho1, rho1old, snnew, snold, hnew(n), hold(n), &
                 aterm, rhsterm, rate)
    !
    ! -- save rate
    this%strgss(n) = rate
    !
    ! -- add storage term to flowja
    idiag = this%dis%con%ia(n)
    flowja(idiag) = flowja(idiag) + rate
    !
    ! -- specific yield
    rate = dzero
    if (this%iconvert(n) /= 0) then
      !
      ! -- secondary storage coefficient
      sc2 = sycapacity(this%dis%area(n), this%sy(n))
      rho2 = sc2 * tled
      !
      if (this%integratechanges /= 0) then
        ! -- Integration of storage changes (e.g. when using TVS):
        !    separate the old (start of time step) and new (end of time
        !    step) secondary storage capacities
        sc2old = sycapacity(this%dis%area(n), this%oldsy(n))
        rho2old = sc2old * tled
      else
        ! -- No integration of storage changes: old and new values are
        !    identical => normal MF6 storage formulation
        rho2old = rho2
      end if
      !
      ! -- calculate specific yield storage terms and rate
      call syterms(tp, bt, rho2, rho2old, snnew, snold, &
                   aterm, rhsterm, rate)

    end if
    this%strgsy(n) = rate
    !
    ! -- add storage term to flowja
    idiag = this%dis%con%ia(n)
    flowja(idiag) = flowja(idiag) + rate

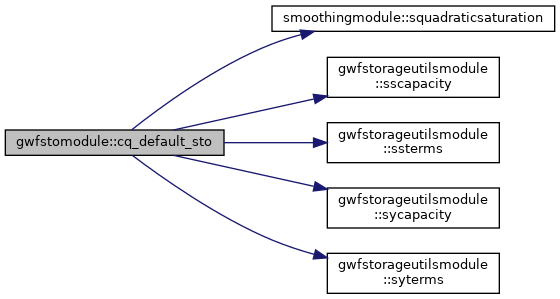

Here is the call graph for this function:

default_storage_bd()

subroutine gwfstomodule::default_storage_bd	(	class(defaultstorageformulationtype), intent(inout)	this,
		integer(i4b), intent(in)	isuppress_output,
		type(budgettype), intent(inout)	model_budget
	)

Parameters

[in,out]	this	default formulation
[in]	isuppress_output	flag to suppress model output
[in,out]	model_budget	model budget object

Definition at line 613 of file gwf-sto.f90.

    use budgetmodule, only: budgettype
    class(DefaultStorageFormulationType), intent(inout) :: this !< default formulation
    integer(I4B), intent(in) :: isuppress_output !< flag to suppress model output
    type(BudgetType), intent(inout) :: model_budget !< model budget object

default_storage_cq()

subroutine gwfstomodule::default_storage_cq	(	class(defaultstorageformulationtype), intent(inout)	this,
		real(dp), dimension(:), intent(inout)	flowja,
		real(dp), dimension(:), intent(in)	h_new,
		real(dp), dimension(:), intent(in)	h_old
	)

Runs over all cells and stores the standard STO change in storage, skipping cells claimed by an exclusive formulation.

Parameters

[in,out]	this	default formulation
[in,out]	flowja	connection flows
[in]	h_new	current head
[in]	h_old	previous head

Definition at line 585 of file gwf-sto.f90.

    class(DefaultStorageFormulationType), intent(inout) :: this !< default formulation
    real(DP), dimension(:), intent(inout) :: flowja !< connection flows
    real(DP), dimension(:), intent(in) :: h_new !< current head
    real(DP), dimension(:), intent(in) :: h_old !< previous head
    ! local
    integer(I4B) :: n

    do n = 1, this%sto%dis%nodes
      if (this%sto%ibound(n) <= 0) cycle
      ! skip cells claimed by an exclusive formulation
      if (this%sto%iformulation(n) /= default_storage) cycle
      call this%sto%cq_default_sto(n, flowja, h_new, h_old)
    end do


default_storage_fc()

subroutine gwfstomodule::default_storage_fc	(	class(defaultstorageformulationtype), intent(inout)	this,
		integer(i4b), intent(in)	kiter,
		class(matrixbasetype), intent(inout), pointer	matrix_sln,
		real(dp), dimension(:), intent(inout)	rhs,
		integer(i4b), dimension(:), intent(in)	idxglo,
		real(dp), dimension(:), intent(in)	h_old,
		real(dp), dimension(:), intent(in)	h_new
	)

Runs over all cells and fills the standard STO terms, skipping cells claimed by an exclusive formulation.

Parameters

[in,out]	this	default formulation
[in]	kiter	outer iteration number
[in,out]	matrix_sln	A matrix
[in,out]	rhs	right-hand side
[in]	idxglo	global index model to solution
[in]	h_old	previous heads
[in]	h_new	current heads

Definition at line 300 of file gwf-sto.f90.

    class(DefaultStorageFormulationType), intent(inout) :: this !< default formulation
    integer(I4B), intent(in) :: kiter !< outer iteration number
    class(MatrixBaseType), pointer, intent(inout) :: matrix_sln !< A matrix
    real(DP), dimension(:), intent(inout) :: rhs !< right-hand side
    integer(I4B), dimension(:), intent(in) :: idxglo !< global index model to solution
    real(DP), dimension(:), intent(in) :: h_old !< previous heads
    real(DP), dimension(:), intent(in) :: h_new !< current heads
    ! local
    integer(I4B) :: n

    do n = 1, this%sto%dis%nodes
      if (this%sto%ibound(n) < 1) cycle
      ! skip cells claimed by an exclusive formulation
      if (this%sto%iformulation(n) /= default_storage) cycle
      call this%sto%fc_default_sto(n, matrix_sln, rhs, idxglo, h_old, h_new)
    end do


default_storage_fn()

subroutine gwfstomodule::default_storage_fn	(	class(defaultstorageformulationtype), intent(inout)	this,
		integer(i4b), intent(in)	kiter,
		class(matrixbasetype), intent(inout), pointer	matrix_sln,
		real(dp), dimension(:), intent(inout)	rhs,
		integer(i4b), dimension(:), intent(in)	idxglo,
		real(dp), dimension(:), intent(in)	h_old,
		real(dp), dimension(:), intent(in)	h_new
	)

Runs over all cells and fills the standard STO newton terms, skipping cells claimed by an exclusive formulation.

Parameters

[in,out]	this	default formulation
[in]	kiter	outer iteration number
[in,out]	matrix_sln	A matrix
[in,out]	rhs	right-hand side
[in]	idxglo	global index model to solution
[in]	h_old	previous heads
[in]	h_new	current heads

Definition at line 453 of file gwf-sto.f90.

    class(DefaultStorageFormulationType), intent(inout) :: this !< default formulation
    integer(I4B), intent(in) :: kiter !< outer iteration number
    class(MatrixBaseType), pointer, intent(inout) :: matrix_sln !< A matrix
    real(DP), dimension(:), intent(inout) :: rhs !< right-hand side
    integer(I4B), dimension(:), intent(in) :: idxglo !< global index model to solution
    real(DP), dimension(:), intent(in) :: h_old !< previous heads
    real(DP), dimension(:), intent(in) :: h_new !< current heads
    ! local
    integer(I4B) :: n

    do n = 1, this%sto%dis%nodes
      if (this%sto%ibound(n) <= 0) cycle
      ! skip cells claimed by an exclusive formulation
      if (this%sto%iformulation(n) /= default_storage) cycle
      call this%sto%fn_default_sto(n, matrix_sln, rhs, idxglo, h_old, h_new)
    end do


default_storage_is_active()

logical(lgp) function gwfstomodule::default_storage_is_active	(	class(defaultstorageformulationtype), intent(inout)	this,
		integer(i4b), intent(in)	n
	)

Parameters

[in,out]	this	default formulation
[in]	n	node number

Returns

always false for the default formulation

Definition at line 604 of file gwf-sto.f90.

    class(DefaultStorageFormulationType), intent(inout) :: this !< default formulation
    integer(I4B), intent(in) :: n !< node number
    logical(LGP) :: is_active !< always false for the default formulation
    is_active = .false.

default_storage_save_flows()

subroutine gwfstomodule::default_storage_save_flows	(	class(defaultstorageformulationtype), intent(inout)	this,
		integer(i4b), intent(in)	iprint,
		integer(i4b), intent(in)	ibinun
	)

Parameters

[in,out]	this	default formulation
[in]	iprint	print flag
[in]	ibinun	cell-by-cell file unit number

Definition at line 622 of file gwf-sto.f90.

    class(DefaultStorageFormulationType), intent(inout) :: this !< default formulation
    integer(I4B), intent(in) :: iprint !< print flag
    integer(I4B), intent(in) :: ibinun !< cell-by-cell file unit number

fc_default_sto()

subroutine gwfstomodule::fc_default_sto	(	class(gwfstotype)	this,
		integer(i4b), intent(in)	n,
		class(matrixbasetype), intent(inout), pointer	matrix_sln,
		real(dp), dimension(:), intent(inout)	rhs,
		integer(i4b), dimension(:), intent(in)	idxglo,
		real(dp), dimension(:), intent(in)	hold,
		real(dp), dimension(:), intent(in)	hnew
	)

Parameters

this	GwfStoType object

Definition at line 323 of file gwf-sto.f90.

    use tdismodule, only: delt
    class(GwfStoType) :: this !< GwfStoType object
    integer(I4B), intent(in) :: n
    class(MatrixBaseType), pointer, intent(inout) :: matrix_sln
    real(DP), dimension(:), intent(inout) :: rhs
    integer(I4B), dimension(:), intent(in) :: idxglo
    real(DP), dimension(:), intent(in) :: hold
    real(DP), dimension(:), intent(in) :: hnew
    ! local
    integer(I4B) :: idiag
    real(DP) :: tled
    real(DP) :: sc1, sc2
    real(DP) :: rho1, rho2
    real(DP) :: sc1old, sc2old, rho1old, rho2old
    real(DP) :: tp, bt
    real(DP) :: snold, snnew
    real(DP) :: aterm, rhsterm
    !
    ! -- set variables
    tled = done / delt
    idiag = this%dis%con%ia(n)
    !
    ! -- aquifer elevations and thickness
    tp = this%dis%top(n)
    bt = this%dis%bot(n)
    !
    ! -- aquifer saturation
    if (this%iconvert(n) == 0) then
      snold = done
      snnew = done
    else
      snold = squadraticsaturation(tp, bt, hold(n), this%satomega)
      snnew = squadraticsaturation(tp, bt, hnew(n), this%satomega)
    end if
    !
    ! -- storage coefficients
    sc1 = sscapacity(this%istor_coef, tp, bt, this%dis%area(n), this%ss(n))
    rho1 = sc1 * tled
    !
    if (this%integratechanges /= 0) then
      ! -- Integration of storage changes (e.g. when using TVS):
      !    separate the old (start of time step) and new (end of time step)
      !    primary storage capacities
      sc1old = sscapacity(this%istor_coef, tp, bt, this%dis%area(n), &
                          this%oldss(n))
      rho1old = sc1old * tled
    else
      ! -- No integration of storage changes: old and new values are
      !    identical => normal MF6 storage formulation
      rho1old = rho1
    end if
    !
    ! -- calculate specific storage terms
    call ssterms(this%iconvert(n), this%iorig_ss, this%iconf_ss, tp, bt, &
                 rho1, rho1old, snnew, snold, hnew(n), hold(n), &
                 aterm, rhsterm)
    !
    ! -- add specific storage terms to amat and rhs
    call matrix_sln%add_value_pos(idxglo(idiag), aterm)
    rhs(n) = rhs(n) + rhsterm
    !
    ! -- specific yield
    if (this%iconvert(n) /= 0) then
      rhsterm = dzero
      !
      ! -- secondary storage coefficient
      sc2 = sycapacity(this%dis%area(n), this%sy(n))
      rho2 = sc2 * tled
      !
      if (this%integratechanges /= 0) then
        ! -- Integration of storage changes (e.g. when using TVS):
        !    separate the old (start of time step) and new (end of time step)
        !    secondary storage capacities
        sc2old = sycapacity(this%dis%area(n), this%oldsy(n))
        rho2old = sc2old * tled
      else
        ! -- No integration of storage changes: old and new values are
        !    identical => normal MF6 storage formulation
        rho2old = rho2
      end if
      !
      ! -- calculate specific storage terms
      call syterms(tp, bt, rho2, rho2old, snnew, snold, &
                   aterm, rhsterm)
      !
      ! -- add specific yield terms to amat and rhs
      call matrix_sln%add_value_pos(idxglo(idiag), aterm)
      rhs(n) = rhs(n) + rhsterm
    end if

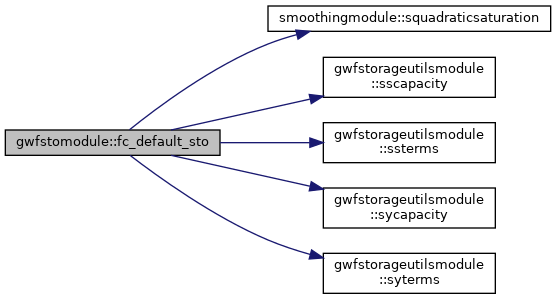

Here is the call graph for this function:

fn_default_sto()

subroutine gwfstomodule::fn_default_sto	(	class(gwfstotype), intent(inout)	this,
		integer(i4b), intent(in)	n,
		class(matrixbasetype), intent(inout), pointer	matrix_sln,
		real(dp), dimension(:), intent(inout)	rhs,
		integer(i4b), dimension(:), intent(in)	idxglo,
		real(dp), dimension(:), intent(in)	hold,
		real(dp), dimension(:), intent(in)	hnew
	)

Definition at line 474 of file gwf-sto.f90.

    use tdismodule, only: delt
    class(GwfStoType), intent(inout) :: this
    integer(I4B), intent(in) :: n
    class(MatrixBaseType), pointer, intent(inout) :: matrix_sln
    real(DP), dimension(:), intent(inout) :: rhs
    integer(I4B), dimension(:), intent(in) :: idxglo
    real(DP), dimension(:), intent(in) :: hold
    real(DP), dimension(:), intent(in) :: hnew
    ! local
    integer(I4B) :: idiag
    real(DP) :: tled
    real(DP) :: sc1, sc2, rho1, rho2
    real(DP) :: tp, bt
    real(DP) :: tthk
    real(DP) :: h
    real(DP) :: snnew
    real(DP) :: derv, rterm, drterm
    !
    ! set variables
    tled = done / delt
    idiag = this%dis%con%ia(n)
    !
    ! -- aquifer elevations and thickness
    tp = this%dis%top(n)
    bt = this%dis%bot(n)
    tthk = tp - bt
    h = hnew(n)
    !
    ! -- aquifer saturation
    snnew = squadraticsaturation(tp, bt, h)
    !
    ! -- storage coefficients
    sc1 = sscapacity(this%istor_coef, tp, bt, this%dis%area(n), this%ss(n))
    sc2 = sycapacity(this%dis%area(n), this%sy(n))
    rho1 = sc1 * tled
    rho2 = sc2 * tled
    !
    ! -- calculate newton terms for specific storage
    !    and specific yield
    if (this%iconvert(n) /= 0) then
      !
      ! -- calculate saturation derivative
      derv = squadraticsaturationderivative(tp, bt, h)
      !
      ! -- newton terms for specific storage
      if (this%iconf_ss == 0) then
        if (this%iorig_ss == 0) then
          drterm = -rho1 * derv * (h - bt) + rho1 * tthk * snnew * derv
        else
          drterm = -(rho1 * derv * h)
        end if
        call matrix_sln%add_value_pos(idxglo(idiag), drterm)
        rhs(n) = rhs(n) + drterm * h
      end if
      !
      ! -- newton terms for specific yield
      !    only calculated if the current saturation
      !    is less than one
      if (snnew < done) then
        ! -- calculate newton terms for specific yield
        if (snnew > dzero) then
          rterm = -rho2 * tthk * snnew
          drterm = -rho2 * tthk * derv
          call matrix_sln%add_value_pos(idxglo(idiag), drterm + rho2)
          rhs(n) = rhs(n) - rterm + drterm * h + rho2 * bt
        end if
      end if
    end if

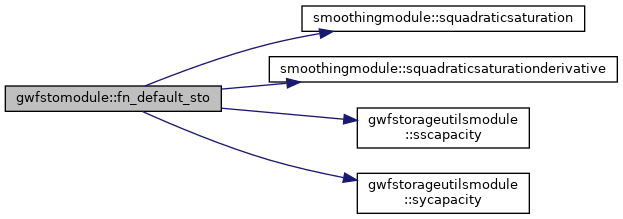

Here is the call graph for this function:

log_options()

subroutine gwfstomodule::log_options	(	class(gwfstotype)	this,
		type(gwfstoparamfoundtype), intent(in)	found
	)

Log options block for STO package.

Parameters

this	GwfStoType object

Definition at line 1030 of file gwf-sto.f90.

    ! -- modules
    use memorymanagerextmodule, only: mem_set_value
    use gwfstoinputmodule, only: gwfstoparamfoundtype
    ! -- dummy variables
    class(GwfStoType) :: this !< GwfStoType object
    type(GwfStoParamFoundType), intent(in) :: found
    ! -- local variables
    ! -- formats
    character(len=*), parameter :: fmtisvflow = &
      "(4x,'CELL-BY-CELL FLOW INFORMATION WILL BE SAVED TO BINARY FILE &
      &WHENEVER ICBCFL IS NOT ZERO.')"
    character(len=*), parameter :: fmtflow = &
      &"(4x, 'FLOWS WILL BE SAVED TO FILE: ', a, /4x, 'OPENED ON UNIT: ', I7)"
    character(len=*), parameter :: fmtorigss = &
      "(4X,'ORIGINAL_SPECIFIC_STORAGE OPTION:',/, &
      &1X,'The original specific storage formulation will be used')"
    character(len=*), parameter :: fmtstoc = &
      "(4X,'STORAGECOEFFICIENT OPTION:',/, &
      &1X,'Read storage coefficient rather than specific storage')"
    character(len=*), parameter :: fmtconfss = &
      "(4X,'SS_CONFINED_ONLY OPTION:',/, &
      &1X,'Specific storage changes only occur under confined conditions')"
    !
    write (this%iout, '(1x,a)') 'PROCESSING STORAGE OPTIONS'
    !
    if (found%ipakcb) then
      write (this%iout, fmtisvflow)
    end if
    !
    if (found%istor_coef) then
      write (this%iout, fmtstoc)
    end if
    !
    if (found%ss_confined_only) then
      write (this%iout, fmtconfss)
    end if
    !
    if (found%iorig_ss) then
      write (this%iout, fmtorigss)
    end if
    !
    if (found%iconf_ss) then
      write (this%iout, fmtconfss)
    end if
    !
    write (this%iout, '(1x,a)') 'END OF STORAGE OPTIONS'

save_old_ss_sy()

subroutine gwfstomodule::save_old_ss_sy

(

class(gwfstotype)

this

)

Save ss and sy values from the previous time step for use with storage integration when integratechanges is non-zero.

Parameters

this	GwfStoType object

Definition at line 1180 of file gwf-sto.f90.

    ! -- modules
    use memorymanagermodule, only: mem_allocate
    ! -- dummy variables
    class(GwfStoType) :: this !< GwfStoType object
    ! -- local variables
    integer(I4B) :: n
    !
    ! -- Allocate TVS arrays if needed
    if (.not. associated(this%oldss)) then
      call mem_allocate(this%oldss, this%dis%nodes, 'OLDSS', this%memoryPath)
    end if
    if (this%iusesy == 1 .and. .not. associated(this%oldsy)) then
      call mem_allocate(this%oldsy, this%dis%nodes, 'OLDSY', this%memoryPath)
    end if
    !
    ! -- Save current specific storage
    do n = 1, this%dis%nodes
      this%oldss(n) = this%ss(n)
    end do
    !
    ! -- Save current specific yield, if used
    if (this%iusesy == 1) then
      do n = 1, this%dis%nodes
        this%oldsy(n) = this%sy(n)
      end do
    end if

source_data()

subroutine gwfstomodule::source_data

(

class(gwfstotype)

this

)

Source griddata block parameters for STO package.

Parameters

this	GwfStoType object

Definition at line 1084 of file gwf-sto.f90.

    ! -- modules
    use memorymanagerextmodule, only: mem_set_value
    use gwfstoinputmodule, only: gwfstoparamfoundtype
    ! -- dummy variables
    class(GwfStotype) :: this !< GwfStoType object
    ! -- local variables
    character(len=LINELENGTH) :: cellstr
    logical(LGP) :: isconv
    character(len=24), dimension(4) :: aname
    integer(I4B) :: n
    integer(I4B), dimension(:), pointer, contiguous :: map
    type(GwfStoParamFoundType) :: found
    !
    ! -- initialize data
    data aname(1)/'                ICONVERT'/
    data aname(2)/'        SPECIFIC STORAGE'/
    data aname(3)/'          SPECIFIC YIELD'/
    !
    ! -- set map to reduce data input arrays
    map => null()
    if (this%dis%nodes < this%dis%nodesuser) map => this%dis%nodeuser
    !
    ! -- copy data from input context
    call mem_set_value(this%iconvert, 'ICONVERT', this%input_mempath, map, &
                       found%iconvert)
    call mem_set_value(this%ss, 'SS', this%input_mempath, map, found%ss)
    call mem_set_value(this%sy, 'SY', this%input_mempath, map, found%sy)
    !
    ! -- Check for ICONVERT
    if (found%iconvert) then
      isconv = .false.
      do n = 1, this%dis%nodes
        if (this%iconvert(n) /= 0) then
          isconv = .true.
          this%iusesy = 1
          exit
        end if
      end do
    else
      write (errmsg, '(a, a, a)') 'Error in GRIDDATA block: ', &
        trim(adjustl(aname(1))), ' not found.'
      call store_error(errmsg)
    end if
    !
    ! -- Check for SS
    if (found%ss) then
      ! no-op
    else
      write (errmsg, '(a, a, a)') 'Error in GRIDDATA block: ', &
        trim(adjustl(aname(2))), ' not found.'
      call store_error(errmsg)
    end if
    !
    ! -- Check for SY
    if (found%sy) then
      ! no-op
    else
      if (isconv) then
        write (errmsg, '(a, a, a)') 'Error in GRIDDATA block: ', &
          trim(adjustl(aname(3))), ' not found.'
        call store_error(errmsg)
      end if
    end if
    !
    if (count_errors() > 0) then
      call store_error_filename(this%input_fname)
    end if
    !
    ! -- Check SS and SY for negative values
    do n = 1, this%dis%nodes
      if (this%ss(n) < dzero) then
        call this%dis%noder_to_string(n, cellstr)
        write (errmsg, '(a,2(1x,a),1x,g0,1x,a)') &
          'Error in SS DATA: SS value in cell', trim(adjustl(cellstr)), &
          'is less than zero (', this%ss(n), ').'
        call store_error(errmsg)
      end if
      if (found%sy) then
        if (this%sy(n) < dzero) then
          call this%dis%noder_to_string(n, cellstr)
          write (errmsg, '(a,2(1x,a),1x,g0,1x,a)') &
            'Error in SY DATA: SY value in cell', trim(adjustl(cellstr)), &
            'is less than zero (', this%sy(n), ').'
          call store_error(errmsg)
        end if
      end if
    end do

Here is the call graph for this function:

source_options()

subroutine gwfstomodule::source_options

(

class(gwfstotype)

this

)

Source options block parameters for STO package.

Parameters

this	GwfStoType object

Definition at line 968 of file gwf-sto.f90.

    ! -- modules
    use constantsmodule, only: lenmempath
    use memorymanagermodule, only: mem_setptr, get_isize
    use memorymanagerextmodule, only: mem_set_value
    use characterstringmodule, only: characterstringtype
    use sourcecommonmodule, only: filein_fname
    use gwfstoinputmodule, only: gwfstoparamfoundtype
    ! -- dummy variables
    class(GwfStoType) :: this !< GwfStoType object
    ! -- local variables
    type(GwfStoParamFoundType) :: found
    type(CharacterStringType), dimension(:), pointer, contiguous :: tvs6_mempaths
    character(len=LINELENGTH) :: tvs6_filename
    character(len=LENMEMPATH) :: tvs6_mempath
    !
    ! -- source package input
    call mem_set_value(this%ipakcb, 'IPAKCB', this%input_mempath, found%ipakcb)
    call mem_set_value(this%istor_coef, 'ISTOR_COEF', this%input_mempath, &
                       found%istor_coef)
    call mem_set_value(this%iconf_ss, 'SS_CONFINED_ONLY', this%input_mempath, &
                       found%ss_confined_only)
    call mem_set_value(this%iorig_ss, 'IORIG_SS', this%input_mempath, &
                       found%iorig_ss)
    call mem_set_value(this%iconf_ss, 'ICONF_SS', this%input_mempath, &
                       found%iconf_ss)
    !
    if (found%ipakcb) then
      this%ipakcb = -1
    end if
    !
    if (found%ss_confined_only) then
      this%iorig_ss = 0
    end if
    !
    ! -- TVS6 subpackage
    if (filein_fname(tvs6_filename, 'TVS6_FILENAME', &
                     this%input_mempath, this%input_fname)) then
      call mem_setptr(tvs6_mempaths, 'TVS6_MEMPATH', this%input_mempath)
      tvs6_mempath = tvs6_mempaths(1)
      this%intvs = 1 ! tvs active
      call tvs_cr(this%tvs, this%name_model, tvs6_mempath, this%intvs, this%iout)
    end if
    !
    if (found%iconf_ss) then
      this%iorig_ss = 0
    end if
    !
    ! -- log found options
    call this%log_options(found)
    !
    ! -- set omega value used for saturation calculations
    if (this%inewton > 0) then
      this%satomega = dem6
    end if

Here is the call graph for this function:

sto_ad()

subroutine gwfstomodule::sto_ad

(

class(gwfstotype)

this

)

Advance data in the STO package.

Parameters

this	GwfStoType object

Definition at line 236 of file gwf-sto.f90.

    ! -- modules
    use tdismodule, only: kstp
    ! -- dummy variables
    class(GwfStoType) :: this !< GwfStoType object
    !
    ! -- Store ss and sy values from end of last time step if needed
    if (this%integratechanges /= 0 .and. kstp > 1) then
      call this%save_old_ss_sy()
    end if
    !
    ! -- TVS
    if (this%intvs /= 0) then
      call this%tvs%ad()
    end if

sto_ar()

subroutine gwfstomodule::sto_ar	(	class(gwfstotype)	this,
		class(disbasetype), intent(in), pointer	dis,
		integer(i4b), dimension(:), pointer, contiguous	ibound
	)

Method to allocate and read static data for the STO package.

Parameters

	this	GwfStoType object
[in]	dis	model discretization object
	ibound	model ibound array

Definition at line 135 of file gwf-sto.f90.

    ! -- modules
    use memorymanagermodule, only: mem_setptr
    use memoryhelpermodule, only: create_mem_path
    ! -- dummy variables
    class(GwfStoType) :: this !< GwfStoType object
    class(DisBaseType), pointer, intent(in) :: dis !< model discretization object
    integer(I4B), dimension(:), pointer, contiguous :: ibound !< model ibound array
    ! -- local variables
    ! -- formats
    character(len=*), parameter :: fmtsto = &
      "(1x,/1x,'STO -- STORAGE PACKAGE, VERSION 1, 5/19/2014', &
      &' INPUT READ FROM MEMPATH: ', A, //)"
    !
    ! --print a message identifying the storage package.
    write (this%iout, fmtsto) this%input_mempath
    !
    ! -- store pointers to arguments that were passed in
    this%dis => dis
    this%ibound => ibound
    !
    ! -- set pointer to gwf iss
    call mem_setptr(this%iss, 'ISS', create_mem_path(this%name_model))
    !
    ! -- Allocate arrays
    call this%allocate_arrays(dis%nodes)
    !!
    !! -- Register side effect handlers
    !call this%register_handlers()
    !
    ! -- Read storage options
    call this%source_options()
    !
    ! -- read the data block
    call this%source_data()
    !
    ! -- TVS
    if (this%intvs /= 0) then
      call this%tvs%ar(this%dis)
    end if


Here is the call graph for this function:

sto_bd()

subroutine gwfstomodule::sto_bd	(	class(gwfstotype)	this,
		integer(i4b), intent(in)	isuppress_output,
		type(budgettype), intent(inout)	model_budget
	)

Budget calculation for the STO package components. Components include specific storage and specific yield storage.

Parameters

	this	GwfStoType object
[in]	isuppress_output	flag to suppress model output
[in,out]	model_budget	model budget object

Definition at line 730 of file gwf-sto.f90.

    ! -- modules
    use tdismodule, only: delt
    use budgetmodule, only: budgettype, rate_accumulator
    ! -- dummy variables
    class(GwfStoType) :: this !< GwfStoType object
    integer(I4B), intent(in) :: isuppress_output !< flag to suppress model output
    type(BudgetType), intent(inout) :: model_budget !< model budget object
    ! -- local variables
    integer(I4B) :: i
    real(DP) :: rin
    real(DP) :: rout
    !
    ! -- Add external storage rates to model budget
    do i = 1, max_ext_sto_forms
      if (this%sto_formulations(i)%is_active) then
        call this%sto_formulations(i)%form%bd(isuppress_output, model_budget)
      end if
    end do
    !
    ! -- Add confined storage rates to model budget
    call rate_accumulator(this%strgss, rin, rout)
    call model_budget%addentry(rin, rout, delt, budtxt(1), &
                               isuppress_output, '         STORAGE')
    !
    ! -- Add unconfined storage rates to model budget (TODO_UZR: extension as a separate entry?)
    if (this%iusesy == 1) then
      call rate_accumulator(this%strgsy, rin, rout)
      call model_budget%addentry(rin, rout, delt, budtxt(2), &
                                 isuppress_output, '         STORAGE')
    end if

Here is the call graph for this function:

sto_cq()

subroutine gwfstomodule::sto_cq	(	class(gwfstotype)	this,
		real(dp), dimension(:), intent(inout), contiguous	flowja,
		real(dp), dimension(:), intent(in), contiguous	hnew,
		real(dp), dimension(:), intent(in), contiguous	hold
	)

Flow calculation for the STO package components. Components include specific storage and specific yield storage.

Parameters

	this	GwfStoType object
[in,out]	flowja	connection flows
[in]	hnew	current head
[in]	hold	previous head

Definition at line 552 of file gwf-sto.f90.

    ! -- dummy variables
    class(GwfStoType) :: this !< GwfStoType object
    real(DP), dimension(:), contiguous, intent(inout) :: flowja !< connection flows
    real(DP), dimension(:), contiguous, intent(in) :: hnew !< current head
    real(DP), dimension(:), contiguous, intent(in) :: hold !< previous head
    ! -- local variables
    integer(I4B) :: n
    integer(I4B) :: iform
    !
    ! -- reset storage rates
    do n = 1, this%dis%nodes
      this%strgss(n) = dzero
      this%strgsy(n) = dzero
    end do
    !
    if (this%iss == 1) return !< no storage for steady state period
    !
    ! -- Each active formulation runs over all cells and adds its storage
    !    change; the default storage formulation is always active.
    call this%default_form%cq(flowja, hnew, hold)
    do iform = 1, max_ext_sto_forms
      if (this%sto_formulations(iform)%is_active) then
        call this%sto_formulations(iform)%form%cq(flowja, hnew, hold)
      end if
    end do

sto_cr()

subroutine, public gwfstomodule::sto_cr	(	type(gwfstotype), pointer	stoobj,
		character(len=*), intent(in)	name_model,
		character(len=*), intent(in)	mempath,
		integer(i4b), intent(in)	inunit,
		integer(i4b), intent(in)	iout
	)

Create a new storage (STO) object

Parameters

	stoobj	GwfStoType object
[in]	name_model	name of model
[in]	mempath	input context mem path
[in]	inunit	package input file unit
[in]	iout	model listing file unit

Definition at line 108 of file gwf-sto.f90.

    ! -- dummy variables
    type(GwfStoType), pointer :: stoobj !< GwfStoType object
    character(len=*), intent(in) :: name_model !< name of model
    character(len=*), intent(in) :: mempath !< input context mem path
    integer(I4B), intent(in) :: inunit !< package input file unit
    integer(I4B), intent(in) :: iout !< model listing file unit
    !
    ! -- Create the object
    allocate (stoobj)
    !
    ! -- create name and memory path
    call stoobj%set_names(1, name_model, 'STO', 'STO', mempath)
    !
    ! -- Allocate scalars
    call stoobj%allocate_scalars()
    !
    ! -- Set variables
    stoobj%inunit = inunit
    stoobj%iout = iout

Here is the caller graph for this function:

sto_da()

subroutine gwfstomodule::sto_da

(

class(gwfstotype)

this

)

Deallocate STO package scalars and arrays.

Parameters

this	GwfStoType object

Definition at line 821 of file gwf-sto.f90.

    ! -- modules
    use memorymanagermodule, only: mem_deallocate
    ! -- dummy variables
    class(GwfStoType) :: this !< GwfStoType object
    !
    ! -- TVS
    if (this%intvs /= 0) then
      call this%tvs%da()
      deallocate (this%tvs)
    end if
    !
    ! -- Deallocate arrays if package is active
    if (this%inunit > 0) then
      call mem_deallocate(this%iconvert)
      call mem_deallocate(this%ss)
      call mem_deallocate(this%sy)
      call mem_deallocate(this%strgss)
      call mem_deallocate(this%strgsy)
      call mem_deallocate(this%iformulation)
      !
      ! -- deallocate the default storage formulation
      if (associated(this%default_form)) then
        deallocate (this%default_form)
        this%default_form => null()
      end if
      !
      ! -- deallocate TVS arrays
      if (associated(this%oldss)) then
        call mem_deallocate(this%oldss)
      end if
      if (associated(this%oldsy)) then
        call mem_deallocate(this%oldsy)
      end if
      !
      ! -- nullify input context pointers
      nullify (this%iper)
      nullify (this%storage)
    end if
    !
    ! -- Deallocate scalars
    call mem_deallocate(this%istor_coef)
    call mem_deallocate(this%iconf_ss)
    call mem_deallocate(this%iorig_ss)
    call mem_deallocate(this%iusesy)
    call mem_deallocate(this%satomega)
    call mem_deallocate(this%integratechanges)
    call mem_deallocate(this%intvs)
    !
    ! -- deallocate parent
    call this%NumericalPackageType%da()

sto_fc()

subroutine gwfstomodule::sto_fc	(	class(gwfstotype)	this,
		integer(i4b), intent(in)	kiter,
		real(dp), dimension(:), intent(in)	hold,
		real(dp), dimension(:), intent(in)	hnew,
		class(matrixbasetype), pointer	matrix_sln,
		integer(i4b), dimension(:), intent(in)	idxglo,
		real(dp), dimension(:), intent(inout)	rhs
	)

Fill the coefficient matrix and right-hand side with the STO package terms.

Parameters

	this	GwfStoType object
[in]	kiter	outer iteration number
[in]	hold	previous heads
[in]	hnew	current heads
	matrix_sln	A matrix
[in]	idxglo	global index model to solution
[in,out]	rhs	right-hand side

Definition at line 258 of file gwf-sto.f90.

    use tdismodule, only: delt
    ! -- dummy variables
    class(GwfStoType) :: this !< GwfStoType object
    integer(I4B), intent(in) :: kiter !< outer iteration number
    real(DP), intent(in), dimension(:) :: hold !< previous heads
    real(DP), intent(in), dimension(:) :: hnew !< current heads
    class(MatrixBaseType), pointer :: matrix_sln !< A matrix
    integer(I4B), intent(in), dimension(:) :: idxglo !< global index model to solution
    real(DP), intent(inout), dimension(:) :: rhs !< right-hand side
    ! -- local variables
    integer(I4B) :: iform
    ! -- formats
    character(len=*), parameter :: fmtsperror = &
      &"('DETECTED TIME STEP LENGTH OF ZERO.  GWF STORAGE PACKAGE CANNOT BE ', &
      &'USED UNLESS DELT IS NON-ZERO.')"
    !
    ! -- test if steady-state stress period
    if (this%iss /= 0) return
    !
    ! -- Ensure time step length is not zero
    if (delt == dzero) then
      write (errmsg, fmtsperror)
      call store_error(errmsg, terminate=.true.)
    end if
    !
    ! -- Each active formulation runs over all cells and adds its storage
    !    terms; the default storage formulation is always active.
    call this%default_form%fc(kiter, matrix_sln, rhs, idxglo, hold, hnew)
    do iform = 1, max_ext_sto_forms
      if (this%sto_formulations(iform)%is_active) then
        call this%sto_formulations(iform)%form%fc( &
          kiter, matrix_sln, rhs, idxglo, hold, hnew)
      end if
    end do

Here is the call graph for this function:

sto_fn()

subroutine gwfstomodule::sto_fn	(	class(gwfstotype)	this,
		integer(i4b), intent(in)	kiter,
		real(dp), dimension(:), intent(in)	hold,
		real(dp), dimension(:), intent(in)	hnew,
		class(matrixbasetype), pointer	matrix_sln,
		integer(i4b), dimension(:), intent(in)	idxglo,
		real(dp), dimension(:), intent(inout)	rhs
	)

Fill the coefficient matrix and right-hand side with STO package with Newton-Raphson terms.

Parameters

	this	GwfStoType object
[in]	kiter	outer iteration number
[in]	hold	previous heads
[in]	hnew	current heads
	matrix_sln	A matrix
[in]	idxglo	global index model to solution
[in,out]	rhs	right-hand side

Definition at line 422 of file gwf-sto.f90.

    ! -- dummy variables
    class(GwfStoType) :: this !< GwfStoType object
    integer(I4B), intent(in) :: kiter !< outer iteration number
    real(DP), intent(in), dimension(:) :: hold !< previous heads
    real(DP), intent(in), dimension(:) :: hnew !< current heads
    class(MatrixBaseType), pointer :: matrix_sln !< A matrix
    integer(I4B), intent(in), dimension(:) :: idxglo !< global index model to solution
    real(DP), intent(inout), dimension(:) :: rhs !< right-hand side
    ! -- local variables
    integer(I4B) :: iform
    !
    ! -- test if steady-state stress period
    if (this%iss /= 0) return
    !
    ! -- Each active formulation runs over all cells and adds its newton
    !    terms; the default storage formulation is always active.
    call this%default_form%fn(kiter, matrix_sln, rhs, idxglo, hold, hnew)
    do iform = 1, max_ext_sto_forms
      if (this%sto_formulations(iform)%is_active) then
        call this%sto_formulations(iform)%form%fn( &
          kiter, matrix_sln, rhs, idxglo, hold, hnew)
      end if
    end do

sto_rp()

subroutine gwfstomodule::sto_rp

(

class(gwfstotype)

this

)

Method to read and prepare stress period data for the STO package.

Parameters

this	GwfStoType object

Definition at line 183 of file gwf-sto.f90.

    ! -- modules
    use tdismodule, only: kper
    implicit none
    ! -- dummy variables
    class(GwfStoType) :: this !< GwfStoType object
    ! -- local variables
    character(len=16) :: css(0:1)
    ! -- data
    data css(0)/'       TRANSIENT'/
    data css(1)/'    STEADY-STATE'/
    !
    ! -- Store ss and sy values from end of last stress period if needed
    if (this%integratechanges /= 0) then
      call this%save_old_ss_sy()
    end if
    !
    ! -- confirm package is active
    if (this%inunit <= 0) return
    !
    ! -- process STO period data if loaded for this period
    if (this%iper == kper) then
      write (this%iout, '(//,1x,a)') 'PROCESSING STORAGE PERIOD DATA'
      !
      ! -- set period iss
      if (this%storage == 'STEADY-STATE') then
        this%iss = 1
      else if (this%storage == 'TRANSIENT') then
        this%iss = 0
      else
        write (errmsg, '(a,a)') 'Unknown STORAGE data tag: ', &
          trim(this%storage)
        call store_error(errmsg)
        call store_error_filename(this%input_fname)
      end if
      !
      write (this%iout, '(1x,a)') 'END PROCESSING STORAGE PERIOD DATA'
      !
      write (this%iout, '(//1X,A,I0,A,A,/)') &
        'STRESS PERIOD ', kper, ' IS ', trim(adjustl(css(this%iss)))
    end if
    !
    ! -- TVS (has its own PERIOD blocks independent of STO)
    if (this%intvs /= 0) then
      call this%tvs%rp()
    end if

Here is the call graph for this function:

sto_save_model_flows()

subroutine gwfstomodule::sto_save_model_flows	(	class(gwfstotype)	this,
		integer(i4b), intent(in)	icbcfl,
		integer(i4b), intent(in)	icbcun
	)

Save cell-by-cell budget terms for the STO package.

Parameters

	this	GwfStoType object
[in]	icbcfl	flag to output budget data
[in]	icbcun	cell-by-cell file unit number

Definition at line 768 of file gwf-sto.f90.

    ! -- dummy variables
    class(GwfStoType) :: this !< GwfStoType object
    integer(I4B), intent(in) :: icbcfl !< flag to output budget data
    integer(I4B), intent(in) :: icbcun !< cell-by-cell file unit number
    ! -- local variables
    integer(I4B) :: iform
    integer(I4B) :: ibinun
    integer(I4B) :: iprint, nvaluesp, nwidthp
    character(len=1) :: cdatafmp = ' ', editdesc = ' '
    real(DP) :: dinact
    !
    ! -- Set unit number for binary output
    if (this%ipakcb < 0) then
      ibinun = icbcun
    elseif (this%ipakcb == 0) then
      ibinun = 0
    else
      ibinun = this%ipakcb
    end if
    if (icbcfl == 0) ibinun = 0
    !
    ! -- Record the storage rates if requested
    if (ibinun /= 0) then
      iprint = 0
      dinact = dzero
      !
      ! -- external formulations first
      do iform = 1, max_ext_sto_forms
        if (this%sto_formulations(iform)%is_active) then
          call this%sto_formulations(iform)%form%save_flows(iprint, ibinun)
        end if
      end do
      !
      ! -- storage(ss)
      call this%dis%record_array(this%strgss, this%iout, iprint, -ibinun, &
                                 budtxt(1), cdatafmp, nvaluesp, &
                                 nwidthp, editdesc, dinact)
      !
      ! -- storage(sy)
      if (this%iusesy == 1) then
        call this%dis%record_array(this%strgsy, this%iout, iprint, -ibinun, &
                                   budtxt(2), cdatafmp, nvaluesp, &
                                   nwidthp, editdesc, dinact)
      end if
    end if

Variable Documentation

budtxt

character(len=lenbudtxt), dimension(2) gwfstomodule::budtxt = [' STO-SS', ' STO-SY']

Definition at line 31 of file gwf-sto.f90.

  character(len=LENBUDTXT), dimension(2) :: budtxt = & !< text labels for budget terms
    &['          STO-SS', '          STO-SY']
