gweestmodule Module Reference

@ brief Energy Storage and Transfer (EST) Module More...

Data Types
type	gweesttype
	@ brief Energy storage and transfer More...

Enumerations
enum	{   decay_off = 0 , decay_zero_order = 2 , decay_water = 1 , decay_solid = 2 ,   decay_both = 3 }
	Enumerator that defines the decay options. More...

Functions/Subroutines
subroutine, public	est_cr (estobj, name_model, input_mempath, inunit, iout, fmi, eqnsclfac, gwecommon)
	@ brief Create a new EST package object More...
subroutine	est_ar (this, dis, ibound)
	@ brief Allocate and read method for package More...
subroutine	est_fc (this, nodes, cold, nja, matrix_sln, idxglo, cnew, rhs, kiter)
	@ brief Fill coefficient method for package More...
subroutine	est_fc_sto (this, nodes, cold, nja, matrix_sln, idxglo, rhs)
	@ brief Fill storage coefficient method for package More...
subroutine	est_fc_dcy_water (this, nodes, cold, cnew, nja, matrix_sln, idxglo, rhs, kiter)
	@ brief Fill decay coefficient method for package More...
subroutine	est_fc_dcy_solid (this, nodes, cold, nja, matrix_sln, idxglo, rhs, cnew, kiter)
	@ brief Fill solid decay coefficient method for package More...
subroutine	est_cq (this, nodes, cnew, cold, flowja)
	@ brief Calculate flows for package More...
subroutine	est_cq_sto (this, nodes, cnew, cold, flowja)
	@ brief Calculate storage terms for package More...
subroutine	est_cq_dcy (this, nodes, cnew, cold, flowja)
	@ brief Calculate decay terms for aqueous phase More...
subroutine	est_cq_dcy_solid (this, nodes, cnew, cold, flowja)
	@ brief Calculate decay terms for solid phase More...
subroutine	est_bd (this, isuppress_output, model_budget)
	@ brief Calculate budget terms for package More...
subroutine	est_ot_flow (this, icbcfl, icbcun)
	@ brief Output flow terms for package More...
subroutine	est_da (this)
	Deallocate memory. More...
subroutine	allocate_scalars (this)
	@ brief Allocate scalar variables for package More...
subroutine	allocate_arrays (this, nodes)
	@ brief Allocate arrays for package More...
subroutine	source_options (this)
	Update simulation mempath options. More...
subroutine	log_options (this, found)
	Write user options to list file. More...
subroutine	source_data (this)
	Source EST griddata from input mempath. More...

Variables
integer(i4b), parameter	nbditems = 3
character(len=lenbudtxt), dimension(nbditems)	budtxt

Detailed Description

The GweEstModule contains the GweEstType, which is related to GwtEstModule; however, there are some important differences owing to the fact that a sorbed phase is not considered. Instead, a single temperature is simulated for each grid cell and is representative of both the aqueous and solid phases (i.e., instantaneous thermal equilibrium is assumed). Also, "thermal bleeding" is accommodated, where conductive processes can transport into, through, or out of dry cells that are part of the active domain.

Enumeration Type Documentation

anonymous enum

anonymous enum

Enumerator
decay_off	Decay (or production) of thermal energy inactive (default)
decay_zero_order	Zeroth-order decay.
decay_water	Zeroth-order decay in water only.
decay_solid	Zeroth-order decay in solid only.
decay_both	Zeroth-order decay in water and solid.

Definition at line 36 of file gwe-est.f90.

Function/Subroutine Documentation

allocate_arrays()

subroutine gweestmodule::allocate_arrays	(	class(gweesttype)	this,
		integer(i4b), intent(in)	nodes
	)

Method to allocate arrays for the package.

Parameters

	this	GweEstType object
[in]	nodes	number of nodes

Definition at line 679 of file gwe-est.f90.

    ! -- modules
    use memorymanagermodule, only: mem_allocate
    use constantsmodule, only: dzero
    ! -- dummy
    class(GweEstType) :: this !< GweEstType object
    integer(I4B), intent(in) :: nodes !< number of nodes
    ! -- local
    integer(I4B) :: n
    !
    ! -- Allocate
    ! -- sto
    call mem_allocate(this%porosity, nodes, 'POROSITY', this%memoryPath)
    call mem_allocate(this%ratesto, nodes, 'RATESTO', this%memoryPath)
    call mem_allocate(this%cps, nodes, 'CPS', this%memoryPath)
    call mem_allocate(this%rhos, nodes, 'RHOS', this%memoryPath)
    !
    ! -- dcy
    if (this%idcy == decay_off) then
      call mem_allocate(this%ratedcyw, 1, 'RATEDCYW', this%memoryPath)
      call mem_allocate(this%ratedcys, 1, 'RATEDCYS', this%memoryPath)
      call mem_allocate(this%decay_water, 1, 'DECAY_WATER', this%memoryPath)
      call mem_allocate(this%decay_solid, 1, 'DECAY_SOLID', this%memoryPath)
      call mem_allocate(this%decaylastw, 1, 'DECAYLASTW', this%memoryPath)
      call mem_allocate(this%decaylasts, 1, 'DECAYLAST', this%memoryPath)
    else
      call mem_allocate(this%ratedcyw, this%dis%nodes, 'RATEDCYW', &
                        this%memoryPath)
      call mem_allocate(this%ratedcys, this%dis%nodes, 'RATEDCYS', &
                        this%memoryPath)
      call mem_allocate(this%decay_water, nodes, 'DECAY_WATER', this%memoryPath)
      call mem_allocate(this%decay_solid, nodes, 'DECAY_SOLID', this%memoryPath)
      call mem_allocate(this%decaylastw, nodes, 'DECAYLASTW', this%memoryPath)
      call mem_allocate(this%decaylasts, nodes, 'DECAYLASTS', this%memoryPath)
    end if
    !
    ! -- Initialize
    do n = 1, nodes
      this%porosity(n) = dzero
      this%ratesto(n) = dzero
      this%cps(n) = dzero
      this%rhos(n) = dzero
    end do
    do n = 1, size(this%decay_water)
      this%decay_water(n) = dzero
      this%decay_solid(n) = dzero
      this%ratedcyw(n) = dzero
      this%ratedcys(n) = dzero
      this%decaylastw(n) = dzero
      this%decaylasts(n) = dzero
    end do

allocate_scalars()

subroutine gweestmodule::allocate_scalars

(

class(gweesttype)

this

)

Method to allocate scalar variables for the package.

Parameters

this	GweEstType object

Definition at line 651 of file gwe-est.f90.

    ! -- modules
    use memorymanagermodule, only: mem_allocate, mem_setptr
    ! -- dummy
    class(GweEstType) :: this !< GweEstType object
    !
    ! -- Allocate scalars in NumericalPackageType
    call this%NumericalPackageType%allocate_scalars()
    !
    ! -- Allocate
    call mem_allocate(this%cpw, 'CPW', this%memoryPath)
    call mem_allocate(this%rhow, 'RHOW', this%memoryPath)
    call mem_allocate(this%latheatvap, 'LATHEATVAP', this%memoryPath)
    call mem_allocate(this%idcy, 'IDCY', this%memoryPath)
    call mem_allocate(this%idcysrc, 'IDCYSRC', this%memoryPath)
    !
    ! -- Initialize
    this%cpw = dzero
    this%rhow = dzero
    this%latheatvap = dzero
    this%idcy = izero
    this%idcysrc = izero

est_ar()

subroutine gweestmodule::est_ar	(	class(gweesttype), intent(inout)	this,
		class(disbasetype), intent(in), pointer	dis,
		integer(i4b), dimension(:), pointer, contiguous	ibound
	)

Method to allocate and read static data for the package.

Parameters

[in,out]	this	GweEstType object
[in]	dis	pointer to dis package
	ibound	pointer to GWE ibound array

Definition at line 136 of file gwe-est.f90.

    ! -- modules
    use gweinputdatamodule, only: set_gwe_dat_ptrs
    ! -- dummy
    class(GweEstType), intent(inout) :: this !< GweEstType object
    class(DisBaseType), pointer, intent(in) :: dis !< pointer to dis package
    integer(I4B), dimension(:), pointer, contiguous :: ibound !< pointer to GWE ibound array
    ! -- formats
    character(len=*), parameter :: fmtest = &
      "(1x,/1x,'EST -- ENERGY STORAGE AND TRANSFER PACKAGE, VERSION 1, &
      &7/29/2020 INPUT READ FROM MEMPATH: ', a, /)"
    !
    ! --print a message identifying the energy storage and transfer package.
    write (this%iout, fmtest) this%input_mempath
    !
    ! -- Read options
    call this%source_options()
    !
    ! -- store pointers to arguments that were passed in
    this%dis => dis
    this%ibound => ibound
    !
    ! -- Allocate arrays
    call this%allocate_arrays(dis%nodes)
    !
    ! -- read the gridded data
    call this%source_data()
    !
    ! -- set data required by other packages
    call this%gwecommon%set_gwe_dat_ptrs(this%rhow, this%cpw, this%latheatvap, &
                                         this%rhos, this%cps)

Here is the call graph for this function:

est_bd()

subroutine gweestmodule::est_bd	(	class(gweesttype)	this,
		integer(i4b), intent(in)	isuppress_output,
		type(budgettype), intent(inout)	model_budget
	)

Method to calculate budget terms for the package.

Parameters

	this	GweEstType object
[in]	isuppress_output	flag to suppress output
[in,out]	model_budget	model budget object

Definition at line 525 of file gwe-est.f90.

    ! -- modules
    use tdismodule, only: delt
    use budgetmodule, only: budgettype, rate_accumulator
    ! -- dummy
    class(GweEstType) :: this !< GweEstType object
    integer(I4B), intent(in) :: isuppress_output !< flag to suppress output
    type(BudgetType), intent(inout) :: model_budget !< model budget object
    ! -- local
    real(DP) :: rin
    real(DP) :: rout
    !
    ! -- sto
    call rate_accumulator(this%ratesto, rin, rout)
    call model_budget%addentry(rin, rout, delt, budtxt(1), &
                               isuppress_output, rowlabel=this%packName)
    !
    ! -- dcy
    if (this%idcy == decay_zero_order) then
      if (this%idcysrc == decay_water .or. this%idcysrc == decay_both) then
        ! -- aqueous phase
        call rate_accumulator(this%ratedcyw, rin, rout)
        call model_budget%addentry(rin, rout, delt, budtxt(2), &
                                   isuppress_output, rowlabel=this%packName)
      end if
      if (this%idcysrc == decay_solid .or. this%idcysrc == decay_both) then
        ! -- solid phase
        call rate_accumulator(this%ratedcys, rin, rout)
        call model_budget%addentry(rin, rout, delt, budtxt(3), &
                                   isuppress_output, rowlabel=this%packName)
      end if
    end if

Here is the call graph for this function:

est_cq()

subroutine gweestmodule::est_cq	(	class(gweesttype)	this,
		integer(i4b), intent(in)	nodes,
		real(dp), dimension(nodes), intent(in)	cnew,
		real(dp), dimension(nodes), intent(in)	cold,
		real(dp), dimension(:), intent(inout), contiguous	flowja
	)

Method to calculate flows for the package.

Parameters

	this	GweEstType object
[in]	nodes	number of nodes
[in]	cnew	temperature at end of this time step
[in]	cold	temperature at end of last time step
[in,out]	flowja	flow between two connected control volumes

Definition at line 347 of file gwe-est.f90.

    ! -- dummy
    class(GweEstType) :: this !< GweEstType object
    integer(I4B), intent(in) :: nodes !< number of nodes
    real(DP), intent(in), dimension(nodes) :: cnew !< temperature at end of this time step
    real(DP), intent(in), dimension(nodes) :: cold !< temperature at end of last time step
    real(DP), dimension(:), contiguous, intent(inout) :: flowja !< flow between two connected control volumes
    ! -- local
    !
    ! - storage
    call this%est_cq_sto(nodes, cnew, cold, flowja)
    !
    ! -- decay
    if (this%idcy == decay_zero_order) then
      if (this%idcysrc == decay_water .or. this%idcysrc == decay_both) then
        call this%est_cq_dcy(nodes, cnew, cold, flowja)
      end if
      if (this%idcysrc == decay_solid .or. this%idcysrc == decay_both) then
        call this%est_cq_dcy_solid(nodes, cnew, cold, flowja)
      end if
    end if

est_cq_dcy()

subroutine gweestmodule::est_cq_dcy	(	class(gweesttype)	this,
		integer(i4b), intent(in)	nodes,
		real(dp), dimension(nodes), intent(in)	cnew,
		real(dp), dimension(nodes), intent(in)	cold,
		real(dp), dimension(:), intent(inout), contiguous	flowja
	)

Method to calculate decay terms for the aqueous phase.

Parameters

	this	GweEstType object
[in]	nodes	number of nodes
[in]	cnew	temperature at end of this time step
[in]	cold	temperature at end of last time step
[in,out]	flowja	flow between two connected control volumes

Definition at line 426 of file gwe-est.f90.

    ! -- dummy
    class(GweEstType) :: this !< GweEstType object
    integer(I4B), intent(in) :: nodes !< number of nodes
    real(DP), intent(in), dimension(nodes) :: cnew !< temperature at end of this time step
    real(DP), intent(in), dimension(nodes) :: cold !< temperature at end of last time step
    real(DP), dimension(:), contiguous, intent(inout) :: flowja !< flow between two connected control volumes
    ! -- local
    integer(I4B) :: n
    integer(I4B) :: idiag
    real(DP) :: rate
    real(DP) :: swtpdt
    real(DP) :: hhcof, rrhs
    real(DP) :: vcell
    real(DP) :: decay_rate
    !
    ! -- Calculate decay change
    do n = 1, nodes
      !
      ! -- skip if transport inactive
      this%ratedcyw(n) = dzero
      if (this%ibound(n) <= 0) cycle
      !
      ! -- calculate new and old water volumes
      vcell = this%dis%area(n) * (this%dis%top(n) - this%dis%bot(n))
      swtpdt = this%fmi%gwfsat(n)
      !
      ! -- calculate decay gains and losses
      rate = dzero
      hhcof = dzero
      rrhs = dzero
      ! -- zero order decay aqueous phase
      if (this%idcy == decay_zero_order .and. &
          (this%idcysrc == decay_water .or. this%idcysrc == decay_both)) then
        decay_rate = this%decay_water(n)
        ! -- this term does NOT get multiplied by eqnsclfac for cq purposes
        !    because it should already be a rate of energy
        rrhs = decay_rate * vcell * swtpdt * this%porosity(n)
      end if
      rate = hhcof * cnew(n) - rrhs
      this%ratedcyw(n) = rate
      idiag = this%dis%con%ia(n)
      flowja(idiag) = flowja(idiag) + rate
      !
    end do

est_cq_dcy_solid()

subroutine gweestmodule::est_cq_dcy_solid	(	class(gweesttype)	this,
		integer(i4b), intent(in)	nodes,
		real(dp), dimension(nodes), intent(in)	cnew,
		real(dp), dimension(nodes), intent(in)	cold,
		real(dp), dimension(:), intent(inout), contiguous	flowja
	)

Method to calculate decay terms for the solid phase.

Parameters

	this	GweEstType object
[in]	nodes	number of nodes
[in]	cnew	temperature at end of this time step
[in]	cold	temperature at end of last time step
[in,out]	flowja	flow between two connected control volumes

Definition at line 477 of file gwe-est.f90.

    ! -- dummy
    class(GweEstType) :: this !< GweEstType object
    integer(I4B), intent(in) :: nodes !< number of nodes
    real(DP), intent(in), dimension(nodes) :: cnew !< temperature at end of this time step
    real(DP), intent(in), dimension(nodes) :: cold !< temperature at end of last time step
    real(DP), dimension(:), contiguous, intent(inout) :: flowja !< flow between two connected control volumes
    ! -- local
    integer(I4B) :: n
    integer(I4B) :: idiag
    real(DP) :: rate
    real(DP) :: hhcof, rrhs
    real(DP) :: vcell
    real(DP) :: decay_rate
    !
    ! -- calculate decay change
    do n = 1, nodes
      !
      ! -- skip if transport inactive
      this%ratedcys(n) = dzero
      if (this%ibound(n) <= 0) cycle
      !
      ! -- calculate new and old water volumes
      vcell = this%dis%area(n) * (this%dis%top(n) - this%dis%bot(n))
      !
      ! -- calculate decay gains and losses
      rate = dzero
      hhcof = dzero
      rrhs = dzero
      ! -- first-order decay (idcy=1) is not supported for temperature modeling
      if (this%idcy == decay_zero_order .and. &
          (this%idcysrc == decay_solid .or. this%idcysrc == decay_both)) then ! zero order decay in the solid phase
        decay_rate = this%decay_solid(n)
        ! -- this term does NOT get multiplied by eqnsclfac for cq purposes
        !    because it should already be a rate of energy
        rrhs = decay_rate * vcell * (1 - this%porosity(n)) * this%rhos(n)
      end if
      rate = hhcof * cnew(n) - rrhs
      this%ratedcys(n) = rate
      idiag = this%dis%con%ia(n)
      flowja(idiag) = flowja(idiag) + rate
    end do

est_cq_sto()

subroutine gweestmodule::est_cq_sto	(	class(gweesttype)	this,
		integer(i4b), intent(in)	nodes,
		real(dp), dimension(nodes), intent(in)	cnew,
		real(dp), dimension(nodes), intent(in)	cold,
		real(dp), dimension(:), intent(inout), contiguous	flowja
	)

Method to calculate storage terms for the package.

Parameters

	this	GweEstType object
[in]	nodes	number of nodes
[in]	cnew	temperature at end of this time step
[in]	cold	temperature at end of last time step
[in,out]	flowja	flow between two connected control volumes

Definition at line 374 of file gwe-est.f90.

    ! -- modules
    use tdismodule, only: delt
    ! -- dummy
    class(GweEstType) :: this !< GweEstType object
    integer(I4B), intent(in) :: nodes !< number of nodes
    real(DP), intent(in), dimension(nodes) :: cnew !< temperature at end of this time step
    real(DP), intent(in), dimension(nodes) :: cold !< temperature at end of last time step
    real(DP), dimension(:), contiguous, intent(inout) :: flowja !< flow between two connected control volumes
    ! -- local
    integer(I4B) :: n
    integer(I4B) :: idiag
    real(DP) :: rate
    real(DP) :: tled
    real(DP) :: vwatnew, vwatold, vcell, vsolid, term
    real(DP) :: hhcof, rrhs
    !
    ! -- initialize
    tled = done / delt
    !
    ! -- Calculate storage change
    do n = 1, nodes
      this%ratesto(n) = dzero
      !
      ! -- skip if transport inactive
      if (this%ibound(n) <= 0) cycle
      !
      ! -- calculate new and old water volumes and solid volume
      vcell = this%dis%area(n) * (this%dis%top(n) - this%dis%bot(n))
      vwatnew = vcell * this%fmi%gwfsat(n) * this%porosity(n)
      vwatold = vwatnew
      if (this%fmi%igwfstrgss /= 0) vwatold = vwatold + this%fmi%gwfstrgss(n) &
                                              * delt
      if (this%fmi%igwfstrgsy /= 0) vwatold = vwatold + this%fmi%gwfstrgsy(n) &
                                              * delt
      vsolid = vcell * (done - this%porosity(n))
      !
      ! -- calculate rate
      term = (this%rhos(n) * this%cps(n)) * vsolid
      hhcof = -(this%eqnsclfac * vwatnew + term) * tled
      rrhs = -(this%eqnsclfac * vwatold + term) * tled * cold(n)
      rate = hhcof * cnew(n) - rrhs
      this%ratesto(n) = rate
      idiag = this%dis%con%ia(n)
      flowja(idiag) = flowja(idiag) + rate
    end do

est_cr()

subroutine, public gweestmodule::est_cr	(	type(gweesttype), pointer	estobj,
		character(len=*), intent(in)	name_model,
		character(len=*), intent(in)	input_mempath,
		integer(i4b), intent(in)	inunit,
		integer(i4b), intent(in)	iout,
		type(tspfmitype), intent(in), target	fmi,
		real(dp), intent(in), pointer	eqnsclfac,
		type(gweinputdatatype), intent(in), target	gwecommon
	)

Create a new EST package

Parameters

	estobj	unallocated new est object to create
[in]	name_model	name of the model
[in]	input_mempath	input mempath of package
[in]	inunit	unit number of WEL package input file
[in]	iout	unit number of model listing file
[in]	fmi	fmi package for this GWE model
[in]	eqnsclfac	governing equation scale factor
[in]	gwecommon	shared data container for use by multiple GWE packages

Definition at line 103 of file gwe-est.f90.

    ! -- dummy
    type(GweEstType), pointer :: estobj !< unallocated new est object to create
    character(len=*), intent(in) :: name_model !< name of the model
    character(len=*), intent(in) :: input_mempath !< input mempath of package
    integer(I4B), intent(in) :: inunit !< unit number of WEL package input file
    integer(I4B), intent(in) :: iout !< unit number of model listing file
    type(TspFmiType), intent(in), target :: fmi !< fmi package for this GWE model
    real(DP), intent(in), pointer :: eqnsclfac !< governing equation scale factor
    type(GweInputDataType), intent(in), target :: gwecommon !< shared data container for use by multiple GWE packages
    !
    ! -- Create the object
    allocate (estobj)
    !
    ! -- create name and memory path
    call estobj%set_names(1, name_model, 'EST', 'EST', input_mempath)
    !
    ! -- Allocate scalars
    call estobj%allocate_scalars()
    !
    ! -- Set variables
    estobj%inunit = inunit
    estobj%iout = iout
    estobj%fmi => fmi
    estobj%eqnsclfac => eqnsclfac
    estobj%gwecommon => gwecommon

Here is the caller graph for this function:

est_da()

subroutine gweestmodule::est_da

(

class(gweesttype)

this

)

Method to deallocate memory for the package.

Parameters

this	GweEstType object

Definition at line 616 of file gwe-est.f90.

    ! -- modules
    use memorymanagermodule, only: mem_deallocate
    ! -- dummy
    class(GweEstType) :: this !< GweEstType object
    !
    ! -- Deallocate arrays if package was active
    if (this%inunit > 0) then
      call mem_deallocate(this%porosity)
      call mem_deallocate(this%ratesto)
      call mem_deallocate(this%idcy)
      call mem_deallocate(this%idcysrc)
      call mem_deallocate(this%decay_water)
      call mem_deallocate(this%decay_solid)
      call mem_deallocate(this%ratedcyw)
      call mem_deallocate(this%ratedcys)
      call mem_deallocate(this%decaylastw)
      call mem_deallocate(this%decaylasts)
      call mem_deallocate(this%cpw)
      call mem_deallocate(this%cps)
      call mem_deallocate(this%rhow)
      call mem_deallocate(this%rhos)
      call mem_deallocate(this%latheatvap)
      this%ibound => null()
      this%fmi => null()
    end if
    !
    ! -- deallocate parent
    call this%NumericalPackageType%da()

est_fc()

subroutine gweestmodule::est_fc	(	class(gweesttype)	this,
		integer, intent(in)	nodes,
		real(dp), dimension(nodes), intent(in)	cold,
		integer(i4b), intent(in)	nja,
		class(matrixbasetype), pointer	matrix_sln,
		integer(i4b), dimension(nja), intent(in)	idxglo,
		real(dp), dimension(nodes), intent(in)	cnew,
		real(dp), dimension(nodes), intent(inout)	rhs,
		integer(i4b), intent(in)	kiter
	)

Method to calculate and fill coefficients for the package.

Parameters

	this	GweEstType object
[in]	nodes	number of nodes
[in]	cold	temperature at end of last time step
[in]	nja	number of GWE connections
	matrix_sln	solution matrix
[in]	idxglo	mapping vector for model (local) to solution (global)
[in,out]	rhs	right-hand side vector for model
[in]	cnew	temperature at end of this time step
[in]	kiter	solution outer iteration number

Definition at line 173 of file gwe-est.f90.

    ! -- dummy
    class(GweEstType) :: this !< GweEstType object
    integer, intent(in) :: nodes !< number of nodes
    real(DP), intent(in), dimension(nodes) :: cold !< temperature at end of last time step
    integer(I4B), intent(in) :: nja !< number of GWE connections
    class(MatrixBaseType), pointer :: matrix_sln !< solution matrix
    integer(I4B), intent(in), dimension(nja) :: idxglo !< mapping vector for model (local) to solution (global)
    real(DP), intent(inout), dimension(nodes) :: rhs !< right-hand side vector for model
    real(DP), intent(in), dimension(nodes) :: cnew !< temperature at end of this time step
    integer(I4B), intent(in) :: kiter !< solution outer iteration number
    !
    ! -- storage contribution
    call this%est_fc_sto(nodes, cold, nja, matrix_sln, idxglo, rhs)
    !
    ! -- decay contribution
    if (this%idcy == decay_zero_order) then
      call this%est_fc_dcy_water(nodes, cold, cnew, nja, matrix_sln, idxglo, &
                                 rhs, kiter)
      call this%est_fc_dcy_solid(nodes, cold, nja, matrix_sln, idxglo, rhs, &
                                 cnew, kiter)
    end if

est_fc_dcy_solid()

subroutine gweestmodule::est_fc_dcy_solid	(	class(gweesttype)	this,
		integer, intent(in)	nodes,
		real(dp), dimension(nodes), intent(in)	cold,
		integer(i4b), intent(in)	nja,
		class(matrixbasetype), pointer	matrix_sln,
		integer(i4b), dimension(nja), intent(in)	idxglo,
		real(dp), dimension(nodes), intent(inout)	rhs,
		real(dp), dimension(nodes), intent(in)	cnew,
		integer(i4b), intent(in)	kiter
	)

Method to calculate and fill energy decay coefficients for the solid phase.

Parameters

	this	GwtMstType object
[in]	nodes	number of nodes
[in]	cold	temperature at end of last time step
[in]	nja	number of GWE connections
	matrix_sln	solution coefficient matrix
[in]	idxglo	mapping vector for model (local) to solution (global)
[in,out]	rhs	right-hand side vector for model
[in]	cnew	temperature at end of this time step
[in]	kiter	solution outer iteration number

Definition at line 298 of file gwe-est.f90.

    ! -- dummy
    class(GweEstType) :: this !< GwtMstType object
    integer, intent(in) :: nodes !< number of nodes
    real(DP), intent(in), dimension(nodes) :: cold !< temperature at end of last time step
    integer(I4B), intent(in) :: nja !< number of GWE connections
    class(MatrixBaseType), pointer :: matrix_sln !< solution coefficient matrix
    integer(I4B), intent(in), dimension(nja) :: idxglo !< mapping vector for model (local) to solution (global)
    real(DP), intent(inout), dimension(nodes) :: rhs !< right-hand side vector for model
    real(DP), intent(in), dimension(nodes) :: cnew !< temperature at end of this time step
    integer(I4B), intent(in) :: kiter !< solution outer iteration number
    ! -- local
    integer(I4B) :: n
    real(DP) :: rrhs
    real(DP) :: vcell
    real(DP) :: decay_rate
    !
    ! -- loop through and calculate sorption contribution to hcof and rhs
    do n = 1, this%dis%nodes
      !
      ! -- skip if transport inactive
      if (this%ibound(n) <= 0) cycle
      !
      ! -- set variables
      rrhs = dzero
      vcell = this%dis%area(n) * (this%dis%top(n) - this%dis%bot(n))
      !
      ! -- account for zero-order decay rate terms in rhs
      if (this%idcy == decay_zero_order .and. (this%idcysrc == decay_solid .or. &
                                               this%idcysrc == decay_both)) then
        !
        ! -- negative temps are currently not checked for or prevented since a
        !    user can define a temperature scale of their own choosing.  if
        !    negative temps result from the specified zero-order decay value,
        !    it is up to the user to decide if the calculated temperatures are
        !    acceptable
        decay_rate = this%decay_solid(n)
        this%decaylasts(n) = decay_rate
        rrhs = decay_rate * vcell * (1 - this%porosity(n)) * this%rhos(n)
        rhs(n) = rhs(n) + rrhs
      end if
    end do

est_fc_dcy_water()

subroutine gweestmodule::est_fc_dcy_water	(	class(gweesttype)	this,
		integer, intent(in)	nodes,
		real(dp), dimension(nodes), intent(in)	cold,
		real(dp), dimension(nodes), intent(in)	cnew,
		integer(i4b), intent(in)	nja,
		class(matrixbasetype), pointer	matrix_sln,
		integer(i4b), dimension(nja), intent(in)	idxglo,
		real(dp), dimension(nodes), intent(inout)	rhs,
		integer(i4b), intent(in)	kiter
	)

Method to calculate and fill decay coefficients for the package.

Parameters

	this	GweEstType object
[in]	nodes	number of nodes
[in]	cold	temperature at end of last time step
[in]	cnew	temperature at end of this time step
[in]	nja	number of GWE connections
	matrix_sln	solution coefficient matrix
[in]	idxglo	mapping vector for model (local) to solution (global)
[in,out]	rhs	right-hand side vector for model
[in]	kiter	solution outer iteration number

Definition at line 250 of file gwe-est.f90.

    ! -- dummy
    class(GweEstType) :: this !< GweEstType object
    integer, intent(in) :: nodes !< number of nodes
    real(DP), intent(in), dimension(nodes) :: cold !< temperature at end of last time step
    real(DP), intent(in), dimension(nodes) :: cnew !< temperature at end of this time step
    integer(I4B), intent(in) :: nja !< number of GWE connections
    class(MatrixBaseType), pointer :: matrix_sln !< solution coefficient matrix
    integer(I4B), intent(in), dimension(nja) :: idxglo !< mapping vector for model (local) to solution (global)
    real(DP), intent(inout), dimension(nodes) :: rhs !< right-hand side vector for model
    integer(I4B), intent(in) :: kiter !< solution outer iteration number
    ! -- local
    integer(I4B) :: n
    real(DP) :: rrhs
    real(DP) :: swtpdt
    real(DP) :: vcell
    real(DP) :: decay_rate
    !
    ! -- loop through and calculate decay contribution to hcof and rhs
    do n = 1, this%dis%nodes
      !
      ! -- skip if transport inactive
      if (this%ibound(n) <= 0) cycle
      !
      ! -- calculate new and old water volumes
      vcell = this%dis%area(n) * (this%dis%top(n) - this%dis%bot(n))
      swtpdt = this%fmi%gwfsat(n)
      !
      ! -- add zero-order decay rate terms to accumulators
      if (this%idcy == decay_zero_order .and. (this%idcysrc == decay_water .or. &
                                               this%idcysrc == decay_both)) then
        !
        decay_rate = this%decay_water(n)
        ! -- This term does get divided by eqnsclfac for fc purposes because it
        !    should start out being a rate of energy
        this%decaylastw(n) = decay_rate
        rrhs = decay_rate * vcell * swtpdt * this%porosity(n)
        rhs(n) = rhs(n) + rrhs
      end if
      !
    end do

est_fc_sto()

subroutine gweestmodule::est_fc_sto	(	class(gweesttype)	this,
		integer, intent(in)	nodes,
		real(dp), dimension(nodes), intent(in)	cold,
		integer(i4b), intent(in)	nja,
		class(matrixbasetype), pointer	matrix_sln,
		integer(i4b), dimension(nja), intent(in)	idxglo,
		real(dp), dimension(nodes), intent(inout)	rhs
	)

Method to calculate and fill storage coefficients for the package.

Parameters

	this	GweEstType object
[in]	nodes	number of nodes
[in]	cold	temperature at end of last time step
[in]	nja	number of GWE connections
	matrix_sln	solution coefficient matrix
[in]	idxglo	mapping vector for model (local) to solution (global)
[in,out]	rhs	right-hand side vector for model

Definition at line 202 of file gwe-est.f90.

    ! -- modules
    use tdismodule, only: delt
    ! -- dummy
    class(GweEstType) :: this !< GweEstType object
    integer, intent(in) :: nodes !< number of nodes
    real(DP), intent(in), dimension(nodes) :: cold !< temperature at end of last time step
    integer(I4B), intent(in) :: nja !< number of GWE connections
    class(MatrixBaseType), pointer :: matrix_sln !< solution coefficient matrix
    integer(I4B), intent(in), dimension(nja) :: idxglo !< mapping vector for model (local) to solution (global)
    real(DP), intent(inout), dimension(nodes) :: rhs !< right-hand side vector for model
    ! -- local
    integer(I4B) :: n, idiag
    real(DP) :: tled
    real(DP) :: hhcof, rrhs
    real(DP) :: vnew, vold, vcell, vsolid, term
    !
    ! -- set variables
    tled = done / delt
    !
    ! -- loop through and calculate storage contribution to hcof and rhs
    do n = 1, this%dis%nodes
      !
      ! -- skip if transport inactive
      if (this%ibound(n) <= 0) cycle
      !
      ! -- calculate new and old water volumes and solid volume
      vcell = this%dis%area(n) * (this%dis%top(n) - this%dis%bot(n))
      vnew = vcell * this%fmi%gwfsat(n) * this%porosity(n)
      vold = vnew
      if (this%fmi%igwfstrgss /= 0) vold = vold + this%fmi%gwfstrgss(n) * delt
      if (this%fmi%igwfstrgsy /= 0) vold = vold + this%fmi%gwfstrgsy(n) * delt
      vsolid = vcell * (done - this%porosity(n))
      !
      ! -- add terms to diagonal and rhs accumulators
      term = (this%rhos(n) * this%cps(n)) * vsolid
      hhcof = -(this%eqnsclfac * vnew + term) * tled
      rrhs = -(this%eqnsclfac * vold + term) * tled * cold(n)
      idiag = this%dis%con%ia(n)
      call matrix_sln%add_value_pos(idxglo(idiag), hhcof)
      rhs(n) = rhs(n) + rrhs
    end do

est_ot_flow()

subroutine gweestmodule::est_ot_flow	(	class(gweesttype)	this,
		integer(i4b), intent(in)	icbcfl,
		integer(i4b), intent(in)	icbcun
	)

Method to output terms for the package.

Parameters

	this	GweEstType object
[in]	icbcfl	flag and unit number for cell-by-cell output
[in]	icbcun	flag indication if cell-by-cell data should be saved

Definition at line 563 of file gwe-est.f90.

    ! -- dummy
    class(GweEstType) :: this !< GweEstType object
    integer(I4B), intent(in) :: icbcfl !< flag and unit number for cell-by-cell output
    integer(I4B), intent(in) :: icbcun !< flag indication if cell-by-cell data should be saved
    ! -- local
    integer(I4B) :: ibinun
    integer(I4B) :: iprint, nvaluesp, nwidthp
    character(len=1) :: cdatafmp = ' ', editdesc = ' '
    real(DP) :: dinact
    !
    ! -- Set unit number for binary output
    if (this%ipakcb < 0) then
      ibinun = icbcun
    elseif (this%ipakcb == 0) then
      ibinun = 0
    else
      ibinun = this%ipakcb
    end if
    if (icbcfl == 0) ibinun = 0
    !
    ! -- Record the storage rate if requested
    if (ibinun /= 0) then
      iprint = 0
      dinact = dzero
      !
      ! -- sto
      call this%dis%record_array(this%ratesto, this%iout, iprint, -ibinun, &
                                 budtxt(1), cdatafmp, nvaluesp, &
                                 nwidthp, editdesc, dinact)
      !
      ! -- dcy
      if (this%idcy == decay_zero_order) then
        if (this%idcysrc == decay_water .or. this%idcysrc == decay_both) then
          ! -- aqueous phase
          call this%dis%record_array(this%ratedcyw, this%iout, iprint, &
                                     -ibinun, budtxt(2), cdatafmp, nvaluesp, &
                                     nwidthp, editdesc, dinact)
        end if
        if (this%idcysrc == decay_solid .or. this%idcysrc == decay_both) then
          ! -- solid phase
          call this%dis%record_array(this%ratedcys, this%iout, iprint, &
                                     -ibinun, budtxt(3), cdatafmp, nvaluesp, &
                                     nwidthp, editdesc, dinact)
        end if
      end if
    end if

log_options()

subroutine gweestmodule::log_options	(	class(gweesttype)	this,
		type(gweestparamfoundtype), intent(in)	found
	)

Definition at line 793 of file gwe-est.f90.

    ! -- modules
    use gweestinputmodule, only: gweestparamfoundtype
    ! -- dummy
    class(GweEstType) :: this
    ! -- local
    type(GweEstParamFoundType), intent(in) :: found
    ! -- formats
    character(len=*), parameter :: fmtisvflow = &
            &"(4x,'CELL-BY-CELL FLOW INFORMATION WILL BE SAVED TO BINARY "// &
            &"FILE WHENEVER ICBCFL IS NOT ZERO.')"
    character(len=*), parameter :: fmtidcy2 = &
                                   "(4x,'ZERO-ORDER DECAY IN THE AQUEOUS "// &
                                   &"PHASE IS ACTIVE. ')"
    character(len=*), parameter :: fmtidcy3 = &
                                   "(4x,'ZERO-ORDER DECAY IN THE SOLID "// &
                                   &"PHASE IS ACTIVE. ')"

    write (this%iout, '(1x,a)') 'PROCESSING ENERGY STORAGE AND TRANSFER OPTIONS'
    if (found%save_flows) write (this%iout, fmtisvflow)
    if (found%ord0_decay_water) then
      write (this%iout, fmtidcy2)
    else if (found%ord0_decay_solid) then
      write (this%iout, fmtidcy3)
    end if
    if (found%cpw) then
      write (this%iout, '(4x,a,1pg15.6)') &
        'Heat capacity of the water has been set to: ', &
        this%cpw
    end if
    if (found%rhow) then
      write (this%iout, '(4x,a,1pg15.6)') &
        'Density of the water has been set to: ', &
        this%rhow
    end if
    if (found%latheatvap) then
      write (this%iout, '(4x,a,1pg15.6)') &
        'Latent heat of vaporization of the water has been set to: ', &
        this%latheatvap
    end if
    write (this%iout, '(1x,a,/)') &
      'END PROCESSING ENERGY STORAGE AND TRANSFER OPTIONS'

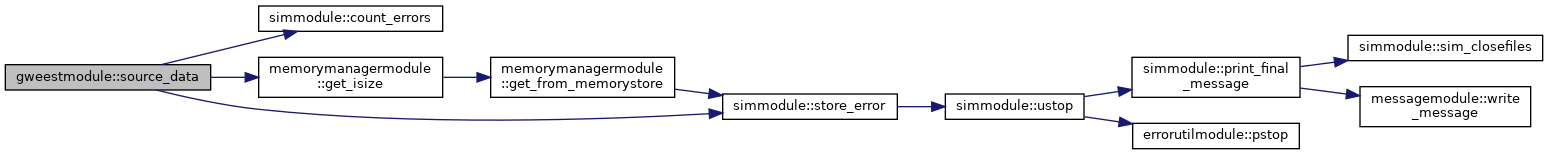

source_data()

subroutine gweestmodule::source_data

(

class(gweesttype)

this

)

Definition at line 839 of file gwe-est.f90.

    ! -- modules
    use simmodule, only: count_errors, store_error
    use memorymanagermodule, only: mem_reallocate, get_isize
    use memorymanagerextmodule, only: mem_set_value
    use constantsmodule, only: lenmempath, linelength
    use gweestinputmodule, only: gweestparamfoundtype
    ! -- dummy
    class(GweEstType) :: this
    ! -- locals
    character(len=LINELENGTH) :: errmsg
    type(GweEstParamFoundType) :: found
    integer(I4B), dimension(:), pointer, contiguous :: map
    integer(I4B) :: asize
    ! -- formats

    ! -- set map
    map => null()
    if (this%dis%nodes < this%dis%nodesuser) map => this%dis%nodeuser

    ! -- reallocate
    if (this%idcy == decay_off) then
      call get_isize('DECAY_WATER', this%input_mempath, asize)
      if (asize > 0) &
        call mem_reallocate(this%decay_water, this%dis%nodes, 'DECAY_WATER', &
                            trim(this%memoryPath))
      call get_isize('DECAY_SOLID', this%input_mempath, asize)
      if (asize > 0) &
        call mem_reallocate(this%decay_solid, this%dis%nodes, 'DECAY_SOLID', &
                            trim(this%memoryPath))
    end if

    ! -- update defaults with idm sourced values
    call mem_set_value(this%porosity, 'POROSITY', this%input_mempath, map, &
                       found%porosity)
    call mem_set_value(this%decay_water, 'DECAY_WATER', this%input_mempath, map, &
                       found%decay_water)
    call mem_set_value(this%decay_solid, 'DECAY_SOLID', this%input_mempath, map, &
                       found%decay_solid)
    call mem_set_value(this%cps, 'CPS', this%input_mempath, map, found%cps)
    call mem_set_value(this%rhos, 'RHOS', this%input_mempath, map, found%rhos)

    ! -- Check for required params
    if (.not. found%porosity) then
      write (errmsg, '(a)') 'Porosity not specified in griddata block.'
      call store_error(errmsg)
    end if
    if (.not. found%cps) then
      write (errmsg, '(a)') 'HEAT_CAPACITY_SOLID not specified in griddata block.'
      call store_error(errmsg)
    end if
    if (.not. found%rhos) then
      write (errmsg, '(a)') 'DENSITY_SOLID not specified in griddata block.'
      call store_error(errmsg)
    end if

    ! -- log griddata
    write (this%iout, '(1x,a)') 'PROCESSING ENERGY STORAGE AND TRANSFER GRIDDATA'
    if (found%porosity) &
      write (this%iout, '(4x,a)') 'POROSITY set from input file'
    if (found%decay_water) &
      write (this%iout, '(4x,a)') 'DECAY_WATER set from input file'
    if (found%decay_solid) &
      write (this%iout, '(4x,a)') 'DECAY_SOLID set from input file'
    if (found%cps) &
      write (this%iout, '(4x,a)') 'HEAT_CAPACITY_SOLID set from input file'
    if (found%rhos) &
      write (this%iout, '(4x,a)') 'DENSITY_SOLID set from input file'
    write (this%iout, '(1x,a)') &
      'END PROCESSING ENERGY STORAGE AND TRANSFER GRIDDATA'

    ! -- Check for required decay/production rate coefficients
    if (this%idcy == decay_zero_order) then
      if (.not. (found%decay_water .or. found%decay_solid)) then
        write (errmsg, '(a)') 'Zero order decay in either the aqueous &
          &or solid phase is active but the corresponding zero-order &
          &rate coefficient is not specified. Either DECAY_WATER or &
          &DECAY_SOLID must be specified in the griddata block.'
        call store_error(errmsg)
      end if
    else
      if (found%decay_water) then
        write (warnmsg, '(a)') 'Zero order decay in the aqueous phase has &
          &not been activated but DECAY_WATER has been specified. Zero &
          &order decay in the aqueous phase will have no affect on &
          &simulation results.'
        call store_warning(warnmsg)
        write (this%iout, '(/1x,a)') 'WARNING: '//trim(warnmsg)
      else if (found%decay_solid) then
        write (warnmsg, '(a)') 'Zero order decay in the solid phase has not &
          &been activated but DECAY_SOLID has been specified.  Zero order &
          &decay in the solid phase will have no affect on simulation &
          &results.'
        call store_warning(warnmsg)
        write (this%iout, '(/1x,a)') 'WARNING: '//trim(warnmsg)
      end if
    end if

    ! -- terminate if errors
    if (count_errors() > 0) then
      call store_error_filename(this%input_fname)
    end if

Here is the call graph for this function:

source_options()

subroutine gweestmodule::source_options

(

class(gweesttype)

this

)

Definition at line 734 of file gwe-est.f90.

    ! -- modules
    use memorymanagerextmodule, only: mem_set_value
    use gweestinputmodule, only: gweestparamfoundtype
    ! -- dummy
    class(GweEstType) :: this
    ! -- locals
    type(GweEstParamFoundType) :: found
    !
    ! -- update defaults with idm sourced values
    call mem_set_value(this%ipakcb, 'SAVE_FLOWS', this%input_mempath, &
                       found%save_flows)
    call mem_set_value(this%idcy, 'ORD0_DECAY_WATER', this%input_mempath, &
                       found%ord0_decay_water)
    call mem_set_value(this%idcy, 'ORD0_DECAY_SOLID', this%input_mempath, &
                       found%ord0_decay_solid)
    call mem_set_value(this%cpw, 'CPW', this%input_mempath, &
                       found%cpw)
    call mem_set_value(this%rhow, 'RHOW', this%input_mempath, &
                       found%rhow)
    call mem_set_value(this%latheatvap, 'LATHEATVAP', this%input_mempath, &
                       found%latheatvap)

    ! -- update internal state
    if (found%save_flows) this%ipakcb = -1
    if (found%ord0_decay_water .and. &
        found%ord0_decay_solid) then
      this%idcy = decay_zero_order
      this%idcysrc = decay_both
    else if (found%ord0_decay_water) then
      this%idcy = decay_zero_order
      this%idcysrc = decay_water
    else if (found%ord0_decay_solid) then
      this%idcy = decay_zero_order
      this%idcysrc = decay_solid
    end if
    if (found%cpw) then
      if (this%cpw <= 0.0) then
        write (errmsg, '(a)') 'Specified value for the heat capacity of &
          &water must be greater than 0.0.'
        call store_error(errmsg)
        call store_error_filename(this%input_fname)
      end if
    end if
    if (found%rhow) then
      if (this%rhow <= 0.0) then
        write (errmsg, '(a)') 'Specified value for the density of &
          &water must be greater than 0.0.'
        call store_error(errmsg)
        call store_error_filename(this%input_fname)
      end if
    end if

    ! -- log options
    call this%log_options(found)

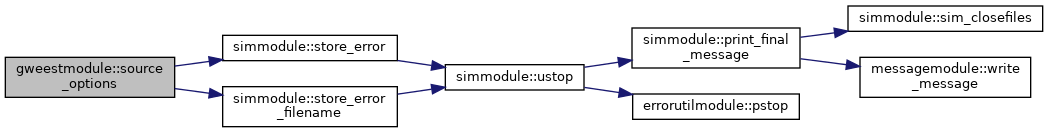

Here is the call graph for this function:

Variable Documentation

budtxt

character(len=lenbudtxt), dimension(nbditems) gweestmodule::budtxt

Definition at line 31 of file gwe-est.f90.

  character(len=LENBUDTXT), dimension(NBDITEMS) :: budtxt

nbditems

integer(i4b), parameter gweestmodule::nbditems = 3

Definition at line 30 of file gwe-est.f90.

  integer(I4B), parameter :: NBDITEMS = 3
